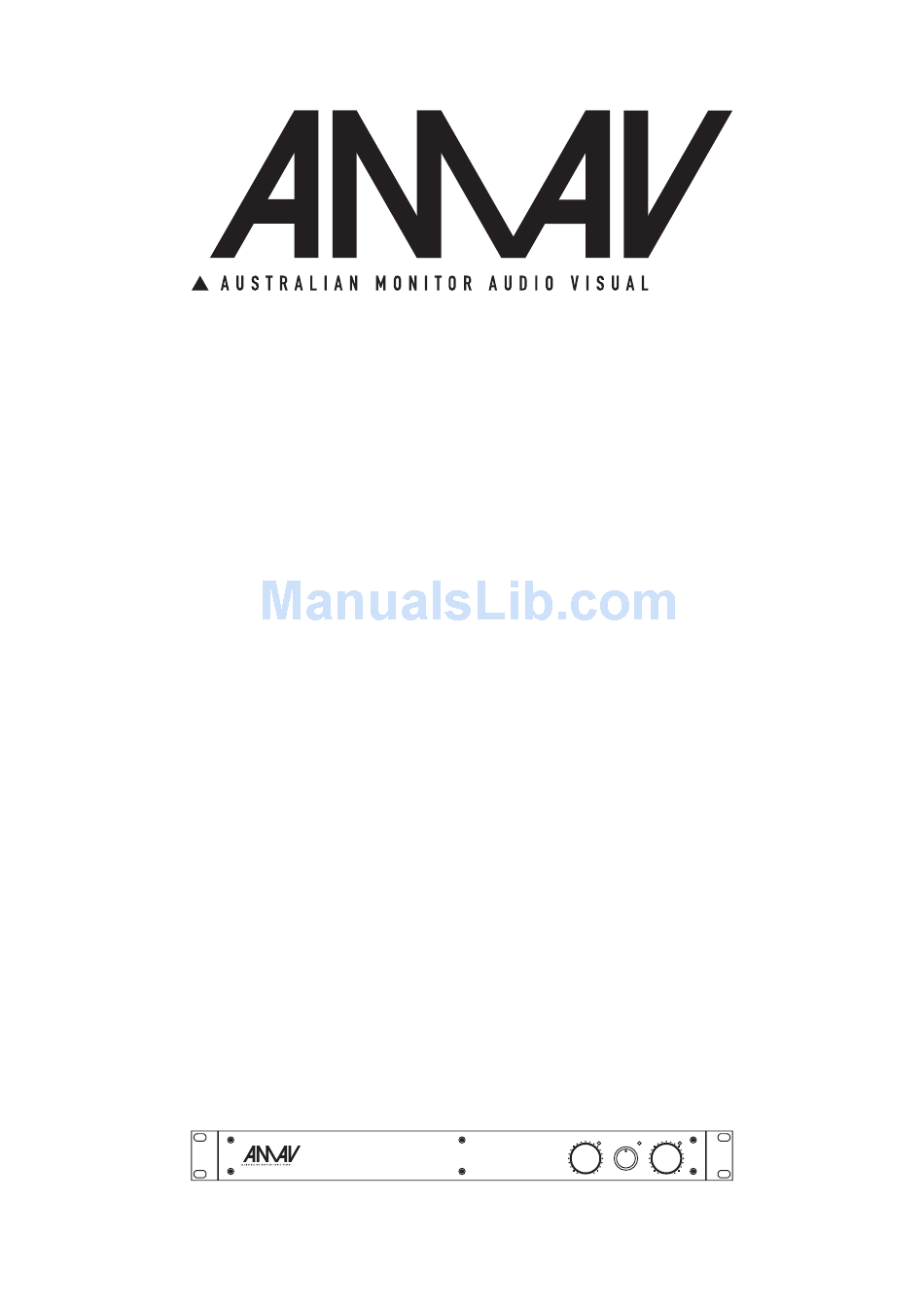

- Page 1 Installation Operation Manual & AV2.2P Dual Channel Audio Amplifier Status A Power Status B AV2.2P...
- Page 2 TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK. To prevent electric shock, match wide blade of plug to DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. wide slot, fully insert. AV2.2P...
-
Page 3: Table Of Contents
CONTENTS Section Page No. 1. Introduction 2. Front Panel 3. Back Panel 4. Installation 5. Operation 6 Maintenance 7. Dimensions 8. Block Diagram 9. Specifications AV2.2P... -
Page 4: Introduction

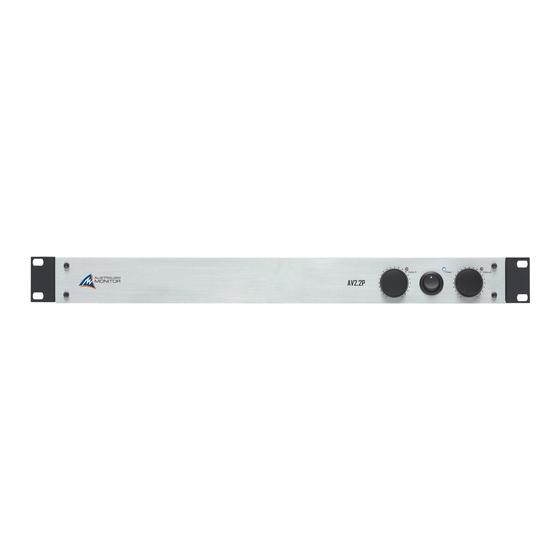

The AMAV AV2.2P is a 1 RU stereo power amplifier. Designed for the demanding commercial audio-visual market, the AV2.2P delivers 100 watts per channel at 4 ohms from an elegant, slim line package. The AV2.2P features front panel dual colour status LEDs, on board limiter, ground lift switch and the option of bridged operation delivering 200 watts at 8 ohms. -
Page 5: Front Panel
2. FRONT PANEL Status A Power Status B AV2.2P Status Indicators for Channels A and B These are dual colour LEDs which indicate the status of the output stage. They indicate three levels of operation: Below 1 watt( unlit ) -
Page 6: Back Panel
The Red post is used as Positive and the Black post is used as Negative. For bridge connection, use only the Red posts. 6. AC Power Inlet The amplifier is fitted with an IEC mains inlet connector. Please ensure that the mains lead is of an approved type and is of sufficient current carrying capacity. AV2.2P... -
Page 7: Installation
AV 2.2P amplifier. Cooling The AV2.2P uses a convection cooling system. The cabinet is designed to it allow the heat sink surface to cool efficiently. One rack space should be provided above and below the amplifier for maximum cooling. -
Page 8: Output Wiring
When terminating to the 4 mm binding post (banana jack) output connectors, banana plugs or bare wires can be used. The red terminal is positive and the black terminal is negative (ground). If running in BRIDGE mode, only the binding posts are used. AV2.2P... -
Page 9: Operation
Before making any connections to the AV2.2P, observe the following: Ensure the mains voltage supply matches the label on the rear panel of the amplifier (+/- 10%). Ensure that the power switch is OFF. - Page 10 The AV2.2P has a “Signal Ground Lift” switch which disconnects the input ground wiring from the amplifier. A substantial drop in hum and/or hum related noise can result from the judicious use of this switch.
- Page 11 This switch should only be used when the amplifier is operated from a balanced signal source. NOTE: Be wary of quasi-balanced outputs, these are often no more than floating unbalanced outputs. AV2.2P...
-
Page 12: Maintenance
Your AV2.2P needs minimal maintenance. No internal adjustments need to be made to the amplifier to maintain optimum performance. To provide years of reliable operation, we suggest a maintenance inspection be carried out every 12 months. -
Page 13: Dimensions
Dimensions 13 7. DIMENSIONS 482.0 mm 467.0 mm Status A Power Status B AV2.2P 442.0 mm BALANCED INPUT BALANCED INPUT BALANCED INPUT BALANCED INPUT OUTPUT - A OUTPUT - B CH-B CH-B CH-A CH-A BRIDGE STEREO: 2x 100W/4 OHMS/ CLASS 2 WIRING... -
Page 14: Block Diagram
14 Block Diagram 8. BLOCK DIAGRAM O/P (A) Current limit O/P (B) Current limit AV2.2P... -
Page 15: Specifications
Input Sensitivity 1 Vrms Input CMRR > 80dB S/N Ration : Linear > 97 dB A - Weighted > 100dB Crosstalk > 65 dB Dimension (H x W x D)mm 44 x 482 x 299.5 Shipping Weight 10 kg AV2.2P... - Page 16 AUSTRALIA and NEW ZEALAND www.australianmonitor.com.au Sydney Brisbane Perth (NSW & ACT Sales) (Qld Sales) (WA Sales) Private Bag 149, Silverwater NSW 1811 P.O. Box 871, Fortitude Valley QLD 4006 P.O. Box 404, North Perth WA 6906 149 Beaconsfield Street, Silverwater 42 Commerical Road, Fortitude Valley 299 Fitzgerald Street, West Perth WA 6005 NSW 2128...
