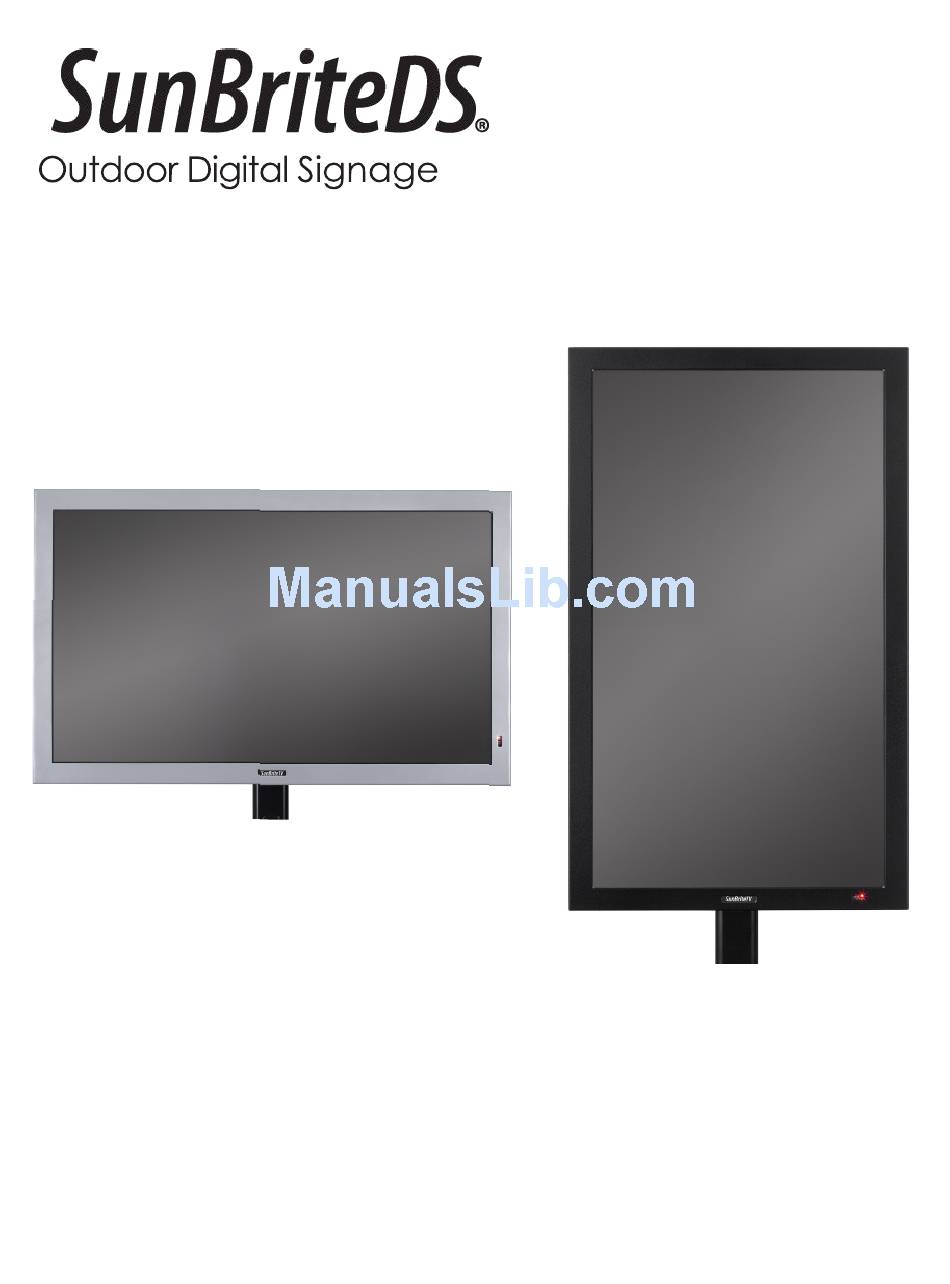

- Page 1 Supplemental TouchScreen Operator’s Manual Models DS-3214TSL DS-4717TSL DS-3214TSP DS-5517TSL DS-4717TSP DS-5517TSP Rev 141021 PN: Draft...
-
Page 2: Important Safety Instructions
SunBriteTV Model DS Series All-Weather Outdoor TouchScreen System Congratulations on the ownership of SunBriteDS® Touchscreen Display. With the integration of our all-weather outdoor technology and 3M™ MicroTouch Dispersive Signal Technology, SunBriteTV brings to the forefront a dynamic interactive digital signage touch screen solution for outdoor installations. - Page 3 Rear Panel Connections* The images and information below refer to the connectors and wires that are relevant to the TouchScreen Functions of the TV*. Refer to the TV Operator’s Manual for more information regarding Rear Panel Connections. USB Type B HDMI Cable Connectors* The cables the customer will need to supply are VGA or HDMI for video, and USB Type A to B for Touch Interface.*...
- Page 4 3M MicroTouch Dispersive Signal Technology Specifications* Refer to the TV Operator’s Manual for TV Specifications. System Performance Reliability Input Method Finger and stylus input Surface Obstructions Touch screen operation withstands surface contami- nants such as dirt, dust and grime Accuracy Reported coordinates are within 1.0% of true position -15°...
