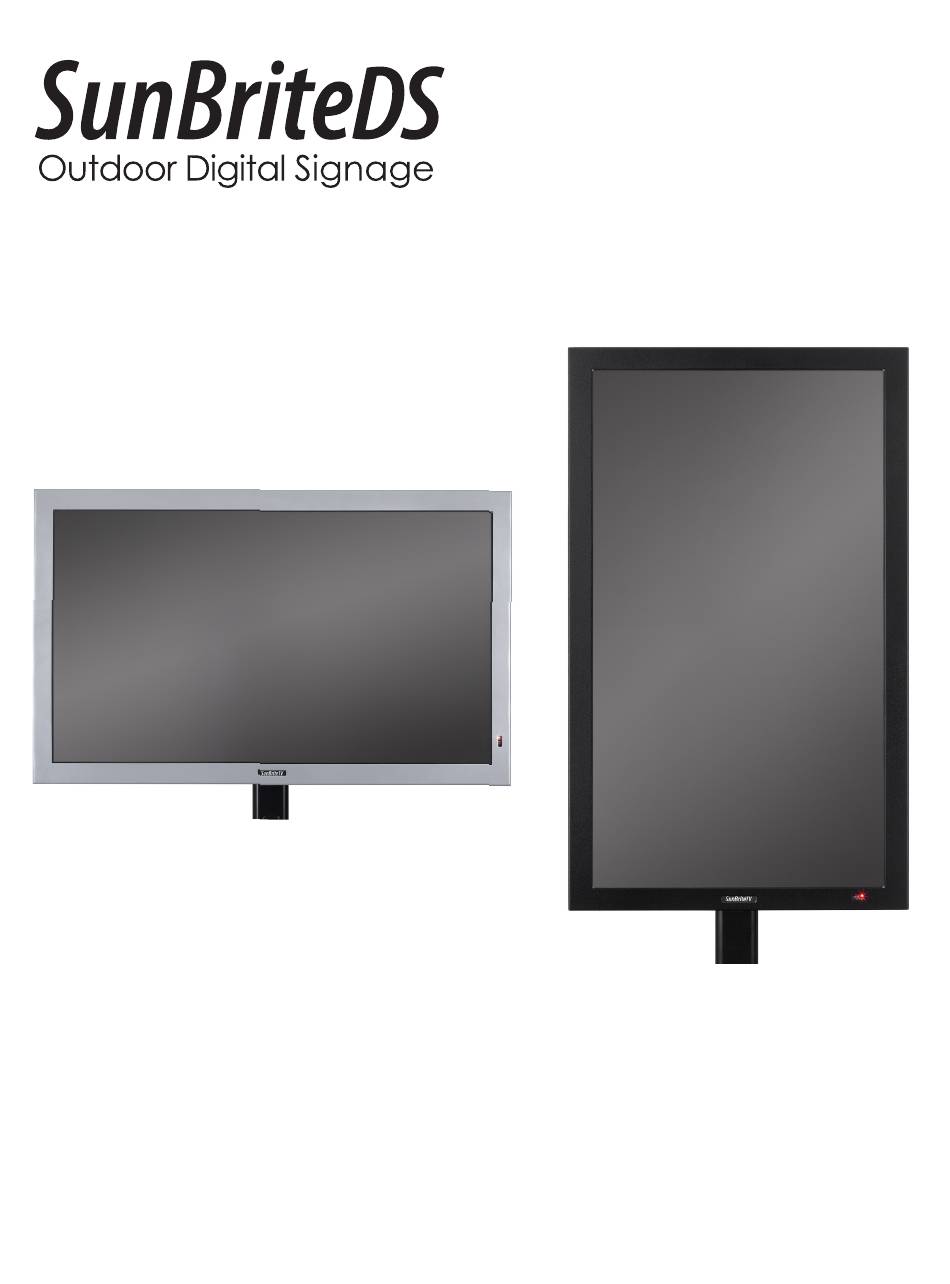

- Page 1 Supplemental TouchScreen Operator’s Manual Model DS-4217TSL Model DS-4217TSP Rev. 4217TSL/P-Rev 150327 PN: M42-001-TS...
- Page 2 SunBriteDS All-Weather Outdoor TouchScreen System Congratulations on the ownership of SunBriteTV® Model DS-4707TSL/P LCD TV. With the integration of our all-weather outdoor technology and 3M™ MicroTouch Dispersive Signal Technology, SunBriteTV brings to the forefront a dynamic interactive digital signage touch screen solution for outdoor installations.
- Page 3 Rear Panel Connections* The images and information below refer to the connectors and wires that are relevant to the TouchScreen Functions of the TV*. Refer to the TV Operator’s Manual for more information regarding Rear Panel Connections. USB Type B HDMI Cable Connectors* The cables the customer will need to supply are VGA or HDMI for video, and USB Type A to B for Touch Interface.*...
- Page 4 3M MicroTouch Dispersive Signal Technology Specifications* Refer to the TV Operator’s Manual for TV Specifications. System Performance Reliability Input Method Finger and stylus input Surface Obstructions Touch screen operation withstands surface contami- nants such as dirt, dust and grime Accuracy Reported coordinates are within 1.0% of true position -15°...
