10
Connecting Your Cyclone X
To connect your Cyclone X to your flash unit:
1

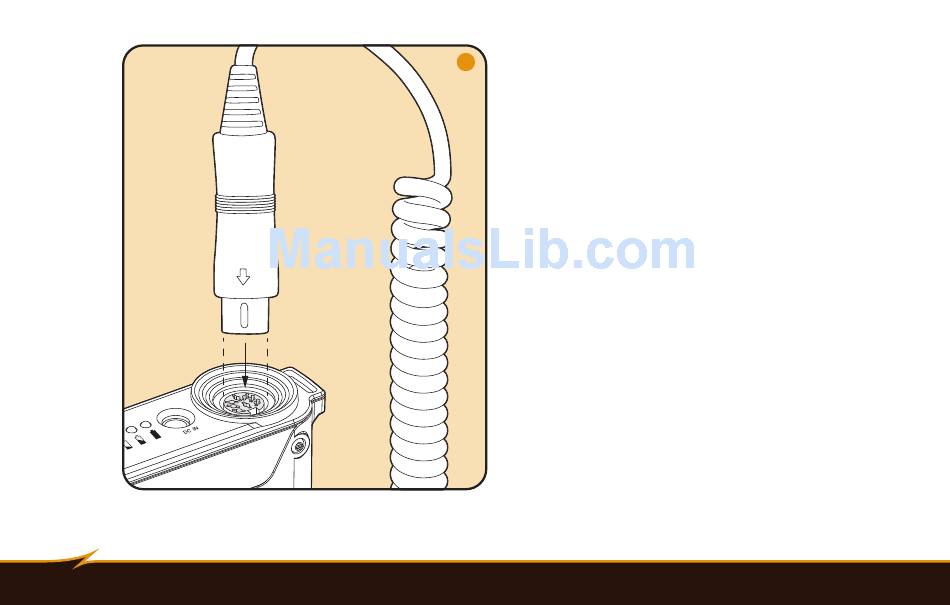

1. Plug the metal connector of the connection cable
firmly into the output socket of the Cyclone X.
2. Plug the other end of the connection cable
securely into the compatible power port on your
flash unit and turn on the flash.
3. Press the power button on the Cyclone X and wait
for the battery LEDs to light up.
4. The LED battery level indicators will glow red to
indicate the charge level of the battery when the
Cyclone X is connected to your flash unit.
To disconnect your Cyclone X from your flash unit:
1. Press and hold the power button until the battery
LEDs turn off.
2. Unplug the connection cable from the Power Pack.
3. Unplug the connection cable from the flash unit.
