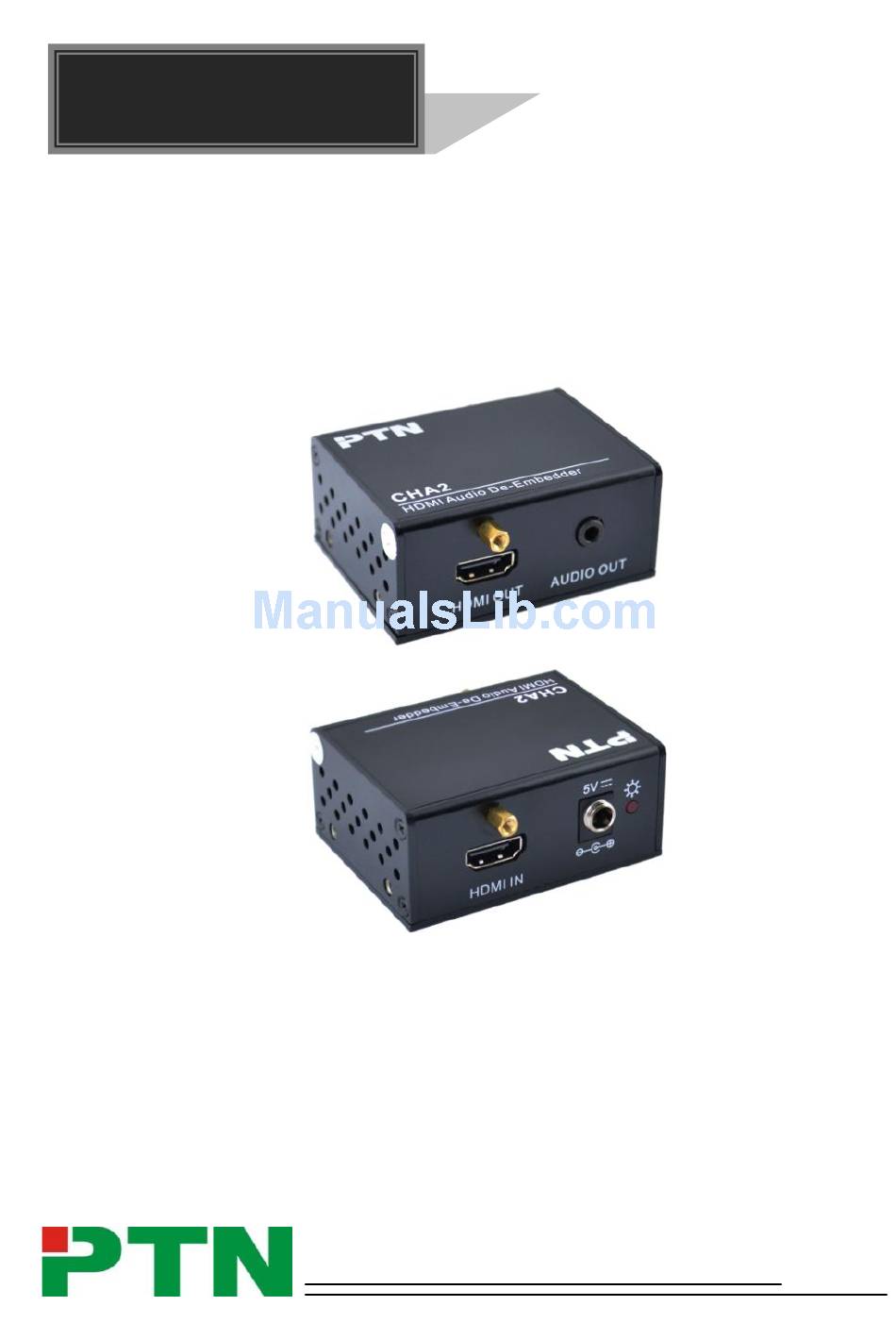

- Page 1 User Manual CHA2 PTN HDMI Audio Splitter/De-embedder 1x2 All Rights Reserved Version: CHA22013V1.3 www.PTN-electronics.com...
- Page 2 Please refer to the dealers for the latest details. This manual is copyright PTN Electronics Limited. All rights reserved. No part of this publication may be copied or reproduced without the prior written consent of PTN Electronics Limited.
-
Page 3: Table Of Contents
Introduction ......................1 1.1. Introduction to CHA2 ................... 1 1.2. Features ...................... 1 1.3. Package Contents ..................1 Product Appearance of CHA2 ................1 System Connection ....................2 3.1. Usage Precautions ..................2 3.2. System Diagram ..................2 3.3. Connection Procedure ................3 3.4. -
Page 4: Introduction
HDMI Audio Splitter/De-embedder 1x2 1. Introduction 1.1. Introduction to CHA2 CHA2 is a high-quality HDMI audio splitter/de-embedder, with 1 HDMI and 1 split stereo audio output, HDCP compliant and HDTV compatible. The antistatic case design of CHA2 provides good protection for stable performance, and its transmission resolution ups to 1920*1200@60Hz. -
Page 5: System Connection
1) System should be installed in a clean environment and has a prop temperature and humidity. 2) All of the power switches, plugs, sockets and power cords should be insulated and safety. 3) All devices should be connected before power on. 3.2. System Diagram PTN Electronics Limited www.PTN-electronics.com... -
Page 6: Connection Procedure
HDMI Audio Splitter/De-embedder 1x2 3.3. Connection Procedure 1) Connect HDMI IN port of CHA2 with HDMI source device, such as a DVD player. 2) Connect HDMI OUT port of CHA2 with display device, such as an HDTV. 3) Connect AUDIO OUT port of CHA2 with a speaker or earphone etc. -
Page 7: Product Assortment
2x20Watt@4Ohm power as default output power. Bridge connection to double the output power at 1x40Watt@8Ohm. 48V phantom power to support condenser microphone. MIC port can support balance/unbalance signal, suppress the external noise effectively. PTN Electronics Limited www.PTN-electronics.com... -
Page 8: Specification
>75dB@20Hz ~ 1%@1KHz, Channel THD + Noise 20KHz 0.3%@20KHz Separation General 100VAC ~ 240VAC, Power Power Supply 50/60Hz Consumption Temperature -20 ~ +70℃ Humidity 10% ~ 90% Case W69 x H28 x D52.5 Product 0.1Kg Dimension Weight PTN Electronics Limited www.PTN-electronics.com... -
Page 9: Panel Drawing
Maybe the video cables are in bad quality. 4) If the static becomes stronger when connecting the audio or video connectors, it probably due to bad grounding, please check the grounding and make sure it connected well, otherwise it would damage the converter. PTN Electronics Limited www.PTN-electronics.com... -
Page 10: Safety Operation Guide
DO NOT repair it on your own, in case of accident or increasing the damage of the equipment. 7) DO NOT splash any chemistry substance or liquid in the equipment or around. PTN Electronics Limited www.PTN-electronics.com... -
Page 11: After-Sales Service
HDMI Audio Splitter/De-embedder 1x2 9. After-sales Service 1) If there appear some problems when running CHA2, please check and deal with the problems reference to this user manual. Any transport costs are borne by the users during the warranty. 2) You can email to our after-sales department or make a call, please tell us the following information about your cases. - Page 12 PTN Electronics Limited Tel: +86-755-2846 1819 Fax: +86-755-8471 7796 Email: info@PTN-electronics.com Website: www.PTN-electronics.com...
