Summary of Contents for PTN TSC6 Series

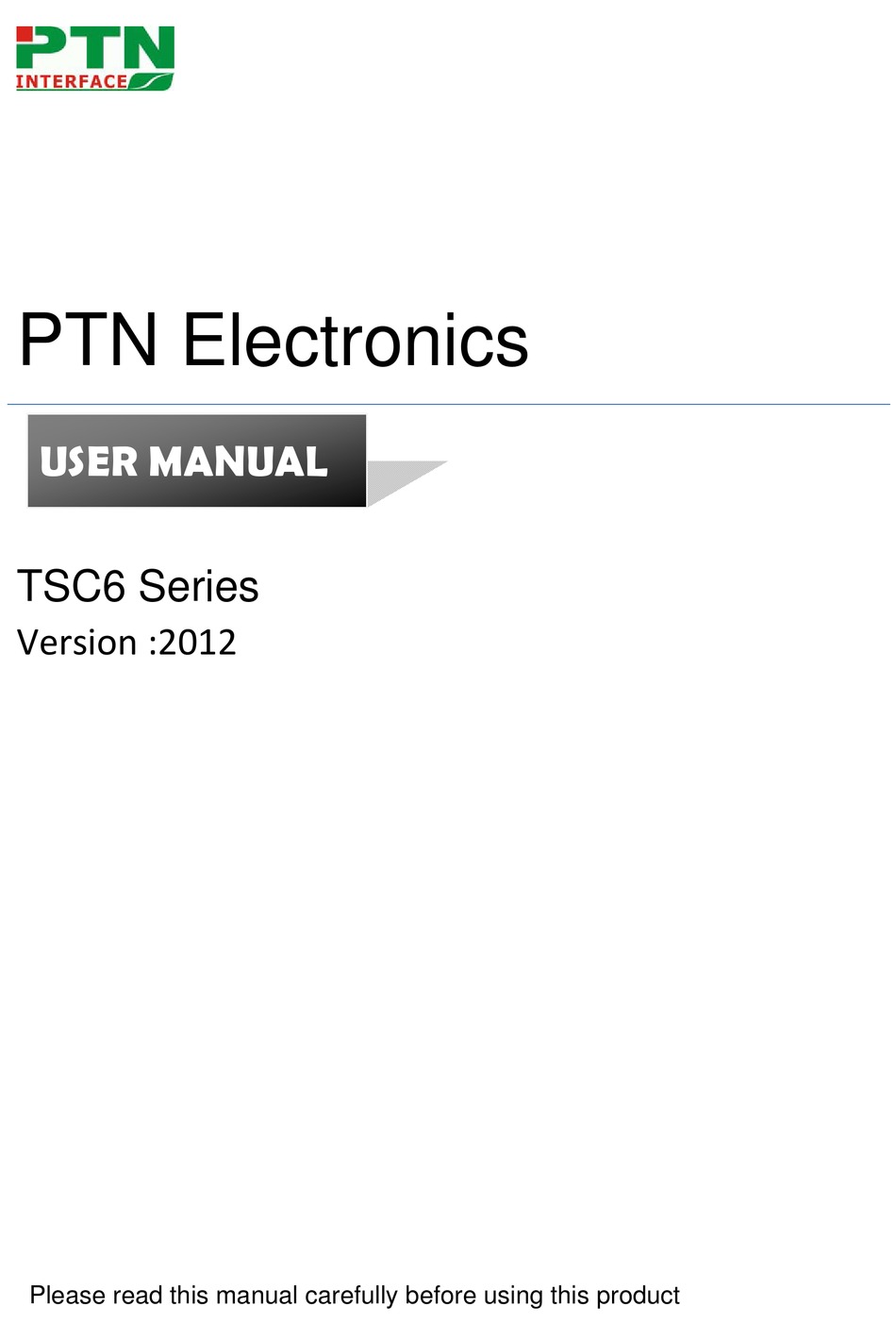

- Page 1 PTN Electronics USER MANUAL TSC6 Series Version :2012 Please read this manual carefully before using this product ...
- Page 2 Notice： Connect only good quality connection cables, thus avoiding interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables) Attention away from moisture, excessive sunlight and dust PTN Electronics Limited www.PTN-interface.com...
- Page 3 (one on each side) ⑥Locking Butterfly：Tighten to secure the unit to the table surface (one on each side) ⑦Height Adjustment Screws：Used to adjust the height of the built-in connector ⑧Enclosure：Inserted into the table cutout PTN Electronics Limited www.PTN-interface.com...
- Page 4 Connecting Surface to the required height, screw and tighten it in place using the height adjustment screws. Depth adjustment holes Step3：Insert the unit：Carefully insert the unit into the prepared opening PTN Electronics Limited www.PTN-interface.com...
- Page 5 Finish Packing Accessory brackets Cutout aluminum(Default) template ,User manual Working +5 ~+45℃ Working Humidity 10 %~90% Temperature Storage -20 ~+70℃ Storage Humidity 5% ~ 95% Temperature Dimension W172 x H103 x D61 mm Product Weight 1.8kg PTN Electronics Limited www.PTN-interface.com...
- Page 6 TSC6 5. System Diagram PTN Electronics Limited www.PTN-interface.com...
