Summary of Contents for Dennard 2050

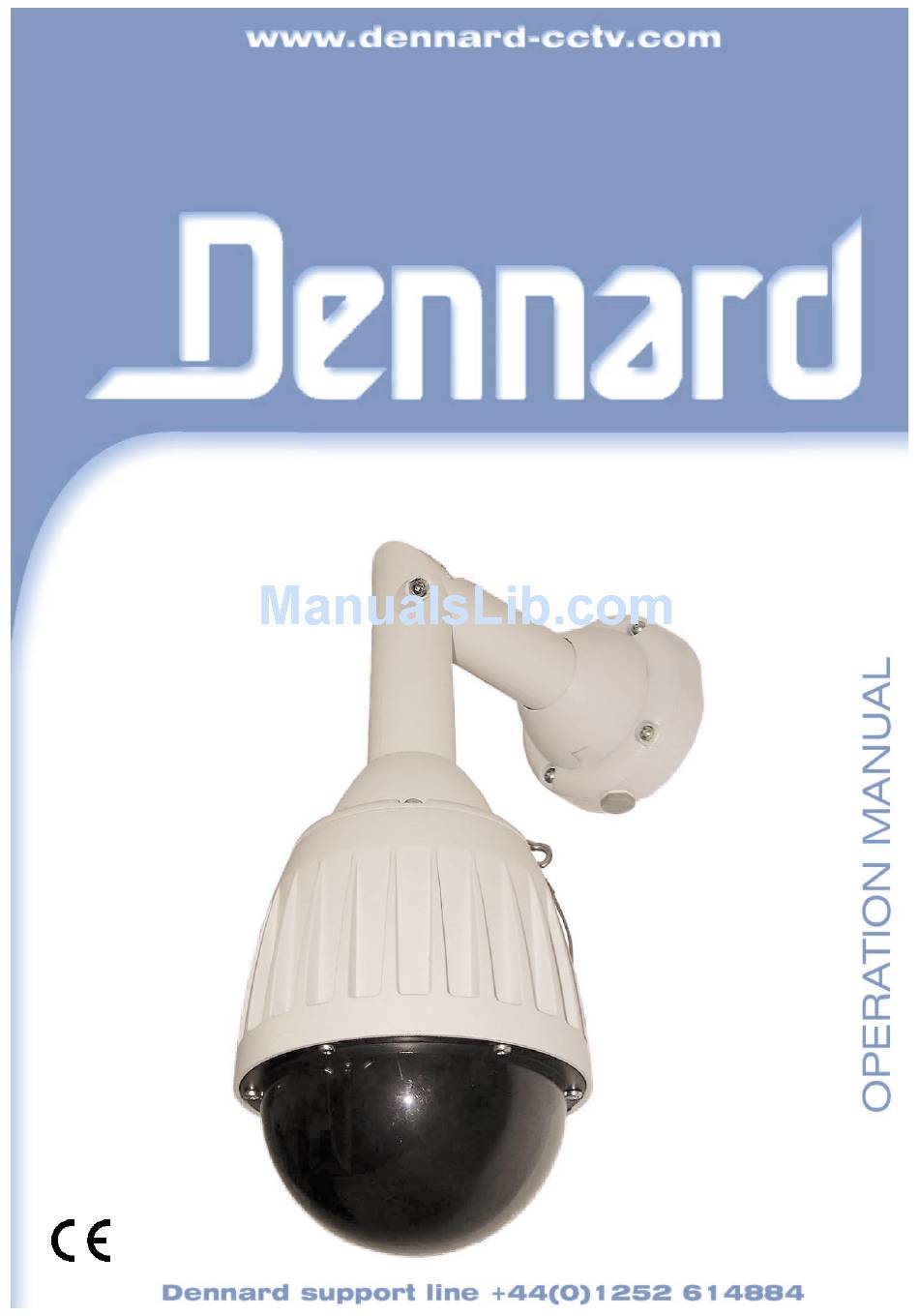

  • Page 1 Type 2050 coax...
  • Page 2 Models covered in this guide include 2050, 2050drx, 2050wp, 2050drx/WP and 2050/FA This operation manual will provide all the necessary information to install the Series 2050 Precision Dome Camera. Please refer to the System manual for operation and programming features. Index sheet 1.

  • Page 3: List Of Contents

    1 x 5mm A/F Hexagonal socket key 1 x 4mm A/F Hex socket key In addition to the above components, a type 2050 product guide, a 2050 menu system manual and a final test procedure are supplied. 2050 coax operation manual...

  • Page 4: Mounting Configurations

    Mounting Configurations Fig.2 Bracket mounting variants With appropriate bracketry the Type 2050 dome enclosure can be mounted in any of the applications as shown above. 1. Wall/Pendant Mount (order suffix /WM) supplied as standard giving pendant or wall mount options 2.

  • Page 5: Safety Bond

    (see sheet 5 ‘Ceiling mounting instructions’ for details on eyelet mounting) Note: Always support dome with bond prior to mating connector C. Weight of dome should be supported by bond ensuring no stress is placed on centre connector C at any time. 2050 coax operation manual Sheet. 4...

  • Page 6: Ceiling Mounting

    Fig.5 Ceiling hole pattern Cut/drill hole pattern in ceiling as shown in (fig.5) (Note: fixings for hole (A) are not supplied by Dennard due to the variations of ceiling materials / thicknesses found on site. Please choose suitable fixings, with countersunk head, for your application.) Attach mounting disc (B) to ceiling with chosen fixings and screw 4...

  • Page 7: Wall Bracket Mounting

    Note: Locating a dome on a corner of a building will give an increased area of surveillance. For this reason Dennard are able to offer an optional corner bracket (/CB) to adapt the standard wall bracket. E. Thread cable from bracket through cable entry hole in bottom of bracket base casting, then replace bracket.

  • Page 8: Tile Mounting

    Velcro® strips to ensure a good bond is achieved as shown in (fig.14). Fit safety bond supplied to attachment point shown in (fig.12). Fig.13 Mounting to tile (ceiling) Fig.14 Bezel mounting 2050 coax operation manual Sheet. 7...

  • Page 9: Dome Mounting

    C. Lift dome to bracket flange ensuring head of screws (previously fitted M6x12 Trilobular self tapping screws) pass through keyhole slots. Twist to locate. D. Tighten 4 top mounting fixings with 4mm A/F Hexagonal key supplied to secure. 2050 coax operation manual Sheet. 8...

  • Page 10: Electrical Connections

    Co-ax. (Video) Fig.16 Electrical connections The Type 2050 external connections are via an IP66 Amphenol connector with 3 metre composite cable flying lead comprising co-ax, power pair & RS485 pair. This lead should be connected to the boxed P.S.U. supplied with the dome. The connections are as follows: Red wire..24V a.c.

  • Page 11: Address Switches

    Address Switches Address switches Fig.18 Address switches. The Type 2050 can be controlled via RS 485 com- mands or ‘up the co-ax’ With RS 485 control each dome has to be individually addressed using the Blue and Yellow rotary address switches following the address chart on the previous page.

  • Page 12: Control Configuration

    Control Configuration Fig.19 RS485 configuration The Dennard Type 2050 dome can be controlled by one of three methods. 1 to 32 Dome Cameras Fig.19 RS485 Fig.20 Twisted Pair Configuration Fig.21 Up the co-ax The configuration drawings on this page show the three connection arrangements.

  • Page 13: Circuit Diagrams

    Circuit Diagrams drx options RS485 / Up the Co-Ax Configuration 2050 coax operation manual Sheet. 12...
  • Page 14 ADDENDUM Addendum.1. Type 2050/FA (Fixed Attitude Dome) Addendum.2. Type 2050/FA (Electrical Connections) Addendum.3. Type 2050/FA (‘Zoom Cam’ Set Up) 2050 coax operation manual Sheet. 13...
  • Page 15 Type 2050/FA (Fixed Attitude Dome Camera) Moving cameras can be positioned remotely, fixed attitude modules require manual adjustment to position the camera. Follow the procedure below to set-up your required picture frame. 1. Unscrew the 6 fixings securing the outer hemisphere to the Hemisphere removal casing and remove.
  • Page 16 Co-ax. (Video) Electrical connections The Type 2050/FA Camera Dome is supplied complete with an IP66 ‘Amphenol’ 7 way connector and 3 metre multicore with Co-ax flying lead assembly. The Amphenol connector mates as shown in fig.16 to the top of the dome. The table below details the flying lead functions.
  • Page 17 1. Control Remote zoom control requires a Dennard, BBV or DM telemetry controller. as well as the removal of link ‘A’ (see point 6) if not already disconnected. Depress the zoom buttons or use the joystick pan axis to operate.
