Dynamite Passport Ultra 100W Installation Manual

Dynamite Passport Ultra 100W Installation Manual

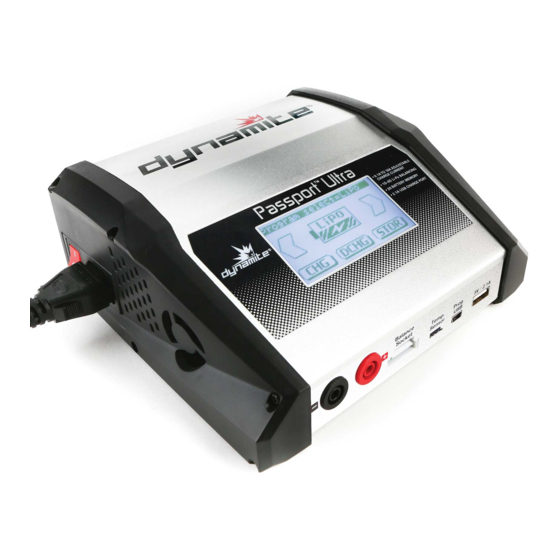

100w lcd ac/dc multi-chemistry battery charger

Advertisement

Passport
Instruction Manual | Bedienungsanleitung | Manuel d'utilisation | Manuale di Istruzioni
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit horizonhobby.com and click on the
support tab for this product.
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superficial injury.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the
product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner
could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not attempt disassembly, use with incompatible
components or augment product in any way without the approval of Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all
the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
Age Recommendation: Not for children under 14 years. This is not a toy.
This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
ChArgINg WArNINgS
WARNING: Failure to exercise caution while using this product and comply with the
following warnings could result in product malfunction, electrical issues, excessive heat,
FIRE, and ultimately injury and property damage.
• Never leave the power supply, charger and battery unattended during use.
• Never attempt to charge dead, damaged or wet battery packs.
• Never attempt to charge a battery pack containing different types of batteries.
• Never allow children under 14 years of age to charge battery packs.
• Never charge batteries in extremely hot or cold places or place in direct sunlight.
• Never charge a battery if the cable has been pinched or shorted.
• Never connect the charger if the power cable has been pinched or shorted.
• Never connect the charger to an automobile 12V battery while the vehicle is running.
• Never attempt to dismantle the charger or use a damaged charger.
• Never attach your charger to both an AC and a DC power source at the same time.
• Never connect the input jack (DC input) to AC power.
• Always use only rechargeable batteries designed for use with this type of charger.
• Always inspect the battery before charging.
• Always keep the battery away from any material that could be affected by heat.

TABLE Of CONTENTS

1 - Self Test and Program Select Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 - Lithium (Li-Po/Li-Fe/Li-Ion) Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3 - Lithium Discharging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4 - Lithium Storage Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
5 - Nickel (ni-MH/NI-Cd) Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
6 - Nickel Discharging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
7 - Nickel Cycle Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
8 - Pb Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1
Ultra 100W LCD AC/DC Multi-Chemistry Battery Charger
MEANINg Of SPECIAL LANgUAgE
NOTICE
• Always monitor the charging area and have a fire extinguisher available at all times.
• Always end the charging process if the battery becomes hot to the touch or starts to change
form (swell) during the charge process.
• Always connect the charge cable to the charger first, then connect the battery to avoid short
circuit between the charge leads. Reverse the sequence when disconnecting.
• Always connect the positive red leads (+) and negative black leads (-) correctly.
• Always disconnect the battery after charging, and let the charger cool between charges.
• Always charge in a well-ventilated area.
• Always terminate all processes and contact Horizon Hobby if the product malfunctions.
WARNING: Never leave charger unattended, exceed maximum charge rate, charge with
non-approved batteries or charge batteries in the wrong mode. Failure to comply may
result in excessive heat, fire and serious injury.
CAUTION: Always ensure the battery you are charging meets the specifications of this
charger and that the charger settings are correct. Not doing so can result in excessive
heat and other related product malfunctions, which can lead to user injury or property
damage. Please contact Horizon Hobby or an authorized retailer with compatibility
questions.
9 - Pb Discharging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
10 - Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
11 - View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
12 - Balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
13 - Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
14 - USB Device Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
15 - Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Passport Ultra 100W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dynamite Passport Ultra 100W

  • Page 1: Table Of Contents

    Passport Ultra 100W LCD AC/DC Multi-Chemistry Battery Charger ™ Instruction Manual | Bedienungsanleitung | Manuel d’utilisation | Manuale di Istruzioni NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product.
  • Page 2: Specifications

    A. Power Output Black (–) F. 2.1A USB Power Output Port B. Power Output Red (+) G. Power Switch C. Balance Circuit Adapter Board Connector H. AC Power Input Port D. Temperature Sensor Port I. DC Power Input Port Not to scale. E.
  • Page 3: Self Test And Program Select Screens

    PrOgrAMMINg qUICk gUIDE 1. Press the Left and Right Arrows on the LCD Touch Screen to scroll through the 5. Press Select to save the parameter. main menu screens. 6. If there is more than one screen of parameters, press the top right corner of the LCD Touch 2.
  • Page 4: Lithium Discharging

    3 - LIThIUM DISChArgINg 4 - LIThIUM STOrAgE ChArgINg 1. Connect the banana plugs of the battery adapter cable to the Power Output Black (–) and 1. Connect the banana plugs of the battery adapter cable to the Power Output Black (–) and Power Output Red (+), making sure that the positive and negative connectors are not reversed.
  • Page 5: Nickel (Ni-Mh/Ni-Cd) Charging

    CAUTION: The nickel charge program menus are to be used ONLY for the charging and discharging of nickel battery packs. Charging other battery types using the nickel charge programs will damage the battery or the charger. Only Ni-MH is shown in the following three sections. 5 - NICkEL (NI-Mh/NI-CD) ChArgINg 6 - NICkEL DISChArgINg 1.
  • Page 6: Nickel Cycle Charging

    7 - NICkEL CYCLE ChArgINg CAUTION: The Pb charge program menus are to be used ONLY for the charging and discharging of Pb battery packs. Charging other battery types using the Pb charge 1. Connect the banana plugs of the battery adapter cable to the Power Output Black (–) and programs will damage the battery or the charger.
  • Page 7: Pb Discharging

    9 - PB DISChArgINg 10 - SETUP 1. Connect the banana plugs of the battery adapter cable to the Power Output Black (–) 1. Press the Left and Right Arrows on the LCD Touch Screen to scroll through the main menu and Power Output Red (+), making sure that the positive and negative connectors are not screens until you reach Program Select=Setup.
  • Page 8: Balance

    12 - BALANCE 14 - USB DEVICE ChArgINg 1. Press the Left and Right Arrows on the LCD Touch Screen to scroll through the main menu The charger has the capability to charge any USB-compatible device with the 2.1A USB Power screens until you reach Program Select=View.
  • Page 9 5-YEAr US LIMITED WArrANTY Warranty Period - Exclusive Warranty - Horizon Hobby, LLC (“Horizon”) warrants that the included Dynamite Prophet, or Passport charger (“Product”) will be free from defects in materials and workmanship for a period of five (5) years after the date of purchase (“Warranty Period”).
  • Page 10: Fcc Information

    (DYNC3000) © 2014 Horizon Hobby, LLC. Dynamite, Passport, Prophet, EC3 and the Horizon Hobby Logo are trademarks or registered trademarks of Horizon Hobby, LLC. Traxxas is a registered trademark of Traxxas L.P Created 08/2014 | 41046...
