Dynamite Prophet Sport Lipo Instruction Manual

The following features are standard on your Dynamite
Battery Charger:
• Li-Ion/Li-Po/Li-Fe battery cell count of 2 to 3 series cells
• Adjustable charge current settings of 0.5A, 1.0A and 2.0A
• Short-circuit, over-current and reverse polarity protection
• Built in balance circuit
• Meets IP33CW, IK07 environmental specs
Specifi cations
The following specifi cations are standard on your Dynamite Prophet AC
Battery Charger:
• Maximum charge power of 25W
• LED charge indicators for each charge current; 0.5A, 1.0A and 2.0A
• Operating temperature: 0°C to +50°C
NOTICE
The following terms are used throughout the product literature to indicate vari-
ous levels of potential harm when operating this product:
NOTICE: Procedures, which if not properly followed, create a possibility of physi-
cal property damage AND a little or no possibility of injury.
CAUTION: Procedures, which if not properly followed, create the probability of
physical property damage AND a possibility of serious injury.
WARNING: Procedures, which if not properly followed, create the probability of
property damage, collateral damage, and serious injury OR create a high prob-
®
Prophet™ 25W AC
ability of superfi cial injury.
Meaning of Special Language

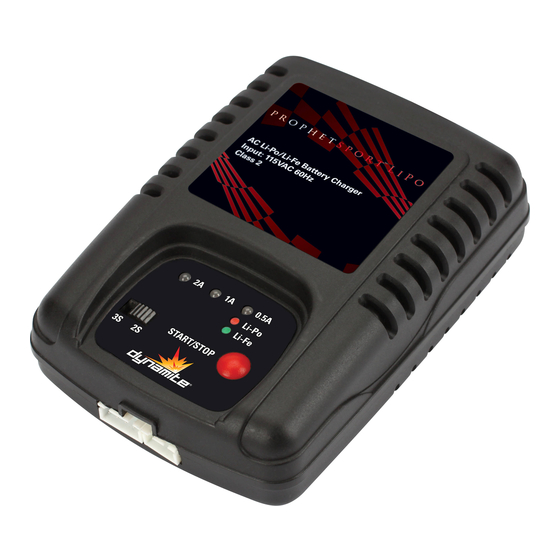

Look at the charger to see:
A. Cell Selection Switch (3S or 2S)
B. Li-Fe LED color (green)
C. Li-Po LED color (red)
D
D. AC power plug
E. 2S battery pack connection
F. 3S battery pack connection
G. Charge Rate LED indicators
(2A, 1A and 0.5A)
H. Start/Stop button
F
G
C
B A
E
H
