- Page 1 BC5100 Bar Code Scanner Customer Product Manual Part 1076483A Issued 8/07 NORDSON CORPORATION • DULUTH, GEORGIA • USA www.nordson.com...
- Page 2 Mate, ClassicBlue, Classic IX, Controlled Fiberization, Control Weave, CPX, CScan, Cyclo-Kinetic, DispensLink, Dry Cure, DuraBraid, DuraCoat, DuraDrum, DuraPail, Easy Clean, EasyOn, EasyPW, Eclipse, E-Nordson, Equi=Bead, FillEasy, Fill Sentry, Fluxplus, G−Net, G−Site,, iDry, iON, Iso-Flex, iTrend, Lacquer Cure, Lean Cell, Maxima, MicroFin, MicroMax, Mikros, MiniBlue, MiniEdge, Minimeter, Multifil, Myritex, OptiStroke, Partnership+Plus,...
-
Page 3: Table Of Contents
......... . . Connect the BC5100 Components to the LogiComm Control System . - Page 4 ......... . Part 1076483A E 2007 Nordson Corporation...
-
Page 5: Safety
Intended Use Use of Nordson equipment in ways other than those described in the documentation supplied with the equipment may result in injury to persons or damage to property. -
Page 6: Safety Alert Symbols
Regulations and Approvals Make sure all equipment is rated and approved for the environment in which it is used. Any approvals obtained for Nordson equipment will be voided if instructions for installation, operation, and service are not followed. All phases of equipment installation must comply with all federal, state, and local codes. -
Page 7: Fire Safety
Clean, maintain, test, and repair equipment according to the instructions in your equipment documentation. Use only replacement parts that are designed for use with original equipment. Contact your Nordson representative for parts information and advice. Action in the Event of a Malfunction... -
Page 8: System Overview

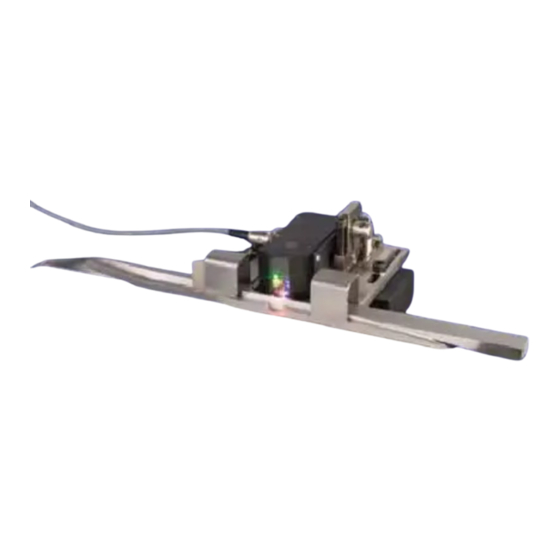

BC5100 Bar Code Scanner System Overview The BC5100 is a bar code scanner that monitors bar code accuracy in high speed packaging and converting operations. The scanner detects unreadable, missing, and incorrect codes. This manual describes the connection, setup, and operation of the BC5100 system when used in conjunction with the LogiComm control system. -
Page 9: System Components
BC5100 Bar Code Scanner The BC5100 system uses a laser diode scanner capable of 2000 scans per second that can monitor any of the eight bar code symbologies at line speeds up to 207 mpm (680 fpm). When the BC5100 system is used with a LogiComm control system, products with defective bar codes are automatically tracked and either ejected from the production line or marked for removal. -
Page 10: Scanner
BC5100 Bar Code Scanner Scanner When a bar code moves into the field of view of the scanner, the system’s trigger starts the read cycle. The scanner repeatedly scans the bar code as it moves through the visible laser beam, called the scan line. Depending on... -
Page 11: Trigger
BC5100 Bar Code Scanner Trigger The BC5100 scanner uses the LA 650 trigger (photocell) to begin and end the scan cycle. The LA 650 trigger uses a red laser beam to detect substrates. The trigger signals the system to begin the scan cycle when it senses the leading edge (or some other selected edge) of the product. -
Page 12: System Capabilities
BC5100 Bar Code Scanner System Capabilities This section explains the key applications of the BC5100 system. The key industries in which the system is used include: folded carton manufacturing, case sealing, and container filling. Applications Application Explanation Verify bar codes on high-speed The scanner operates at 2000 scans per second at line speeds as production lines. -
Page 13: Installation
2. Inspect the equipment for any damage that may have occurred during shipping. Report any problems to a Nordson representative. Select a Scanner Location 1. Consider the following recommendations and requirements in choosing a location for the scanner. - Page 14 BC5100 Bar Code Scanner Select a Scanner Location (contd) 2. Position the scanner so that the bar code label will pass through the scan line. If a picket-fence orientation is used, align the scan line so that half of each bar is above the line and half below, see 1 in Figure 4.
- Page 15 BC5100 Bar Code Scanner 3. Set the distance from the scanner window to the surface of the product. For Pharmacode and Bobst code, set the distance at 127 mm (5 in.). For all other codes, set the distance also at 127 mm (5 in.). Make sure that the mounting bracket allows the distance to be adjusted from 102 −...
- Page 16 BC5100 Bar Code Scanner Select a Scanner Location (contd) 4. If the product surface is shiny or reflective so that light could be reflected from the product surface back into the scanner, slightly tilt or skew the scanner by following one of the methods given below: Pitching the scanner approximately 10 degrees from the horizontal (in either direction) as shown in Method A in Figure 6.
-
Page 17: Select A Trigger Location
BC5100 Bar Code Scanner Select a Trigger Location 1. Consider the following recommendations and requirements in choosing a location for the trigger: Location Factor Recommendation or Requirement Sensing speed Position the trigger lens so that it can sense the substrate at a line speed higher than 900 m/min (2953 ft/min). - Page 18 BC5100 Bar Code Scanner Select a Trigger Location (contd) Figure 8 Optimum location of trigger for ladder oriented bar codes 1. Scan line 4. Carton or other product 2. Outside limit of read range 5. Direction of line travel 3. Position of bar code where 6.
-
Page 19: Mount The Equipment
1. Mount the scanner in the selected location using either the bracket components that were ordered with the BC5100 system or brackets that you supply. 2. Mount the trigger in the selected location. For instructions on mounting the trigger refer to the appropriate documentation. -
Page 20: Connect The Bc5100 Components To The Logicomm Control System
BC5100 Bar Code Scanner Connect the BC5100 Components to the LogiComm Control System Figure 10 System overview 1. LogiComm control module 3. Machine stop relay 5. BC5100 scanner 2. Touch-screen panel 4. Towards the ejector 6. Trigger 7. Encoder Part 1076483A... - Page 21 BC5100 Bar Code Scanner Use the following instructions to connect the scanner and trigger to the control module. 1. Connect one end of the scanner interconnect cable to the 15-pin scanner connector. Connect the other end of the cable to the Smart Sensor connector (high density D-SUB, 15-pin connector) on the control module’s verification I/O bank.
-
Page 22: Trigger Setup
BC5100 Bar Code Scanner Trigger Setup The LA 650 trigger is shipped with a default cut-off distance setting of 50 mm (1.96 in.). This gives optimal sensing performance at a sensing distance of about 30 mm (1.18 in.). The cut-off distance is adjustable from 30 −... -
Page 23: System Startup Check List
BC5100 Bar Code Scanner System Startup Check List Before setting up the system, make sure of the following: The trigger and the scanner are connected to the control module. The touch-screen panel is turned on. The control module is turned on. -
Page 24: System Setup
BC5100 Bar Code Scanner System Setup Follow the sequence of screens on the touch-screen panel to set the BC5100 and the LogiComm control system for operation. Figure 13 Sequence of screens to enter the BC5100 screens Part 1076483A E 2007 Nordson Corporation... -
Page 25: Bc5100 Screens
BC5100 Bar Code Scanner BC5100 Screens When you select BC5100 as a sensor type in the Smart Sensor Select screen (Setup − Page 3 of 4), sensor number 6 on the Main Menu will change in appearance. Figure 14 Sensor #6 on the Main Menu... - Page 26 BC5100 Bar Code Scanner BC5100 Screens (contd) Press the sensor number 6 button on the Main Menu, and the following screen appears: Figure 15 BC5100 screen Part 1076483A E 2007 Nordson Corporation...
-
Page 27: Bc5100 Screen Components
Obtains a good code from the next bar code, and this code is considered good for the products in the production line. Inspection Parameters Allows the user to set parameters for the BC5100 button sensor. Refer to Inspection Parameters. Clear Code Error button Resets the screen displaying the mismatched code, and proceeds to the next code. -
Page 28: Inspection Parameter Screen Components
BC5100 Bar Code Scanner Inspection Parameter Screen Components Press the Inspection Parameters button on the BC5100 menu screen, and the following screen appears: Figure 16 Inspection Parameter screen The following table explains the functionality of each component in the BC5100 Inspection Parameter screen. -
Page 29: Properties Screen Components
BC5100 Bar Code Scanner Properties Screen Components Press the Properties button on the BC5100 menu screen, and the following screen appears: Figure 17 Properties screen The following table explains the functionality of each component in the Properties screen. This Does this... -
Page 30: Operation
If a match is found, the Match counter will display a numeric value on the BC5100 menu screen. When the No Match or No Read counters display a numeric value, it indicates the any of the following... -
Page 31: Start The System
6. Verify that the code is the correct bar code before teaching it to the system. 7. Press Teach Active Sensors on the Main Menu screen. 8. In the BC5100 menu screen, observe the data in the following counters: Match No Match Defects No Read NOTE: If the Match counter has zero defects, go to step 9. -
Page 32: Change Products
BC5100 Bar Code Scanner Change Products Use the following table as a checklist of possible tasks or procedures to perform whenever there is a change in the production process, whether it is a product changeover or some minor change. Task or Procedure... -
Page 33: Maintenance
BC5100 Bar Code Scanner Maintenance WARNING: Allow only qualified personnel to perform the following tasks. Follow the safety instructions in this document and all other related documentation. Clean the Scanner Windows As part of routine operation, periodically clean the scanner windows as described in the following procedure. -
Page 34: Troubleshooting
WARNING: If this equipment is used with other Nordson equipment, refer to the manuals provided with that equipment for instructions and applicable precautions. - Page 35 BC5100 Bar Code Scanner Problem Possible Cause Corrective Action The distance of scanner to product Correct scanner range. Refer to System detects bad not within read range. Figure 19 to find the optimum codes when codes distance. are good, contd.
- Page 36 Refer to the LogiComm Control system. System manual or the embedded Help in the touch-screen panel to troubleshoot. BC5100 trigger knocked out of The trigger must be returned to its System rejecting or position. original position or the new tracking...
-
Page 37: Check Trigger Operation
BC5100 Bar Code Scanner Problem Possible Cause Corrective Action Machine stop not enabled. Enable the machine stop function by Machine stop function pressing the Machine Control not working Settings button on the touch-screen panel. Configure the machine stop settings. Problem in the LogiComm control Refer to the LogiComm Control system. -
Page 38: Optimum Read Ranges For Different Bar Code Sizes
BC5100 Bar Code Scanner Optimum Read Ranges for Different Bar Code Sizes inches millimeters millimeters inches Figure 19 Optimum bar code size read range 1. Narrow bar width: High density 2. Narrow bar width: Low density 5 mil (0.127 mm) 7.5 mil (0.191 mm) -
Page 39: Repair
WARNING: If this equipment is used with other Nordson equipment, refer to the manuals provided with that equipment for instructions and applicable precautions. -
Page 40: Parts
BC5100 Bar Code Scanner Parts To order parts, call the Nordson Customer Service Center or your local Nordson representative. Use this five-column parts list, and the accompanying illustration, to describe and locate parts correctly. BC5100 Bar Code Scanner Parts Part... -
Page 41: Appendix A: Technical Data
Pharmacode/Bobst code: fixed at 127 mm (5.0 in.) All other codes: 102−152 mm (4.0−6.0 in.) Bar code orientation Ladder or picket fence Readable symbologies Code 39 Code 128 UPC/EAN Codabar Code 93 Pharmacode Bobst code Interleaved 2 of 5 Continued... Part 1076483A E 2007 Nordson Corporation... - Page 42 LogiComm connector Smart verification sensor (15 pin D-Sub) Light source Semiconductor visible laser diode (650 nm nominal) Emissions radiated: CISPR22 EN55022: 1994 Class A conducted: CISPR22 EN055022: 1994 Class A Safety class CDRH Class II Part 1076483A E 2007 Nordson Corporation...
-
Page 43: Scanner Dimensions
Connections 5-Pin, 180_ connector plug, NPN and PNP outputs. Operating condition 10 _C − +50 _C (+14_ − 122 _F) temperature Relative humidity: 90% (at 50 _C, non-condensing) Part 1076483A E 2007 Nordson Corporation... -
Page 44: Bar Code Symbologies
Technical Data Bar Code Symbologies Part 1076483A E 2007 Nordson Corporation...
