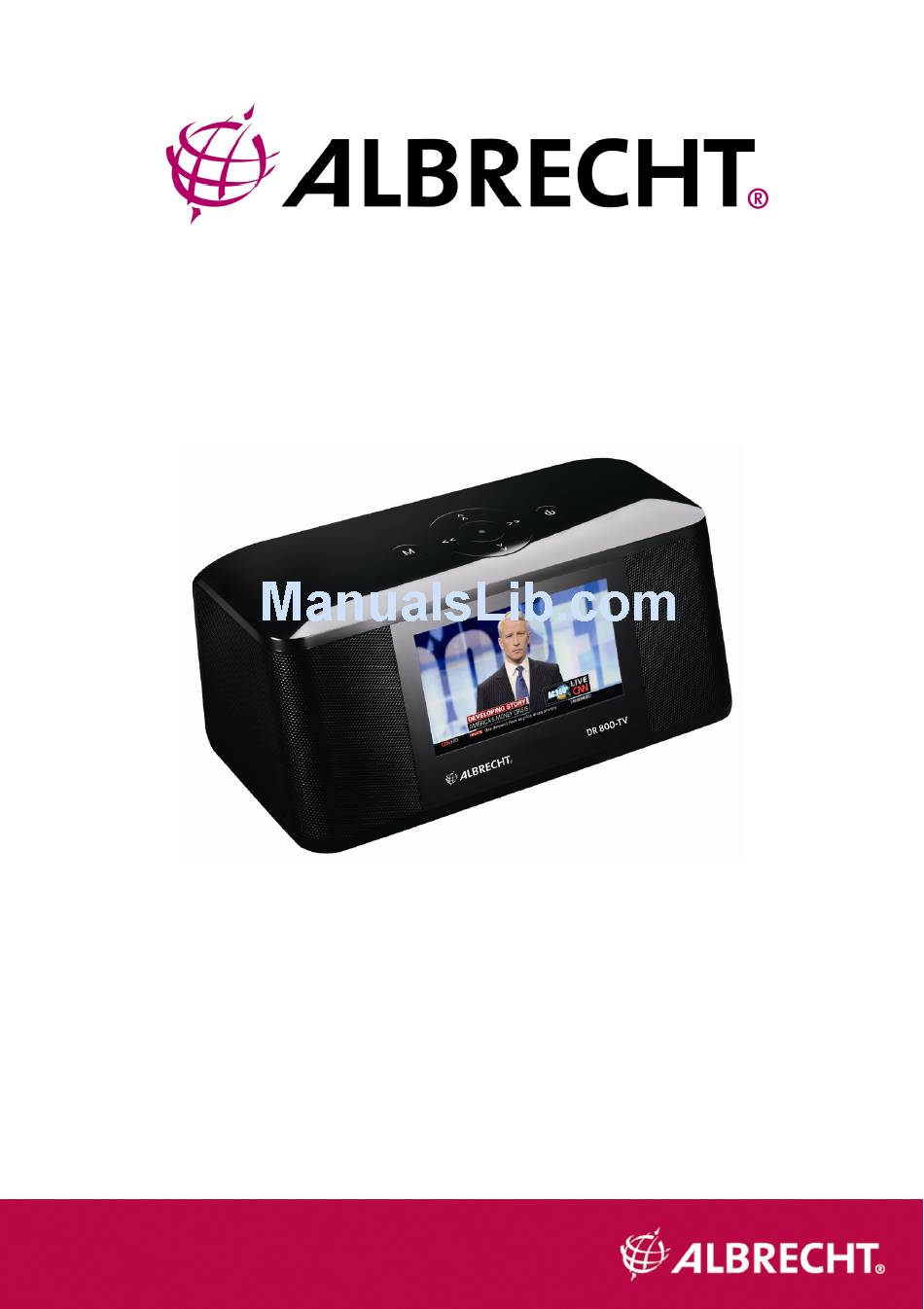

- Page 1 DR 800-TV INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL www.alan-electronics.de...
-
Page 2: Table Of Contents
1 Table of Contents 1 Table of Contents _________________________2 2 Introduction______________________________5 3 About the Product ________________________5 Product Description__________________________5 Product Features ____________________________5 Accessory List ______________________________6 4 Getting Started ___________________________7 Controls and Connectors _____________________7 4.1.1 Main Unit-Top _____________________________7 4.1.2 Location of Connectors on the Rear ____________7 4.1.3 Remote Control ____________________________8 5 Operation Instructions ____________________10... - Page 3 5.11 Setting Time, Date, Calendar and Alarm ________24 5.12 FM Radio Setup ____________________________26 5.13 TV / LCD Output ____________________________27 6 Other Settings ___________________________29 Language: _________________________________29 Network Setup:_____________________________29 6.2.1 Wi-Fi Setup:______________________________29 6.2.2 Network Type: ____________________________29 6.2.3 Network Status: ___________________________29 Alarm: ____________________________________29 Key Tone Setting:___________________________29 Slideshow Setting: __________________________30 FM Setting: ________________________________30...
- Page 4 TV-Out: No Sound __________________________32 TV-Out: Black and White Screen ______________32 Remote control is not working ________________32 Cannot connect to Wi-Fi Network______________32 8 User Safety Guide________________________33 9 Specifications ___________________________34 Warranty and Recycling Information _______35 10.1 2-Year Warranty From Date Of Purchase ________35 10.2 WEEE And Recycling________________________36 10.3...
-
Page 5: Introduction
2 Introduction Congratulations on your purchase of our product. The DR 800 will allow you to enjoy TV channels, radio stations and podcast throughout the world via Wi-Fi internet connection. Its TV-out function will turn your home TV into an internet TV. Please read this manual carefully before you start to use it. -
Page 6: Accessory List
search, and my favorite’s lists • Media player reads and plays videos, music and picture files from local disk with built-in memory and SD/MMC card. • Stream videos, music and pictures from your home or office PC to the DR 800 by UPnP. •... -
Page 7: Getting Started
4 Getting Started 4.1 Controls and Connectors 4.1.1 Main Unit-Top MENU: Press once to go back to the previous directory or sub directory. Long press for about 3 seconds to go to the main menu. POWER: Press to turn it ON/OFF. UP/ VOL+: Scroll up or increase the volume DOWN / VOL-: Scroll down or decrease the volume LEFT: Short press to the previous track/menu, hold for fast... -
Page 8: Remote Control
4.1.3 Remote Control 1. Power 2. Play In Order: Play video/music in order on playlist 3. Shuffle: Randomly select and play video/music on playlist 4. Repeat: Repeat playing the selected video/music on playlist 5. Mute 6. Fast Backward 7. Fast Forward 8. - Page 9 14. Menu: Go to the main menu 15. UP: Direction Key, Scroll up or Increase the volume (when playing video/audio) or adjust FM Radio stations manually. 16. EXIT: Back or Return to the previous page/menu/track/ channel 17. Left Key: Direction Key and Return to the previous track/menu 18.
-
Page 10: Operation Instructions
5 Operation Instructions 5.1 Start Menu After connecting the main unit to a power outlet, press the POWER button on the unit or on the remote control to turn the unit on. Then the start-up screen will show up and after that you can see the main menu as below. - Page 11 2: There are two types of network: • Encrypted network: Shows a “lock” icon and a password is required for accessing the network. • Unencrypted network: There is no “lock” icon and a password is not required for connecting. Use the remote control to select a particular network and press ENTER to connect.
- Page 12 If the radio is successfully connected to the selected network, a notification will show “Wi-Fi Connected Successfully”; otherwise “Wi-Fi password Invalid” will appear. Please re-enter the correct password. If “Wi-Fi Connection time out” shows up, please try again to connect. Remark: This item supports 3 protocols: Static IP, DHCP and PPoE.
-
Page 13: Internet Tv
5.3 Internet TV When you select the Internet TV menu, the DR 800 connects to the Internet portal and provides a list of TV channels, organized into different categories such as Region, Genres, and Languages. Press UP/DOWN/LEFT/RIGHT, and ENTER on the remote control or the main unit to choose different categories/channels. -
Page 14: Internet Radio
This image shows an Internet TV station being played: You can switch the program to different screen modes: Full screen, default and 4:3 by 1. Pressing ENTER on the main unit 2. Pressing ENTER or FULL SCREEN on the remote control Other instructions: UP/DOWN or VOL+/VOL-: Adjust the volume +/- LEFT/RIGHT: Go to the next/previous channel... -
Page 15: Shoutcast Internet Radio Program
The image shows an Internet Radio station being played: 5.5 SHOUTcast Internet Radio Program The SHOUTcast Internet Radio Program offers thousands of Internet Radio Stations through the internet. The programs and playing lists are continuously updated and refreshed. Press UP/DOWN/LEFT/RIGHT, and ENTER on the remote control or the main unit to choose different stations. -
Page 16: Podcast
5.6 Podcast Podcasts are audio programs such as series which are mostly updated regularly with new episodes. You can listen to the programs stored by the publishers and sort by Genres, Search and add to my favourites. Press UP/DOWN/LEFT/RIGHT, and ENTER on the remote control or the main unit to choose different stations. - Page 17 recognized by the PC. Double click on the icon and a pop up window will ask you if you want to format the disk. (ONLY for the first time of use) 3. Press YES to format the disk and a window as shown on the left will pop up: Capacity: Currently Available built-in memory...
- Page 18 shown: Video, Music and Picture. Press UP/DOWN/LEFT/RIGHT on the remote control or the main unit to select the category you want. Here is an example to show the Music playing list. Press UP/DOWN to select the songs and press ENTER to play. Other instructions: LEFT/RIGHT: Select the next and previous song, hold for backward/forward.
-
Page 19: Upnp File Sharing - Play Files From Your Pc
EXIT: Exit from the current Music playing Mode. Once it’s selected, a warning –“Turn Off Music” pops up. Press YES to exit and stop playing music or NO to exit and leave music on as background music. STOP: Quit music playing mode including background music. 2) Playing Video/Music/Picture Files from a SD Card Insert the SD card into the SD card slot at the rear of the main unit. - Page 20 3. Select the “InternetRadio” icon and click the “Allow” button to activate the sharing function. Press “OK” to confirm the settings. 4. Go to Library > Add to Library and then Select “My folders and those of others that I can access”. Click “Advanced Options” to choose the sharing folders.
- Page 21 5. Click “OK” to confirm and the selected files/documents are added to the library. 6. Click “Close” when the adding process is complete. 7. Switch on the DR 800 and select UPnP and press ENTER to search all available UPnP devices.
-
Page 22: Line-In
Press UP/DOWN on the remote control or the main unit to select the UPnP device on the list and press ENTER. 8. Once you’re in UPnP mode, all sharing files are organized in different categories such as music, video, picture etc. Press UP/DOWN on the remote control to select and play videos/music/pictures. -
Page 23: Photo Viewer
5.10 Photo Viewer You have two options to use the Photo Viewer function: 1. Go to “Photos” in the main menu, Press ENTER, then you will have to choose between “Disk”(built-in memory) or “SD”(inserted SD Card), after that select with ENTER the pictures you want to browse. -
Page 24: Setting Time, Date, Calendar And Alarm
：Previous ：Next ：Enlarge ：Shrink ：Rotate ：Slideshow Remark: For better performance, please try to avoid displaying large sized pictures. 5.11 Setting Time, Date, Calendar and Alarm Before you set the Time and Date, please go to the “Settings” menu to choose and confirm your Time Zone first. And then go to the “Date &... - Page 25 This image shows the calendar. This image shows the alarm menu.
-
Page 26: Fm Radio Setup
Alarm On/Off: Turn the alarm on/off. Alarm Time: Press UP/Down/Left/Right on the remote control or the main unit to set the alarm. Confirm the time by pressing Enter. Snooze: Snooze time options: 5, 10 and 20 minutes. The system will automatically switch to Time & Date screen saving when no command is given in the period of time set by the user. -
Page 27: Tv / Lcd Output
Broadcast Band. 3. Auto Scan: Go to Setting menu > FM setting > Auto Scan. Press ENTER on the remote control or the main unit, and a message on the LCD will remind you to connect the FM antenna. After that press ENTER again to search for FM stations. - Page 28 particular channel depending on the TV model. 3. Make sure the main unit is powered on. Two ways to initiate the TV output after the connection is complete: 1. Go to “TV OUT” menu and select TV Out. After that you have to select if you want to use CVBS or YPbPr.
-
Page 29: Other Settings
6 Other Settings Select “Settings” menu and choose the following options. 6.1 Language: Press UP/DOWN on the remote control to choose the language, and press ENTER to save the changes. The change will take effect immediately after going back to the Main Menu or other interfaces. -
Page 30: Slideshow Setting
Key tones; Tone Off – Turns the tones off. 6.5 Slideshow Setting: Change the display periods for each image of the slideshow mode to 5, 10, 15 or 30 seconds. 6.6 FM Setting: 6.6.1 Region Setting: Choose your FM Region. 6.6.2 Auto Scan: Search FM stations automatically. -
Page 31: Auto Power-Off
Online – System will check online, download and install the latest firmware automatically Local Disk – Update the firmware manually from the local disk or SD card. The DR-800 also has an auto check function which will show up a message when you turn on the unit and an update is available. -
Page 32: Troubleshooting Guide
7 Troubleshooting Guide 7.1 TV-Out: No Screen Display • Check the connections between the main unit and TV. • Check if the Main Unit is powered on. • Check if the TV is tuned to AV channel. 7.2 TV-Out: No Sound •... -
Page 33: User Safety Guide
8 User Safety Guide 1. Place the device on a plain surface away from sources of direct sunlight, heat, or water to prevent fire or shock hazard. 2. Place the device in a clean and dry condition. 3. Store the cables and accessories in a safe place. Avoid walking on or pulling the cables. -
Page 34: Specifications
9 Specifications LCD: 4.3” TFT 480 x 272 pixels, high resolution 16:9 display AV Out: CVBS and YPbPr Audio Output: 2 x 3W 8 HiFi Speaker I/O ports: • Mini 5P USB connector and Power jack • Earphone jack • Line-in 3.5mm jack •... -
Page 35: Warranty And Recycling Information
10 Warranty and Recycling Information We are legally obliged to include disposal and warranty information as well as EU declaration of conformity with the use instructions in different countries for every unit. Please find this information on the following pages. 10.1 2-Year Warranty From Date Of Purchase The manufacturer/retailer guarantees this product for two years from date of purchase. -
Page 36: Weee And Recycling
10.2 WEEE And Recycling The European laws do not allow any more the disposal of old or defective electric or electronic devices with the household waste. Return your product to a municipal collection point for recycling to dispose of it. This system is financed by the industry and ensures environmentally responsible disposal and the recycling of valuable raw materials.
