User's Manual

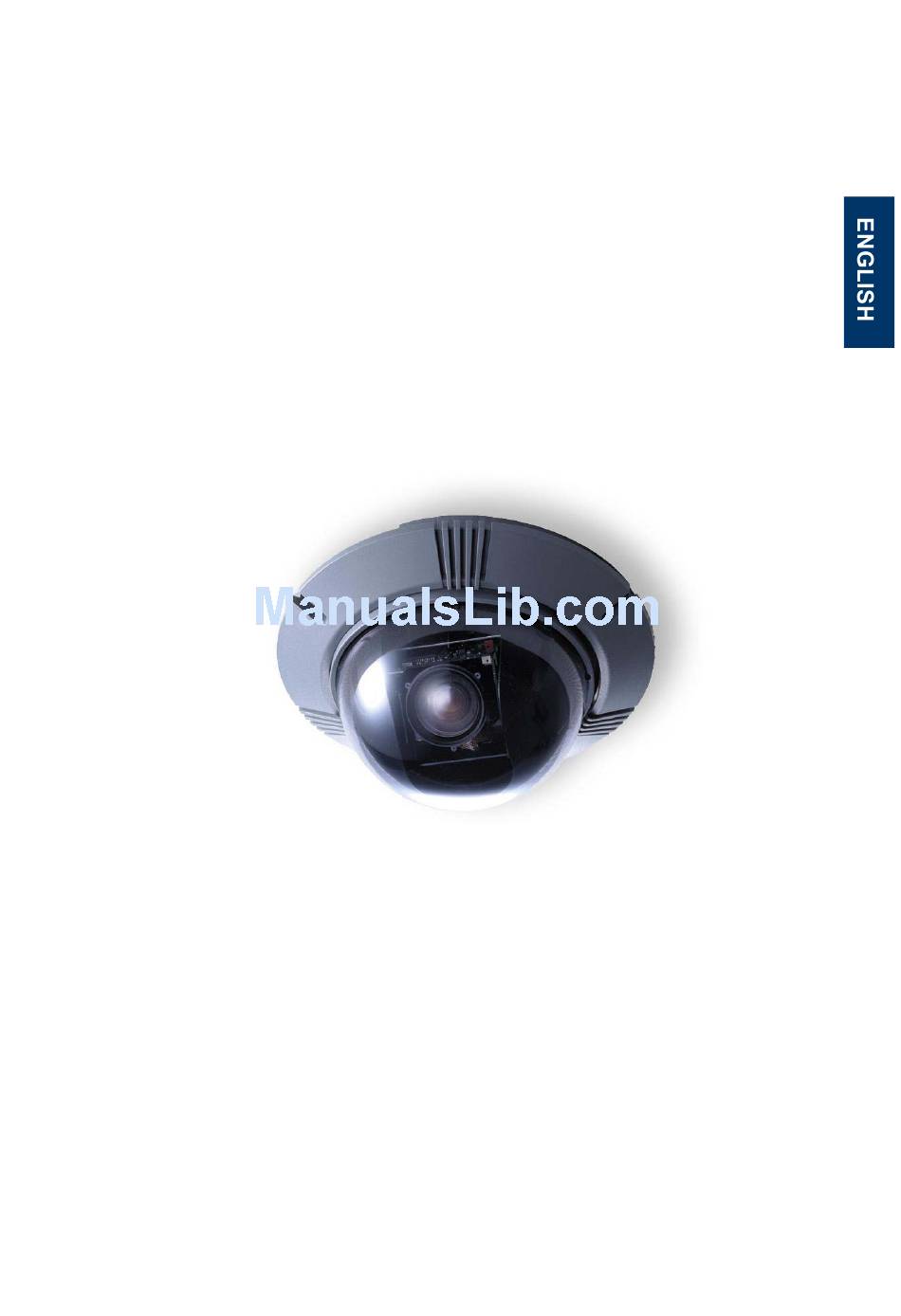

HIGH SPEED IP- DOME SERIES
HEAVY DUTY MODEL
Before attempting to connect or operate this product, please read these instructions completely.
00-37723EZ1EA2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D7723 series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DynaColor D7723 series

Summary of Contents for DynaColor D7723 series

  • Page 1 User’s Manual HIGH SPEED IP- DOME SERIES HEAVY DUTY MODEL Before attempting to connect or operate this product, please read these instructions completely. 00-37723EZ1EA2...

  • Page 2: Table Of Contents

    CONTENTS PREFACE........................3 FEATURES........................4 PRECAUTIONS......................7 QUICK STARTING ......................8 FUNCTION DEFINITION ..................8 QUICK START FROM MICROSOFT WINDOWS ........... 9 CONSTRUCTION ...................... 11 SWITCH SETTING ....................12 SWITCH DEFINITION................... 12 ID SETTING ......................12 DOME CONTROL PROTOCOL................12 INSTALLATION – HARD CEILING ................13 HARD CEILING MOUNTING ................
  • Page 3 2. VIDEO QUALITY................... 41 APPENDIX - EVENT CONFIGURATIONS ..............42 1. SCRIPT EDIT ....................42 2. SCRIPT WIZARD ..................44 APPENDIX - OSD MENU (R, K MODEL)..............47 OSD TREE STRUCTURE (R, K MODEL) ............47 OSD MENU (R, K MODEL) .................. 49 APPENDIX - OSD MENU (S MODEL) ..............57 OSD TREE STRUCTURE (S MODEL) ..............

  • Page 4: Preface

    PREFACE The speed dome is a new subcompact dome camera system designed to deliver superb performance and durability with a pristine housing that looks good in any security and surveillance installation. This speed dome contains new generation advanced DSP color camera, with 25X optical zoom multiply 12X digital magnifier (22X optical zoom with 12X digital magnifier, or 23X optical zoom with 10 digital magnifier are selectable items), delivers the power of a 300X zoom (264X ,230X zoom) to make sure that the finest details are...

  • Page 5: Features

    FEATURES NETWORK VIDEO SERVER FEATURES 1. Built-in HTTP web server providing Internet access capability. 2. Dome IP assignment via ARP/Web Page/IP Installer for easy setup. 3. JAVA-based web page providing maximum platform compatibility. 4. Active-X control for Internet Explorer providing maximum performance. 5.
  • Page 6 (2). K model: 23X lens: Equipped (3). R model: 22X lens: N/A 8. WDR (1). S model: 25X lens: N/A (2). K model: 23X lens: Equipped (3). R model: 22X lens: N/A 9. Privacy Mask (1). S model: 25X lens: Equipped (2).
  • Page 7 14. D Protocol and P Protocol Supported from OSD. You can control our dome camera easily from any keyboard of PELCO (Pelco Corporation). 15. VCL Telemetry Control Protocol Supported from OSD. You can control our dome camera easily from system of DM (Dedicated Micros Corporation). 16.

  • Page 8: Precautions

    PRECAUTIONS Handle the camera carefully Do not abuse the camera. Avoid striking, shaking, etc. The camera could be damaged by improper handing or storage. Do not disassemble the camera To prevent electric shock, do not remove screws or covers. There are no user serviceable parts inside.

  • Page 9: Quick Starting

    QUICK STARTING The section is a quick reference for users to manipulate a dome camera in a short time. FUNCTION DEFINITION ■ Preset Function Definition Preset point means that dome camera will save pan/tilt/zoom positions to its memory. You can recall the preset position through this function. ■...

  • Page 10: Quick Start From Microsoft Windows

    QUICK START FROM MICROSOFT WINDOWS STEP1: Run “IPinstaller.exe” from PC. The IP Installer will scan the Ethernet node address (MAC address) to check how many devices are connected to the network segment. Select an IP DOME with Ethernet node address and change its IP address to an assigned IP address which is issued by your network administrator.
  • Page 11 camera will stay 2 seconds there and dome will go to next preset with speed 6. c. Please continuous edit the parameters Point 2 / Preset / Dwell Time / Speed and so on. (2) Execute sequence function a. Press a group number (1~4) in the “RUN” area, and the dome will execute its sequence function.

  • Page 12: Construction

    CONSTRUCTION LINE SIGNAL COLOR AC24V-1 BLACK ALMNO BROWN AC24-2 ALMNC ORANGE YELLOW ALMCOM GREEN ISOG BLACK / WHITE ALM_1_IN BROWN / WHITE ALM_3_IN RED / WHITE ALM_2_IN ORANGE / BLACK ALM_4_IN YELLOW / BLACK ALM_5_IN GREEN / BLACK ALM_6_IN BLUE / WHITE ALM_7_IN PURPLE / WHITE ALM_8_IN GRAY / BLACK ALMGND...

  • Page 13: Switch Setting

    SWITCH SETTING SWITCH DEFINITION A. ID Setting B. Dome Control Protocol C. Reserved ID SETTING Use SW1 ~ SW3 to change your speed dome ID to “0” “0” “1”. Please set every IP dome address to “001” even you install multiple IP dome cameras.

  • Page 14: Installation - Hard Ceiling

    INSTALLATION – HARD CEILING HARD CEILING MOUNTING STEP1： Screw the Fixing Plate to your Dome Body. Drill three holes on the hard ceiling. STEP2： Unpack the dome package and take out the Decorative Cover. Remove Mounting Plate from the Decorative Cover. STEP3：...
  • Page 15 STEP5： Fix the attached Bracket to the holes on the hard ceiling with three screws. STEP6： Connect data cable and RJ-45 cable through the center hole of the Bracket to Dome Body. STEP7： Mount Dome Body to the Bracket rotate Dome Body clockwise.
  • Page 16 STEP8： Assemble the Decorative Cover to the Bracket. 00-37723EZ1EA2...

  • Page 17: Installation - T-Bar Ceiling

    INSTALLATION – T-BAR CEILING T-BAR CEILING MOUNTING STEP1： Screw the Fixing Plate to the Dome Body. STEP2： Place the Red Sticker on the ceiling plate, and cut the circle part out of the ceiling. STEP3： Put up the T-Bar into the ceiling hole.
  • Page 18 STEP4： Rotate T-Bar wings of hinge to fix the T-Bar at the edge of the ceiling hole. STEP5： Tighten the screw of hinge. STEP6： Connect data cable and RJ-45 cable to Dome Body through the center hole of the Bracket. 00-37723EZ1EA2...
  • Page 19 5. STEP1： STEP7： Assembly the dome set and Mount Dome Body to the Bracket decoration cover with three screws. and rotate it clockwise. Tighten the fixing screw to fix the dome body. STEP8： Assemble the Decorative Cover to the T-BAR. 00-37723EZ1EA2...

  • Page 20: Connection

    CONNECTION CABLE CONNECTION To 24VAC To IP dome Test purpose LAN PORT (RJ-45) 1. RJ-45 connector: Network cable connection connector. The recommended cable is CAT5 twisted pair cable. 2. NETWORK LED status: a. Constant green. Constant orange: Network is connected. b.

  • Page 21: Osd Display Format

    OSD DISPLAY FORMAT OSD DISPLAY FORMAT < Fig1. OSD DISPLAY POSITION> POSITION FUNCTION OSD DISPLAY DESCRIPTION Auto Focus Mode FOCUS MODES Manual Focus Mode Back Light Compensation OFF BACKLIGHT Back Light Compensation ON ALARM ALARM Alarm Message ZOOM RATIO Present Zoom Ratio 1.

  • Page 22: Specifications

    SPECIFICATIONS GENERAL FEATURES ROTARY BODY FEATURES Environment Environment Indoor / Outdoor D7723B D7723C 360 Degree Endless Controller I/F Pan Travel Operating Tilt Travel -99 ~ 99 Degree 0° – 40 °C Temperature Manual Speed 1~150 Deg/s 1~150Deg/s Power Source 24 VAC 1~375 Deg/s 1~375 Deg/s Power...
  • Page 23 NETWORK FEATURES DESCRIPTION Video : Motion-JPEG with adjustable compression rate Compression Still Capture : JPEG Networking 10baseT Ethernet Protocols TCP/UDP/IP, HTTP, FTP ,SMTP ,ARP ,ICMP ,DHCP ,PPP ,Telnet Alarm 4 digital alarm inputs / 1 alarm outputs Maximum video performance : Up to 30 frames/ second Performance Maximum network performance : Up to 800K bytes/second NTSC: 704x480(Still), 352x240(CIF)

  • Page 24: System Architecture

    SYSTEM ARCHITECTURE ARCHITECTURE 1 00-37723EZ1EA2...

  • Page 25: Appendix - Network Connection

    APPENDIX - NETWORK CONNECTION 1. Please keep IP Dome camera power off. 2. Network cable connection: ■ Connect to Hub (Standard network installation): Connect one endpoint of PC-to-Hub Ethernet cable to RJ-45 connector of IP dome camera. Connect another endpoint of PC-to-Hub cable to the hub of this network segment.

  • Page 26: Appendix - Network Password

    APPENDIX - NETWORK PASSWORD The default administrator username is “Admin” and password is “1234”. Username: Password: 00-37723EZ1EA2...

  • Page 27: Appendix - Network Setup

    APPENDIX - NETWORK SETUP ■ Note before IP assignment: 1. Make sure the IP Dome is powered on and connected to the network correctly. 2. Request a unique IP address from your network administrator. 3. Each IP Dome has unique Ethernet node address (MAC address), which is recorded as 12 digits serial number labeled at the bottom side of IP Dome (e.g.
  • Page 28 3. Enter command <arp –s [IP Dome IP Address] [IP Dome MAC Address]>. For example: Enter “arp –s 192.168.0.200 00-04-29-00-01-50”, in “command prompt” window. 4. Enter command <ping –t [IP Dome IP Address]> shall get constant reply after 3~4 timeouts, then press CTRL-C to exit pinging. For example: In “command prompt”...
  • Page 29 5. Complete setting and verify the installation. Launch your web browser (Internet Explore) and enter the IP address. The web page of IP dome camera will be displayed now. For example: Enter “http://192.168.0.200” in Location/Address field of Internet Explore, and then the Internet live video can be opened.
  • Page 30 The IP Installer window is displayed as below picture. 2. Assign an IP Address to IP Dome Camera (1) Select the MAC Address of IP dome cameras what you want to configure in the list. The MAC Address of IP dome cameras are the same as the serial number of IP dome cameras which are labeled on the IP dome cameras.
  • Page 31 3. Verify the IP address setting of selected dome camera (1) To access the web page of the selected unit, click the “View/ Open Web” on the menu bar. (2) The internet browser will be launched and connect to the IP dome camera web page automatically.
  • Page 32 4. Verify and complete the installation from browser User can browse the web page of IP dome camera through internet browser (Microsoft IE of Netscape Navigator). User should lower the browser security settings temporarily to perform IP dome camera configuration. This configuration procedure is one-time-only procedure for first connection.

  • Page 33: Appendix - Ip Dome Control

    APPENDIX - IP DOME CONTROL ▓ Video Size: You can adjust the video size and appearance on the screen with the following sizes. Video SIZE NTSC Small 176 x 112 176 x 144 Default 352 x 240 352 x 288 Large 704 x 480 704 x 576...

  • Page 34: Appendix - Server Configurations

    APPENDIX - SERVER CONFIGURATIONS 1. SERVER GENERAL SETTINGS This page allows user to configure server setting such as server name and e-mail address, etc. ▓ Name: Please input a server name. ▓ Owner: Please input the name of this server owner. ▓...

  • Page 35: User Settings

    2. USER SETTINGS This page allows user to create, change or delete user account, password …..etc. ▓ Name: New user name to log in. ▓ Password: Password for above user. ▓ Confirm Password: Type again to confirm password. ▓ User Security: Administrator / Viewer / Operator. NOTE: The first user shall be an administrator.

  • Page 36: Clock Settings

    3. CLOCK SETTINGS The built-in real-time clock module provides date/ time information for IP dome cameras even the power of IP dome cameras is off. ▓ Set as PC clock: Click to set the date/ time of the IP dome cameras with the time of user’s PC. ▓...

  • Page 37: System Commands

    4. SYSTEM COMMANDS User can reset IP dome cameras to the factory default settings through this page. ▓ Erase All Preset Title: Clear all user defined title for preset point. ▓ Save Changes: Save user setting and the setting will be loaded into IP dome cameras after reboot.

  • Page 38: Appendix - Network Configurations

    APPENDIX - NETWORK CONFIGURATIONS 1. NETWORK GENERAL SETTINGS The page allows user to assign a specific IP address to IP dome cameras and configure the network parameters of IP dome cameras. ▓ IP Address: Please input the assigned IP address of IP dome. ▓...

  • Page 39: Dhcp Settings

    2. DHCP SETTINGS ▓ Using Dynamic IP Address: Installer can enable IP dome cameras be assigned IP address through DHCP server or disable this feature. If installer disables DHCP function, static IP address is needed. ▓ IP Notification by FTP: If a FTP server is installed on your network, you can enable this option to obtain the newly assigned IP address of your video server.

  • Page 40: Ddns Settings

    3. DDNS SETTINGS The DDNS (Dynamic Domain Name Service) is used when users want to access the Video Server with an easy memorized name instead of IP address number. ▓ Dynamic DNS Activate: Click to activate the DDNS service ▓ Dynamic DNS Address: Specify address of the DDNS server. ▓...

  • Page 41: Appendix - Video Configurations

    APPENDIX - VIDEO CONFIGURATIONS 1. TIME STAMP This page allows user to configure IP dome cameras to display time and text on the video stream or not. ▓ Display Time: Display the Time Stamp. ▓ Display Text: Display text block. Fill in the text string to display. The valid characters are a –...

  • Page 42: Video Quality

    2. VIDEO QUALITY ▓ Quality Adjustments: To adjust video contrast, brightness, hue, color saturation, and quality. ▓ Frame Delay: To set the delay time between frames. The unit of delay time is 10 ms. You can limit the output bandwidth via setting the frame delay to do the flow control of the video stream.

  • Page 43: Appendix - Event Configurations

    APPENDIX - EVENT CONFIGURATIONS 1. SCRIPT EDIT The Script Editor offers advanced administrators and developers with an greater level of flexibility for customizing the application specifically to meet their user needs. Using the on-line help as a reference, advanced users follow the instructions below to quickly develop programming scripts for time and/ or alarm-triggered events.
  • Page 44 ▓ Event Script Edit: Text window to enter event script manually. ▓ Event Status: Indicate the event status, “Stop Now” or “Start Now”. ▓ Message: A window to show the results when below command icon pressed --- normally will show “OK”, “Parsing”, “Fail”, Or “Err String” which indicates the syntax error of parsing, and starts from the error position in the script.

  • Page 45: Script Wizard

    2. SCRIPT WIZARD This section will detail the “Script Edit” settings. To start Script Wizard, run “Event” ”Script Edit” ”Script Wizard”, and the form will be shown on the screen as below: Different trigger action types are offered for administrators to configure the video server for their personal applications;...
  • Page 46 ▓ Host Name: Specifies the SMTP Server name or IP address. e.g. "mail.domain.com" or "61.220.235.170" ▓ Attached Filename: Filename of attachment. ▓ Message Body: Text message contain in email body. ▓ Return Mail Address: Return mail address, if omit, default is "webcam@domain.com".
  • Page 47 preview the script in this window. (2) FTP Event By filling the required information the video server is able to transfer an image from your Network camera to a remote server using the standard File Transfer Protocol (FTP). 00-37723EZ1EA2...

  • Page 48: Appendix - Osd Menu (R, K Model)

    APPENDIX - OSD MENU (R, K MODEL) This camera utilizes a user setup menu that is displayed on-screen. This setup menu contains various sub menus that from a tree-type structure as shown below. This menu is described in the “SETUP MENU DESCRIPTION” OSD TREE STRUCTURE (R, K MODEL) DEFAULT BACKLIGHT...
  • Page 49 SETTING ALARM SWITCH ALARM TYPE N.O. N.C. ALARM ACTION POINT SEQUCENCE POINT ALARM POS 001 ~ 127 SEQUENCE LINE 1 ~ 4 DEWLL TIME 001 ~ ALWAYS SEC. EXIT HOME ENTER HOME FUNC. SETTING PRESET POS 1 ~ 127 RETURN TIME 1 ~ 127 MIN.

  • Page 50: Osd Menu (R, K Model)

    SHADE GRAY / WHITE / BLACK SET MASK 1 / 2 HCENTER ( 000~100 ) VCENTER ( 000~100 ) HSIZE ( 000~100 ) VSIZE ( 000~100 ) EXIT EXIT EXIT OSD OSD MENU (R, K MODEL) There are two pages of OSD setup menu allow users to control the camera parameters, these functions are described in the following sections in detail.
  • Page 51 Here you can select how the auto exposure function works, five options are available in this item, they are explained in the following section: AUTO With this option, the camera’s Shutter, IRIS and AGC control circuits work together automatically to compensate the light exposure of CCD sensor, in order to get consistent video output level.
  • Page 52 technology. ME item is a standard function which is the same as AUTO-FLIP function. ZOOM SPEED You can select a suitable zoom speed. SPEED BY ZOOM The tracking speed is adjusted by internal algorithm. The lager zoom ratio the lower rotation speed. AUTO CALI.
  • Page 53 10. TITLE SETTING You can name a view for dome camera and it will display the name when you came back to the view. STEP 1: Operate dome to a view what you want to name it. STEP 2: Turn on OSD and move blink words to “TITLE SETTING” STEP 3: Select a number what you want to name it.
  • Page 54 Point Mode PRESET POS. Enter a preset position where the dome will go to when alarm pin is triggered. Sequence Mode SEQUENCE Enter the sequence line you wish the Dome execute when alarm pin is triggered. DWELL TIME (Seconds) Camera will stay at the preset position for “DWELL TIME” seconds then go back to previous position.
  • Page 55 SEQUENCE POINT There are 32 sets of sequence points can be specified in every sequence line. The sequence points are linked list. Sequence function will go through the linked list again and again. PRESET POSITION You can specify a preset position where the dome should go to at this sequence point.
  • Page 56 15. CRUISE Cruise parameters can be set on this page. RECORD START Command dome to start to record “CRUISE PATH”. STEP1: Press ‘ENTER’ to go into joystick mode. Dome will move blink words to ‘RECORD END’ automatically. STEP2: User can move camera to form a path. STEP3: Press ‘ENTER’...
  • Page 57 SET MASK After you press “ENTER” on this item, dome will memory this position as “privacy mask position”. You can select form Mask1 to Mask8 for this item. MAKS MENU H CENTER 000~100 The original center of mask zone is the center of screen. User can move the center of mask zone to another position through adjust this value.

  • Page 58: Appendix - Osd Menu (S Model)

    APPENDIX - OSD MENU (S MODEL) This camera utilizes a user setup menu that is displayed on-screen. This setup menu contains various sub menus that from a tree-type structure as shown below. This menu is described in the “SETUP MENU DESCRIPTION” OSD TREE STRUCTURE (S MODEL) DEFAULT BACKLIGHT...
  • Page 59 SETUP ENTER APERTURE MENU2 FREEZE PICTURE EFFECT COLOR NEG. STABILIZER MASK DISPLAY FIRST LAST TITLE DISPLAY TITLE 000 ~ 016 SETTING ALARM ENTER ALARM PIN 1 ~ 4 SETTING ALARM SWITCH ALARM TYPE N.O. N.C. ALARM ACTION POINT SEQUENCE POINT PRESET POS 001 ~ 128 SEQUENCE LINE 1 ~ 4...
  • Page 60 LEFT SPEED 1 ~ 4 RUN AUTOPAN ENTER EXIT CRUISE ENTER RECORD START ENTER RECORD END ENTER RUN CRUISE ENTER EXIT AUTO FUNCTION ALARM ENTER DETECT SWITCH ON/OFF DETECT DETECT MODE FIX FOCUS INT. AE FIX AE INT. FOCUS EXIT PRIVACY ENTER PRIVACY SWITCH OFF / ON...

  • Page 61: Osd Menu (S Model)

    OSD MENU (S MODEL) There are two pages of OSD setup menu allow users to control the camera parameters, these functions are described in the following sections in detail. Please use LEFT/ RIGHT/ UP/ DOWN of direction keys to select your parameters. 1.
  • Page 62 4. AE MODE Here you can select how the auto exposure function works, five options are available in this item, they are explained in the following sections: AUTO With this option, the camera’s IRIS and AGC control circuits work together automatically to compensate the light exposure of CCD sensor, in order to get consistent video output level.
  • Page 63 MANUAL In this mode, you can control the Write Balance value manually, R gain and B gain is adjustable. 6. ID DISPLAY You can display the ID of dome on monitor or not. Display the ID address of this dome. Do not display the ID address of this dome.
  • Page 64 8. SETUP MENU2 You can adjust some parameters under SETUP MENU2 item. APERTURE Aperture control is a function which adjusts the enhancement of the edges of objects in the picture. There are 16 levels of adjustment, starting from “no enhancement.” When shooting text, this control may help by making them sharper.
  • Page 65 10. TITLE SETTING You can name a view for dome camera and it will display the name when you came back to the view. STEP 1: Operate dome to a view what you want to name it. STEP 2: Turn on OSD and move blink words to “TITLE SETTING” STEP 3: Select a number what you want to name it.
  • Page 66 Sequence Mode SEQUENCE Enter the sequence line you wish the Dome execute when alarm pin is triggered. DWELL TIME (Seconds) Camera will stay at the preset position for “DWELL TIME” seconds then go back to previous position. If you select “Always”, dome will go to the preset position and stay there until alarm condition is released or user move its joystick on keyboard.
  • Page 67 PRESET POSITION You can specify a preset position where the dome should go to at this sequence point. SPEED Speed is adjustable from 1~15. DWELL TIME Dome will stay on the sequence point for “DWELL TIME” then go to next sequence point.
  • Page 68 RECORD END Command dome to stop to record “CRUISE PATH”. RUN CRUISE Execute “CRUISE” function. EXIT Quit the CRUISE menu. 16. IR FUNCTION “IR Cut Filter” function can be set on this page. AUTO The Internal circuit will decide when to remove the “IR Cut Filter” according to its internal algorithm.
  • Page 69 EXIT Exit this page. 18. PRIVACY You can program the privacy zone position with this option. PRIVACY SWITCH You can display “Privacy masks” with this option. TRANSPARENCY The color of privacy mask can be set as transparency related to background image.
