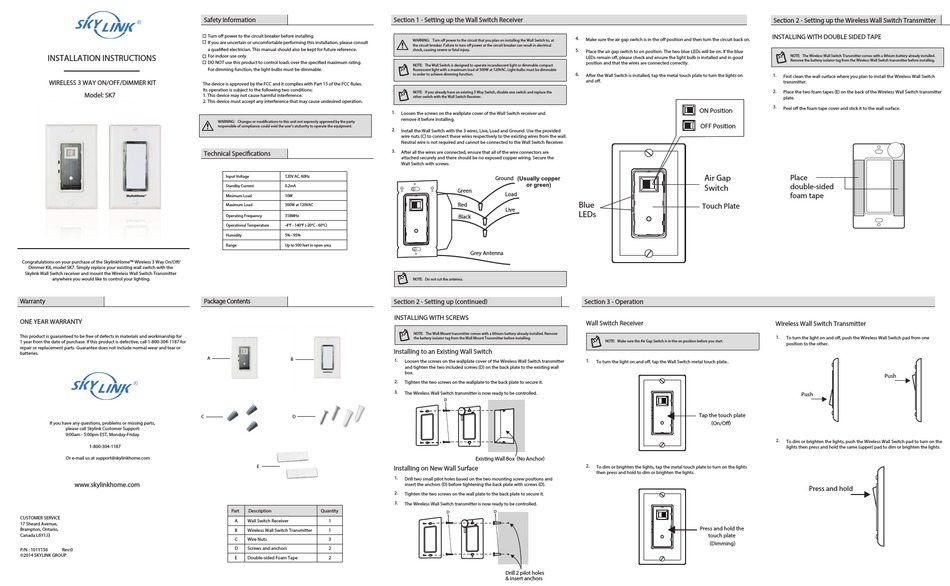

SkyLink SK7 Installation Instructions

INSTALLATION INSTRUCTIONS
WIRELESS 3 WAY ON/OFF/DIMMER KIT
Model: SK7
Congratulations on your purchase of the SkylinkHome Wireless 3 Way On/O /
TM
Dimmer Kit, model SK7. Simply replace your existing wall switch with the
Skylink Wall Switch receiver and mount the Wireless Wall Switch Transmitter
anywhere you would like to control your lighting.
Warranty
ONE YEAR WARRANTY
This product is guaranteed to be free of defects in materials and workmanship for
1 year from the date of purchase. If this product is defective, call 1-800-304-1187 for
repair or replacement parts. Guarantee does not include normal wear and tear or
batteries.
If you have any questions, problems or missing parts,
please call Skylink Customer Support:
9:00am - 5:00pm EST, Monday-Friday.
1-800-304-1187
Or e-mail us at support@skylinkhome.com
www.skylinkhome.com
CUSTOMER SERVICE
17 Sheard Avenue,
Brampton, Ontario,
Canada L6Y1J3
P/N : 101Y156 Rev:0
©2014 SKYLINK GROUP.
Safety Information
Turn o power to the circuit breaker before installing.

 If you are uncertain or uncomfortable performing this installation, please consult
a quali ed electrician. This manual should also be kept for future reference.
For indoor use only.

 DO NOT use this product to control loads over the speci ed maximum rating.
For dimming function, the light bulbs must be dimmable.
The device is approved by the FCC and it complies with Part 15 of the FCC Rules.
Its operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may cause undesired operation.
WARNING: Changes or modi cations to this unit not expressly approved by the party
responsible of compliance could void the user's atuhority to operate the equipment.
Technical Speci cations
Technical Speci cations:
Input Voltage 120V AC, 60Hz
Standby Current 0.2mA
Minimum Load 10W
Maximum Load 300W at 120VAC
Operating Frequency 318MHz
Operational Temperature -4°F - 140°F (-20°C - 60°C)
Humidity 5% - 95%
Range Up to 500 feet in open area
PACKAGE CONTENTS
Package Contents
A
B
C D
E
Part Description Quantity
A Wall Switch Receiver 1
B Wireless Wall Switch Transmitter 1
C Wire Nuts 3
D Screws and anchors 2
E Double-sided Foam Tape 2
Section 1 - Setting up the Wall Switch Receiver
WARNING: Turn o power to the circuit that you plan on installing the Wall Switch to, at
the circuit breaker. Failure to turn o power at the circuit breaker can result in electrical
shock, causing severe or fatal injury.
NOTE: The Wall Switch is designed to operate incandescent light or dimmable compact
uorescent light with a maximum load of 300W at 120VAC. Light bulbs must be dimmable
in order to achieve dimming function.
NOTE: If you already have an existing 3 Way Switch, disable one switch and replace the
other switch with the Wall Switch Receiver.
1.
Loosen the screws on the wallplate cover of the Wall Switch receiver and
remove it before installing.
2.
Install the Wall Switch with the 3 wires, Live, Load and Ground. Use the provided
wire nuts (C) to connect these wires respectively to the existing wires from the wall.
Neutral wire is not required and cannot be connected to the Wall Switch Receiver.
3.
After all the wires are connected, ensure that all of the wire connectors are
attached securely and there should be no exposed copper wiring. Secure the
Wall Switch with screws.
Ground
Green
Load
Red
Live
Black
Grey Antenna
NOTE: Do not cut the antenna.
Section 2 - Setting up (continued)
INSTALLING WITH SCREWS
NOTE: The Wall Mount transmitter comes with a lithium battery already installed. Remove
the battery isolator tag from the Wall Mount Transmitter before installing.
Installing to an Existing Wall Switch
1.
Loosen the screws on the wallplate cover of the Wireless Wall Switch transmitter
and tighten the two included screws (D) on the back plate to the existing wall
box.
2.
Tighten the two screws on the wallplate to the back plate to secure it.
3. The Wireless Wall Switch transmitter is now ready to be controlled.
D
Existing Wall Box (No Anchor)
Installing on New Wall Surface
1.
Drill two small pilot holes based on the two mounting screw positions and
insert the anchors (D) before tightening the back plate with screws (D).
2.
Tighten the two screws on the wall plate to the back plate to secure it.
3.
The Wireless Wall Switch transmitter is now ready to be controlled.
D
D
Drill 2 pilot holes
& insert anchors
4.
Make sure the air gap switch is in the o position and then turn the circuit back on.
5.
Place the air gap switch to on position. The two blue LEDs will be on. If the blue
LEDs remain o , please check and ensure the light bulb is installed and in good
position and that the wires are connected correctly.
6.
After the Wall Switch is installed, tap the metal touch plate to turn the lights on
and o .
ON Position
OFF Position
Air Gap
Switch
Blue
Touch Plate
LEDs
Section 3 - Operation
Wall Switch Receiver
NOTE: Make sure the Air Gap Switch is in the on position before you start.
1.
To turn the light on and o , tap the Wall Switch metal touch plate..
Tap the touch plate
(On/O )
2.
To dim or brighten the lights, tap the metal touch plate to turn on the lights
then press and hold to dim or brighten the lights.
Press and hold the
touch plate
(Dimming)
Section 2 - Setting up the Wireless Wall Switch Transmitter
INSTALLING WITH DOUBLE SIDED TAPE
NOTE: The Wireless Wall Switch Transmitter comes with a lithium battery already installed.
Remove the battery isolator tag from the Wireless Wall Switch transmitter before installing.
1.
First clean the wall surface where you plan to install the Wireless Wall Switch
transmitter.
2.
Place the two foam tapes (E) on the back of the Wireless Wall Switch transmitter
plate.
3.
Peel o the foam tape cover and stick it to the wall surface.
Place
double-sided
foam tape
Wireless Wall Switch Transmitter
1.
To turn the light on and o , push the Wireless Wall Switch pad from one
position to the other.
Push
Push
2.
To dim or brighten the lights, push the Wireless Wall Switch pad to turn on the
lights then press and hold the same (upper) pad to dim or brighten the lights.
Press and hold
