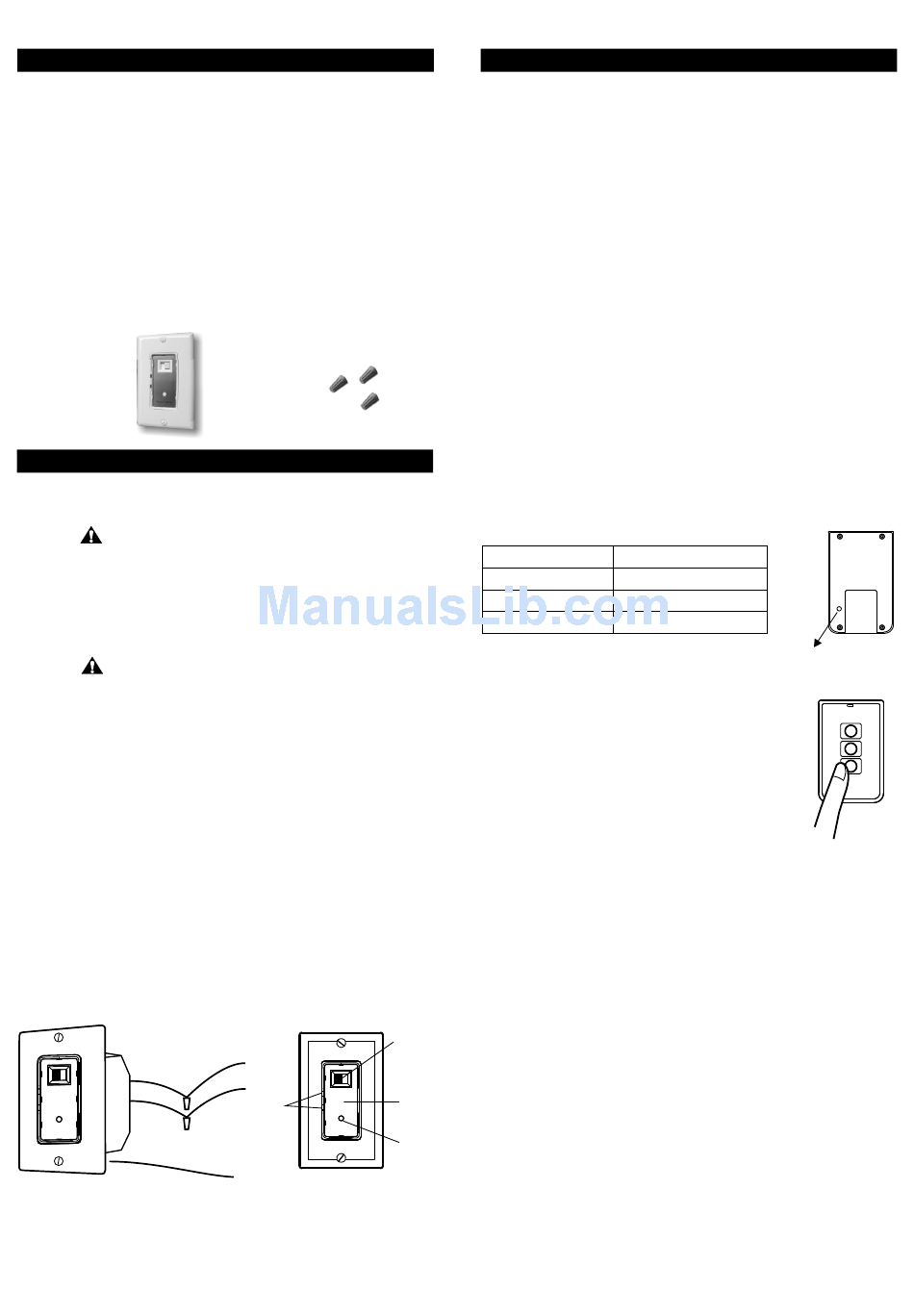

SkyLink WR-001 User Manual

Wall Dimmer

1. INTRODUCTION

Thank you for your purchase of a SkylinkHome lighting receiver, Wall
Dimmer, Model WR-001. Simply replace your existing wall switch with this
Wall Dimmer, you can then wirelessly turn on and off, dim and brighten
TM
lights with a SkylinkHome transmitter.
The Wall Dimmer WR-001 can communicate with up to 8 transmitters, so
user has the option to add more transmitters to the system, such as more
remote controls, or motion sensors etc.
All wireless signal communications within the
based on rolling code technology to ensure highest security is used.
The following items are included in this package:
- Wall Dimmer
- Wire nuts
- User's Instructions
Setup of the Wall Dimmer is simple. Simply replace your existing wall
switch by the Wall Dimmer.
CAUTION
Installation is required and enclosed instructions must be followed
carefully to all steps and notes. If you are uncertain or uncomfortable
performing this installation, please consult a qualified electrician.
This manual should also be retained for future reference.
1. Turn off power to the circuit that you plan on installing the Wall Dimmer
to at the circuit breaker.
WARNING
Failure to turn off power at the circuit breaker can result in electrical
shock causing severe or fatal injury.
Note: Lighting Load
The Wall Dimmer is designed to operate
compact fluorescent light with a maximum load
bulbs must be dimmable in order to achieve dimming function.
2. Follow the diagrams below to install the Wall Dimmer with the 2 wires:
Live, Load. Use the provided wire nuts to connect these wires
respectively to the existing wires from the wall : Load(Red) to load and
Live(Black) to live. .
3. After all the wires are connected, ensure that all of the wire connectors
are attached securely and there should be no exposed copper wiring.
Secure the Wall Dimmer with the provided screws.
4. Place the air gap switch to off position.
5. Turn the circuit breaker back on.
6. Place the air gap switch to on position.
7. The light connected will be off. The Wall Dimmer is now installed and
you can tap the metal touch pad to turn ON/OFF the connected light or
to begin programming to learn transmitters into the Wall Dimmer.
Red
Black
Grey Antenna
Do not cut the antenna!
Note:
Antenna ( grey wire) -- Do not cut it, keep it as straight as possible.
Put the antenna directly into the dry wall or through a hole of the
metal box into the dry wall to get more control distance with a remote.
Model WR-001
TM
TM
SkylinkHome
Wall Dimmer
WR-001
Wire nuts

2. SETUP

incandescent light or dimmable
of 600W at 120VAC.
The two blue LEDs will be on.
Load
Live
Blue
LED

3. PROGRAMMING TRANSMITTERS (TC SERIES) / SENSORS

In order to operate the
it must be programmed to the
by up to 8 different transmitters (or 8 different command signals).
There are 3 operating modes with the
1) Regular Mode - When a valid signal is received, it will turn on or off the
light, or change the brightness of the light.
System are
2) Flashing Alert Mode - When a valid signal is received, the light will flash
for a specific period of time, which is the time defined in the timer duration.
This works as an alert indication.
3) Countdown Timer Mode - When a valid signal is received, the light will
be on for a specific period of time, 1 minute, 5 minutes, 15 minutes,
30 minutes, or 60 minutes. This is mainly for energy saving.
You can program multiple buttons/transmitters / sensors to the module
and different button/transmitter / sensor can activate a different mode.
To program a TC series transmitter into the Wall Switch Dimmer
under regular mode
1. Wall Dimmer must be installed and powered properly.
pad. The connected light should be on, and the 2 blue LEDs are off.
2. Press and hold the "SET" button for about 3 seconds, until the upper
blue LED flashes quickly.
3. You may now release the "SET" button. The blue LED will continue to
flash quickly for about 15 seconds.
Operating Mode
Regular
Flashing Alert
Countdown Timer
4. Within 15 seconds, follow steps A) to C).
A). Press the PROG button on the back of the
TC transmitter
B). Press the button on the TC transmitter that
you would like to program.
C). Once the transmitter is programmed, the
two blue LEDs
Light
quickly then stop flashing, indicating you
have successfully programmed the trans-
mitter to the module. Now the programmed
transmitter
Regular Mode.
To program a TC series transmitter into the Wall Switch Dimmer under
Flashing Alert Mode, follow the instructions below:
1. Wall Dimmer must be installed and powered properly. Touch the touch
pad. The connected light should be on, and the 2 blue LEDs are off.
2. Press and hold the "SET" button for about 9 seconds, until the upper
blue LED flashes slowly.
3. You may now release the "SET" button. The blue LED will continue to
flash slowly for about 15 seconds.
4. Within 15 seconds, follow steps A to C.
A. Press the PROG button on the back of the TC transmitter with a
sharp object.
Air Gap
B. Press the button on the TC transmitter that you would like to program.
Switch
C. Once the transmitter is programmed, the two blue LEDs on the Wall
Dimmer flash quickly then stop flashing, indicating you have
successfully programmed the transmitter to the module. Now the
Touch
programmed transmitter button is ready to be used for Flashing Alert
Pad
Mode.
SET
To program a TC series transmitter into the Wall Switch Dimmer under
Button
Countdown Timer Mode, follow the instructions below:
1. Wall Dimmer must be installed and powered properly. Touch the touch
pad The connected light should be on, and the 2 blue LEDs are off.
2. Press and hold the "SET" button for about 15 seconds, until the upper
blue LED will be steadily on.
3. You may now release the "SET" button. The blue LED will continue to
be on for about 15 seconds.
Wall Dimmer remotely with a transmitter or sensor,
Wall Dimmer . Each module can be operated
Wall Dimmer
, follow the instructions below:
Upper LED Indication
Flashes quickly
Flashes slowly
Steadily On
with a sharp object. .
Wall Dimmer
on the flash
button is ready to be used for
:
Touch the touch
"PROG" button
TC-318-3
Press the
desired
button
