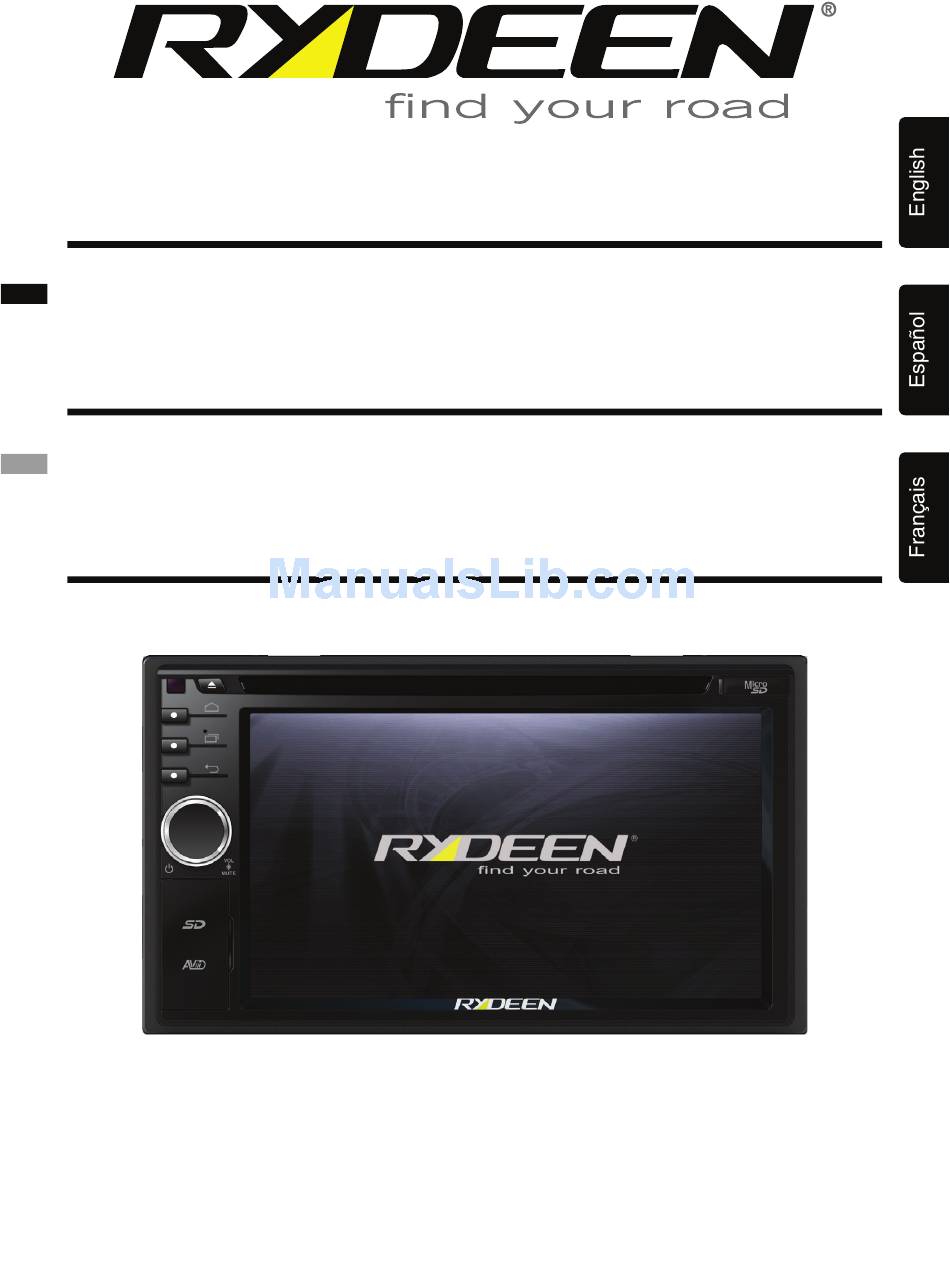

  • Page 1 Owner’s Manual DVA6 Manual de Instrucciones DVA6 Guide de l’Utilisateur DVA6 Android Powered - 2 Din Multimedia Receiver with Built-in Bluetooth Android Powered - 2 Din Multimedia Receiver with Built-in Bluetooth Moteur Android– Multimédia 2 Din Récepteur avec Bluetooth Intégré...

  • Page 2: Important Information

    AND IT IS SAFE to do so. and screws. to the DVA6 will void the warranty and its compliance with FCC rules thus making it illegal to use. odor emanating from the unit) – STOP USING THE UNIT IMMEDIATELY. Contact the nearest RYDEEN retailer or call RYDEEN Customer Service for assistance Toll Free @ 1-877-777-8811 (within USA only).
  • Page 3 Water damage is not covered under the warranty. WARNINGS RYDEEN MOBILE INSTALLERS ONLY REQUIRED TO BE COVERED UNDER WARRANTY Technical Support Contact Info If you have other questions about the RYDEEN DVA6, please contact your retailer or Technical Support:...
  • Page 4 Thank you for purchasing this product. Please read through the Owner’s Manual to to moisture or water to prevent electronic learn how to properly operate the DVA6 unit. please keep it in a safe place for future reference. Only connect the unit to a 12-volt power supply with proper negative grounding.

  • Page 5: Table Of Contents

    Precautions Contents Warning Operate the unit correctly according to the instruction manual to prevent unnecessary problems. CAUTIONS ON HANDLING This product is a CLASS 1 LASER PRODUCT. Turn On/Off the Power......9 Use of controls or adjustments or performance Mute ............9 of procedures other than those specified Adjust the Volume........9 herein may result in hazardous radiation...

  • Page 6: Mute

    Control Panel Insert the disc with label side facing up. Show main menu We recommend to use External Show MENU options Microphone for better Quality. Internal Mic. is just for urgent use, in case of Back to previous MENU. External Mic. broken. >...
  • Page 7 Remote Control 1. Change playing source in sequence 2. Eject the disc 3. Select audio language Show music catalog 4. Display playback information 6. Select radio band 7. Call out - Outgoing call 9. DVD title 10. Repeat playback 11. Setup menu 12.
  • Page 8 Remote Control 1) Aim the remote control at the remote sensor on the unit. 2) Remove the battery from the remote control or insert a battery insulator if the battery has not been used for a month or longer. 3) DO NOT store the remote control under direct sunlight or in high temperature environment, or it may not function properly.
  • Page 9 Basic Operations 1. Press the [ VOL ] knob to turn on the unit. The unit will go back to the last source brake switch, the video display of the TFT used prior to the radio being powered off. monitor will be controlled by driving status, 2.

  • Page 10: Main Menu

    Main menu Disc Operation Press the ] button on the panel to enter Insert a disc into the slot, and the unit will main source menu. change to disc mode automatically. Notes: the unit before you insert another one. enter DVD mode when one disc is inserted. CD-R, CD-RW, DVD-R, DVD+R, DVD-RW, DVD + RW .
  • Page 11 Disc Operation 6. Next chapter 1. Return to home menu Fast forward (long press) 2. Show more control buttons 7. To enter search menu 3. Previous track Fast backward (long press) 4. Play/Pause 5. Next track Fast forward (long press) 6.
  • Page 12 Disc Operation When viewing a picture, touch the screen (except top left corner) to show control buttons. If you do not select Repeat on, when the entire disc or TITLE playback has finished, the system will stop. If no other control, after 5 minutes the unit will turn into standby mode.
  • Page 13 Radio Operations Select [Radio] on the main menu to enter radio mode. Touch the [ ] button to select one radio band among FM1, FM2, FM3, AM1 and AM2. During manual tuning, the frequency will be changed in steps. Touch the [ ] or [ ] button on the operation bar to tune in a lower/higher station.
  • Page 14 Radio Operations SD/USB Operations 1. Open the card slot cap, insert an SD card Method 1: into the corresponding slot, the unit will load Touch the 1~6 on the left of screen to listen to the preset station of current band. another source, in order to avoid damaging Method 2: the card, press the card slightly, and take...
  • Page 15 SD/USB Operations 1. Touch [Artists] on the left of the screen. 2. Touch an artist shown on the list. 3. Select a song to play. 1. Touch [Albums] on the left of the screen. 2. Touch an album shown on the list. 3.
  • Page 16 SD/USB Operations 4. Show more control buttons 5. Stop playback 6. Previous chapter 2. Select one gallery to show the picture list. Fast backward (long press) 7. Play/Pause 8. Next chapter Fast forward (long press) 9. Enter EQ menu 3. Touch to view it. 10.
  • Page 17 Bluetooth Operations The Bluetooth allows you to utilize your car’s built-in audio system for handsfree wireless mobile phone or music communication. Some Bluetooth mobile phones have the audio features, and some portable audio players support Bluetooth feature. This system can play audio data stored in a Bluetooth audio device.
  • Page 18 Bluetooth Operations : Previous track : Play/Pause : Next track Access Call History by touching [ ] button. Touch [ ] button to show Bluetooth setting menu. Then select a number from Dialled/Missed/ Received calls. Audio streaming is a technique for transferring audio data such that it can be processed as a steady and continuous stream.
  • Page 19 Internet 7. Must setup following options: Name, APN, MCC, MNC. Touch the dialogue box to show keypad, Contact the manufacturer for latest compatible and input your desired name. APN according to the operator to determine. User set the APN to access the internet. 2.
  • Page 20 Internet This unit generally supports the following: User can use the unit to create a personal realtek 8188cu, 8188eu. Wi-Fi hotspot. All your other Wi-Fi enabled devices will then be able to connect to this 1. Connect the WiFi dongle to the unit. hotspot and share the primary internet connection.

  • Page 21: Applications Menu

    Internet Other Mode If your device can’t connect to the Wi-Fi hotspot: To navigate by the unit, simply select the 1. Check the Wi-Fi network. desired navigation application on the main icon will appear on the top left of menu. Then navigate by the touch screen. the screen after setting successfully.
  • Page 22 Other Mode 1. Turn on the bluetooth function of both the unit and smartphone. 1. Ensure the network is available, refer to the Make sure the smartphone has internet <Internet>. access (iPhone 4S, iPhone 5, iPhone 5S, 2. Touch [ ] icon on the main menu, select [Date &...
  • Page 23 Other Mode If you want to establish a new account, please touch [New]. If you want to use an existing account, 1. Touch [ ] icon on the main menu to please touch [Existing]. enter settings menu, slide down the screen After select “Existing”, input your mail account and password.
  • Page 24 System settings Select [ ] on the main menu to enter settings mode. To setup the wireless configuration, such as Drag up/down to scroll the options. To setup the Sound, Display, and Storage, Applications management. PERSONAL To Setup Location services, Security and Language &...
  • Page 25 Sound setting Select [EQ] on the menu to enter sound setting mode. Touch to select a preset EQ on upper side of the screen from Flat, Pop, User, Techno, Touch [ ] or [ ] to adjust the level, Center Frequency and Q for Bass/Mid/Treb.
  • Page 26 Device Connections Notes of connection This unit is designed to be used in a vehicle with a 12-volt battery and negative grounding. Before installing this unit to a recreational vehicle, a bus, or a truck, make sure the battery voltage is appropriate for this unit to be used, otherwise, have a professionally installed transformer to convert the output voltage to 12V.
  • Page 27 Device Connections Parking Brake Cable Connections Green/White Wire Back Up Camera Connections...
  • Page 28 English Black MICROPHONE Microphone Black RADIO ANT Black 3G/WIFI Black 3G/WIFI GPS ANTENNA FRONT OUT Red(R) Orange PARKING White(L) Black Pink REVERSE REAR OUT Red(R) Black Key A Grey White(L) Key B VIDEO OUT Yellow Black PART A PART B SUBWOOFER Blue Rear R+...
  • Page 29 Troubleshooting The following checklist can help you solve the problems which you may encounter when using the unit. Before consulting it, check the connections and follow the instructions in the user manual. Car ignition is not on. Turn your car key in the ignition. Cable is not properly Check cable connection.
  • Page 30 Reference Supply Voltage ..............12V(DC) Operating Voltage Range ............10.5 - 15.8V(DC) Max Operating Current .................15A ............ Car Battery Negative Pole Dimensions(WXHXD) ............178X101.5X159mm Weight(main unit) ..................1.9kg Signal Noise Ratio ................Usable Sensitivity(S/N=30dB) ............Frequency Response(-3dB) ............Station Seeking Level ..............Distortion ....................
  • Page 31 Rydeen North America Inc. (a manufacturer of “Rydeen” products) warrants this product (DVA6) only to the original purchaser as described following: Rydeen warrants this product for a period of one (1) year from the original purchase date with proof of purchase.
  • Page 32 FCC Compliance Statement This device complies with Part 15 of the FCC interference limits for Class B digital devices for home or office use. These limits are designed to provide more reasonable protection against harmful interference in a residential installation and are more stringent than “outdoor” requirements.
