Rydeen DV638A Owner's Manual

2-din 6.2” tft monitor dvd am/fm receiver with bt a2dp
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual
DV638A
2-DIN 6.2" TFT Monitor DVD
AM/FM Receiver with BT A2DP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DV638A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rydeen DV638A

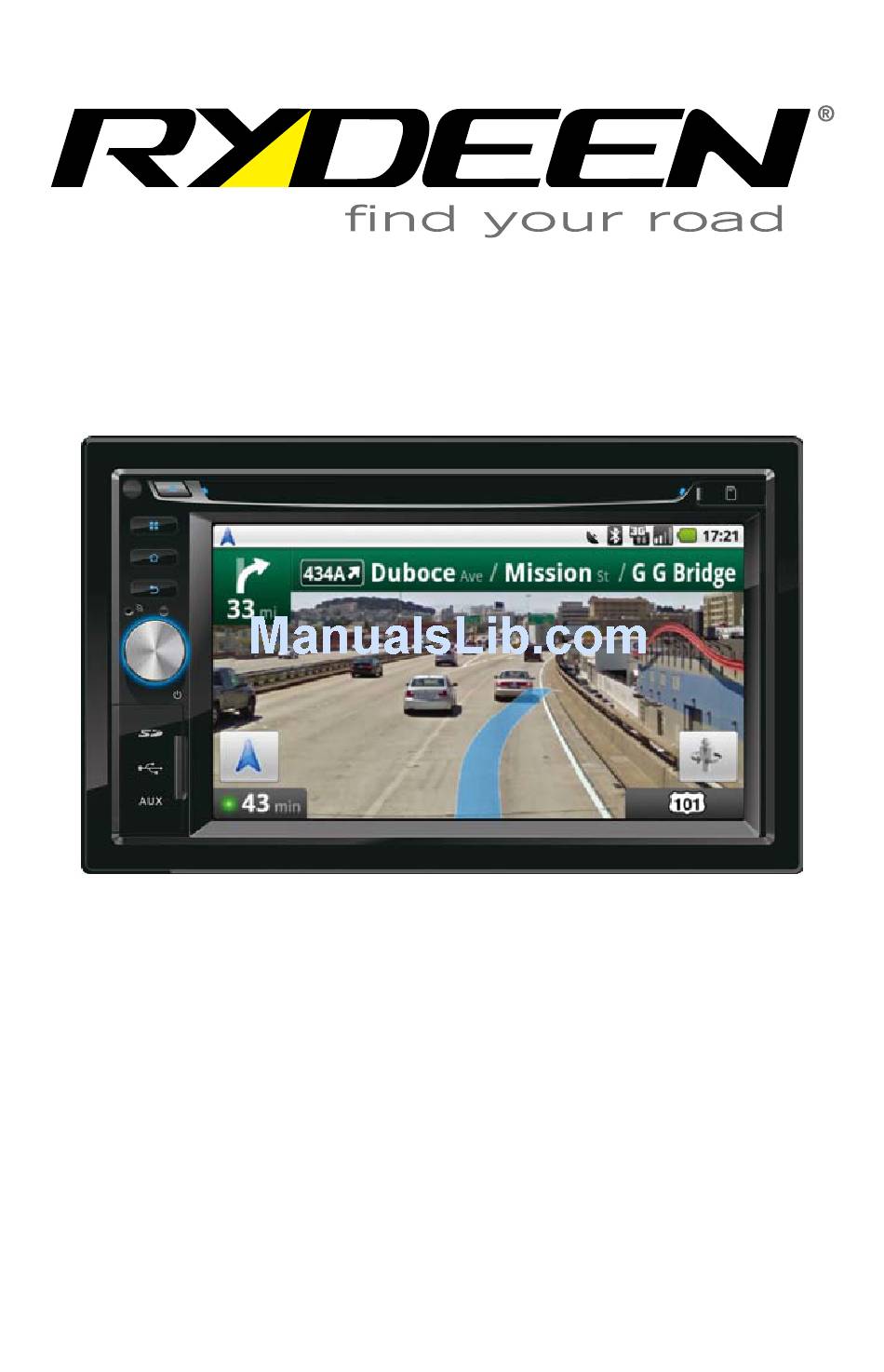

  • Page 1 Owner’s Manual DV638A 2-DIN 6.2” TFT Monitor DVD AM/FM Receiver with BT A2DP...

  • Page 2: Welcome Statement & Warnings

    • Y ou should not depend on DV638A to locate emergency services (such as police, fire stations, hospitals and clinics). The database may not include all emergency service providers. It is the best to call your local police department and ask for directions in these situations.

  • Page 3: Technical Support Contact Info

    WARNINGS • THE FOLLOWING INSTRUCTIONS ARE INTENDED FOR AUTHORIZED RYDEEN MOBILE INSTALLERS ONLY • PROFESSIONAL INSTALLATION BY AUTHORIZED RYDEEN RETAILER REQUIRED TO BE COVERED UNDER WARRANTY Technical Support Contact Info If you have other questions about the RYDEEN GPS, please contact your retailer or Technical Support: • Telephone: 1-877-777-8811 (within USA only) • Email: tech1@rydeenmobile.com • Web Address: www.rydeenmobile.com...

  • Page 4: Precautions

    Thank you for purchasing this product. Never expose this unit, amplifier or speakers Please read through the Owners Manual to to moisture or water to prevent electronic learn how to properly operate the DV638A. sparks or fires. After you have finished reading the manual, please keep it in a safe place for future reference.

  • Page 5: Table Of Contents

    Precautions Contents Warning Welcome Statement & Warnings ....1 Operate the unit correctly according to the Technical Support Contact Info ....2 manual instruction to prevent unnecessary Precautions ..........3 problems. Panel Controls ..........5 Remote Control .........6 CAUTIONS ON HANDLING Basic Operations ........8 This product is a CLASS 1 LASER PRODUCT. Turn on/off the power......8 Use of controls or adjustments or performance Mute ............8 of procedures other than those specified Adjust the volume ........8...

  • Page 6: Panel Controls

    Panel Controls Press [ ] knob (7) to turn on the unit. 8. SD Card Slot 9. USB connector 1. Eject Eject disc (when disc inserted) 10. AUX in Jack MENU button 11. Map Card Slot Show setting buttons. Don’t remove the microSD card when the unit is powered on. The standard HOME button SD card slot and front USB input will not Show main source menu work with the microSD card removed Show short-cut of recent accessing...

  • Page 7: Remote Control

    Remote Control 1. Change playing source in sequence 2. Eject the disc 3. Select audio language Show music catalog 4. Display playback information 5. Zoom 6. Select radio band 7. Call out 8. G oto search 9. DVD title 10. Repeat playback 11.
  • Page 8 Remote Control Notes of remote control using 1) Aim the remote control at the remote sensor on the unit. 2) Remove the battery from the remote control or insert a battery insulator if the battery has not been used for a month or longer. 3) DO NOT store the remote control under direct sunlight or in high temperature environment, or it may not function properly.

  • Page 9: Basic Operations

    Basic Operations Turn on/off the power When parking brake applied 1. I f 'PRK SW' cable is connected to hand 1. Press [ ] knob to turn on the unit. brake switch, the video display of the TFT The unit will go back to the last source used monitor will be controlled by driving status, prior to the radio being powered off.

  • Page 10: Main Menu

    Main menu Main Menu Press [ ] button on the panel to enter main source menu. 1. To select search mode. 2. To input searching contents by the keypad on the screen. Touch [123] to show number keypad, touch [ABC] to show character keypad. Touch [Go] to begin searching.

  • Page 11: Disc Operation

    Disc Operation Insert a disc 5. Next chapter Fast forward (long press) Insert a disc into the slot, and the unit will 6. To enter search menu change to disc mode automatically. 7. Repeat play 8. To show next page Notes: • P lease confirm whether there is a disc in the unit before you insert another one.
  • Page 12 Disc Operation Mixed Disc Playback Select desired track/chapter When inserting a mixed disc, the unit will read Press to skip to the previous or next the disc and show the files list. For some disc, track/chapter. you need to choose Music/Video/Photo to play back. Fast forward/backward during playback Press and hold button to fast backward or forward during playback. During the fast forward or backward operation, the volume will be muted.

  • Page 13: Radio Operations

    Disc Operation Radio Operations from Track, Title and Time. Select [Radio] on the main menu to enter 3. Input numbers by the keypad and touch radio mode. to confirm. 4. Touch to delete a digit inputted. 5. Touch button to clear all the digits. 6.
  • Page 14 Radio Operations Select one radio band Recall the stored stations Method 1: Touch the button to select one radio Touch the P1~P6 on the screen to listen the band among FM1, FM2, FM3, AM1 and AM2. preset station. Touch the frequency on the middle of the Manual tuning screen to listen the favourite station.

  • Page 15: Sd/Usb Operations

    SD/USB Operations Using an SD Card 1. Open the card slot cap, insert an SD card into the corresponding slot, the unit will load the files automatically. You need to choose Music/Video/Photo to play back. 2. T o remove the card, you should first select another source, in order to avoid damaging the card, press the card slightly, and take off the card after it pops out.
  • Page 16 SD/USB Operations Select Music by Song Name 5. Fast backward 6. Play/Pause 1. Touch [Songs] on the top of the screen. 7. Fast forward 2. Select a song to play. 8. Next chapter Notes Playlists • D isconnect USB storage devices from the unit when not in use.
  • Page 17 SD/USB Operations Gallery Operations Select [Gallery] on the applications menu to visit the gallery. Select one gallery to show the picture list. Select to view it. Touch the picture to show control buttons. 1. Return to gallery menu 2. Return to list of current album. 3.

  • Page 18: Bluetooth Operations

    Bluetooth Operations Making a call The Bluetooth allows you to utilize your car’s built-in audio system for wireless mobile phone • Dial Number or music handsfree communication. Some Bluetooth mobile phones have the audio 1. Touch to enter dialing menu. features, and some portable audio players support Bluetooth feature.
  • Page 19 Bluetooth Operations Call History : Previous track : Play/Pause Access Call History by touching : Next track button. Bluetooth Settings Touch button to show Bluetooth setting menu. Then touch the button on the bottom to show Dialled/Missed/Received phone numbers. : Received : Dialled : Missed turns green, the function is on.

  • Page 20: Internet

    Internet 3G/4G APN Settings Note: Contact the manufacturer for compatible 3G/4G devices. User set the APN to access the internet. 1. I nsert the 3G/4G dongle. 2. Select [ ] on the main menu to enter the Touch the dialogue box to show keypad, setting interface. and input your desired name.
  • Page 21 Internet * Not all wireless router can be compatible with the unit. Wi-Fi Settings User can set the Wi-Fi to access the internet. Create Wi-Fi Hotspot 1. Select [ ] on the main menu to enter the User can use the unit to create a personal Wi-Fi hotspot.
  • Page 22 Internet E-mail 5. Replace “AndroidAP” with the name you want to use for the wireless network. Select [Email] or other mail software on the Choose “WPA2 PSK” under the “Security” applications menu. option. If you choose that you’ll need to type in a password at least 8 characters long.

  • Page 23: Other Mode

    Other Mode Navigation Operations To navigate by the unit, select [Navi] on the main menu to visit Navigation mode. Then Navigate by the touch screen. AUX Operations 2. Double tap an icon to select it. Select [AUX IN 1] on the main menu to visit 3.

  • Page 24: Install Apk Form Sd Card

    Other Mode Install apk form SD card Google calendar configuration 1. Copy apk to SD card and insert the card to the card slot of the unit. Ensure the network is available, refer <Internet>. 2. Select [File Explorer] on the applications menu, then select [external_sd]. Touch [ ] icon on the main menu, select [Date &...
  • Page 25 Other Mode Touch the [Done] button, you have completed the google calendar settings. Select [Accounts & sync] in the setting menu. Please modify the configuration of the server settings, for example: you will see the Manage accounts items, please click to enter. slide down the window, click on the [Next] button.

  • Page 26: Delete Gmail Account

    Other Mode Delete Gmail Account Select “Remove account” to delete the gmail accout, then the system return to previous Select [Settings] on applications menu. menu. Slide down the screen until ”Account & sync” appears. Dual Zone Video PLayback Use this function to output the image to rear monitors.

  • Page 27: System Settings

    System settings SD card & device storage Select [ ] on the main menu to enter setting mode. To view SD card and USB device information. Drag up/down to scroll the options. Search To setup web or phone searching mode. Language & keyboard To setup OSD language and keypad type or Wireless & networks define user dictionary.

  • Page 28: Sound Setting

    System settings Sound setting Car Setting Select [EQ] on the main menu to enter sound setting mode. Touch [+] or [-] to adjust the level of Bass/Mid/ Treb/LPH/MPF/HPF. Touch [ ] or [ ] to select preset EQ. Video Video input: Choose video input mode Rear camera: Choose rear camera display mode.

  • Page 29: Device Connections

    Device Connections Notes of connection • This unit is designed to be used in a vehicle with a 12-volt battery and negative grounding. Before installing this unit to a recreational vehicle, a bus, or a truck, make sure the battery voltage is appropriate for this unit to be used, otherwise, have a professionally installed transformer to convert the output voltage to 12V.
  • Page 30 Device Connections Parking Brake Cable Connections Green/White Wire Back Up Camera Connections...

  • Page 31: Wiring Diagram

    Device Connections Wiring Diagram...

  • Page 32: Troubleshooting

    Troubleshooting The following checklist can help you solve the problems which you may encounter when using the unit. Before consulting it, check the connections and follow the instructions in the user manual. Problem Possible cause Solution General Car ignition is not on. Turn your car key in the ignition.

  • Page 33: Specifications

    Specifications General Reference Supply Voltage ..............12V(DC) Operating Voltage Range ............10.5 - 15.8V(DC) Max Operating Current .................15A Grounding System ............ Car Battery Negative Pole Dimensions(WXHXD) ............178X101.5X159mm Weight(main unit) ..................2.5kg Signal Noise Ratio ................≥55dB Usable Sensitivity(S/N=30dB) ............≤15dBμV Frequency Response(-3dB) .............20Hz~12.5KHz Station Seeking Level ..............

  • Page 34: One Year Limited Warranty

    1. Installation by anyone other than an authorized Rydeen Mobile Retailer voids the warranty. 2. Any products distributed outside of the USA by Rydeen North America Inc. (Rydeen) or which is not purchased in the USA or Canada unless the product is purchased through the USA Military Exchange Service.

  • Page 35: Fcc Compliance Statement

    FCC Compliance Statement This device complies with Part 15 of the FCC interference limits for Class B digital devices for home or office use. These limits are designed to provide more reasonable protection against harmful interference in a residential installation and are more stringent than “outdoor” requirements.
  • Page 36 Fax: 1-310-943-3778 Copyright © 2013 Rydeen North America Inc. All Rights Reserved. RYDEEN ® is a registered trademark of Rydeen North America Inc. These materials are protected by copyright law and international treaties. Any unauthorized use, reproduction or distribution of these materials, or any portion herein, will result in severe civil and criminal penalties and fines. Violators will be prosecuted to the fullest extent of the law.
