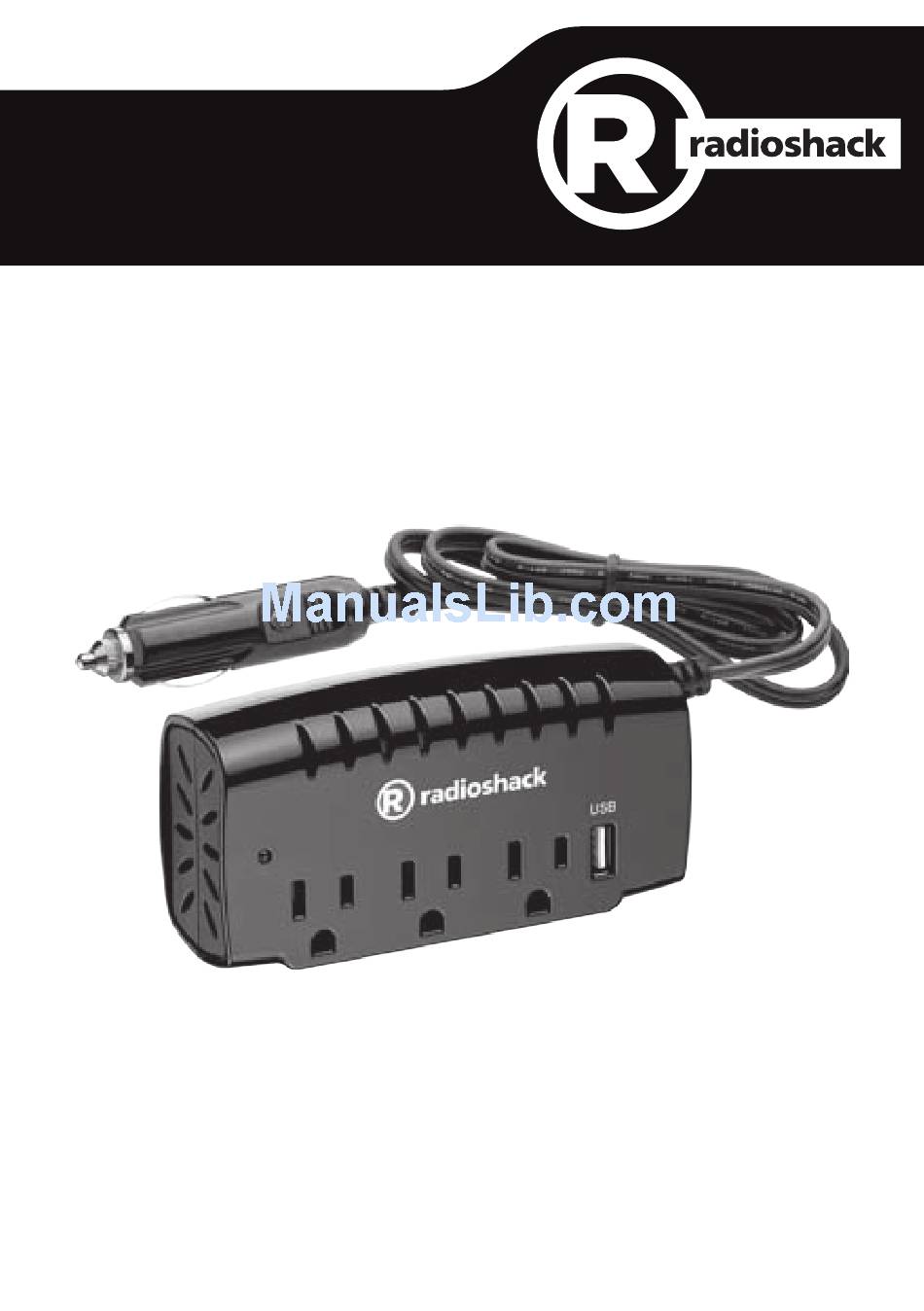

- Page 1 2200085 User’s Guide 150-Watt Power Inverter CHPAD KEYBOARD OARD We hope you enjoy your 150-Watt Power Inverter from RadioShack. Please read this user’s guide before using your new inverter.
- Page 2 Package Contents Power Inverter Features • Operate 115V AC equipment from your vehicle. • Three outlets allow operation of multiple devices such as digital cameras, DVD players, portable TVs, and many other items. • Power USB devices such as cell phones, handheld games, and MP3 players. • Automatically shuts off if your vehicle’s battery runs low.
- Page 3 Using Your Inverter 1. Plug the power inverter into your vehicle’s power socket. 2. Plug in devices. LED lights when inverter is connected. Plug in an AC device (max 150 watts).
- Page 4 Note: • Device must draw 150W or less of continuous AC power. • If necessary, you can use an AC extension cord. The extension cord’s rating should be equal to or greater than the device’s rating. • If the USB port and or AC outlets do not work, but LED lights up normally, unplug the inverter then plug it back into the power port, making sure you insert properly and securely.
-
Page 5: Replacing The Fuse
Replacing the Fuse If the fuse is blown, replace it with a 20A, 250V tube- type fuse (not supplied). 1. Unscrew inverter cap. 2. Replace the fuse, then screw the inverter cap back on. Caution: • Do not use a fuse with a different rating. Doing so can damage your inverter. • Watch out for loose parts (spring coil and inverter tip) when replacing the fuse. -
Page 6: Safety Information
Heat Dispersion The power inverter‘s thermal protection prevents it from operating when its temperature exceed 167°F (75°C). If the inverter gets too hot while working, it will turn off. Position the power inverter where air flows freely around it to allow the heat to disperse. Operation resumes when the temperature decreases to about 154°F (67°C). Safety Information WARNING! Shock Hazard This 150W inverter generates the same potentially dangerous AC voltage as a household wall outlet. Failure to follow these warnings may result in personal injury or damage to the inverter. Do not insert foreign objects into the inverter’s AC outlets or vents. Do not expose the inverter to water. - Page 7 Caution • Do not connect devices that require power greater than 150 watts. • The total power for multiple devices connected to the AC and USB sockets cannot exceed 150 watts. If you do not know the total power for your devices, connect just one device. • Always remove the inverter from the lighter socket when not in use. • The power inverter’s power plug may get hot while it is plugged into a power socket. Use a cloth or a glove to unplug it from the socket. • Let the inverter cool down completely before you store it. • During operation, keep the inverter away from materials that may be affected by high temperatures. • Make sure the power socket and plug are clean. A dirty socket can prevent the inverter from working properly. • Do not use the power inverter in a positive- grounded vehicle. Check with your vehicle dealer or a mechanic to find out if your vehicle is positive-grounded.
-
Page 8: Troubleshooting
Troubleshooting The inverter will shut down (the LED flashes) under conditions such as excessive temperature, overload, or low voltage. Follow the recommended solutions to restore operation. Cause Solution Faulty device Try another device. If another plugged into the device works using the inverter, inverter the first device maybe faulty. Temperature Disconnect all devices and exceeds 167°F wait until the inverter cools. (75°C) Your device’s power require- ment might also exceed the inverter’s rating (see “Heat Dispersion” on page 6) Continuous Disconnect all devices. Only Power load connect devices with a con- exceeds 150W tinuous power load of 150W or less. Vehicle battery Run the vehicle’s engine to voltage is lower recharge the battery, then than 10V connect the inverter into your vehicle’s power socket. -
Page 9: Specifications
USB current Disconnect all devices from the exceeds 3.8A inverter. Unplug the inverter then plug it back into the power port. The total power requirement from your devices must be less than 3.8A. Specifications Input ..............11 ~ 16 VDC Output........115V±10VAC, 60Hz±3Hz Standby Current ........<0.4A @13.5VDC Output Power ....300W peak power for 1 cycle ..........@60Hz, 150W continuous USB Output ........5VDC±5%, 1A (max) Auto Shut-off ..........Short circuit 167°F (75°C) .......... Temperature > ............. Power load > 150W ...........Vehicle battery < 10VDC Fuse........... 20A tube-type fuse Dimensions (L×W×H) ......5 × 2.6 × 1.5 in ........... (126.9 x 66.7 x 38.9 mm) Specifications are subject to change and improvement without notice. Actual product may vary from the images found in this document. -
Page 10: Fcc Information
FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 11: Limited Warranty
Limited Warranty RadioShack warrants this product against defects in materials and workmanship under normal use by the original purchaser for ninety (90) days after the date of purchase from a RadioShack-owned store or an authorized RadioShack franchisee or dealer. RADIOSHACK MAKES NO OTHER EXPRESS WARRANTIES. This warranty does not cover: (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or maintenance, alteration, accident, Acts of God (such as floods or lightning), or excess voltage or current; (b) improper or incorrectly performed repairs by persons who are not a RadioShack Authorized Service Facility; (c) consumables such as fuses or batteries; (d) ordinary wear and tear or cosmetic damage; (e) transportation, shipping or insurance costs; (f) costs of product removal, installation, set-up service, adjustment or reinstallation; and (g) claims by persons other than the original purchaser. Should a problem occur that is covered by this warranty, take the product and the RadioShack sales receipt as proof of purchase date to any RadioShack store in the U.S. RadioShack will, at its option, unless otherwise provided by law (a) replace the product with the same or a comparable product, or (b) refund the purchase price. All replaced products, and products on which a refund is made, become the property of RadioShack. RADIOSHACK EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDITIONS NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW, INCLUDING THE IMPLIED WARRANTY... - Page 12 OF MERCHANTABILITY AND, IF APPLICABLE, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, SHALL EXPIRE ON THE EXPIRATION OF THE STATED WARRANTY PERIOD. EXCEPT AS DESCRIBED ABOVE, RADIOSHACK SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO THE PURCHASER OF THE PRODUCT OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE AND ANY LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT AND ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RADIOSHACK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. You may contact RadioShack at: RadioShack Customer Relations 300 RadioShack Circle, Fort Worth, TX 76102 02/14 www.RadioShack.com ©2014 RadioShack Corporation. Printed 03A14 All rights reserved. RadioShack is a registered in China 2200085 trademark used by RadioShack Corporation.
