Summary of Contents for WoodPro WS-TS-1500

  • Page 1: Safety Instructions

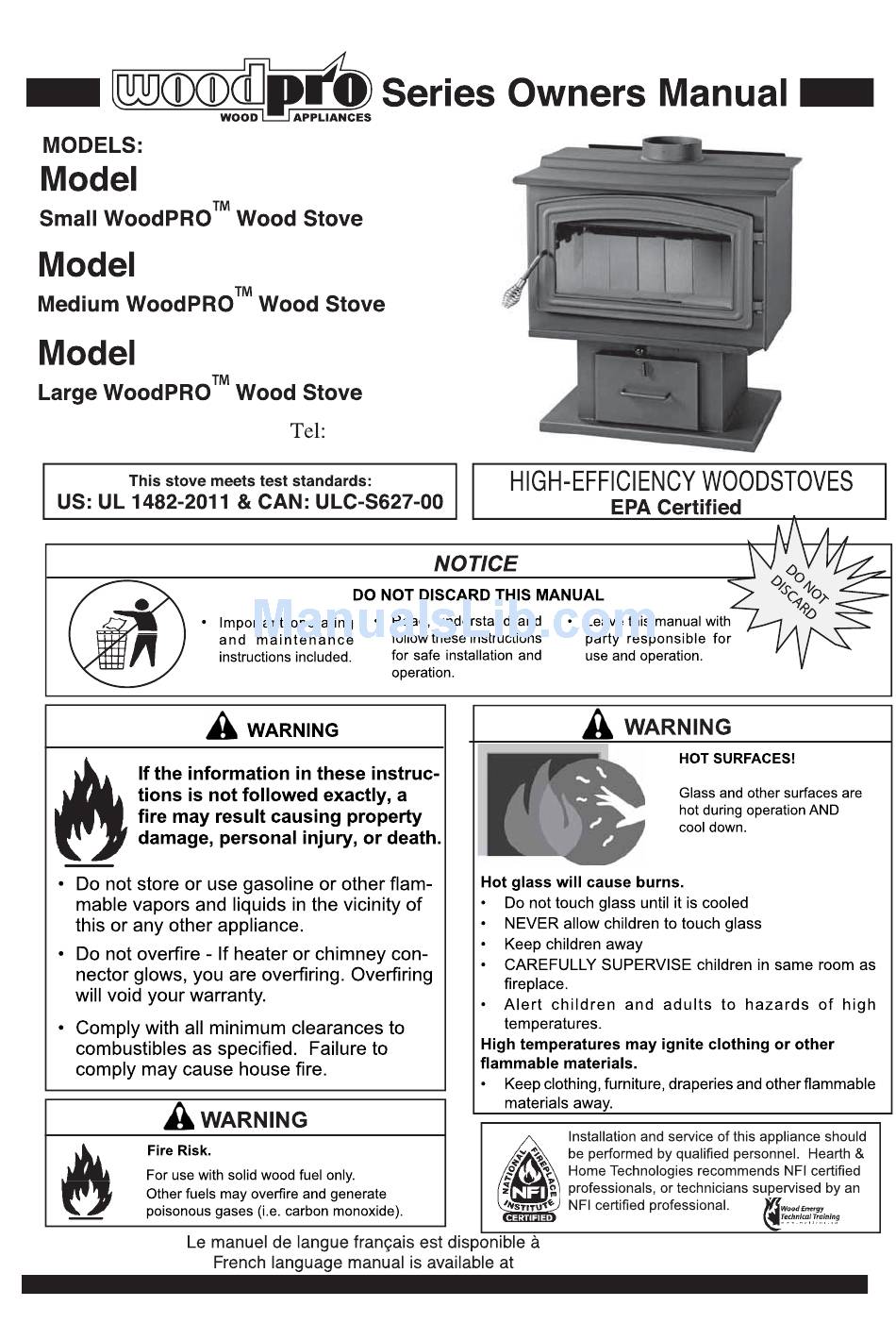

    WS-TS-1500 WS-TS-2000 WS-TS-2500 www.woodprostoves.com 1-877-427-3316 www.woodprostoves.com www.woodprostoves.com 4085-112 Rev: A...
  • Page 2 This stove has not been DO NOT CONNECT THIS UNIT TO A CHIMNEY tested with the use of grates, andirons or other means FLUE SERVING ANOTHER APPLIANCE. of elev must not be used. Page 2 WoodPRO™...
  • Page 3 28. NEVER LEAVE THE STOVE UNATTENDED with NFPA, Batterymarch Park, Quincy, MA 02269. door open. Always close the door after ignition. 29. DO NOT CONNECT TO OR USE IN CONJUNC - TION WITH ANY AIR DISTRIBUTION DUCT WORK Page 3 WoodPRO™...
  • Page 4: Table Of Contents

    Door Gasket Replacement ..............22 BAFFLE REMOVAL ................... 23 - 24 PARTS – WoodPRO™ WS-TS-1500 Small Wood Stove ......25 - 26 PARTS – WoodPRO™ WS-TS-2000 Medium Wood Stove ..... 27 - 28 PARTS – WoodPRO™ WS-TS-2500 Large Wood Stove ......29 - 30 BLOWER MAINTENANCE &...
  • Page 5: Locating The Stove

    Do not use galvanized stove pipe. NOTE: Mobile home installations require double-wall UL 103 HT high-temp connector pipe. Secure connector pipe to the collar with three (3) equally spaced sheet metal screws to WoodPRO™ Page 5...
  • Page 6: Minimum Clearances With Single-Walled Pipe

    Minimum Clearances for installation according to (US) & 1482 ULC-S (CAN)
  • Page 7: Minimum Clearances Alcove And Double-Walled Pipe

    Alcove...
  • Page 8: Assembly Instructions

    BLOWER ATTACHMENT philips GASKET (4 places)
  • Page 9: Firebrick Assembly

    WS-TS-2500...
  • Page 11: Connector Pipe Installation

    CONNECTOR PIPE SIZING 2. Horizonta pipe runs must s ope upwards NOTE: CONNECTOR PIPE IS NOT INCLUDED. towards the chimney at per foot TO PURCHASE, VISIT YOUR LOCAL HARD- of horiz run. WARE, HOME, OR BUILDING CENTER. 3. You must have at rance between any horiz ADDITIONAL SPECIFICATIONS.
  • Page 12: Mobile Home Installation Instructions

    6JKU UVQXG KU CRRTQXGF HQT OQDKNG JQOG KPUVCNNC  O QT NGUU CDQXG VJG ITQWPF WRQP YJKEJ VJG VKQP KP VJG 75# QPN[ &1 016 +056#.. +0 /1$+.' /QDKNG *QOG KU UGV WRQP C IWCTF UJCNN DG *1/'5 +0 %#0#&#  +P CFFKVKQP VQ VJG KPUVCNNCVKQP VJG RQKPV QH GZKV WR VQ  HVO CPF UCHGV[ KPUVTWEVKQPU VJG HQNNQYKPI TGSWKTGOGPVU CTG  6JG EJKOPG[ UJCNN DG CVVCEJGF FKTGEVN[ VQ VJG TQQO...
  • Page 13: Chimney Connections/Draft

    CHIMNEY CONNECTIONS The stove must be connected to either a lined ma- MASONRY CHIMNEY sonry or manufactured metal chimney built and tested The chimney must be a code-approved, masonry evious pages. chimney with liner. Before using an existing ma- Chimneys perform two functions: sonry chimney, clean the chimney, inspect the ue .
  • Page 14 ...continued CHIMNEY CONNECTIONS MANUFACTURED CHIMNEY REFER TO CHIMNEY AND CHIMNEY CONNEC- TOR MAKER’S INSTRUCTIONS FOR INSTALLATION AND USE. Use only ney sys e lis ed o UL 03 HT (US) o ULC-S6 9 (CAN). C. Use only . Nev b ands. follow clea ances.
  • Page 15 ...continued CHIMNEY CONNECTIONS 8 203mm of lin r must r main b low th ntry Chimn y Sw p, or a kno position. Wh n lo atin th stov an stov pip , all Consult your insur ny if you minimum must from...
  • Page 16: Chimney Connection Systems & Clearances

    CHIMNEY CONNECTOR SYSTEMS & CLEARANCES NFPA 211 (US) NOTE: In Canada, installation must conform to CAN/CSA-B365 when passing through combustible construction. A. Brick Masonry Minimum thick brick masonry all framed into combustible wall with a minimum of 1 305mm brick separation from clay liner to combustibles.
  • Page 17: Operating Instructions

    OPERATING INSTRUCTIONS THIS STOVE IS DESIGNED TO BURN CAUTION: HOUSE FIRE HAZARDS WOOD FUEL ONLY! Hardwood, / 45cm to 50cm should be TOR, UNDERNEATH STOVEPIPE, OR ANY- air dried (seasoned), for a minimum of 6 months. Logs WHEREWITHIN MINIMUM CLEARANCES FROM grater than 6 /152mm in diameter should be split.
  • Page 18: Starting A Fire

    ...continued OPERATING INSTRUCTIONS height, weather, log size, wood species and moisture P r o p e r c u r i n g o f t h e h i g h - t e m p p a i n t content.
  • Page 19: Adding Fuel

    OPERATING INSTRUCTIONS ...continued Fuel load size can vary but should be kept 7. Once fuel has been loaded, close the door and (25mm-50mm) below the secondary air tubes. Also leave the air inlet control fully open until is well position the fuel to leave space so the air from the inlet established (at least 15–20 minutes) being careful can work between the pieces of fuel.
  • Page 22: Service Hints

    SERVICE HINTS ...continued DOOR GASKET REPLACEMENT WARNING: REPLACE GLASS ONLY WITH 4MM HIGH TEMPERATURE CERAMIC GLASS OF CAUTION: DO NOT OPERATE A STOVE THAT IS THE PROPER SIZE. DO NOT USE SUBSTITUTE MISSING DOOR GASKET MATERIAL. OVER FIR- MATERIALS SUCH AS TEMPERED GLASS ING AND UNSAFE OPERATING CONDITIONS OR DOUBLE THICKNESS WINDOW GLASS! MAY RESULT.
  • Page 23: Baffle Removal

    BAFFLE REMOVAL...
  • Page 24 BAFFLE REMOVAL...
  • Page 25: Parts - Woodpro™ Ws-Ts-1500 Small Wood Stove

    SERVICE PARTS...
  • Page 26 SERVICE PARTS...
  • Page 27: Parts - Woodpro™ Ws-Ts-2000 Medium Wood Stove

    SERVICE PARTS...
  • Page 28 SERVICE PARTS...
  • Page 29: Parts - Woodpro™ Ws-Ts-2500 Large Wood Stove

    SERVICE PARTS...
  • Page 30 WS-TS-2500 SERVICE PARTS...
  • Page 31: Blower Maintenance & Wiring Diagram

    BLOWER MAINTENANCE & WIRING DIAGRAM BLOWER MAINTENANCE The optional blower is maintenance free other than cleaning. Lightly vacuum motor and air inlet to keep free of dust and dirt. CAUTION: MOVING PARTS CAN CAUSE DANGER:SHOCK HAZARD.DISCONNECT INJURY. DO NOT OPERATE WITH COVER POWER SOURCE BEFORE INSTALLATION REMOVED.
  • Page 32: Floor Protector Calculations

    FLOOR PROTECTOR MATERIAL CALCULATIONS This stove has been tested for and must be installed on a protector with the proper Thermal Resistance or R-value as stated in step 1 of the installation instructions under “Locating Stove” section of this manual. If the protector ma- terials listed in the instructions are not available, materials with an equivalent R-value may be substituted.
  • Page 33: Chimney & Stove Maintenance Log

    CHIMNEY & STOVE MAINTENANCE LOG DATE OF SERVICE PERFORMED BY DESCRIPTION...
  • Page 34: Warranty

    Warranty WoodPRO Wood Secondary tubes, gaskets Firebo ue collar, front door,ash door...
