Breezair TBA Evaporative Air Cooler Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

®
"
Export Edition
"
839479-D
0703

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TBA Evaporative Air Cooler and is the answer not in the manual?

Questions and answers

Related Manuals for Breezair TBA Evaporative Air Cooler

Summary of Contents for Breezair TBA Evaporative Air Cooler

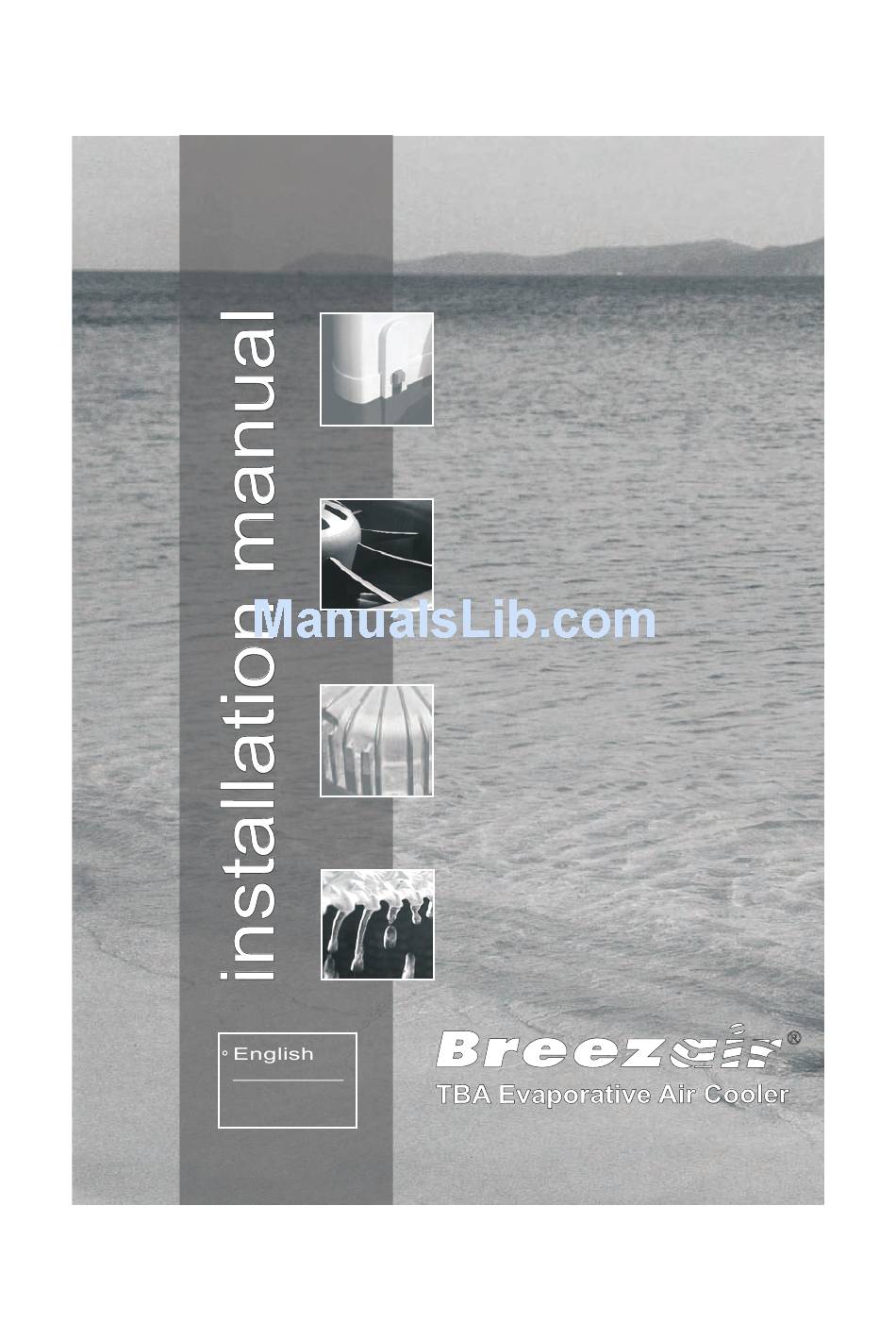

  • Page 1 ® “ Export Edition ” 839479-D 0703...

  • Page 3: Safety Notes

    SAFETY NOTES Please read this manual •Young children should be supervised to carefully. Your failure to do so could ensure that they do not play with the result in injury to you or damage to appliance. the cooler and property. •Wear protective clothing when working Disconnect electrical power at the with power tools.

  • Page 4: Specifications

    SPECIFICATIONS WATER ELECTRICAL Specification : It is a requirement of Seeley International that the electrical power supply to all Water Connections : 1/2 inch BSP coolers is not mixed with other machines or Maximum pressure: 800 KPa (115 electrical circuits. Electrical installation PSI) must comply with local laws and regulations.
  • Page 5 EXPLODED VIEW OF THE COOLER...

  • Page 6: Components Of The Air Cooler

    COMPONENTS OF THE AIR COOLER Transition (used for the transport base, this becomes the the air cooler base for connection to the duct) Weatherseal (stops air flowing in and out when the air cooler is not operating) Transition Plug (fitted in the factory) Cooling Pad Frame Flexible Hose (for mains water connection) Solenoid Valve Cover...

  • Page 7: Dismantling The Air Cooler

    DISMANTLING THE AIR COOLER The air cooler is designed to be partially dismantled in order to reduce the weight for installation. COOLING PAD FRAME REMOVAL To remove the Cooling Pad Frame, first disengage the top clips of the pad frame using a screw driver as shown.

  • Page 8: Removing The Transition

    DISMANTLING THE AIR COOLER REMOVING THE VENTURI/FAN IMPORTANT! Ensure the motor plug has been removed from the control box before removing the venturi (see page 9 for removal of plug). With both arms hold each side of the Venturi/fan assembly. Press the large clips at each side and lift the Venturi/fan assembly upwards and carry it out of the cabinet.

  • Page 9: Installing The Transition

    INSTALLING THE TRANSITION The air cooler is designed to be fixed to the first section of the duct without any additional frame for support. Therefore make sure the duct is fixed to the building using a strong method. The duct size must be 550 x 550mm. The top edge must be strong without any flange .
  • Page 10 INSTALLING THE TRANSITION Use a spirit level in both directions to get the Transition level. Screw it to the duct using the eight (8) screws provided. There are eight (8) V-notch locations for the screws. See diagram. Now break off both clips on the Transition that retain the Weatherseal.
  • Page 11 INSTALLING ELECTRIC CABLES Disconnect the Electronics Module from the Water Tank by removing the screw under the isolation switch. See diagram. The switch cannot function with this screw removed. The installation kit supplied contains your power cable with ends ready to terminate and a wall control cable.

  • Page 12: Water Connections

    WATER CONNECTIONS You have the choice of installing the Drain Valve and water management system supplied, or not. If not, you need to install the Bleed Funnel alternative. See later note DRAIN VALVE ALTERNATIVE The function of the drain valve is to reduce the salts and minerals in the air cooler.
  • Page 13 WATER CONNECTIONS If you have installed the drain valve , then fit the float valve and solenoid valve to the air cooler as shown. Make sure all washers and o-rings are fitted correctly. Do not over-tighten plastic threads!! Make sure the Float Valve is centrally positioned and is free to move up and down.
  • Page 14 WATER CONNECTIONS Connect the solenoid cable (supplied in the kit) to the Solenoid Valve. Route the cable through the hole in the Transition. See diagram. The other end will be connected later. IMPORTANT: Make sure the cable does not interfere with the Weatherseal and that it will not be crushed by the Venturi/fan assembly.
  • Page 15 WATER CONNECTIONS BLEED FUNNEL ALTERNATIVE The bleed funnel is a simplified alternative to the drain valve. It also provides overflow and drain features. Assemble the bleed funnel to the Water Tank as shown. Make sure the o-rings are fitted correctly. Screw the nut tight by hand!! Attach the Drain adaptor under the...
  • Page 16 WATER CONNECTIONS After fitting the Bleed Funnel, then fit the Float Valve as shown complete with the Extension tube and 3/4” to 1/2” adaptor. See diagram. Make sure that all washers and o-rings are fitted correctly. Do not over-tighten plastic threads !! Make sure the float on the Float Valve is centrally positioned and is free to move up and down.

  • Page 17: Electrical Connection

    ELECTRICAL CONNECTION Now the Electronics Module must be re- fitted. First take the wall control cable and the Solenoid Valve cable (if installed) that are loose in the Water Tank and route them out from the Electronics Module location, as shown.The cables must rest in the special channel provided.
  • Page 18 ELECTRICAL CONNECTION Lift the flexible cover on the Electronics Module. You will see some plug points. Connect the wall control cable to its correct plug point. If the drain valve, water sensor and solenoid valve are fitted then connect those cables also. Route the drain valve cable as shown before connecting it.

  • Page 19: Installing The Fan Assembly

    INSTALLING THE FAN ASSEMBLY Carry the Venturi/Fan assembly to the air cooler and fit it back in place. It will only fit one way. Check that the two (2)clips are properly engaged.

  • Page 20: Installing The Wall Control

    INSTALLING THE WALL CONTROL WALL CONTROL LOCATION Install the Wall Control station about 1.5 metres above the floor in the place where you want the temperature to be controlled from. When selecting a position for the Wall Control station avoid the following locations: •...
  • Page 21 INSTALLING THE WALL CONTROL PLASTER BOARD OR BRICK WALL To mount the wall control on a plaster board or brick wall, use the template provided and drill the 16mm hole for the wall control cable and the (5mm Plasterboard or 6mm Brick) holes for the mounting plugs.
  • Page 22 INSTALLING THE WALL CONTROL Pull the wall control cable through the large hole and wall plate, remove the protective tape and plug the cable into the wall control. Feed the excess cable back into the hole and slide the wall control over the protruding bracket tabs.

  • Page 23: Set Up For Bleed Funnel

    PROGRAMMING THE WALL CONTROL To enter the programming mode, the procedure must be started within four (4) minutes of power being applied to the wall control. If this time has elapsed then turn off power to the air cooler for a minimum of 6 seconds before starting the following procedure.
  • Page 24 PROGRAMMING THE WALL CONTROL DRAIN RATE ADJUSTMENT If you installed the drain valve then the water will drain when the sensor detects that the water salinity is too high. Alternatively and if necessary, the air cooler can be set to replace some water after a set time of cooling operation with the following procedure.

  • Page 25: Water Pump Connection

    COMMISSIONING THE AIR COOLER CORRECT WATER LEVEL With the water pump still disconnected, turn on the water supply and allow the tank to fill. If you have installed the drain valve instead of the bleed funnel you will need to turn the water on by pressing COOL on the wall control while it is in the OFF state.

  • Page 26: Test Operation

    COMMISSIONING THE AIR COOLER TEST OPERATION Check that the green light on the electronics module is on. This indicates that power is connected to the electronics module. Make sure that the flexible cover on the electronics module is fully closed as shown.

  • Page 27: Troubleshooting Guide

    TROUBLESHOOTING GUIDE PROBLEM – Inadequate Cooling CAUSE ACTION Pump not working correctly Check plug, wiring and circuit breaker. Impellor may be jammed or obstructed. Check salinity sensor correctly installed Rectify fault or replace pump. Check water flow to pads. Dry pads. Inspect fitment of distributor cap.
  • Page 28 TROUBLESHOOTING GUIDE PROBLEM – Unpleasant Odour CAUSE ACTION Allow time to condition by running the air Odour from new pads. cooler PROBLEM – No Variable Speed. CAUSE ACTION Faulty electronics module or wall Replace electronics module or wall control control Minimum fan speed set too Adjust fan speed.
  • Page 29 TROUBLESHOOTING GUIDE PROBLEM - Unit Will Not Run / Wall Control Display Fault CAUSE ACTION Check GPO switch and fuse or circuit breaker. No power to unit. Check isolation switch, power cord plug and circuit breaker on the electronics module. Check venturi assembled correctly to plug.
  • Page 30 2 x 5.0mm (Plasterboard) or 2 x 6.0mm (Brick) ILL1135-B...
  • Page 31 Evaporative Air Cooling Manual. Seeley International Pty Ltd, Adelaide, South Australia. ACN 054 687 035. As the policy of the company is one of continuous product improvement, all specifications are subject to change without notice. 839479-D 0703...
