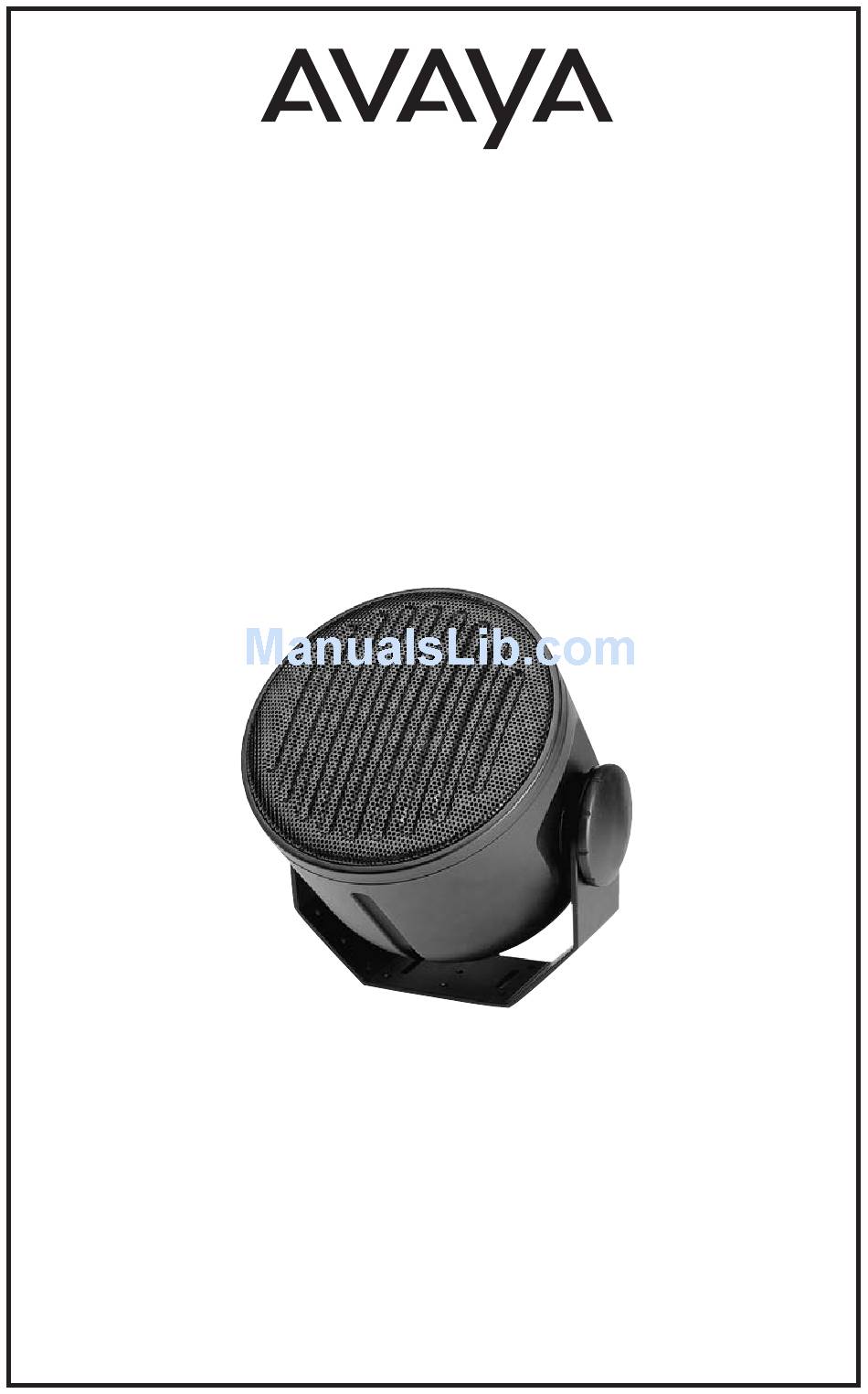

- Page 1 MODELS: 700286297 / 700286305 (White) (Black) ENVIRONMENT-PROOF INDOOR/OUTDOOR LOUDSPEAKERS Issue 1, July 2003 54-2102-01A Printed in Taiwan 0307...
- Page 2 2-way speakers, so installation orientation should be consistent. The coaxial 700286297 and 700286305 deliver about 90 degrees of horizontal sound coverage. Too great a distance between any 2 speakers will create a dead spot in the coverage.When in doubt, use more speakers to ensure adequate coverage.
- Page 3 BACK-PANEL CONNECTIONS EXAMPLE OF 70V SYSTEM CONFIGURATION NOTE:The total number of speakers multiplied by the tap value cannot exceed the output power (in watts) of the 70V amplifier.The above example shows 5 speakers. Using the 16W taps, you need an amplifier with at least (5) x (16) = 80W.A good rule of thumb is to select an amplifier with 20% greater power;...
-
Page 4: Specifications
SPECIFICATIONS MODEL NUMBER 700286297 / 700286305 LF Driver 6" MDT HF Driver " Polycarbonate Freq. Response (-10 dB) * 55 Hz to 20 kHz Impedance Power Handling (70V) Sensitivity (1M/1W, 8-ohm) 88 dBspl Additional Taps (70V) 8W, 4W Horiz. - 90°...
