Banana Pi BPI-R1 User Manual

300mbps wireless n router
Hide thumbs Also See for BPI-R1:

Advertisement

Quick Links

Download this manual See also: Manual
BPI-R1 User Manual
SinoVoip Co.,Limited
BPI-R1

User Manual

More information, please contact: judyhuang@banana-pi.com
1
http://www.banana-pi.com
http://www.sinovoip.com.cn

Advertisement

loading
Need help?

Need help?

Do you have a question about the BPI-R1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Banana Pi BPI-R1

Summary of Contents for Banana Pi BPI-R1

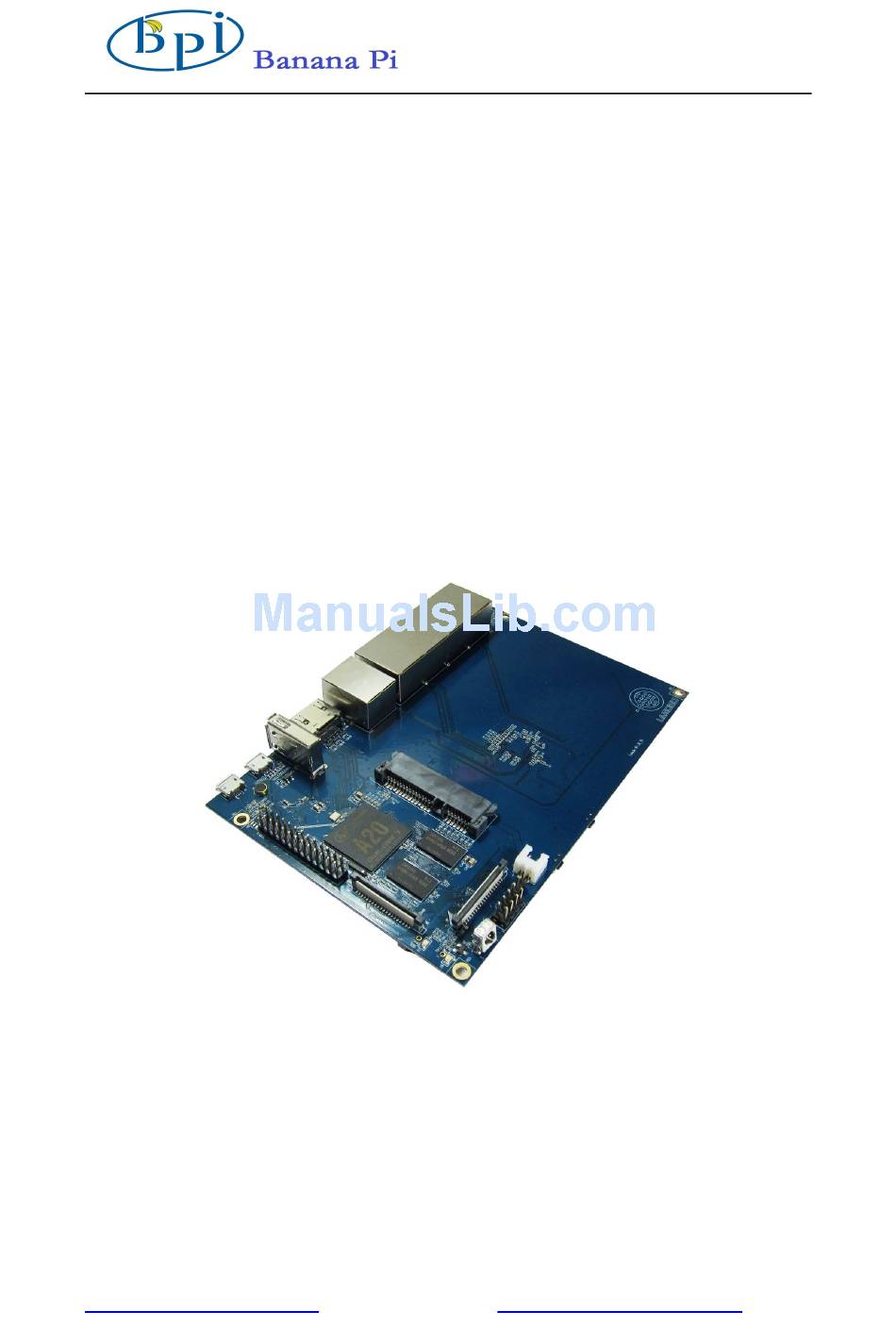

  • Page 1: User Manual

    BPI-R1 User Manual SinoVoip Co.,Limited BPI-R1 User Manual More information, please contact: judyhuang@banana-pi.com http://www.banana-pi.com http://www.sinovoip.com.cn...

  • Page 2: Hardware Specification

    BPI-R1 User Manual The BPI- R1 is a 300Mbps Wireless N Router with both wired and wireless network connections designed specifically for smart home networking use. With 2T2R MIMO Technology and two detachable antennas, the R1 is the dual core Android 4.2 product which more better than Linux product.
  • Page 3 BPI-R1 User Manual Hardware Front: Back: http://www.banana-pi.com http://www.sinovoip.com.cn...
  • Page 4 BPI-R1 User Manual Interface : Front side http://www.banana-pi.com http://www.sinovoip.com.cn...
  • Page 5 BPI-R1 User Manual Back side Hardware connect sketch map http://www.banana-pi.com http://www.sinovoip.com.cn...

  • Page 6: Back Side

    BPI-R1 User Manual Front side Back side Use method Step 1: Get what you need First time to enjoy your R1, you need at least the accessories in the table below. Item Minimu recommended specification & notes Minimum size 8Gb; class 10 (the class indicates ...
  • Page 7 BPI-R1 User Manual hub. This may include some wireless devices. Networking is must of router.  Ethernet cable A good quality, micro USB power supply that can  Micro USB provide at least 2A at 5V is essential. power adapter You can choose a 3.5mm jack audio lead to...
  • Page 8 BPI-R1 User Manual WiFi antenna Step 2:Download the relevant Image file: Please visit our webmaster: http://www.bananapi.com to download image ,R1 all image can be downlad form this web. Step3: Prepare your Micro SD card for the R1 In order to enjoy your R1, you will need to install an Operating System (OS) onto an micro SD card.
  • Page 9 BPI-R1 User Manual Check that the SD card you inserted matches the one selected by the Tool. Click the “Format” button. 3. Download the OS image from Download district. 4. Unzip the download file to get the OS image. 5. Write the image file to the micro SD card.
  • Page 10 BPI-R1 User Manual 5.2 Run PhoenixCard.exe 5.3 Press “DiskCheck” and select disk of SD Card. 5.4 Press “Img File” and Select system.img http://www.banana-pi.com http://www.sinovoip.com.cn...
  • Page 11 BPI-R1 User Manual 5.5 Select “Startup” and press “確定” 5.6 Press “Burn” start upgrading http://www.banana-pi.com http://www.sinovoip.com.cn...
  • Page 12 BPI-R1 User Manual 5.7 Upgraded complete. 5.8 Press “Exit” http://www.banana-pi.com http://www.sinovoip.com.cn...
  • Page 13 BPI-R1 User Manual Step4: Set up your R1 According to the set up diagram below, you can easily set up your R1. 1. Insert the written-image micro SD card that to the micro SD card slot on the left side edge of the underside of the board.
  • Page 14 BPI-R1 User Manual Step5: Shut down your R1 This will shut down the PI safely, (just use the power key to turn off might damage the SD-cards file system). After that you can press the power key for 5 seconds to turn it off.
  • Page 15 BPI-R1 User Manual http://www.banana-pi.com http://www.sinovoip.com.cn...
  • Page 16 BPI-R1 User Manual R1 PIN define PIN define GPIO CON1-P01 LINEINL CON1-P02 LINEINR CON1-P37 CON1-P36 CON1-P07 FMINL CON1-P09 FMINR CON1-P04 ADC_X1 CON1-P06 ADC_X2 CON1-P08 ADC_Y1 CON1-P10 ADC_Y2 CON1-P13 LRADC0 CON1-P15 LRADC1 CON1-P33 RESET# CON1-P17 CSI0-D0 CON1-P19 CSI0-D1 CON1-P21 CSI0-D2 CON1-P23...
  • Page 17 BPI-R1 User Manual CON1-P22 CSI0-PWR-EN PH16 CON1-P35 CSI-IO0 PH11 CON1-P38 IPSOUT CON1-P40 IPSOUT CON1-P05 CON1-P11 CON1-P39 CON1-P03 VCC-CSI CON2-P09 LCD0-D00 CON2-P11 LCD0-D01 CON2-P13 LCD0-D02 CON2-P15 LCD0-D03 CON2-P17 LCD0-D04 CON2-P19 LCD0-D05 CON2-P21 LCD0-D06 CON2-P23 LCD0-D07 CON2-P25 LCD0-D08 CON2-P27 LCD0-D09 CON2-P29 LCD0-D10...
  • Page 18 BPI-R1 User Manual CON2-P16 LCD0-VSYNC PD27 CON2-P14 LCD0-DE PD25 CON2-P12 LCD0-IO2 CON2-P10 PWM0 CON2-P08 LCD0-IO1 CON2-P06 LCD0-IO0 CON2-P04 TWI3-SCK CON2-P02 TWI3-SDA CON2-P01 IPSOUT CON2-P03 IPSOUT CON2-P05 CON2-P24 CON2-P07 VCC-3V3 CON3-P18 CAN_RX PH21 CON3-P16 CAN_TX PH20 CON3-P23 SPI0_CLK PI11 CON3-P21 SPI0_MISO...
  • Page 19 BPI-R1 User Manual CON3-P25 CON3-P06 CON3-P14 CON3-P20 J12-P03 J12-P05 J12-P04 UART7_RX PI21 J12-P06 UART7_TX PI20 J12-P01 VCC-5V J12-P02 VCC-3V3 J12-P07 J12-P08 J13-P01 UART0-RX PB23 J13-P02 UART0-TX PB22 R1 UART define http://www.banana-pi.com http://www.sinovoip.com.cn...
