Related Manuals for Banana Pi BPI-R1

Summary of Contents for Banana Pi BPI-R1

  • Page 1: Table Of Contents

    Table of Contents About banana pi BPI-R1 BPI-R1 hardware BPI-R1 hardware interface 1.2.1 BPI-R1 hardware spec 1.2.2 BPI-R1 GPIO Pin define 1.2.3 BPI-R1 SD card slot 1.2.4 BPI-R1 CAN Bus 1.2.5 BPI-R1 WIFI interface 1.2.6 BPI-R1 wifi antenna slot 1.2.7 BPI-R1 MIC 1.2.8 BPI-R1 Audio 1.2.9 BPI-R1 IR interface 1.2.10 BPI-R1 USB interface 1.2.11 BPI-R1 OTG interface 1.2.12 BPI-R1 SATA interface 1.2.13 BPI-R1 HDMI interfact 1.2.14 BPI-R1 Camera interface 1.2.15 BPI-R1 RGB DSI interface 1.2.16 BPI-R1 5 GbE Ethernet ports 1.2.17 BPI-R1 3.7V lithium battery interface 1.2.18 BPI-R1 DC Power interface 1.2.19...
  • Page 2 BPI-R1 WiringPi 1.3.9 WiringPi python 1.3.9.1 Pi4J Project 1.3.9.2 Reference documents linux-sunxi wiki 1.4.1 Manual for HW setup and basic router functionalities 1.4.2 NetBSD\/evbarm on Allwinner Technology SoCs 1.4.3 David Bentham \/ openwrt-bpi-r1-prebuilt 1.4.4 Linux mainlining effort 1.4.5 Allwinner chip documents 1.4.6 All banana pi product BPI 4.0 customized Server...

  • Page 3: About Banana Pi Bpi-R1

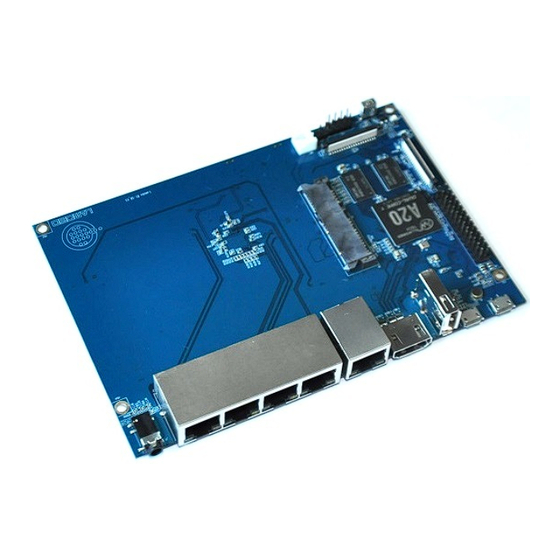

    About banana pi BPI-R1 About Banana pi BPI-R1 The banana pi BPI-R1 is a 300Mbps Wireless N Router with both wired and wireless network connections designed specifically for smart home networking use. With 2T2R MIMO Technology and two detachable antennas. the BPI-R1 is the dual core Android 4.4 product which more better than Linux product. It can run with Android 4.4 smoothly and with 5 Gigabit ethernet port, SATA Socket.also support Linux OS, and Openwrt os. it can easily run with the game and support 1080P high definition video output. Banana Pi Router: NAS, router or trash? // Review https://www.youtube.com/watch?v=tvzXhbcgo2k Banana Pi R1 Smart Open source Wireless Router https://www.youtube.com/watch?v=bDkn_UM8DwQ forum: http://www.banana-pi.org forum: http://www.bananapi.com product: http://www.banana-pi.com...

  • Page 4: Bpi-R1 Hardware

    BPI-R1 hardware First Chapter GitBook allows you to organize your book into chapters, each chapter is stored in a separate file like this one.

  • Page 5: Bpi-R1 Hardware Interface

    BPI-R1 hardware interface BPI-R1 hardware interface BPI-R1 hardware interface Front: Back:...
  • Page 6 BPI-R1 hardware interface Hardware connect sketch map： Front: Back:...
  • Page 7 BPI-R1 hardware interface...

  • Page 8: Bpi-R1 Hardware Spec

    BPI-R1 hardware spec BPI-R1 hardware spec...

  • Page 9: Bpi-R1 Gpio Pin Define

    BPI-R1 GPIO Pin define BPI-R1 GPIO Pin define GPIO define We can check R1 PIN definition in this thread, including CON1, CON2, CON3, J12 and J13. J13 contains the default serial port UART0 (UART0-RX,UART0-TX). UATR0 is configured to be used for console input/output. Whilst this is useful if you want to login using the serial port. So it is the most common used PIN. J12 also contains serial port. CON3 contains CAN bus, SPI bus, PWM, serial port and etc. It can be configured to be used for kinds of peripherals. CON1 is a CSI camera connector. CON2 is a DSI display connector. Pictures and tables below show the specific layout and definition of PIN.
  • Page 10 BPI-R1 GPIO Pin define CSI Camera Connector Pin specification: the CSI Camera Connector is a 40-pin FPC connector which can connect external camera module with proper signal pin mappings. The pin definitions of the CSI interface are shown as below. PIN define GPIO CON1-P01 LINEINL CON1-P02 LINEINR CON1-P37 CON1-P36 CON1-P07 FMINL CON1-P09 FMINR CON1-P04 ADC_X1 CON1-P06 ADC_X2 CON1-P08 ADC_Y1 CON1-P10 ADC_Y2 CON1-P13 LRADC0 CON1-P15 LRADC1 CON1-P33 RESET# CON1-P17 CSI0-D0...
  • Page 11 BPI-R1 GPIO Pin define CON1-P19 CSI0-D1 CON1-P21 CSI0-D2 CON1-P23 CSI0-D3 CON1-P25 CSI0-D4 CON1-P27 CSI0-D5 CON1-P29 CSI0-D6 PE10 CON1-P31 CSI0-D7 PE11 CON1-P20 CSI0-PCLK CON1-P24 CSI0-MCLK CON1-P28 CSI0-VSYNC CON1-P30 CSI0-HSYNC CON1-P18 CSI0-STBY-EN PH19 CON1-P26 CSI0-RESET# PH14 CON1-P32 CSI1-STBY-EN PH18 CON1-P34 CSI1-RESET# PH13 CON1-P14 TWI1-SDA PB19...
  • Page 12 BPI-R1 GPIO Pin define CON2-P23 LCD0-D07 CON2-P25 LCD0-D08 CON2-P27 LCD0-D09 CON2-P29 LCD0-D10 PD10 CON2-P31 LCD0-D11 PD11 CON2-P33 LCD0-D12 PD12 CON2-P35 LCD0-D13 PD13 CON2-P37 LCD0-D14 PD14 CON2-P39 LCD0-D15 PD15 CON2-P40 LCD0-D16 PD16 CON2-P38 LCD0-D17 PD17 CON2-P36 LCD0-D18 PD18 CON2-P34 LCD0-D19 PD19 CON2-P32 LCD0-D20 PD20...
  • Page 13 BPI-R1 GPIO Pin define CON3-P18 CAN_RX PH21 CON3-P16 CAN_TX PH20 CON3-P23 SPI0_CLK PI11 CON3-P21 SPI0_MISO PI13 CON3-P19 SPI0_MOSI PI12 CON3-P24 SPI0_CS0 PI10 CON3-P26 SPI0_CS1 PI14 CON3-P05 TWI2-SCK PB20 CON3-P03 TWI2-SDA PB21 CON3-P15 UART2_CTS PI17 CON3-P22 UART2_RTS PI16 CON3-P11 UART2_RX PI19 CON3-P13 UART2_TX PI18...
  • Page 14 BPI-R1 GPIO Pin define J13-P01 UART0-RX PB23 J13-P02 UART0-TX PB22...

  • Page 15: Bpi-R1 Sd Card Slot

    BPI-R1 SD card slot BPI-R1 SD card slot BPI-R1 have support a TF card slot. you can burn image to TF card ,and use it boot BPI-R1 same as raspberry pi.

  • Page 16: Bpi-R1 Can Bus

    BPI-R1 CAN Bus BPI-R1 CAN Bus In order to port can4linux to the BananaPi, the CAN module description is needed from the A20 hardware manual. can4linux is a character-driver-based Linux driver used already on desktop PCs and embedded platforms like Freescale FlexCAN (the i.MX series of micro controllers) or Xiliny Zynq. There is a more detailed document about CAN on the A20 at https://dl.linux-sunxi.org/A20/CAN%20Bus1.pdf This is a tutorial for using CAN BUS on bananapi with bananian 15-01 Thank selqcir share this example: Download and install "bananian-1501.img" into 8 GB SDCard. Expand the root file system using "bananian-config" Install missing package: apt-get install git apt-get update apt-get upgrade reboot Get last bananian available, and continu to install missing package: git clone https://github.com/Bananian/linux-bananapi apt-get install build-essential u-boot-tools uboot-mkimage apt-get install libusb-1.0-0 libusb-1.0-0-dev git wget fakeroot kernel-package zlib1g-dev libncurses5-dev apt-get install subversion Build kernel: cd linux-bananapi make menuconfig Exit without saving when menu appears zcat /proc/config.gz > /root/linux-bananapi/.config make uImage modules make INSTALL_MOD_PATH=output modules_install At this step, kernel should be compiled and "Module.symvers" should be available Then rename modules and firmware provide by Bananian, and replace by the new one. mv /lib/modules /lib/modules.old mv /lib/firmware /lib/firmware.old mv /root/linux-bananapi/output/lib/modules /lib/modules mv /root/linux-bananapi/output/lib/firmware /lib/firmware Same for uImage: mount /dev/mmcblk0p1 /mnt cd /mnt mv uImage uImage.old mv /root/linux-bananapi/arch/arm/boot/uImage /mnt reboot Create link for further build:...
  • Page 17 BPI-R1 CAN Bus cd /lib/modules/3.4.104/ ln -s /root/linux-bananapi build cd ~ Get Can4Linux and build it: svn checkout https://svn.code.sf.net/p/can4linux/code/trunk can4linux-code cd /root/can4linux-code/can4linux/ make TARGET=BANANAPI Install module for each startup of the board: insmod can4linux.ko cp can4linux.ko /lib/modules/3.4.104/kernel/net/can/ depmod -A -v modprobe -v can4linux echo "" >> /etc/modules ; echo "can4linux" >> /etc/modules reboot Build CAN example apt-get install swig apt-get install python-dev cd can4linux-code/can4linux-examples/ Update CAN speed and device in file "pyCan-example.py" # setting the device number device = 0 defaultBaudrate = '250' Connect CAN transceiver and CAN bus, and check with for example: python pyCan-example.py That's all With this method, kernel version is "Linux bananapi 3.4.104" instead of "Linux bananapi 3.4.104+", because i was unable to find same sources than Bananian 15-01 , but CAN bus work ! Feel free to comment or update.

  • Page 18: Bpi-R1 Wifi Interface

    BPI-R1 WIFI interface BPI-R1 WIFI interface banana pi BPI-R1 have support rtl8192CU 2T2R wifi module onboard. it support 802.11/b/g/n wifi.

  • Page 19: Bpi-R1 Wifi Antenna Slot

    BPI-R1 wifi antenna slot BPI-R1 wifi antenna slot banana pi BPI-R1 have support rtl8192CU 2T2R wifi module onboard so,it need 2 extend antenna line, you can use 3DB/5DB extend antenna line. wifi extend antenna wifi slot spec:...

  • Page 20: Bpi-R1 Mic

    BPI-R1 MIC BPI-R1 MIC thank chaos.dennis do this test: i write about this, because i found very few sources and had to tumble a lot around to get it working. This is a quick walk through to give you a hint where to start. I asume for simplicity that you stay always in /root directory as root user. If something fails, look if the files are written and paths are right. It is adressed for more advanced users who know what they are basically doing. This is done with bananian 15.08 on Kernel 3.4. Other kernels < 4.4 do not work. It is a headless server with no HDMI pluged in. A. Basic Setup Install alsa (renove pulseaudio if present): # apt-get install alsa-base alsa-utils Configure asound.conf # nano /etc/asound.conf Should look like: pcm.!default { type hw card 0 # for headphone, turn 1 to 0 device 0 ctl.!default { type hw card 0 # for headphone, turn 1 to 0 Shutdown, make a cold boot Call the alsamixer # alsamixer Press F5. Your channels should be setup like the attached file at the bottom of this post, or compare it to amixer output: # amixer Simple mixer control 'Master',0 Capabilities: pvolume pvolume-joined Playback channels: Mono Limits: Playback 0 - 63 Mono: Playback 45 [71%] Simple mixer control 'Master Capture Mute',0 Capabilities: pswitch pswitch-joined Playback channels: Mono Mono: Playback [off] Simple mixer control 'LineL',0 Capabilities: pswitch pswitch-joined Playback channels: Mono...
  • Page 21 BPI-R1 MIC Mono: 7 [100%] Simple mixer control 'Mic Input Mux',0 Capabilities: volume volume-joined Playback channels: Mono Capture channels: Mono Limits: 0 - 15 Mono: 15 [100%] Simple mixer control 'Mic Power',0 Capabilities: pswitch pswitch-joined Playback channels: Mono Mono: Playback [on] Simple mixer control 'Mic1 Boost',0 Capabilities: pswitch pswitch-joined Playback channels: Mono Mono: Playback [on] Simple mixer control 'Mic1 gain',0 Capabilities: volume volume-joined Playback channels: Mono Capture channels: Mono Limits: 0 - 3 Mono: 3 [100%] Simple mixer control 'Mic2 Boost',0 Capabilities: pswitch pswitch-joined Playback channels: Mono Mono: Playback [on] Simple mixer control 'Mic2 gain',0 Capabilities: volume volume-joined Playback channels: Mono Capture channels: Mono Limits: 0 - 7 Mono: 0 [0%] Simple mixer control 'MicL',0 Capabilities: volume volume-joined Playback channels: Mono Capture channels: Mono Limits: 0 - 3 Mono: 1 [33%] Simple mixer control 'MicR',0 Capabilities: volume volume-joined...
  • Page 22 BPI-R1 MIC Simple mixer control 'LINEIN APM',0 Capabilities: volume volume-joined Playback channels: Mono Capture channels: Mono Limits: 0 - 7 Mono: 7 [100%] Simple mixer control 'Ldac Left Mixer',0 Capabilities: pswitch pswitch-joined Playback channels: Mono Mono: Playback [on] Simple mixer control 'Ldac Right Mixer',0 Capabilities: pswitch pswitch-joined Playback channels: Mono Mono: Playback [on] Simple mixer control 'Left Capture Mute',0 Capabilities: pswitch pswitch-joined Playback channels: Mono Mono: Playback [on] Simple mixer control 'MIC output volume',0 Capabilities: volume volume-joined Playback channels: Mono Capture channels: Mono Limits: 0 - 7 Mono: 7 [100%] Simple mixer control 'Rdac Right Mixer',0 Capabilities: pswitch pswitch-joined Playback channels: Mono Mono: Playback [on] Simple mixer control 'Right Capture Mute',0 Capabilities: pswitch pswitch-joined Playback channels: Mono Mono: Playback [on] This step is critical. One false muted channel and you are out of the game. Test recording. # arecord -L Should show a device. # arecord -f S16_LE -r 44100 -t wav test.wav Should make kind of Sound. Stop it with ctr-c and check the file. B. SoX Recording / Streaming Install SoX Sox gives you tools like: sox, rec and play. I would suggest you install it on the...
  • Page 23 BPI-R1 MIC Client: # netcat <banana ip> 9000 | vlc Works? Great! Live listening is important to play around and test the mic. Listen and record at same time # rec -c 2 -C 64 -t mp3 - | tee test.mp3 | netcat -l -p 9000 Poor man's streaming server # apt-get install openbsd-inetd tcpd Edit config file: # nano /etc/inetd.conf Insert this at the end: 9000 stream tcp nowait nobody /usr/bin/tail tail -f /test.mp3 Restart service # service openbsd-inetd restart Start recording on banana: # rec -c 2 -C 64 /test.mp3 Connect via client: # netcat <banana ip> 9000 | vlc - C. Advanced Recording Devide recording and postprocessing in two parts # rec -t raw - remix - | sox -t raw -r 48000 -c 1 -b 16 -e signed-integer - -t mp3 -c 1 -C 32 test.mp3 Recording: -t raw - forward raw input to pipe remix - Mix the two channels to one Encoding: -t raw -r 48000 -c 1 -b 16 -e signed-integer - tell sox what kind of strean comes from stdin -t mp3 -c 1 -C 32 test.mp3 and what goes out Note that it is switched to mono from here with -c 1 and the mp3 bitrate is cut in half. Live listening to the strean does not work anymore, i asume it is because of the non regulare output from pipeing and processing in a second step. Reduce noise The mic input is pretty bad, lot of white noise. Sox can deal with it. Make a sample "silent" file:...
  • Page 24 BPI-R1 MIC # rec -t raw test.raw remix - trim 0 10 trim 0 10 record 10 seconds Test it at client pc: # play -r 48000 -c 1 -b 16 -e signed-integer test.raw Create profile file: # sox -r 48000 -c 1 -b 16 -e signed-integer test.raw -n trim 0 2 noiseprof raw-profile Record with noise canceld # rec -t raw - remix - noisered raw-profile 0.2 | sox -t raw -r 48000 -c 1 -b 16 -e signed-integer - -t mp3 -c 1 -C 32 test.mp3 Play with the factor of 0.2 to regulate the intensity of cancellation. D. Record 24/7 My goal of this..Create a script: # nano /root/record.sh Insert the following: #!/bin/bash # send sigterm and wait for exit of the process function stop() { kill $@; while kill -0 $@; do sleep 1; done; } function log() { echo $(date +%T) $@; } log "Stopping previus recording" stop `pidof rec` &> /dev/null DATE=`date "+%Y.%m.%d"` log "Recording $DATE.mp3" rec -q -t raw - remix - noisered /root/raw-profile 0.2 | \ sox -v 2.0 -t raw -r 48000 -c 1 -b 16 -e signed-integer - \ -t mp3 -r 22050 -c 1 -C -9.2 /root/$DATE.mp3 log "Done $DATE.mp3" Recording: -q less output Encoding: -v 2.0 Make the input stream louder -r 22050 encode to a lower sample rate -C -9.2 Create a low quality VBR mp3 Fileszie ~100mb per day. If you want smaller files, a 8000 sanple rate gives you a gsm grade quality. A very good article to sample rate: http://wiki.audacityteam.org/wiki/Sample_Rates Make it executable...
  • Page 25 BPI-R1 MIC # chmod +x record.sh Edit crontab: # env EDITOR=nano crontab -e Insert at the end the following: PATH=/usr/local/bin:/usr/local/sbin:/sbin:/usr/sbin:/bin:/usr/bin 0 0 * * * /root/record.sh >> /root/re cord-mic.log A new recording should start every day at midnight.

  • Page 26: Bpi-R1 Audio

    BPI-R1 Audio BPI-R1 Audio Banana pi BPI-R1 support two audio device HDMI and headphone How to choose HDMI or headphone for audio output sudo nano /etc/asound.conf pcm.!default { type hw card 0 //If you want to set HDMI as output ,turn 0 to 1. device 0 ctl.!default { type hw card 0 //If you want to set HDMI as output ,turn 0 to 1. Plug in the headphone and type speaker-test -twav -c2 The sound "sound left，sound right，sound left" will output from headphone. sudo apt-get install espeak espeak "hello"　　 //say: hello espeak "hello_bananapi"　　 //say: hello banana pi Run the sound volume controler,you can see sudo alsamixer...

  • Page 27: Bpi-R1 Ir Interface

    BPI-R1 IR interface BPI-R1 IR interface BPI-M1 support IR interface on board. you can use it as remote control. How to use IR interface test on bananian image: 1,install lirc apt-get install lirc apt-get install evtest 2,edit /etc/lirc/hardware.conf as below: nano /etc/lirc/hardware.conf # /etc/lirc/hardware.conf # Arguments which will be used when launching lircd LIRCD_ARGS="--uinput" #Don't start lircmd even if there seems to be a good config file #START_LIRCMD=false #Don't start irexec, even if a good config file seems to exist. #START_IREXEC=false #Try to load appropriate kernel modules LOAD_MODULES=true # Run "lircd --driver=help" for a list of supported drivers. DRIVER="UNCONFIGURED" # usually /dev/lirc0 is the correct setting for systems using udev DEVICE="/dev/input/event0" MODULES="sunxi-ir" ctrl+O save and ctrl+x exit. 3,test lirc service lirc start 4 test remote-control unit evtest choose "0" must xunxi-ir...
  • Page 28 BPI-R1 IR interface please note:value 0 value 1 press is:1，unpress is:0...

  • Page 29: Bpi-R1 Usb Interface

    BPI-R1 USB interface BPI-R1 USB interface BPI-R1 just only 1 USB 2.0 interface on board.so you can connect Keyboard,mouse, USB camera and ... on BPI-R1...

  • Page 30: Bpi-R1 Otg Interface

    BPI-R1 OTG interface BPI-R1 OTG interface banana pi BPI-R1 have 1 OTG port on board. Note: you also can use OTG port power BPI-R1...

  • Page 31: Bpi-R1 Sata Interface

    BPI-R1 SATA interface BPI-R1 SATA interface BPI-R1 support sata interface onboard you can use 2.5 hardisk on BPI-R1.

  • Page 32: Bpi-R1 Hdmi Interfact

    BPI-R1 HDMI interfact BPI-R1 HDMI interfact BPI-R1 has a standard HDMI 1.4 interface. so We can use HDMI-to-HDMI cable to connect BPI-R1 to the display monitor that has HDMI interface. But If the display monitor doesn't have HDMI interface,only VGA or DVI port. We should use HDMI-to-VGA or HDMI-to-DVI cable to connect the BPI-R1 to the display monitor. Note: if the HDMI-to-VGA/DVI cable is a bad quality cable,it will go wrong on the monitor display. please choose a good quality cable for BPI-R1...

  • Page 33: Bpi-R1 Camera Interface

    BPI-R1 Camera interface BPI-R1 Camera interface BPI-R1 CSI Camera Connector is a 40-pin FPC connector which can connect external camera module with proper signal pin mappings. The pin definitions of the CSI interface are shown as below. This is marked on the Banana Pi board as “CSI”. CSI pin define: please see: BPI-R1 GPIO pine define BPI-R1 CSI camera accessories https://bananapi.gitbooks.io/bpi-accessories/content/bpim1m1+m2camera.html...

  • Page 34: Bpi-R1 Rgb Dsi Interface

    BPI-R1 RGB DSI interface BPI-R1 RGB DSI interface RGB DSI (Display Serial Interface)： The display Connector is a 40-pin FPC connector which can connect external LCD panel (RGB DSI) and touch screen (I2C) module as well. The pin definitions of this connector are shown as below. This is marked on the Banana Pi board as “DSI”. DSI pin define: please see: BPI-R1 GPIO pine define BPI-R1 LCD touch panel accessories https://bananapi.gitbooks.io/bpi-accessories/content/bpi70lcdtouchpanel.html note:the touch panel accessories support RGB interface and MIPI interface ,when you use BPI-R1, please choose RGB interface.

  • Page 35: Bpi-R1 5 Gbe Ethernet Ports

    BPI-R1 5 GbE Ethernet ports BPI-R1 5 GbE Ethernet ports On the BPI-R1 the BCM53125 (a simple switch IC that features two RGMII GbE host ports and 5 GbE PHYs and can be configured through MDIO to separate traffic through VLANs) interconnects by default all 5 Ethernet ports and the A20 SoC. This means we can not speak about a true WAN port and LAN ports since all the ports are connected at network layer 2 by default. Since the A20 SoC features only one single RGMII interface no other mode of operation is possible. This might raise serious security risks since while the device boots or when it is in bricked state or booted without SD card or when VLAN configuration hasn't been setup correctly or a simple bug exists in the b53 driver then the BCM53125 always acts as a primitive layer 2 switch forwarding Ethernet frames between all external Ethernet ports (not differentiating between the so called WAN port and the 4 LAN ports). This is nothing one would expect from a device advertised as routerboard. If one tries to use the BPI-R1 as a (NAT) router without a separate firewall between WAN and the BPI-R1 then it depends largely on the ISP's infrastructure whether this is not that good or an absolute no-go from a security point of view since all sorts of attacks against devices behind the so called LAN ports can be triggered from behind the WAN port. In case you're not sure what that means you should simply treat the WAN port as another LAN port and use a separate USB to Ethernet adapter to be connected to WAN. Only in this mode the BPI-R1 might reliably work as a router.

  • Page 36: Bpi-R1 3.7V Lithium Battery Interface

    BPI-R1 3.7V lithium battery interface BPI-R1 3.7V lithium battery interface 1,Battery interface of BPI-R1 use way same as BPI-M3. https://bananapi.gitbooks.io/bpi-m3/content/bpim3lithiumbatteryinterface.html...

  • Page 37: Bpi-R1 Dc Power Interface

    BPI-R1 DC Power interface BPI-R1 DC Power interface BPI-R1 DC power is micro USB interface. you need use 5V/2A micro USB power adapter.

  • Page 38: Bpi-R1 Schematic Diagram

    BPI-R1 schematic diagram BPI-R1 schematic diagram google driver download link: https://drive.google.com/file/d/0B4PAo2nW2KfnNTBaVENGeHZfSzA/view?usp=sharing File name :banan pi BPI-R1 MP Schematic-SD_V3-20140922.pdf...

  • Page 39: Bpi-R1 3D And Dxf File

    BPI-R1 3D and DXF file BPI-R1 3D & DXF file download link: https://drive.google.com/file/d/0B4PAo2nW2KfnOVhFMFp6MFFfa00/view?usp=sharing...

  • Page 40: Bpi-R1 Ce,Fcc Rohs Certification

    BPI-R1 CE,FCC RoHS Certification BPI-R1 CE,FCC RoHS Certification All the products Banana pi release go through strictly controlled process from developing,testing,manufacturing to certification. We put quality first, users can mass produce their products using our boards directly, we've been dedicating to providing the most cost performance products. BPI-R1 CE Certification BPI-R1 FCC Certification...
  • Page 41 BPI-R1 CE,FCC RoHS Certification BPI-R1 RoHS Certification...
  • Page 42 BPI-R1 CE,FCC RoHS Certification...

  • Page 43: Bpi-R1 Software

    BPI-R1 Software BPI-R1 Software BPI-R1 support linux ,android and openwrt system...

  • Page 44: Bpi-R1 Quick Start

    BPI-R1 quick start BPI-R1 quick start Step 1: Get what you need First time to enjoy your Banana Pi, you need at least the accessories in the table below. Item Minimum recommended specification & notes SD card is optional. If need to boot form SD card, Minimum size 8GB, class 10 (the class MicroSD card indicates how fast the card is). We recommend using branded SD cards as they are more reliable. avHDMI(Full HDMI to HDMI lead (for HD TVs and monitors with HDMI input).OR HDMI to DVI lead sized) to HDMI (for monitors with DVI input). / DVI lead Any standard USB keyboard and mouse should work. keyboards or mice that take a lot Keyboard and of power from the USB ports, however, may need a powered USB hub. This may include mouse some wireless devices. Networking is optional, although it makes updating and getting new software for your Ethernet cable Banana Pi much easier. Micro USB A good quality, USB Power supply that can provide at least 5V/2A is essential.OTG also power adapter can power the board, but it is not recommended. Audio lead You can choose a 3.5mm jack audio led to connect to audio port to get stereo audio. (Optional) Mobile Hard You can choose to connect a mobile hard disk to USB port to store more files. disk (Optional) Base you need below:...
  • Page 45 BPI-R1 quick start Step 2: Download the relevant Image file: Please visit our webmaster: www.banana-pi.org to download image, banana pi all image can be download form this web. Step3: Prepare your SD card for the Banana Pi In order to enjoy your Banana Pi BPI-M3, you will need to install an Operating System (OS) onto an SD card. Instructions below will teach you how to write an OS image to your SD card under Windows os and Linux os. 1.Insert your SD card into your computer. The size of SD should be larger than the OS image size, generally 8GB or greater. 2.Format the SD card. Format your SD under Windows os : Download the a SD card format tool such as SD Formatter from https://www.sdcard.org/downloads/formatter_4/eula_windows/ *Unzip the download file and run the setup.exe to install the tool on your machine. *In the "Options" menu, set "FORMAT TYPE" option to QUICK, "FORMAT SIZE ADJUSTMENT" option to "ON".
  • Page 46 BPI-R1 quick start *Check that the SD card you inserted matches the one selected by the Tool. *Click the “Format” button. Format your SD under Linux os : *Run fdisk –l command to check the SD card node. *Run sudo fdisk /dev/sdx command to delete all partition of SD card. *Run mkfs –t vfat /dev/sdx command to format the entire SD card as FAT. (x should be replaced according to your SD card node) 3,Download the OS image from Download district(http://www.banana-pi.org) 4.Unzip the download file to get the OS image. Windows: Right click on the file and choose “Extract all”. Linux: Run unzip [downloaded filename] command. 5.Write the image file to the SD card. Android image 5.1 You need to use Phoenix Card to make the SD card. Download the Phoenix Card from https://drive.google.com/open? id=0BzoTh3Vdt47ffi1ld0RuWXhUVzdYdjFjaHEtMlNQWVFTRmIxcC1OQnczSTV6OGRZWGplNU0 5.2 Run PhoenixCard.exe, Press “Disk Check” and select disk of SD Card.
  • Page 47 BPI-R1 quick start 5.3 Press “Image File” and Select system.img. 5.4 Press “Burn” to start upgrading, Upgraded complete, Press “Exit”.
  • Page 48 BPI-R1 quick start Linux image: 5.6 burun Linux image under Windows os: *Download a tool that can wirte image to SD card, such as Win32 Diskimager from: http://sourceforge.net/projects/win32diskimager/files/Archive/ *Open the unzipped image file *Click Write button. Wait patiently to successfully complete writing. 5.7 burun Linux image under Linux os: *Run fdisk –l command to check the SD card node. *Run dd if=[imagename] of=/dev/sdx command to write image file to SD card. Wait patiently to successfully complete writing. Step4: Set up your Banana Pi R1 According to the set up diagram below, you can easily set up your Banana Pi. 1. Insert the written-image SD card that to the SD card spot on the left side edge of the underside of the board.
  • Page 49 BPI-R1 quick start 2. 2.On the bottom "edge" in the middle of the board is the HDMI Type A (Full sized) port.Just connect any HDMI cable from the board to your TV or HDMI Monitor. 3. Plug a USB keyboard and mouse into the USB slots located on the right edge. 4. Just under the USB ports on the right edge is the Ethernet connector for anyone who wants to plug the Banana Pi into a wired network. 5. 5.Finally, at the very left of the bottom edge is the USB power connector. Plug in a regulated power supply that is rated at 5V ±5% / 2000mA (or 2A). Any number bigger than 700 mA will also work. Avoid using the smaller chargers used for small GSM phones, as these are often unregulated, even if they claim "5V 1A", they may do "5V" and may do "1A", but not at the same time! If all goes well, the Banana Pi will boot in a few minutes. The screen will display the OS GUI. Step5: Shut down your Banana Pi BPI-R1 You can use the GUI to shut down the Banana Pi safely. Also you can run the command in the terminal: sudo halt sudo shutdown –h This will shut down the PI safely, (just use the power key to turn off might damage the SD-cards file system).After that you can press the power key for 5 seconds to turn it off. If all is well ,so you can use banana pi BPI-R1 now.

  • Page 50: Bpi-R1 Android Software

    BPI-R1 android software BPI-R1 android software banana pi PBI-R1 support android 4.4 image: google download link: https://drive.google.com/file/d/0BxpbZWFFuHmyUHRYeE9uenFTVmc/view...

  • Page 51: Bpi-R1 Linux Software

    BPI-R1 Linux software BPI-R1 Linux software Banana pi have support raspbian, ubuntu,debian..linux os. image download link: http://www.banana-pi.org/download.html Note: you need download BPI-R1 image.

  • Page 52: Linux Kernel 3.4 Bsp Image

    Linux kernel 3.4 BSP image Linux kernel 3.4 BSP image BPI-R1 new image:ubuntu-mate-16.04-desktop-armhf- raspberry-pi-bpi-m1-m1p-r1-sd-emmc 2016-07-21 2016-07-21-ubuntu-mate-16.04-desktop-armhf-raspberry-pi-bpi-m1-m1p-r1-sd-emmc.img.zip based on ubuntu 16.04 mate from https://ubuntu-mate.org/download/ 2. BPI-M1 / BPI-M1P / BPI-R1 u-boot-2016.05, kernel 3.4.112 (based on armbian's build) 3. username & password: pi/bananapi , root/bananapi 4. support HDMI 1080P & 720P(default) 5. support GMAC 6. support WIFI 7. support SATA 8. support bpi-bootsel cmd can switch to (bpi-m64 & bpi-m3 & bpi-m2 & bpi-m2p & bpi-m1-m1p-r1) 9. support boot.scr (boot.cmd) to fatload script.bin & uImage & uInitrd 10. support boot.scr to set video 1080P & 720P & 480P ... 11. based on armbian's build env. & rootfs, thanks for armbian (http://www.armbian.com) 12. github from https://github.com/igorpecovnik/lib by armbian's work 13. special thanks for linux-sunxi's work (https://linux-sunxi.org) 14. support video play 1080p with vdpau (mpv) 15. support GPU Mali (glmark2-es2) 16. support nodejs 17. support node-red 18. thanks to ubuntu-mate.org Google Drive: https://drive.google.com/file/d/0B_YnvHgh2rwjY0VlUGdobzFtdk0/view?usp=sharing...
  • Page 53 Linux kernel 3.4 BSP image http://forum.banana-pi.org/t/bpi-r1-new-image-ubuntu-mate-16-04-desktop-armhf-raspberry-pi-bpi-m1-m1p-r1-sd-emmc- 2016-07-21/2052 BPI-R1 new image:edu-ubuntu-mate-1604-preview-bpi- m1-m1p-r1.img 2016-07-19 2016-07-19-edu-ubuntu-mate-1604-preview-bpi-m1-m1p-r1.img.zip 1. based on ubuntu 16.04 mate from bpi-m3-mate (http://opensource.ntpc.edu.tw/) 2. BPI-M1 / BPI-M1P / BPI-R1 u-boot-2016.05, kernel 3.4.112 (based on armbian's build) 3. username & password: pi/bananapi , root/bananapi 4. support HDMI 1080P & 720P(default) 5. support GMAC 6. support WIFI 7. support SATA 8. support bpi-bootsel cmd can switch to (bpi-m64 & bpi-m3 & bpi-m2 & bpi-m2p & bpi-m1-m1p-r1) 9. support boot.scr (boot.cmd) to fatload script.bin & uImage & uInitrd 10. support boot.scr to set video 1080P & 720P & 480P ... 11. based on armbian's build env. & rootfs, thanks for armbian (http://www.armbian.com) 12. github from https://github.com/igorpecovnik/lib by armbian's work 13. special thanks for linux-sunxi's work (https://linux-sunxi.org) 14. support video play 1080p with vdpau (mpv, vlc, smplayer) 15. support GPU Mali (glmark2-es2) 16. support nodejs 17. support node-red 18. included many apps for edu...
  • Page 54 Linux kernel 3.4 BSP image Google Drive: https://drive.google.com/file/d/0B_YnvHgh2rwjUXZmZTh3ZG5LTEU/view?usp=sharing MD5: 37d6599eac4daced375fba8fa58dc1d5 discuss on forum: http://forum.banana-pi.org/t/bpi-r1-new-image-edu-ubuntu-mate-1604-preview-bpi-m1-m1p-r1-img-2016-07-19/2043 BPI-R1 new image: Kanux-Beta-3.3.0-preview-bpi-m1- m1p-r1.img 2016-07-15 2016-07-15-Kanux-Beta-3.3.0-preview-bpi-m1-m1p-r1.img.zip based on KANO OS Beta 3.3.0 (support rpi3 rpi2 rpi1) BPI-M1 / BPI-M1P / BPI-R1 u-boot-2016.05, kernel 3.4.112 (based on armbian's build) username & password: pi/bananapi , root/bananapi support HDMI 1080P & 720P(default) support GMAC support WIFI support SATA support bpi-bootsel cmd can switch to (bpi-m64 & bpi-m3 & bpi-m2 & bpi-m2p & bpi-m1-m1p-r1) support boot.scr (boot.cmd) to fatload script.bin & uImage & uInitrd support boot.scr to set video 1080P & 720P & 480P ... based on armbian's build env. & rootfs, thanks for armbian(http://www.armbian.com) github from https://github.com/igorpecovnik/lib by armbian's work special thanks for linux-sunxi's work (https://linux-sunxi.org) thanks for Kano Developers's work(http://developers.kano.me/downloads) thanks for raspberry.org's work Google Drive:...
  • Page 55 Linux kernel 3.4 BSP image https://drive.google.com/file/d/0B_YnvHgh2rwjaXQtVGUtbFplTUU/view?usp=sharing MD5: 1951f3abc0a54675d9bbbac387760e4e discuss on forum: http://forum.banana-pi.org/t/bpi-r1-new-image-kanux-beta-3-3-0-preview-bpi-m1-m1p-r1-img-2016-07-15/2025 BPI-R1 new image:raspbian-jessie-bpi-m1-m1p-r1.img 2016-07-13 2016-07-13-raspbian-jessie-bpi-m1-m1p-r1.img.zip 1. based on RASPBIAN JESSIE 2016-05-27(support rpi3 rpi2 rpi1) 2. BPI-M1 / BPI-M1P / BPI-R1 u-boot-2016.05, kernel 3.4.112 (based on armbian's build) 3. username & password: pi/bananapi , root/bananapi 4. support HDMI 1080P & 720P(default) 5. support GMAC 6. support WIFI 7. support SATA 8. support bpi-bootsel cmd can switch to (bpi-m64 & bpi-m3 & bpi-m2 & bpi-m2p & bpi-m1-m1p-r1) 9. support boot.scr (boot.cmd) to fatload script.bin & uImage & uInitrd 10. support boot.scr to set video 1080P & 720P & 480P ... 11. based on armbian's build env. & rootfs, thanks for armbian (http://www.armbian.com) 12. github from https://github.com/igorpecovnik/lib by armbian's work 13. special thanks for linux-sunxi's work (https://linux-sunxi.org) 14. thanks for raspberry.org's work(https://www.raspberrypi.org/downloads/raspbian) 15. support node-red Google Drive: https://drive.google.com/file/d/0B_YnvHgh2rwjdTh5ZnVZam1rb0E/view?usp=sharing...
  • Page 56 Linux kernel 3.4 BSP image MD5: 156b09907586ea9e86481bda73f4254f discuss on forum: http://forum.banana-pi.org/t/bpi-r1-new-image-raspbian-jessie-bpi-m1-m1p-r1-img-2016-07-13/2011 BPi-R1 new image: raspbian-lite-bpi-m1-m1p-r1.img 2016-07-12 2016-07-12-raspbian-lite-bpi-m1-m1p-r1.img.zip 1. based on RASPBIAN JESSIE LITE 2016-05-27(support rpi3 rpi2 rpi1) 2. BPI-M1 / BPI-M1P / BPI-R1 u-boot-2016.05, kernel 3.4.112 (based on armbian's build) 3. username & password: pi/bananapi , root/bananapi 4. support HDMI 1080P & 720P(default) 5. support GMAC 6. support WIFI 7. support SATA 8. support bpi-bootsel cmd can switch to (bpi-m64 & bpi-m3 & bpi-m2 & bpi-m2p & bpi-m1-m1p-r1) 9. support boot.scr (boot.cmd) to fatload script.bin & uImage & uInitrd 10. support boot.scr to set video 1080P & 720P & 480P ... 11. based on armbian's build env. & rootfs, thanks for armbian (http://www.armbian.com) 12. github from https://github.com/igorpecovnik/lib by armbian's work 13. special thanks for linux-sunxi's work (https://linux-sunxi.org) 14. thanks for raspberry.org's work(https://www.raspberrypi.org/downloads/raspbian)
  • Page 57 Linux kernel 3.4 BSP image Google Drive: https://drive.google.com/file/d/0B_YnvHgh2rwjRXRuWHJ5V3BJTmc/view?usp=sharing MD5: 302063f7417079390da79334258dd538 discuss on forum: http://forum.banana-pi.org/t/bpi-r1-new-image-raspbian-lite-bpi-m1-m1p-r1-img-2016-07-12/2004 BPI-R1 new image:Ubuntu-16.04-xenial-minimal-preview- bpi-m1-m1p-r1.img 2016-07-10 2016-07-10-2016-07-10-ubuntu-16.04-xenial-minimal-preview-bpi-m1-m1p-r1.img.zip.zip 1. based on ubuntu 16.04 xenial ubuntu-minimal. 2. BPI-M1 / BPI-M1P / BPI-R1 u-boot-2016.05, kernel 3.4.112 (based on armbian's build) 3. username & password: pi/bananapi , root/bananapi 4. support HDMI 1080P & 720P(default) 5. support GMAC 6. support WIFI (module only, no wireless tools) 7. support SATA 8. support bpi-bootsel cmd can switch to (bpi-m64 & bpi-m3 & bpi-m2 & bpi-m2p & bpi-m1-m1p-r1) 9. support boot.scr (boot.cmd) to fatload script.bin & uImage & uInitrd 10. support boot.scr to set video 1080P & 720P & 480P ... 11. based on armbian's build env. & rootfs, thanks for armbian (http://www.armbian.com) 12. github from https://github.com/igorpecovnik/lib by armbian's work 13. special thanks for linux-sunxi's work (https://linux-sunxi.org) Google Drive: https://drive.google.com/file/d/0B_YnvHgh2rwjUXFrU0ZDX3Z2NlE/view?usp=sharing MD5: b900b9ba3b0f664a2cfae1fa1146b2fa...
  • Page 58 Linux kernel 3.4 BSP image discuss on forum: http://forum.banana-pi.org/t/bpi-r1-new-image-ubuntu-16-04-xenial-minimal-preview-bpi-m1-m1p-r1-img-2016-07-10/1991 BPI-R1:Ubuntu-mate-16.04-Xenial-preview-bpi-r1-sd- emmc 2016-06-04 file name:2016-06-04-ubuntu-mate-16.04-Xenial-preview-bpi-r1-sd-emmc.img.zip 1. BPI-R1 u-boot-2016.05, kernel 3.4.112 (based on armbian's build) 2. username & password: pi/bananapi , root/bananapi 3. support HDMI 1080P & 720P(default) 4. support GMAC 5. support WIFI 6. support SATA 7. support bpi-bootsel cmd can switch to (bpi-m3 & bpi-m2 & bpi-m2p & bpi-m1 & bpi-m1p & bpi-r1) 8. support boot.scr (boot.cmd) to fatload script.bin & uImage & uInitrd 9. support boot.scr to set video 1080P & 720P & 480P ... 10. support GPU Mali 400 (glmark2-es2) 11. support video hw decode 1080p with mpv (vdpau) 12. based on armbian's build env. & rootfs, thanks for armbian 13. github from https://github.com/igorpecovnik/lib by armbian's work 14. special thanks for linux-sunxi's work (https://linux-sunxi.org) Google Drive: https://drive.google.com/file/d/0B_YnvHgh2rwjQ1JJNkpQSXoxVVk/view?usp=sharing baidu download link: http://pan.baidu.com/s/1jHDZCsY MD5: 33fa262a99ebbdbe1b357395bc7be43b discuss on forum: http://forum.banana-pi.org/t/bpi-r1-new-image-ubuntu-mate-16-04-xenial-preview-bpi-r1-sd-emmc-2016-06-04/1821...
  • Page 59 Linux kernel 3.4 BSP image...

  • Page 60: Compulsive Modification Of Hdmi Output Resolution

    Linux kernel 3.4 BSP image Compulsive modification of HDMI output resolution the final solution of compulsive modification of HDMI output resolution. As you may have discovered the common configuration method in raspberry pi (such as alteration of /boot/config.txt) does not work on BPI, neither does the modification of cmdline.txt and uEnv.txt especially for some display with converter(HDMI- >VGA or HDMI ->IDVI) or some old display devices. Today,we are introducing a new solution to modify the resolution of HDMI, no other risks if you do it according to this document step by step: 1,install compile sunxi-tools depended-upon packages sudo apt-get install libusb-1.0-0-dev 2,get sunxi-tools new code from github: git clone https://github.com/linux-sunxi/sunxi-tools.git 3,compile sunxi-tools cd sunxi-tools make 4,backup script.bin sudo cp /boot/bananapi/script.bin /boot/bananapi/script.bak 5,copy script.bin to current dir cp /boot/bananapi/script.bin ./ 6,use bin2fex change bin to fex bin2fex ./script.bin ./script.fex 7,edit script.fex file: nano script.fex see this below:...
  • Page 61 Linux kernel 3.4 BSP image [disp_init] disp_init_enable = 1 disp_mode = 0 screen0_output_type = 3 screen0_output_mode = 5 screen1_output_type = 2 screen1_output_mode = 11 fb0_framebuffer_num = 2 fb0_format = 10 fb0_pixel_sequence = 0 fb0_scaler_mode_enable = 1 fb1_framebuffer_num = 2 fb1_format = 10 fb1_pixel_sequence = 0 fb1_scaler_mode_enable = 0 lcd0_backlight = 197 lcd1_backlight = 197 lcd0_bright = 50 lcd0_contrast = 50 lcd0_saturation = 57 lcd0_hue = 50 lcd1_bright = 50 lcd1_contrast = 50 lcd1_saturation = 57 lcd1_hue = 50 just change screen0_output_mode = 5, note , other not do any change. A20 support as below: HDMI/TV mode numbers: 0 480i 1 576i 2 480p 3 576p 4 720p 50Hz 5 720p 60Hz 6 1080i 50 Hz 7 1080i 60 Hz 8 1080p 24 Hz 9 1080p 50 Hz 10 1080p 60 Hz 11 PAL 12 PAL SVIDEO 14 NTSC 15 NTSC SVIDEO...
  • Page 62 Linux kernel 3.4 BSP image another easy way: just edit uEnv.txt file to change it: bootargs=enforcing=1 console=ttyS0,115200 console=tty1 root=/dev/mmcblk0p2 rootwait init=/init vmalloc=384M ion_c ma_list="120m,176m,512m" loglevel=8 bootmenutimeout=10 datadev=mmcblk0p2 disp.screen0_output_type=3 disp.screen0_o utput_mode=10 disp.screen1_output_type=3 disp.screen1_output_mode=10...

  • Page 63: Linux Mainline Kernel Image

    Linux mainline kernel image Linux mainline kernel image BPI-R1 new image:Armbian_5.17_bpi- r1_Debian_jessie_4.6.5_desktop-build-by-bpi-r1.img 2016-08-04-Armbian_5.17_Lamobo-r1_Debian_jessie_4.6.5_desktop-build-by-bpi-r1.img.zip 1. based on debian debootstrap (based on armbian's work) 2. BPI-R1 u-boot-2016.07, kernel 4.6.5 3. username & password: root/1234 4. support HDMI 720P & 1080P(default) 5. support GMAC 6. support WIFI 7. support SATA 8. support boot.scr (boot.cmd) to ext4load fdtfile & zImage & uInitrd 9. support boot.scr to set video 1080P & 720P ... 10. based on armbian's build env. & rootfs, thanks for armbian (http://www.armbian.com) 11. github from https://github.com/igorpecovnik/lib by armbian's work 12. special thanks for linux-sunxi's work (https://linux-sunxi.org) 13. support overlayfs (modprobe overlay) 14. support squashfs (modprobe squashfs) how to mount berryboot's image DATADIR=data SHAREDDIR=shared #mount -t aufs -o br:${DATADIR}:${SHAREDDIR}:/squashfs none /aufs cd data ; mkdir .ro .work .aufs mount -o loop ../images/squashfs.img .ro mount -t overlay -o lowerdir=../shared:.ro,upperdir=squashfs.img,workdir=.work overlay .aufs...
  • Page 64 Linux mainline kernel image Google Drive: https://drive.google.com/file/d/0B_YnvHgh2rwjV3I5RlpwdmZHYWs/view?usp=sharing MD5: f6952fc265ba26c953eb929d23d1ac95 discuss on forum: http://forum.banana-pi.org/t/bpi-r1-new-image-armbian-5-17-bpi-r1-debian-jessie-4-6-5-desktop-build-by-bpi-r1-img/2095...

  • Page 65: Bpi-R1 Openwrt

    BPI-R1 OpenWRT BPI-R1 OpenWRT BPI-R1_OpenWrt_V4.0 MD5: CB597EE79A6E27630AD7F903D23C4A7B Image download: http://www.banana-pi.org/download.html source code on github： https://github.com/BPI-SINOVOIP/BPI-OpenWRT also you can see openwrt.org http://downloads.openwrt.org/snapshots/trunk/sunxi/...

  • Page 66: Officeal Openwrt

    Officeal OpenWRT Officeal OpenWRT WIKI for Officeal OpenWRT lamobo R1 is same as banana pi BPI-R1 https://wiki.openwrt.org/toh/lamobo/r1 image download https://downloads.openwrt.org/chaos_calmer/15.05/sunxi/generic/uboot-sunxi-Lamobo_R1/ OpenWRT have support many allwinner chip . so easy to use it on banana pi Allwinner Sun4i/5i/6i/7i/9i (sunxi) Various vendors are offering development boards / single-board computer based on the Allwinner SoCs. These are running various flavors of the A1x, A20, A31, and soon H3 SoCs, with different buildouts. The mach is called "sunxi". For some specs rather see Allwinner_Technology#A-Series. more please see: https://wiki.openwrt.org/doc/hardware/soc/soc.allwinner.sunxi?s[]=banana&s[]=pi...

  • Page 67: Lamobo Openwrt Image

    Lamobo Openwrt image Lamobo Openwrt image OpenWrt firmware for BPI-R1 is updated, it support by Lamobo. This firmware is built based on the OpenWrt master branch r42830. Q&A I am a new BPI-R1 user, how to use this firmware? 1. For a new user, we recommend to use the ready configured firmware. please download it from forum download page: http://elastos.org/elorg_common/Lamobo-R1/2015-01-12/openwrt-sunxi-Lamobo-R1-sdcard-vfat-ext4.img 2. BPI-R1 accepts TF-card. Make sure your TF-card is bigger than 512MB. Using below command to generate a bootable TD-card: $ sudo dd if=openwrt-sunxi-BPI-R1-sdcard-vfat-ext4-configured.img of=/dev/sdX bs=1MB 3. Notes for the ready configured firmware: The login username/password are root/root. The software installation source has been set to “http://elastos.org/elorg_common/Lamobo-R1/2015-01-12/”. For details please refer “/etc/opkg.conf”. If you like to install your R1 from chaos. Router address is: 10.0.1.1 If I want to use the original firmware, what can I do? 1. The original firmware is built directly from source code. It almost does not install software, except OpenWrt base software. Please download it from:elastos.org/elorg_common/Lamobo-R1/2015-...sdcard-vfat-ext4.img. 2. Prepare a TTL thread for to connent OpenWrt bash terminal. 3. Connect to OpenWrt terminal throught TTL thread, modify OpenWrt packages source. All Of OpenWrt packages is released on: elastos.org/elorg_common/Lamobo-R1/2014-01-12/packages. You can change opkg.conf(/etc/opkgopkg.conf) content to below: src/gz chaos_calmer_base http://elastos.org/elorg_common/Lamobo-R1/2014-01-12/packages/base src/gz chaos_calmer_luci http://elastos.org/elorg_common/Lamobo-R1/2014-01-12/packages/luci src/gz chaos_calmer_management http://elastos.org/elorg_common/Lamobo-R1/2014-01-12/packages/management src/gz chaos_calmer_packages http://elastos.org/elorg_common/Lamobo-R1/2014-01-12/packages/packages src/gz chaos_calmer_routing http://elastos.org/elorg_common/Lamobo-R1/2014-01-12/packages/routing src/gz chaos_calmer_telephony http://elastos.org/elorg_common/Lamobo-R1/2014-01-12/packages/telephony And then, update opkg database: $ opkg update 4. Install OpenWrt packages. The below packages are needed: $ opkg install kmod-b53...
  • Page 68 Lamobo Openwrt image config switch ‘eth0′ option enable ’1′ option enable_vlan ’1′ option reset ’1′ config interface ‘lan’ option proto ‘static’ option ipaddr ’10.0.1.1′ option netmask ’255.255.255.0′ option defaultroute ’0′ option peerdns ’0′ option nat ’1′ option ifname ‘eth0.1′ option type ‘bridge’ config switch_vlan option device ‘eth0′ option ports ’0 1 2 4 8t’ option vlan ’1′ config interface ‘wan’ option ifname ‘eth0.2′ option proto ‘dhcp’ config switch_vlan option device ‘eth0′ option vlan ’2′ option ports ’3 8t’ start router web server: $ /etc/init.d/uhttpd start $ /etc/init.d/uhttpd enable That’s all. Good luck! forum discuss link: http://www.bananapi.com/index.php/forum/general/417-banana-pi-bpi-r1-openwrt-image-2-0-release-note#1229 Wiki link: http://wiki.geiges.net/doku.php?id=openwrt_bpi-r1...

  • Page 69: How To Build Openwrt Image From Github

    How to build OpenWRT image from github How to build OpenWRT image from github we test it with deepin2014(base on ubuntu14.04) 1,install depend package : apt-get install subversion build-essential libncurses5-dev zlib1g-dev gawk git ccache gettext libssl-dev xsltproc unz ip subversion file 2,get openwrt source code git clone https://github.com/BPI-SINOVOIP/BPI-OpenWRT.git 3,enter openwrt dir: cd BPI-OpenWRT 4,update package and install ./scripts/feeds update -a ./scripts/feeds install -a 5 Enter the customization interface: please choose your need: Target System default is BananaPi，its the only choice on that matte.，Please change the device selection under Target Profile. The OpenWrt image supports M1, M1+ and R1. example : i need web and add chinese support LuCI—> 1. Collections ---> <*> luci add Luci support ，it mean web GUI support，it is defaultes LuCI—>2. Modules ---> <*> luci-i18n-chinese add chinese also you can choose others.
  • Page 70 How to build OpenWRT image from github 6 Make ,you can add V=s to see more message ,also add -j4 to use quad core to work . make when compile finish bin/sunxi/ dir have a image，file name：openwrt-sunxi-BPI-XX-sdcard-vfat-ext4.img，i compile is BPI- R1，so name is ：openwrt-sunxi-BPI-R1-sdcard-vfat-ext4.img， 7, use USB Image Tool(http://www.alexpage.de/) burn image to sd，insert BPI and booting it. 8 running ： 9 Kernel booting message display: [ 0.000000] Booting Linux on physical CPU 0x0 [ 0.000000] Linux version 3.18.19 (charli@charli-pc) (gcc version 4.8.3 (OpenWrt/Linaro GCC 4.8-2014.04 unknown) ) #3 SMP PREEMPT Mon Aug 24 22:13:58 CST 2015 [ 0.000000] CPU: ARMv7 Processor [410fc074] revision 4 (ARMv7), cr=10c5387d [ 0.000000] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache [ 0.000000] Machine model: BPI R1 [ 0.000000] Memory policy: Data cache writealloc [ 0.000000] On node 0 totalpages: 260096 [ 0.000000] free_area_init_node: node 0, pgdat c0503740, node_mem_map ef00a000 [ 0.000000] Normal zone: 1520 pages used for memmap [ 0.000000] Normal zone: 0 pages reserved [ 0.000000] Normal zone: 194560 pages, LIFO batch:31 [ 0.000000] HighMem zone: 512 pages used for memmap [ 0.000000] HighMem zone: 65536 pages, LIFO batch:15 [ 0.000000] psci: probing for conduit method from DT. [ 0.000000] psci: Using PSCI v0.1 Function IDs from DT [ 0.000000] PERCPU: Embedded 9 pages/cpu @eefe1000 s6272 r8192 d22400 u36864 [ 0.000000] pcpu-alloc: s6272 r8192 d22400 u36864 alloc=9*4096 [ 0.000000] pcpu-alloc: [0] 0 [0] 1 [ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 258576 [ 0.000000] Kernel command line: console=ttyS0,115200 earlyprintk rootwait root=/dev/mmcblk0p2 [ 0.000000] PID hash table entries: 4096 (order: 2, 16384 bytes) [ 0.000000] Dentry cache hash table entries: 131072 (order: 7, 524288 bytes) [ 0.000000] Inode-cache hash table entries: 65536 (order: 6, 262144 bytes) [ 0.000000] Memory: 1025388K/1040384K available (3811K kernel code, 169K rwdata, 1068K rodata, 200K init, 606K bss , 14996K reserved, 262144K highmem) [ 0.000000] Virtual kernel memory layout: [ 0.000000] vector : 0xffff0000 - 0xffff1000 ( 4 kB) [ 0.000000] fixmap : 0xffc00000 - 0xffe00000 (2048 kB) [ 0.000000] vmalloc : 0xf0000000 - 0xff000000 ( 240 MB) [ 0.000000] lowmem : 0xc0000000 - 0xef800000 ( 760 MB)
  • Page 71 How to build OpenWRT image from github [ 0.000000] pkmap : 0xbfe00000 - 0xc0000000 ( 2 MB) [ 0.000000] modules : 0xbf000000 - 0xbfe00000 ( 14 MB) [ 0.000000] .text : 0xc0008000 - 0xc04cbef4 (4880 kB) [ 0.000000] .init : 0xc04cc000 - 0xc04fe000 ( 200 kB) [ 0.000000] .data : 0xc04fe000 - 0xc0528738 ( 170 kB) [ 0.000000] .bss : 0xc0528738 - 0xc05c0048 ( 607 kB) [ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=2, Nodes=1 [ 0.000000] Preemptible hierarchical RCU implementation. [ 0.000000] RCU restricting CPUs from NR_CPUS=4 to nr_cpu_ids=2. [ 0.000000] RCU: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=2 [ 0.000000] NR_IRQS:16 nr_irqs:16 16 [ 0.000000] Architected cp15 timer(s) running at 24.00MHz (phys). [ 0.000009] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 2863311519744ns [ 0.000022] Switching to timer-based delay loop, resolution 41ns [ 0.000352] sched_clock: 32 bits at 24MHz, resolution 41ns, wraps every 178956969942ns [ 0.000510] sched_clock: 32 bits at 160MHz, resolution 6ns, wraps every 26843545593ns [ 0.000673] Console: colour dummy device 80x30 [ 0.000702] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=240000) [ 0.000718] pid_max: default: 32768 minimum: 301 [ 0.000824] Mount-cache hash table entries: 2048 (order: 1, 8192 bytes) [ 0.000837] Mountpoint-cache hash table entries: 2048 (order: 1, 8192 bytes) [ 0.001454] CPU: Testing write buffer coherency: ok [ 0.001761] /cpus/cpu@0 missing clock-frequency property [ 0.001778] /cpus/cpu@1 missing clock-frequency property [ 0.001791] CPU0: thread -1, cpu 0, socket 0, mpidr 80000000 [ 0.001847] Setting up static identity map for 0x40011b68 - 0x40011b9c [ 0.060422] CPU1: Booted secondary processor [ 0.060466] CPU1: thread -1, cpu 1, socket 0, mpidr 80000001 [ 0.060535] Brought up 2 CPUs [ 0.060557] SMP: Total of 2 processors activated (96.00 BogoMIPS). [ 0.060564] CPU: All CPU(s) started in HYP mode. [ 0.060569] CPU: Virtualization extensions available. [ 0.064967] VFP support v0.3: implementor 41 architecture 2 part 30 variant 7 rev 4 [ 0.065370] pinctrl core: initialized pinctrl subsystem [ 0.065762] regulator-dummy: no parameters [ 0.071879] NET: Registered protocol family 16 [ 0.072229] DMA: preallocated 256 KiB pool for atomic coherent allocations [ 0.111482] reg-fixed-voltage ahci-5v: could not find pctldev for node /soc@01c00000/pinctrl@01c20800/ahci_pwr_pin @0, deferring probe [ 0.111521] platform ahci-5v: Driver reg-fixed-voltage requests probe deferral [ 0.111550] reg-fixed-voltage usb1-vbus: could not find pctldev for node /soc@01c00000/pinctrl@01c20800/usb1_vbus_ pin@0, deferring probe...
  • Page 72 How to build OpenWRT image from github [ 0.133939] VFS: Disk quotas dquot_6.5.2 [ 0.134207] Dquot-cache hash table entries: 1024 (order 0, 4096 bytes) [ 0.135970] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 0.135994] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc. [ 0.136719] msgmni has been set to 1490 [ 0.138903] bounce: pool size: 64 pages [ 0.138931] io scheduler noop registered [ 0.138946] io scheduler deadline registered [ 0.138996] io scheduler cfq registered (default) [ 0.139318] platform 1c13400.phy: Driver sun4i-usb-phy requests probe deferral [ 0.142025] sun7i-a20-pinctrl 1c20800.pinctrl: initialized sunXi PIO driver [ 0.184985] Serial: 8250/16550 driver, 8 ports, IRQ sharing disabled [ 0.187319] console [ttyS0] disabled [ 0.207743] 1c28000.serial: ttyS0 at MMIO 0x1c28000 (irq = 33, base_baud = 1500000) is a U6_16550A [ 0.828354] console [ttyS0] enabled [ 0.854828] 1c28c00.serial: ttyS1 at MMIO 0x1c28c00 (irq = 36, base_baud = 1500000) is a U6_16550A [ 0.886744] 1c29c00.serial: ttyS2 at MMIO 0x1c29c00 (irq = 52, base_baud = 1500000) is a U6_16550A [ 0.899279] platform 1c50000.ethernet: Driver stmmaceth requests probe deferral [ 0.906754] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver [ 0.913282] ehci-platform: EHCI generic platform driver [ 0.918683] platform 1c14000.usb: Driver ehci-platform requests probe deferral [ 0.926000] platform 1c1c000.usb: Driver ehci-platform requests probe deferral [ 0.933320] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver [ 0.939546] ohci-platform: OHCI generic platform driver [ 0.944901] platform 1c14400.usb: Driver ohci-platform requests probe deferral [ 0.952185] platform 1c1c400.usb: Driver ohci-platform requests probe deferral [ 0.959587] usbcore: registered new interface driver usb-storage [ 0.965867] mousedev: PS/2 mouse device common for all mice [ 0.971551] 1c22800.lradc supply vref not found, using dummy regulator [ 0.978474] input: 1c22800.lradc as /devices/soc@01c00000/1c22800.lradc/input/input0 [ 0.991771] axp20x-regulator axp20x-regulator: regulators node not found [ 0.998630] LDO1: 1300 mV [ 1.001767] LDO2: at 3000 mV [ 1.005157] LDO3: at 2275 mV [ 1.008294] LDO4: at 2800 mV [ 1.011695] LDO5: at 2800 mV [ 1.015085] DCDC2: at 1400 mV [ 1.018533] DCDC3: at 1250 mV [ 1.021668] axp20x 0-0034: AXP20X driver loaded [ 1.027508] sunxi-wdt 1c20c90.watchdog: Watchdog enabled (timeout=16 sec, nowayout=0) [ 1.036066] sunxi-mmc 1c0f000.mmc: No vqmmc regulator found [ 1.041994] sunxi-mmc 1c0f000.mmc: Got CD GPIO...
  • Page 73 How to build OpenWRT image from github [ 1.331456] ehci-platform 1c14000.usb: EHCI Host Controller [ 1.337154] ehci-platform 1c14000.usb: new USB bus registered, assigned bus number 1 [ 1.345031] ehci-platform 1c14000.usb: irq 71, io mem 0x01c14000 [ 1.364665] ehci-platform 1c14000.usb: USB 2.0 started, EHCI 1.00 [ 1.370952] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002 [ 1.377753] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1 [ 1.384988] usb usb1: Product: EHCI Host Controller [ 1.389862] usb usb1: Manufacturer: Linux 3.18.19 ehci_hcd [ 1.395353] usb usb1: SerialNumber: 1c14000.usb [ 1.400464] hub 1-0:1.0: USB hub found [ 1.404250] hub 1-0:1.0: 1 port detected [ 1.408963] ehci-platform 1c1c000.usb: EHCI Host Controller [ 1.414564] ehci-platform 1c1c000.usb: new USB bus registered, assigned bus number 2 [ 1.422482] ehci-platform 1c1c000.usb: irq 72, io mem 0x01c1c000 [ 1.444681] ehci-platform 1c1c000.usb: USB 2.0 started, EHCI 1.00 [ 1.450961] usb usb2: New USB device found, idVendor=1d6b, idProduct=0002 [ 1.457766] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1 [ 1.464991] usb usb2: Product: EHCI Host Controller [ 1.469865] usb usb2: Manufacturer: Linux 3.18.19 ehci_hcd [ 1.475355] usb usb2: SerialNumber: 1c1c000.usb [ 1.480460] hub 2-0:1.0: USB hub found [ 1.484246] hub 2-0:1.0: 1 port detected [ 1.488775] ohci-platform 1c14400.usb: Generic Platform OHCI controller [ 1.495451] ohci-platform 1c14400.usb: new USB bus registered, assigned bus number 3 [ 1.503327] ohci-platform 1c14400.usb: irq 96, io mem 0x01c14400 [ 1.568861] usb usb3: New USB device found, idVendor=1d6b, idProduct=0001 [ 1.575669] usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1 [ 1.582883] usb usb3: Product: Generic Platform OHCI controller [ 1.588814] usb usb3: Manufacturer: Linux 3.18.19 ohci_hcd [ 1.594296] usb usb3: SerialNumber: 1c14400.usb [ 1.599360] hub 3-0:1.0: USB hub found [ 1.603146] hub 3-0:1.0: 1 port detected [ 1.607711] ohci-platform 1c1c400.usb: Generic Platform OHCI controller [ 1.614350] ohci-platform 1c1c400.usb: new USB bus registered, assigned bus number 4 [ 1.622242] ohci-platform 1c1c400.usb: irq 97, io mem 0x01c1c400 [ 1.688838] usb usb4: New USB device found, idVendor=1d6b, idProduct=0001 [ 1.695643] usb usb4: New USB device strings: Mfr=3, Product=2, SerialNumber=1 [ 1.702858] usb usb4: Product: Generic Platform OHCI controller [ 1.708790] usb usb4: Manufacturer: Linux 3.18.19 ohci_hcd [ 1.714271] usb usb4: SerialNumber: 1c1c400.usb [ 1.719358] hub 4-0:1.0: USB hub found [ 1.723148] hub 4-0:1.0: 1 port detected...
  • Page 74 How to build OpenWRT image from github [ 7.313783] EXT4-fs (mmcblk0p2): re-mounted. Opts: (null) [ 7.324800] procd: - early - [ 7.327825] procd: - watchdog - [ 8.196631] procd: - ubus - [ 9.200629] procd: - init - [ 9.740779] NET: Registered protocol family 10 [ 9.750621] ip6_tables: (C) 2000-2006 Netfilter Core Team [ 9.781222] Loading modules backported from Linux version master-2015-03-09-0-g141f155 [ 9.789242] Backport generated by backports.git backports-20150129-0-gdd4a670 [ 9.797957] ip_tables: (C) 2000-2006 Netfilter Core Team [ 9.808055] nf_conntrack version 0.5.0 (16024 buckets, 64096 max) [ 9.895305] xt_time: kernel timezone is -0000 [ 9.909554] cfg80211: Calling CRDA to update world regulatory domain [ 9.916314] cfg80211: World regulatory domain updated: [ 9.921471] cfg80211: DFS Master region: unset [ 9.926943] cfg80211: (start_freq - end_freq @ bandwidth), (max_antenna_gain, max_eirp), (dfs_cac_time) [ 9.936834] cfg80211: (2402000 KHz - 2472000 KHz @ 40000 KHz), (N/A, 2000 mBm), (N/A) [ 9.944963] cfg80211: (2457000 KHz - 2482000 KHz @ 40000 KHz), (N/A, 2000 mBm), (N/A) [ 9.952992] cfg80211: (2474000 KHz - 2494000 KHz @ 20000 KHz), (N/A, 2000 mBm), (N/A) [ 9.961171] cfg80211: (5170000 KHz - 5250000 KHz @ 80000 KHz), (N/A, 2000 mBm), (N/A) [ 9.969328] cfg80211: (5250000 KHz - 5330000 KHz @ 80000 KHz, 160000 KHz AUTO), (N/A, 2000 mBm), (0 s) [ 9.978922] cfg80211: (5490000 KHz - 5730000 KHz @ 160000 KHz), (N/A, 2000 mBm), (0 s) [ 9.987125] cfg80211: (5735000 KHz - 5835000 KHz @ 80000 KHz), (N/A, 2000 mBm), (N/A) [ 9.995867] cfg80211: (57240000 KHz - 63720000 KHz @ 2160000 KHz), (N/A, 0 mBm), (N/A) [ 10.033695] PPP generic driver version 2.4.2 [ 10.039216] NET: Registered protocol family 24 [ 10.057795] rtl8192cu: Chip version 0x11 [ 10.148074] rtl8192cu: MAC address: ac:a2:13:5c:96:bf [ 10.153232] rtl8192cu: Board Type 0 [ 10.164227] rtl_usb: rx_max_size 15360, rx_urb_num 8, in_ep 1 [ 10.170284] rtl8192cu: Loading firmware rtlwifi/rtl8192cufw_TMSC.bin [ 10.177753] ieee80211 phy0: Selected rate control algorithm 'rtl_rc' [ 10.179863] usbcore: registered new interface driver rtl8192cu [ 11.862773] random: nonblocking pool is initialized [ 14.869421] b53_common: found switch: BCM53125, rev 4 [ 14.899568] RX IPC Checksum Offload disabled [ 14.916057] No MAC Management Counters available [ 14.921020] IPv6: ADDRCONF(NETDEV_UP): eth0: link is not ready [ 16.864711] stmmaceth 1c50000.ethernet eth0: Link is Up - 1Gbps/Full - flow control off [ 16.872809] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready [ 220.810635] IPv6: ADDRCONF(NETDEV_UP): br-lan: link is not ready [ 221.264426] rtl8192cu: MAC auto ON okay!

  • Page 75: Asterisk On Bpi-R1

    Asterisk on BPI-R1 Asterisk on BPI-R1 Asterisk for Banana Pi-R1 (FreePBX Image included) After doing the FreePBX Asterisk Image for Banana Pi, I was asked by SINOVOIP (Banana Pi Manufacturer) to do an Asterisk Image for their router board, i.e. the Banana Pi R1. SINOVOIP has been very kind to send me a complimentary BPi-R1 for testing and developing. It took me some time to get this done, but the image is finally ready. This image differs from my earlier Banana Pi Asterisk image in that, the earlier image was created by simply replacing the rootfs of a Raspbian based BPi Image, with RasPBX Image’s rootfs. However, this time I have actually been able to compile Asterisk on the latest Bananian Image for R1. This means that you can now have a powerful, complete and rather flexible Asterisk 11 (upgradable to 12!) desktop system with FreePBX, running on the BPi-R1. Further, Bananian offers lightening fast boot and load times with remarkable performance. (You can compare the speed with my earlier RasPBX based Image to see for yourself.) The image comes preloaded with Asterisk 11, along with most of the standard FreePBX modules. Upgrading to Asterisk 12 should be pretty easy. Credentials: Login: root Password: root FreePBX Username: asteriskuser FreePBX Password: pi Note: I have tested this image (before and after upgrading to Asterisk 12) successfully with a BPi-R1 for SIP (using Android devices running Zoiper), along with video calling. Please be aware that 2 extensions (made during testing) already exist in the image and can be removed (I somehow forgot to delete them :wink:). Also note that video calling is disabled by default and needs to be enabled from the pbx settings. buy link: http://dostmuhammad.com/asterisk-for-banana-pi-r1-freepbx-image-included/...

  • Page 76: Bpi-R1 Openbsd

    BPI-R1 OpenBSD #BPI-R1 OpenBSD BPI-R1 booting OpenBSD-current http://www.openbsd.org/armv7.html...

  • Page 77: Armbian Linux

    Armbian Linux Armbian Linux Armbian Linux have official support BPI-M1,BPI-M1+ Image download and armbian forum page: http://www.armbian.com/download/ These documents are based on DEBIAN 7 wheezy version: armbian 4.2 kernel 3.4.108 if your R1 is connected to a Router or a Cable modem https://docs.google.com/document/d/1UoIT9aoxECC5NKWYudzHQklHElnMIPNinFzh3Fns-Jo/edit version: armbian 2.7 kernel 3.4.107 if your R1 is connected to both https://docs.google.com/document/d/1V0Kcnl-ySOUeLEAng2ZzkIO65Cf3IkT1E-FWF6CPQro/edit# IP routing (slides) https://docs.google.com/presentation/d/1GMGeXn3iX1tCwCTh4oVmHh-SE-XFfbxxH-6wjigV3RI/edit#slide=id.p Excel driver & hostapd testing https://docs.google.com/spreadsheets/d/1RWXBanCDF1LzX6zo05BhgTZTApyTl8LMkpEepSTsWZU/edit?usp=sharing just hostapd.conf files https://docs.google.com/document/d/1MbmxKqYEdx10fdomeKhX207kBFfjdbKpBCOU3x3bxaU/edit...

  • Page 78: Bananian Linux

    Bananian Linux Bananian Linux for BPI-R1 Bananian new version update(2016-04-23) latest version (Debian 8/Jessie) bananian-latest.zip (158 MB) version: 16.04 (released 2016-04-23) default login: root / pi SHA1: 99fdb18175c32b4c7d57ce970acb3837a17a439c SHA256: 8123d538c365553a0225f00746650044e72c8444b6b7b43d64ecb1eef517ae9f Release notes: [Kernel] provide Linux 4.4.x packages [Userland] package bananian-update as a .deb file [General] Kernel Update Script and other stuff as an apt repository [Kernel] enable audio on Linux 4.x [Hardware] Fixed: bananian-hardware does not work on Linux 4.x [Userland] Introduce "bananian-settings" [Kernel] Update Kernel 3.4.x to 3.4.111 [Kernel] Division by zero in kernel. (3.4.90+) [Hardware] update FAQ, pmutemp and soctemp related to Kernel 4.x [General] Update U-Boot [Kernel] Removing 4.2 kernel packages result in unbootable system [Userland] rsyslog spams logs with "rsyslogd-2007: action ..." [Kernel] HDMI output turns off on inactivity [Kernel] Support for 8 channels hdmi more information,please bananian official website: https://www.bananian.org/download the team of the Bananian Linux project is pleased to announce the release of Bananian Linux 16.04 for Banana Pi (and family). This update improves mainline Linux kernel support (4.4.x) along with a lot of bugfixes and minor improvements. We are supporting the Banana Pi, Banana Pi M1+, BPI-R1 and some other A20 boards with just one single image. The Banana Pi M2 requires a separate image which also has been updated. See https://www.bananian.org/hardware for more information. Existing Bananian installations can easily be upgraded without losing any data or settings. For a list of all changes see the Bananian 16.04 changelog: https://dev.bananian.org/changelog_page.php?version_id=13 To get Bananian 16.04: In order to download Bananian 16.04, visit: https://www.bananian.org/download Users of Bananian 14.09 or later can upgrade their existing installation using 'bananian-update'. Users of Bananian 14.08, see: https://www.bananian.org/upgrade...
  • Page 79 Bananian Linux About Bananian Bananian Linux is a pre-installed Debian 8 image optimized for Banana Pi. It uses the official Debian Jessie armhf repositories with a kernel and bootmanager (u-boot), customized for Banana Pi. It supports the Banana Pi (M1, M1+), Banana Pro, BPI-R1 and some other A20 boards with just one single image. A separate image for the Banana Pi M2 is also available. The main focus is to provide a lightweight headless platform for home servers, small webservers, cloud hosting, Linux based wifi access points, router, NAS systems, monitoring devices, etc. Bananian Linux is a pre-installed Debian 8 image optimized for Banana Pi. It uses the official Debian Jessie armhf repositories with a kernel and bootmanager (u-boot), customized for Banana Pi. A Debian 7/Wheezy image (Bananian 15.04) is also available and maintained. We support the Banana Pi (M1, M1+), Banana Pro and BPI-R1 with just one single image. The main focus is to provide a lightweight headless platform for home servers, small webservers, ownCloud hosting, Linux based wifi access points, router, NAS systems, monitoring devices, etc. Official web for image download and support: https://www.bananian.org/...

  • Page 80: Bpi-R1 Wiringpi

    BPI-R1 WiringPi BPI-R1 WiringPi install BPI-R1 WiringPi: 1，Download WiringPi from github For BPI-R1 git clone https://github.com/BPI-SINOVOIP/BPI-WiringPi.git -b BPI_R1 2，Installation： cd BPI-WiringPi chmod +x ./build sudo ./build 3，test wiringPi is install success gpio -v gpio readall 4，create new : blink.c...
  • Page 81 BPI-R1 WiringPi #include <wiringPi.h> int main(void) wiringPiSetup() ; pinMode (0, OUTPUT) ; for(;;) digitalWrite(0, HIGH) ; delay (500) ; digitalWrite(0, LOW) ; delay (500) ; compile and run it: gcc -Wall -o blink blink.c -lwiringPi runing it: sudo ./blink BPI have many extend board support WiringPi. so you can free DIY by youself: more about BPI extend board,please see: https://bananapi.gitbooks.io/bpi-accessories/content/...

  • Page 82: Wiringpi Python

    WiringPi python WiringPi python With all the hard work being done by the BPI team, BPI Github now officially releases BPI-WiringPi2-Python. We've customized WiringPi for BPI products with the latest WiringPi2-Python version, V1.1.1 Source on github: https://github.com/BPI-SINOVOIP/BPI-WiringPi2-Python Discuss on forum: http://forum.banana-pi.org/t/do-you-develop-apps-with-python-banana-pi-gpio-python-test-is-ok-code-uploaded-to- github/276...

  • Page 83: Pi4J Project

    Pi4J Project Pi4J Project Java API for accessing GPIO, PWM, I2C, SPI, UART The Pi4J Project now includes support for BPI-M1 and BPI-M1+,also can use it on BPI-R1. This support has just been added and only cursory tests performed, so lets call it experimental for now, but I welcome you guys to try it out and let me know if you run into any trouble. You must use the Pi4J v1.1-SNAPSHOT builds until v1.1 gets released. You can manually download the JARs in ZIP or the installable .DEB package from this page: http://pi4j.com/download.html Support includes Java programatic access and control of GPIO inputs/outputs, PWM, I2C, SPI, and UART (serial). There is no documentation yet specifically for the Banana platforms, but apart from a few subtle differences in configuring a platform and pin/bus addressing, its basically the same. Perhaps better than documentation ... there are a number of examples (sample code) included in the build and available in the GitHub repo specific to each Banana platform: BananaPi Examples: https://github.com/Pi4J/pi4j/tree/develop/pi4j-example/src/main/java/bananapi BananaPro (BPI-M1+) Examples https://github.com/Pi4J/pi4j/tree/develop/pi4j-example/src/main/java/bananapro Other notes: You don't have to install and compile WiringPi/WiringBP seperately! The Pi4J core JAR includes all the native libraries it needs to communicate with the hardware embeded in the JAR.

  • Page 84: Reference Documents

    Reference documents Reference documents Thank many user writer document for banana pi BPI-R1...

  • Page 85: Linux-Sunxi Wiki

    Be aware that the board manufacturer is neither cooperative nor supplies necessary hardware details for the board. more please see this link: http://linux-sunxi.org/Lamobo_R1 note: Lamobo R1 is same as BPI-R1, all hardware is form sinovoip factory.

  • Page 86: Manual For Hw Setup And Basic Router Functionalities

    Manual for HW setup and basic router functionalities Manual for HW setup and basic router functionalities Thank Tido do the hard work. I have started to write a 'manual' about the hardware setup of a BPi-R1 (Router). In the threads of the Forum, the information is scattered and it takes so much time for each to get along. So I thought such a document would help to become not only faster, but to get a better result as well. My know how is getting better, but many things are missing. I have now written a new manual for IGOR's 2.7 image. Manual for HW setup and basic router functionalities https://docs.google.com/document/d/1LVuukSuby7aCuAaQezFn-kM8ZQM-I0kuGiI_XnT0sDg/edit?usp=sharing Please leave your comments how you got along. Cheers Tido...

  • Page 87: Netbsd/Evbarm On Allwinner Technology Socs

    NetBSD\/evbarm on Allwinner Technology SoCs NetBSD/evbarm on Allwinner Technology SoCs NetBSD 7.0 has support for A20 and A31 SoCs. NetBSD -current adds support for A80 SoCs. more please see: https://wiki.netbsd.org/ports/evbarm/allwinner/#index1h1...

  • Page 88: David Bentham / Openwrt-Bpi-R1-Prebuilt

    David Bentham \/ openwrt-bpi-r1-prebuilt David Bentham / openwrt-bpi-r1-prebuilt Stable 1.2.1 release: Kernel upgraded to 4.1.17 Added Parted package Lots of package upgrades and bug fixes... Prebuilt images are located at gitlab or google drive. VM build system - OpenwrtBuild-BPI-R1-VM-V1.0.torrent if you wish to spin up your own version from scratch! more please see: https://gitlab.com/db260179/openwrt-bpi-r1 https://gitlab.com/db260179/openwrt-bpi-r1-prebuilt github: https://github.com/db260179/openwrt-bpi-r1...

  • Page 89: Linux Mainlining Effort

    Linux mainlining effort Linux mainlining effort The purpose of this page is to try and define sub-goals and milestones for the mainlining effort, containing goals and sub- goals with milestones for adding Allwinner support in the upstream mainline Linux Kernel. It is very important to note that this is intended as a rough set of minimal goals - it is not meant to collide with the huge effort of rewriting major drivers! more ,please see link: http://linux-sunxi.org/Linux_mainlining_effort...

  • Page 90: Allwinner Chip Documents

    Allwinner chip documents Allwinner chip documents allwinner chip online datasheet and documents: http://dl.linux-sunxi.org/...

  • Page 91: All Banana Pi Product

    All banana pi product All banana pi product banana pi BPI-M1 allwinner A20 dual core single board computer gitbook online datasheet:https://bananapi.gitbooks.io/bpi-m1/content/en/ banana pi BPI-M1+(BPI-M1+ plus) allwinner A20 dual core single board computer gitbook online datasheet:https://bananapi.gitbooks.io/bpi-m1-bpi-m1-plus-/content/en/ banana pi BPI-M2 allwinner A31s quad core single board computer gitbook online datasheet:https://bananapi.gitbooks.io/bpi-m2/content/en/ banana pi BPI-M2+（BPI-M2 Plus）allwinner H3 quad cord single board computer gitbook online datasheet:https://bananapi.gitbooks.io/bpi-m2-/content/en/ banana pi BPI-M2 Ultra allwinner R40 quad core single board computer gitbook online datasheet:https://bananapi.gitbooks.io/bpi-m2-ultra/content/ Banana pi BPI-M3 allwinner A83T (R58 H8) octa-core single board computer gitbook online datasheet:https://bananapi.gitbooks.io/bpi-m3/content/en/ banana pi BPI-M64 allwinner A64 64 bit single board computer gitbook online datasheet:https://bananapi.gitbooks.io/bpi-m64/content/en/ banana pi BPI-R1 allwinner A20 dual core smart router board gitbook online datasheet:https://bananapi.gitbooks.io/bpi-r1/content/en/ banana pi BPI-D1 open source IP camera board gitbook online datasheet:https://bananapi.gitbooks.io/bpi-d1/content/en/ banana pi BPI-G1 open source IoT development board gitbook online datasheet:https://bananapi.gitbooks.io/bpi-g1/content/en/ banana pi BPI Accessories gitbook online datasheet:https://bananapi.gitbooks.io/bpi-accessories/content/en/ BPI Open debugger burn development tool board gitbook online datasheet:https://bananapi.gitbooks.io/bpi-open-debugger-burn-board/content/en/...

  • Page 92: Bpi 4.0 Customized Server

    BPI 4.0 customized Server BPI 4.0 customized Server Having been doing R&D in embeded systems for more than 12 years. Our experienced teams are able to help you to carry out your dream. Whether you want to customize banana pi or want to design a computer from scratch, we got you covered. Also, our modern ISO factory spans over 10,000 square meters can help you mass manufacture products to hit the market Our factory:Sinovoip In order to meet the companys development needs, and further production capacity and product quality. Sources Communication shareholders decided to invest in new plant to build their own, the new factory site is located in manholes and covers an area of more than 10000 square meters,equipped with full range of production equipment and high quality technical management personnel . We have complete SMT production lines, plug-ins production line, assembly line, production line testing. your Idea, we will help you optimize and design. your Design, we will help you bring it to live. your Product, we will help you mass produce it. Customize Pi If you want to tailor your Banana pi to your specific use or to minimize the cost for mass production purpose, you are coming the right place. We provide the customization service of banana pi such as remove/add headers or connectors,change component layout,add/remove components,change interfaces etc. Start from scratch (ODM) An idea flashes through your mind in your dreams or a solution bearing in your mind for a long time, which you think would turn out to be great gadget to hit the market, but you are worrying about how to start and realize it without R&D and manufacturing, now　that's no longer a trouble to you. Taking advantage of our expertise,we provide full ODM　 service for you.　We let you have your sample products from scratch within 45 days. Don't wait,come to realize your dreams.
  • Page 93 BPI 4.0 customized Server Have a prototype (OEM) You are an expert, you designed a wonderful device that most people would want to have it, you knew it quite well that your success is just around the corner. The only last step is to produce it,but without manufactruing capability..., no problem, let us carry you through. Our 13 years of SCM experience and mass manufacturing facilities enable you free from quality issue,delivery...
