Summary of Contents for D-Link DWM-221
-

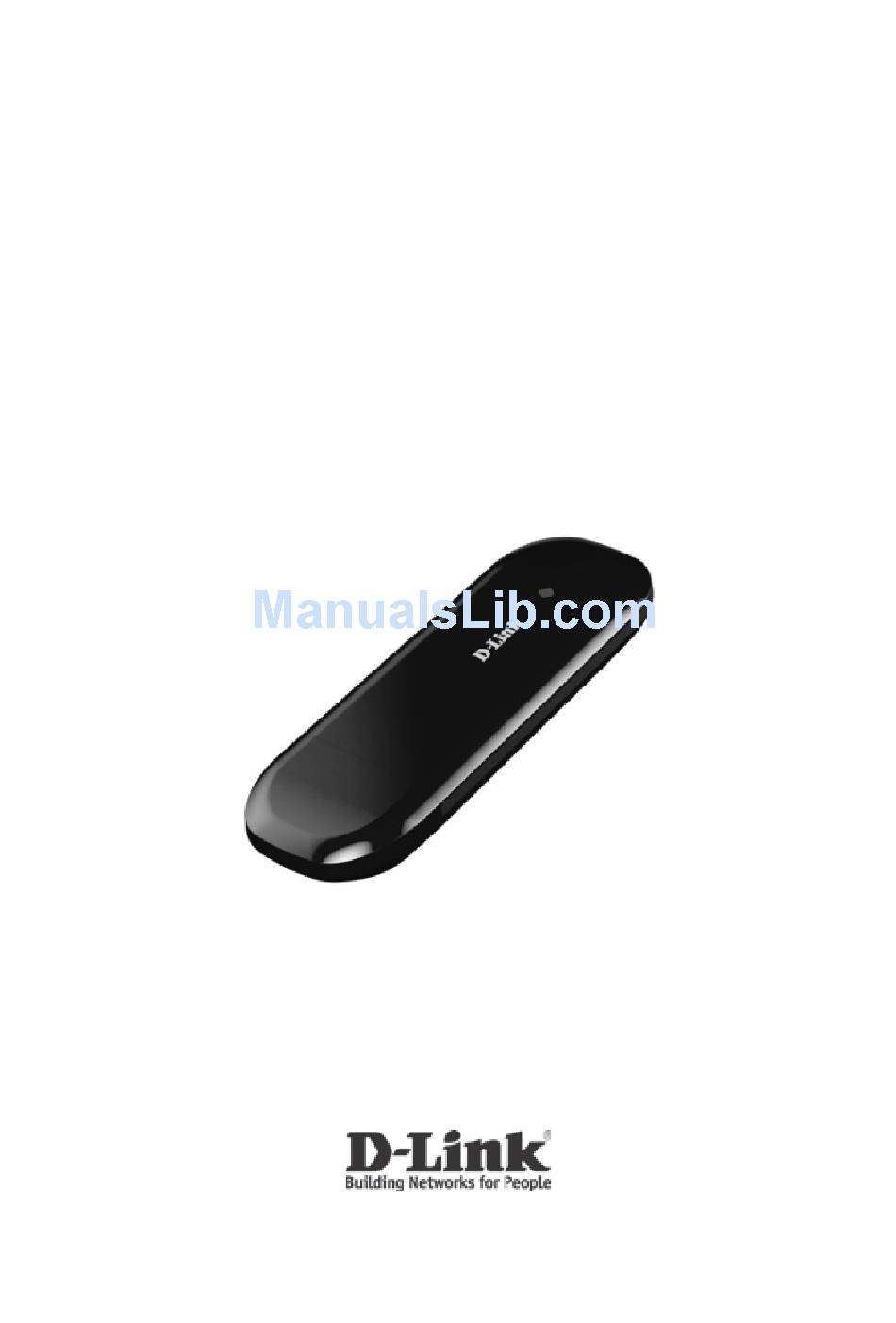

Page 1: User Manual
DWM-221 User Manual 2014/07/07 Ver. 1.00(EU) -
Page 2: Table Of Contents
Index LTE USB Adapter Introduction ........2 Internet service .............. 5 SMS service ..............6 Contacts ............... 10 USSD ................13 STATISTICS ..............14 Settings ................ 15 FAQs ................19 Technical Specifications ..........20... -
Page 3: Lte Usb Adapter Introduction
LTE USB ADAPTER INTRODUCTION To launch the Network Connect, double-click the shortcut icon on the desktop. It should be noted that: If the PIN code enabled, enter the correct one, then click OK. The (U)SIM will be locked after three retries of incorrect PIN code inputting;... - Page 4 : Access to USSD : Access to check usage statistics : Set parameters options : Help (User Manual) Status information Status Description New message New message(s) arrived. Message full Indicates the (U)SIM’s storage of SMS No device Indicates that system cannot find the device.
- Page 5 No (U)SIM card (U)SIM card not inserted or the device Invalid (U)SIM card The (U)SIM is out of service. Network signal Indicate the signal strength of Network type GSM/GPRS, UMTS, Data service EDGE available, HSPA LED Indicator description State of LED indicator Description RED Solid On No SIM card/ Error...
-
Page 6: Internet Service
INTERNET SERVICE Connecting with the default connection profile Click to set up the connection; Statistics information The following window will be displayed at lower right corner of main interface when connecting to the internet. Disconnect from the internet Click to disconnect the internet connection. -
Page 7: Sms Service
SMS SERVICE Click to enter SMS (Short Message Service) service interface. Creating and sending a message. Click Input the recipient number by one of the following options: Enter the number directly; Click Send to, choose the recipient number from ... - Page 8 Each number should be separated by “,”; The message cannot expand 2,048 characters at most. Inbox The following prompt box will be displayed when received a new message; Reply : Access the edit interface, write the content, ...
- Page 9 The message in the Outbox can be deleted or forwarded. Draft The MSG sent unsuccessfully will be saved in the Draft . Click the selected message; Confirm the recipient and the content, and click Send or Save to Draft. Recycle All deleted information will be saved in the Recycle.
- Page 10 To copy the selected message to Outbox or Draft. SMS Export Right-click the selected the message; Click SMS Export ; Specify the path and the file name, and click Save. Note: The exported message will be saved as a *.csv file.
-
Page 11: Contacts
CONTACTS Click to enter Contacts interface. Click Enter the Name and Mobile, and save it in the (U)SIM card or PC. Searching a contact Click Enter the key characters of you want to find in the The result will be displayed in turn. - Page 12 Edit : Modify the selected contact; Delete : Delete the selected contact; Send SMS : Send a message to the selected contact; Copy to: Copy the contact between (U)SIM card and PC. Note: The deleted contact information cannot be retrieved. Import Right-click the mouse;...
- Page 13 Confirm the name and the path the file saved, then click Save.
-
Page 14: Ussd
USSD Click to enter USSD interface. You can add, edit, delete, and send USSD operation. The result of sending will display on the edit box. -
Page 15: Statistics
STATISTICS Click to enter STATISTICS interface. View various connection statistics. -
Page 16: Settings
SETTINGS Click to list the functions. PIN Management Enable PIN Click Enable PIN; Enter the correct PIN code and click OK. Note: The PIN code should be a numeric string of 4-8 digits. Disable PIN Click Disable PIN; ... - Page 17 Options (also can use General You may choose the alert tone when connected/disconnected to the internet. Text Message Setting You may active the message alert tone, and also can set up your favorite tone via selecting a *.wav file in the PC.
- Page 18 You can choose Auto or Only UMTS/HSPA or Only GPRS/EDGE. The device will Register network according to the selected mode. The default mode is Auto. Registration Mode Auto search and Register is set as default value; Select Manual search and Register before ...
- Page 19 Contacts Import For more details, refer to Internet Contacts-4. Contacts Export For more details, refer to Internet Contacts-5. SMS Export For more details, refer to Internet Text Message-5. Help &About Help: To open the User Manual About: To get the Connection Manager information. ...
-
Page 20: Faqs
A: Please confirm whether the (U)SIM’s SMS memory is full or not. 3. Q: Why the software doesn’t run automatically when the device is plugged in? A: Click My computer->data card disk->StartModem.exe. Or run the Connection Manager from Start of the OS if D-Link Connection Manager was installed. -
Page 21: Technical Specifications
TECHNICAL SPECIFICATIONS GSM Band (GSM/GPRS/EDGE) Quad-band 850/900/1800/1900 MHz Power Class 4 (850/900 MHz) Power Class 1 (1800/1900 MHz) DC-HSPA+/ HSDPA/HSUPA/UMTS 900/2100 MHz Power Class 3 (+24 dBm) Data Rates DC-HSPA+：DOWNLINK UP TO 42 Mbps/ UPLINK UP TO 5.76 Mbps HSDPA/HSUPA：DOWNLINK UP TO 14.4 Mbps / UPLINK UP TO ... - Page 22 FDD-LTE ： DOWNLINK UP TO 100 Mbps / UPLINK UP TO 50 Mbps Antenna Internal main and diversity antenna LED Status Indicators 1 Signal LED Red (Solid On): No SIM card/ Error Green (Solid On): Register network (not connect) Green blinking: Connected to network Dimensions (L x W x H) 99mm x 32.5mm x 11mm...
