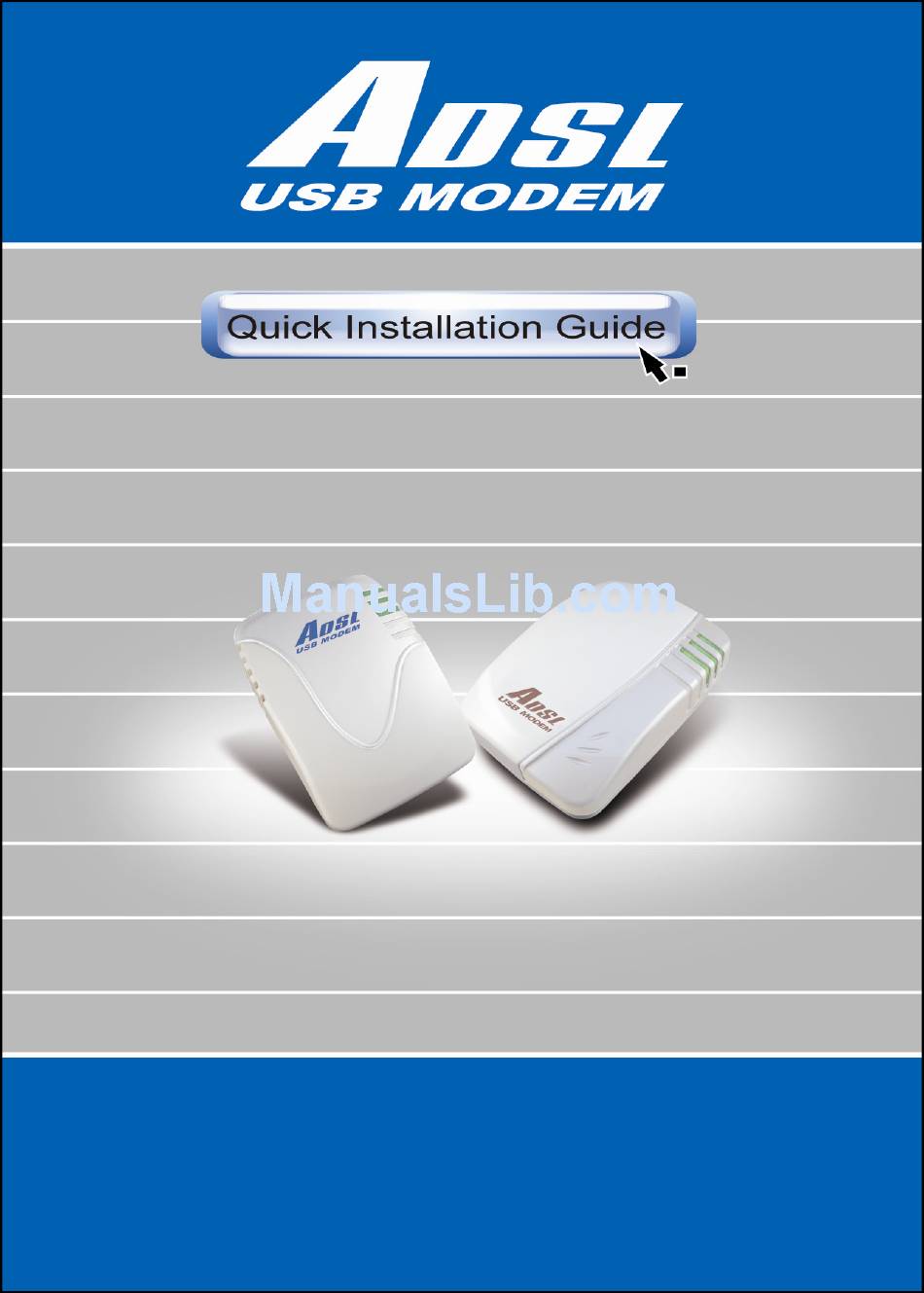

- Page 3 ADSL USB Modem...
-
Page 4: System Requirement
ADSL USB Modem ADSL USB Modem System Requirement Pentium 200 MHz processor or above Windows 98SE, Windows Me, Windows 2000, Windows XP and Windows Vista. 64 MB of RAM or above 25 MB free disk space Package Contents For Annex-A ADSL USB Modem ADSL USB Modem CD-ROM (Software &... - Page 5 ComTW263R4 ADSL USB Modem Connection of ADSL USB Modem If you have an ISDN telephone line connected the router as shown below: (Annex-B ADSL USB Modem) **Use the “ATF057” Annex-B Splitter (Optional) Connect the supplied USB cable from your PC's USB port to the ADSL USB Modem.
- Page 6 ADSL USB Modem If you have a PSTN telephone line (normal analog line) connected the router as shown below: (Annex-A ADSL USB Modem) **Use the “ATF085A1R” Annex-A Splitter (Optional) Connect the supplied USB cable from your PC's USB port to ADSL USB Modem.
-
Page 7: Led Meaning
ComTW263R4 ADSL USB Modem LED Meaning Your ADSL USB Modem has indicator lights on the front side. Please see below for an explanation of the function of each indicator light. ● PWR : Power indicator ● Link : ADSL Link indicator ●... - Page 8 ADSL USB Modem Install the ADSL USB Modem For Windows XP/Vista Please turn on your computer. Do not connect your ADSL USB MODEM device to the PC prior to driver installation and connect ONLY WHEN PROMPTED TO DO SO DURING THE SOFTWARE INSTALLATION PROCEDURE. Please insert the supplied CD into your CD-ROM drive.
- Page 9 ComTW263R4 ADSL USB Modem Click ” Next ” in the following window Please click “ Accept ” button to continue.
- Page 10 ADSL USB Modem Select your setting in this window and click “ Next ”. If you want to configure the setting manually, please click “ Customize ”.
- Page 11 ComTW263R4 ADSL USB Modem You can see the parameters that you selected “LAN Driver” or “WAN Driver” in this window, click “ Next “ to continue. (Please refer information from ISP section for more details) The types of the “LAN Driver“ will be listed as below: ＊...
- Page 12 ADSL USB Modem Please enter VPI and VCI and select "RFC 2516 PPPoE Encapsulation" and then click "Next" to continue. (Please refer information from ISP section for more details) Please click "Next" to continue.
- Page 13 ComTW263R4 ADSL USB Modem Please follow the instruction from pop-up window and plug in your ADSL USB Device. Please select "Yes, reboot the computer now" and then click "Close" to continue.
- Page 14 ADSL USB Modem The Wizard already has completed the DSL Device installation and DSL configuration. Then click “Finish” to close.
- Page 15 ComTW263R4 ADSL USB Modem Access Internet via “Conexant Dial-Up PPP Conexant “ to Dial up Double click the "Conexant Dial-Up PPP Connection" icon on desktop Please fill in the User name and Password that assigned by your Internet service provider, check "Save this user and password for the following users:"...
- Page 16 7435-0B88-00...
