Summary of Contents for ENERGY SISTEM P2350

  • Page 1 User Manual...

  • Page 3: Product Description

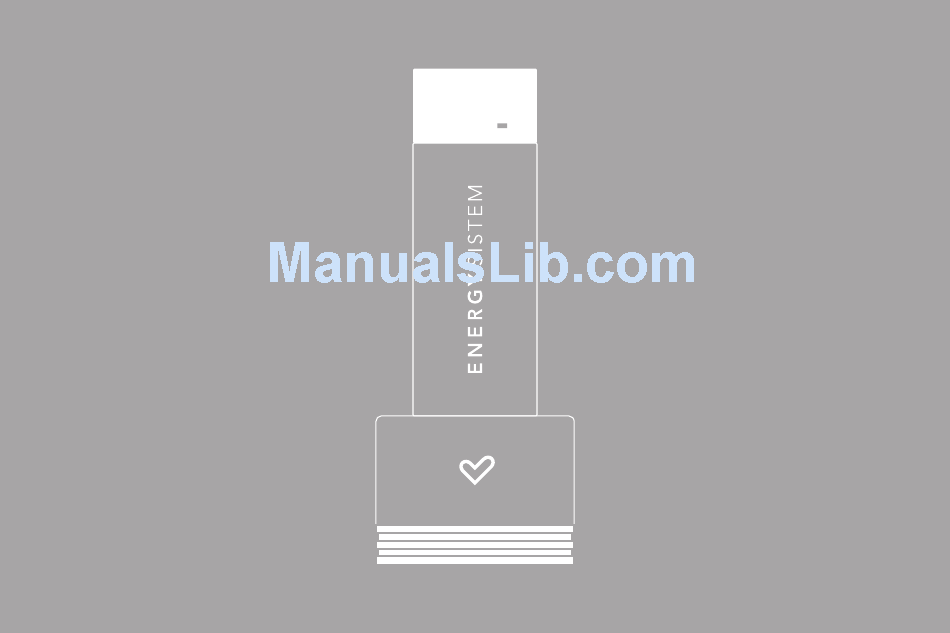

    1. PRODUCT DESCRIPTION The USB Wi-Fi Adapter Energy P150 it’s compatible with Energy P2350/P3350 multimedia players / recorders. Just connect the Wi-Fi adapter to the player and you will enjoy movies, music or photos stored in the PC directly to your TV without wires.
  • Page 4 3. FEATURES ≥ Compatible multimedia players: Energy P2350/P3350. ≥ Supports IEEE 802.11g/b standards. ≥ Up to 54 Mbps transmission rate. ≥ Frequency: 2.4GHz ~ 2.484GHz. ≥ Work modes: Infrastructure and Ad hoc. ≥ Auto-detects and changes the network transmission rate.

  • Page 5: Wireless Connection Setup

    4. WIRELESS CONNECTION SETUP a) Make sure the player is powered on. b) Connect the USB Adapter Energy P150 to the player USB Host port. 1) Select Setup on the main menu or press the SETUP key on the remote control.
  • Page 6 2) Select the NETWORK tab. 3) Select the connection mode INFRASTRUCTURE (AP) and press OK.
  • Page 7 4) Select AUTO to search for any existing SSID. Service Set Identifier, or SSID, is a friendly name that identifies a particular 802.11 wireless LAN (this step for Energy P2350 only). 5) After searching, the SSIDs available are listed.
  • Page 8 6) If the network is not encrypted, press to select OPEN SYSTEM (this step for Energy P2350 only). 7) Otherwise, if the network is encrypted, select SHARED (WEP) or WPA KEY and press OK to introduce the access key.
  • Page 9 8) Select DHCP IP (AUTO) to set the IP address automatically (this step for Energy P2350 only). 9) The SETTING LIST will display the network settings configured automatically. Press or OK to save the settings and test the wireless connection (this step for Energy P2350 only).
  • Page 10 10) Press OK or to confirm. Please wait for a few moments while the connection test is running. 11) If the test results are positive, the network information will be displayed on screen.
  • Page 11 12) Press OK or to finish and return to the Network setup interface. 13) Press the SETUP button or to return to the main menu.
  • Page 12 5. BROWSING FILES VIA WLAN In the file browser, select the option NET, there are two ways to browse the multimedia files shared in your wireless network: through the WORKGROUP or using MY SHORTCUTS. a) Browsing files through the WORKGROUP You can choose the workgroup which your PC belongs to in the workgroup list, find the PC name that you want to access and press to confirm.
  • Page 13 b) Browsing files through MY SHORTCUTS You can also set a specific IP address and access it from the menu ‘My shortcuts’. Video files with high image resolution (720p/1080i) can suffer some normal NOTE playback interruptions due to the network transfer speed limitations or signal strength.

  • Page 14: Troubleshooting

    6. TROUBLESHOOTING PROBLEM WHAT TO DO When the WLAN USB Adapter Energy P150 it’s There are no SSID available, the on screen connected to the player, please wait for about 1 message is: ‘Can’t get any SSID!!’ or 2 minutes as the device needs some time to get initialized.

  • Page 15: Warranty Procedure

    WARRANTY Energy Sistem Soyntec S.A. warrants its products to be free from defects in materials and workman¬ship at the time of purchase. The warranty period is 36 months from the date of purchase for WLAN Wi-Fi USB Adapters. WARRANTY PROCEDURE Visit the Support section at http://support.energysistem.com and select your product to view the FAQ (Frequently...
  • Page 16 Alternatively, you may prefer to contact the distributor from which you purchased the product, presenting the purchase receipt or invoice. Specifications are subject to change without notice. © 2009 by Energy Sistem®. All rights reserved. TRADEMARKS All company, brand and product names are trademarks or registered trademarks of their respective companies.

  • Page 17: Declaration Of Conformity

    Fax: 902 119 034 We declare under our own exclusive responsibility that the product: Energy Sistem® WLAN Wi-Fi USB 2.0 Adapter Energy™ P150 Manufacturing country: China Is in compliance with the essential directives, norms and standards of the European Union 89/336/EEC (EMC...

This manual is also suitable for:

P3350
