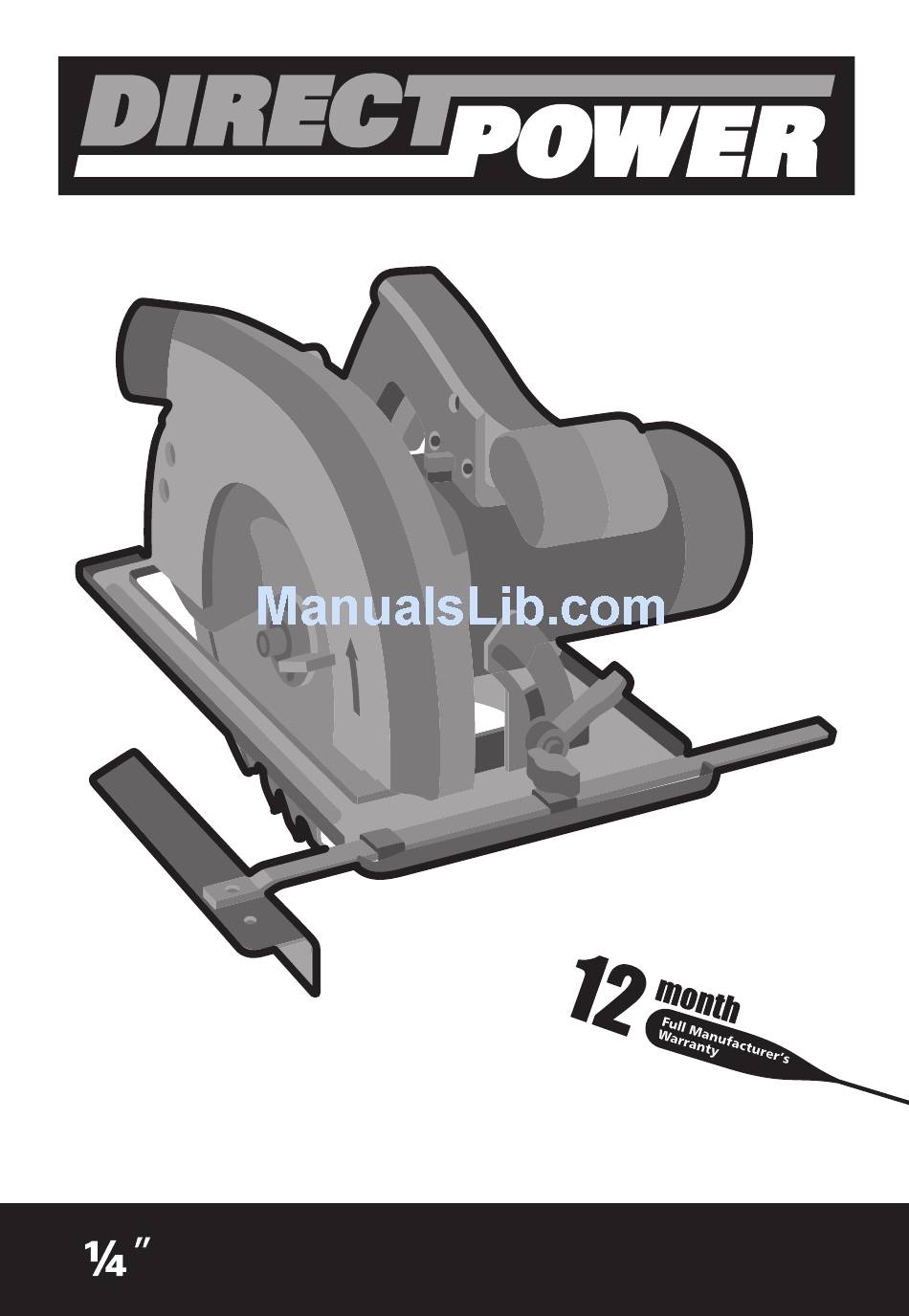

- Page 1 SAFETY AND OPERATING MANUAL CIRCULAR SAW BC185J...
- Page 3 This guarantee does not affect your statutory rights.This guarantee is only valid in the UK. For further technical advice, spare parts or repair service (outside of guarantee) please contact the customer helpline number on 0845 607 6380. CIRCULAR SAW BC185J...
-
Page 4: Safety Instructions
SAFETY INSTRUCTIONS WARNING! Read all instructions.Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. SAVETHESE INSTRUCTIONS 1. Work area. a. Keep work area clean and well lit. Cluttered and dark areas invite accidents. b. - Page 5 (e.g. lead from old gloss paint). You are advised to consider the risks associated with the materials you are working with and to reduce the risk of exposure.You should: - Work in a well-ventilated area. CIRCULAR SAW BC185J...
- Page 6 -Work with approved safety equipment, such as those dust masks that are specially designed to filter microscopic particles. ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR CIRCULAR 1.If the supply cord is damaged have it replaced by a qualified person. 2.Do not use blades which are deformed or cracked. 3.Do not use saw blades made of high speed steel.
- Page 7 5. FRONT HANDLE 6. MITRE CUTTING ADJUSTMENT GUIDE 7. MITRE CUTTING LOCK KNOB 8. PARALLEL FENCE SECURING SCREW 9. PARALLEL FENCE 10. RIVING KNIFE 11. BLADE 12. MOVABLE GUARD HANDLE 13. MOVABLE GUARD 14. ALUMINIUM GUARD 15. DUST OUTLET CIRCULAR SAW BC185J...
-
Page 8: Technical Data
TECHNICAL DATA Voltage: 230V~50Hz Input power: 1200W No load speed: 5,000min Max. cutting depths: 64mm Mitre limit: Blade size: Ø 185mmx2.8mmx Ø 16mm bore Double insulation: Weight: 4.5 Kg NOISE AND VIBRATION DATA Sound pressure level: 96dB (A) Sound power level: 107dB (A) Vibration level: 1.7m/s... -
Page 9: Operating Instructions
1.Slide the parallel fence into position. 2.Adjust the fence to the required width, and secure by tightening the parallel fence securing screw. When you now use the saw, ensure that the edge Fig 4 CIRCULAR SAW BC185J... - Page 10 of the parallel fence is resting against the edge of the wood to give a perfect parallel cut. 6. OPERATION (See fig6) Adjust the mitre angle and cutting depth to the required level and place front of the base plate on the workpiece (do not allow the blade to touch the workpiece at this time).
-
Page 11: Working Hints For Your Circular Saw
1.If your circular saw will not operate, check plug fuse and power at mains plug. 2.There are no user serviceable parts in the saw other than those listed in Care and Maintenance. 3.If a fault is suspected return to an authorised dealer to repair. CIRCULAR SAW BC185J... -
Page 12: Environmental Protection
ENVIRONMENTAL PROTECTION Waste electrical products should not be dis- posed of with household waste. Please re- cycle where facilities exist. Check with your Local Authority or retailer for recycling advice. PLUG REPLACEMENT The fuse in the main plug of your power tool should always be replaced with one of identical rating. -
Page 13: Declaration Of Conformity
Mead Avenue Houndstone Business Park Yeovil BA 22 8RT Declare that the product CIRCULAR SAW BC185J Complies with the essential health and safety requirements of the following directives: 89/336 EEC, 93/68 EEC. –EMC Directive. 73/23 EEC, 93/68 EEC. –Low Voltage Directive 98/37 EC. - Page 15 CIRCULAR SAW BC185J...
