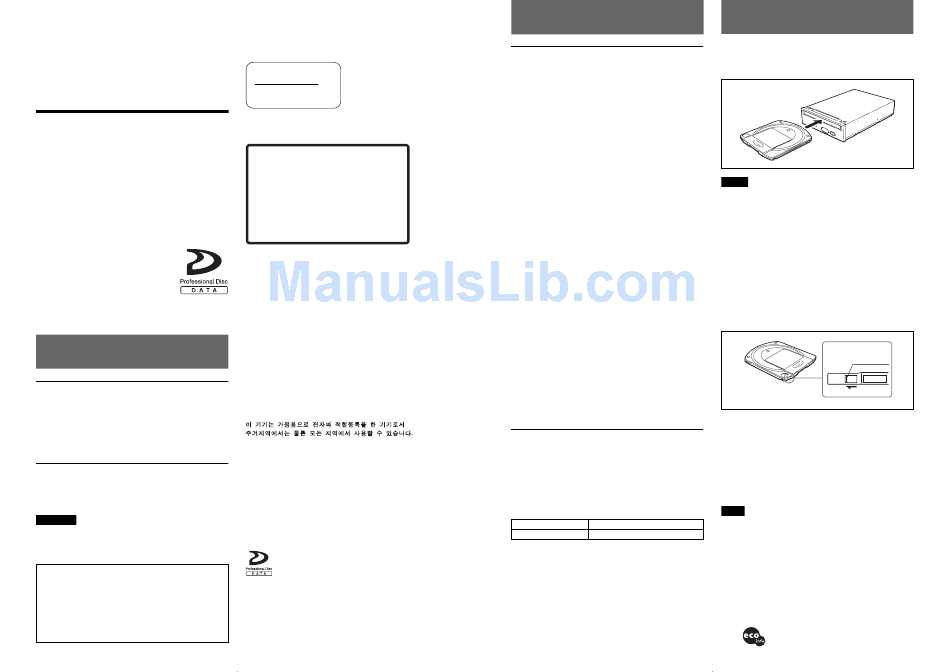

4-677-891-13(1)
Professional Disc
for DATA Drive
User's Guide
BW-F101
Printed in Japan

Safety Regulations

Owner's Record
The model and serial numbers are located on the top of the
drive. Record the serial number in the space provided below.
Refer to them whenever you call upon your dealer
regarding this product.
Model No. BW-F101
Serial No._________________________
Information
You are cautioned that any changes or modifications not
expressly approved in this manual could void your
authority to operate this equipment.
WARNING
To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
To avoid electrical shock, do not open the cabinet.
Refer servicing to qualified personnel only.
CAUTION
As the laser beam used in the BW-F101 is harmful to the eyes,
do not attempt to disassemble the unit.
Refer servicing to qualified personnel only.
The use of optical instruments with this product will increase
eye hazard.
The use of controls or adjustments or performance of
procedures other than those specified herein may result in
hazardous radiation.
The "Professional Disc for DATA" Drive is classified as a
CLASS 1 LASER PRODUCT.
Bei diesem „Professional Disc for DATA"-Laufwerk handelt
es sich um ein LASER-PRODUKT DER KLASSE 1.
CLASS 1
LASER PRODUCT
LASER KLASSE 1
PRODUKT
LUOKAN 1 LASERLAITE
KLASS 1 LASER APPARAT
CAUTION
CLASS 2M LASER RADIATION WHEN OPEN. DO NOT STARE INTO THE BEAM OR VIEW
DIRECTLY WITH OPTICAL INSTRUMENTS.
ATTENTION
RADIATIONS LASER DE CLASSE 2M EN CAS D'OUVERTURE.
NE PAS REGARDER LE FAISCEAU OU LE REGARDER DIRECTEMENT AVEC DES
INSTRUMENTS OPTIQUES.
VORSICHT
KLASSE 2M LASERSTRAHLUNG WENN GEÖFFNET.
NICHT IN DEN STRAHL BLICKEN, NICHT DIREKT MIT OPTISCHEN INSTRUMENTEN IN DEN
STRAHL BLICKEN.
ADVARSEL
LASERSTRÅLING AF KLASSE 2M VED ÅBNING. SE IKKE IND I STRÅLEN OG KIG IKKE DIREKTE
PÅ DEN MED OPTISKE INSTRUMENTER.
ADVARSEL
LASERSTRÅLING I KLASSE 2M NÅR ÅPEN. STIRR IKKE INN I STRÅLEN ELLER SE DIREKTE
MED OPTISKE INSTRUMENTER.
VARNING
KLASS 2M LASERSTRÅLING NÄR DENNA DEL ÄR ÖPPNAD. STIRRA EJ IN I STRÅLEN OCH
BETRAKTA EJ STRÅLEN MED OPTISKA INSTRUMENT.
VARO!
AVATTUNA LUOKAN 2M LASERSÄTEILYÄ. ÄLÄ TUIJOTA SÄTEESEEN ÄLÄKÄ. KATSO SITÄ
SUORAAN OPTISEN LAITTEEN LÄPI.
These labels are located on the top of the drive unit
enclosure.
Dieses Etikett befindet sich auf der Oberseite des
Laufwerksgehäuses.
■ Laser
Type
Semiconductor laser (GaN)
Wavelength
403 nm to 410 nm
Maximum output
35 mW CW
power
65 mW Pulse
■ Laser
Typ
Halbleiter-Laser (GaN)
Wellenlange
403 nm bis 410 nm
Maximale
35 mW CW
Ausgangsleistung
65 mW Puls
Diese Ausrüstung erfüllt die Europäischen EMC-
Bestimmungen für die Verwendung in folgender /
folgenden Umgebung(en):
• Wohngegenden
• Gewerbegebiete
• Leichtindustriegebiete
(Diese Austüstung erfüllt die Bestimmungen der Norm
EN55022, Klasse B.)
is a trademark of Sony Corporation.
Precautions
Damage prevention
■ Do not subject the drive to shock or vibrations
■ Location requirements
Careful consideration should be given to the following in
selecting a site to install or store your drive.
Avoid the following conditions:
• High humidity
• High temperatures
• Direct sunlight
• Dust
• Strong vibrations
• Wide temperature fluctuations
■ Moving the drive
Be sure to remove the disc cartridge when the drive is not
being used. Also never move or transport the drive with the
disc cartridge still inserted.
■ If problems occur
If any problems occur, turn off and unplug the drive, and
then contact your dealer.
■ Cleaning
Cleaning the drive unit
DO NOT USE LENS CLEANING DEVICES.
The internal lens cleaning feature enhances dust protection.
Preventive measures were taken into account in the drive
design to guard against dust, therefore there is no need to
clean the optical lens of the drive. Using a lens cleaning
device may damage the lens.
Cleaning discs
Refer to the discription of the media.
■ Cartridge storage
Keep cartridges away from heat sources such as radiators,
or locations subject to direct sunlight, excessive dust,
and/or moisture.
Cooling requirements
Forced-air cooling is required throughout the drive to
prevent overheating of the drive mechanism and electrical
components. Forced-air cooling must be provided as a part
of system integration.
This maximum temperature applies to all operating
conditions specified in this manual.
Measuring point
Maximum temperature
Disc cartridge
55 °C (131 °F)
The temperature conditions specified in this manual must
always be met for the BW-F101 to function properly.
Using a Disc Cartridge
■ Inserting a cartridge
Insert the cartridge from the front of the drive, as
illustrated.
Notes
• To avoid damaging the drive, take care not insert the
cartridge in the wrong direction.
• To avoid locking the cartridge, do not insert it into the
drive when the drive is off. If the cartridge is locked, turn
on the drive, confirm that the cartridge is completely
loaded into the drive, and then push the eject button.
■ Protecting data
Data cartridges are equipped with a write-protect switch to
prevent the accidental deletion of data on the disc or the
inadvertent writing of unwanted data.
Slide the switch in the direction of the arrow as illustrated
below. A red surface appears in place of the switch to
indicate that the cartridge is write-protected. To release the
protection, return the switch to its original position.
Write-protect switch
■ Ejecting a cartridge
If a cartridge cannot be ejected with the eject button or
SCSI EJECT command, turn off the drive, remove the
emergency eject hole cover, insert a Philips screwdriver
(diameter 5 mm/0.2 in. or less) into the hole, and then turn
it counterclockwise while pushing it forward until the
cartridge comes out from the drive. To avoid damaging the
drive and/or the cartridge, do not force the screwdriver to
turn if you feel resistance.
Note
If the cartridge still cannot be ejected after performing the
above, contact your dealer.
Printed on 100% recycled paper using VOC (Volatile Organic
Compound)-free vegetable oil based ink.
