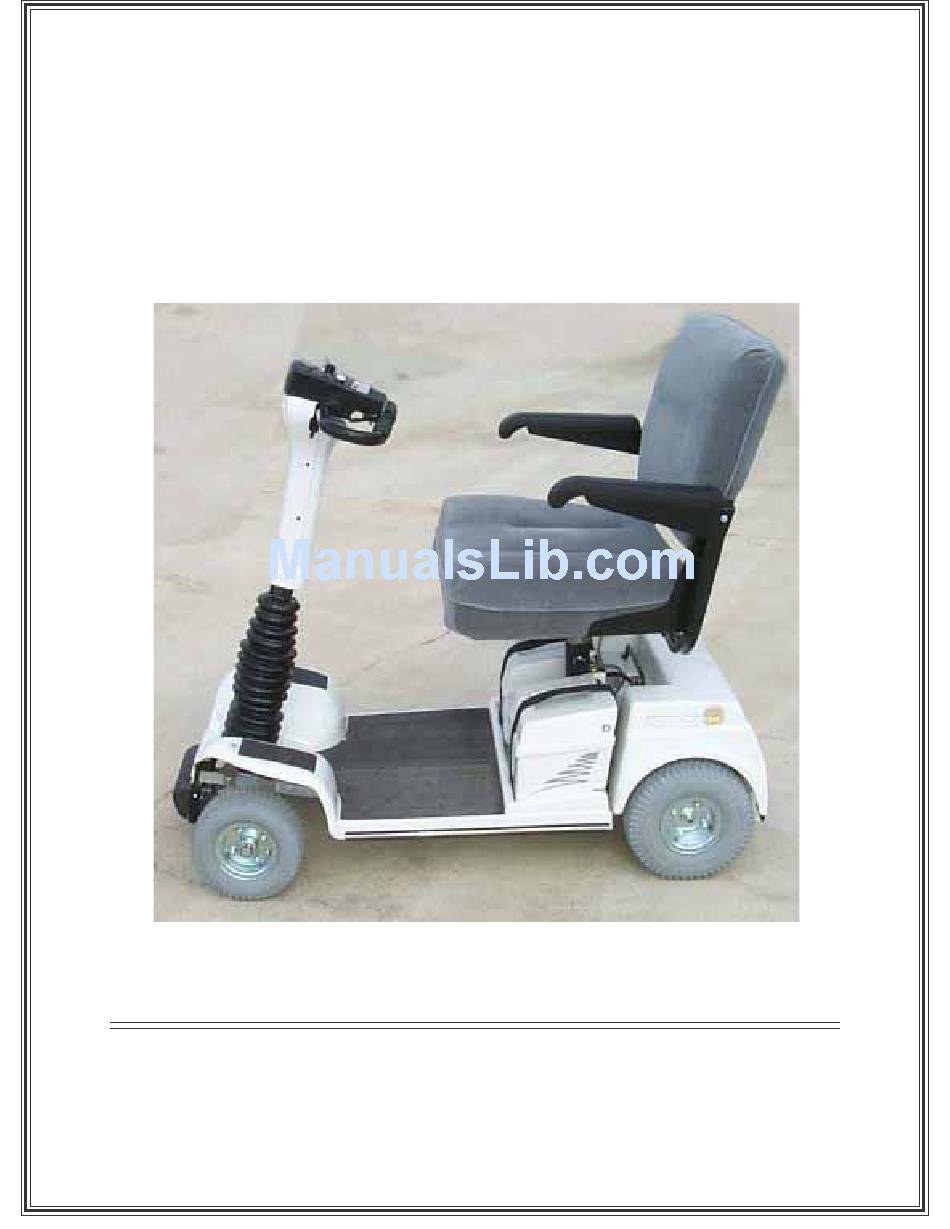

- Page 1 Solo XT550 OWNERS GUIDE IMPORTANT Read before using! ConvaQuip Ind., Inc. P.O. Box 3417 Abilene, TX 79604 Toll 800-637-8436 Fax 325-677-7217 C24AB...
-
Page 2: Table Of Contents
SECTION 4 - Assembly Instructions..........5-6 SECTION 5 - Seat Adjustment .............. 6 SECTION 6 - Disassembly of Your Solo XT550 For Transport ..7 - 8 SECTION 7 - Operating Controls for Delta Tiller......9 - 10 SECTION 8 - Operating Sequence ............. 11 SECTION 9 - Brake Systems ............. -
Page 3: Section 1 - Introduction
America with a great deal of pride, and has been thoroughly tested prior to shipment. We sincerely hope that your ownership of a Solo XT550 will bring you many years of freedom and enjoyment. To that end we ask that you read and understand this... -
Page 4: Section 2 - Safety
SAFETY SECTION 2 It is the responsibility of the OWNER to read this manual and to know the proper operating precautions and requirements and to make them known to all who may work with the equipment or be in the working area. Unsafe practices may result in serious injury or death and equipment damage! Failure to read this manual is a misuse of the equipment! SAFETY ALERT SYMBOL... - Page 5 ALWAYS use the lowest comfortable seat position when operating your Solo XT550 to increase its stability. DO NOT operate the Solo XT550 until you are confident of your ability to do so safety. If you need further instruction, contact your Authorized Dealer.
-
Page 6: Section 3 - A First Look At Your Solo Xt550
A FIRST LOOK AT YOUR SOLO XT550 SECTION 3 This section describes the major parts and features of your Solo XT550. Many of the features are described in more detail in other parts of this manual. Refer to the appropriate Sections as listed. -
Page 7: Section 4 - Assembly Instructions
Solo XT550 or injury to yourself or others. If it is necessary to do so (such as on the extra large seat) use extra care. -
Page 8: Section 5 - Seat Adjustment
SEAT ADJUSTMENT SECTION 5 The seat on your Solo XT550 is adjustable up and down. In addition, the width of the armrests are adjustable, and they may be removed from the seat if necessary. SEAT HEIGHT ADJUSTMENT - There are four height positions. ALWAYS USE THE LOWEST SEAT POSITION THAT IS COMFORTABLE FOR YOU. -
Page 9: Section 6 - Disassembly Of Your Solo Xt550 For Transport
DISASSEMBLY OF YOUR SOLO XT550 FOR TRANSPORT SECTION 6 One of the most important features of your Solo XT550 is the ease with which it disassembles for transport in a car or van. STEP 1 - Fold the back down on the seat and remove the seat by lifting straight up. - Page 10 TO RE-ASSEMBLE THE SOLO LTD: STEP 1 - Place the Rear Drive Unit on the ground, making sure it is tilting back and resting on the rear “anti-tip” wheels. Place the drive lever into the drive position to lock the brake and prevent the unit from rolling while attaching the front of the cart.
-
Page 11: Section 7 - Operating Controls For Delta Tiller
Accidentally bumping the Accelerator Lever while the key switch is on will cause the Solo XT550 to move out of control. This may result in an accident, causing serious injury or property damage. Do not turn the key switch on until you are securely seated on the Solo XT550. - Page 12 13 for right hand reverse example). NOTE: If you must operate the Solo XT550 with your left hand only, the operation of the Accelerator Lever can be permanently reversed for easier use. Consult your Authorized ConvaQuip Dealer. THIS MODIFICATION MUST BE MADE ONLY BY AN AUTHORIZED CONVAQUIP DEALER OR THE FACTORY .
-
Page 13: Section 8 - Operating Sequence
If the controller does become wet, do not operate the Solo XT550 for at least 24 hours or until it has had adequate time for the unit to dry thoroughly. Operating the Solo XT550 or energizing its electrical components while wet can damage the components and create hazardous operation conditions. -
Page 14: Section 9 - Brake Systems
When the MANUAL RELEASE LEVER is in the “released” position, a safety interlock switch prevents the Solo XT550 from being driven. Do not leave the brake lever in the “released” position when the Solo XT550 is unattended. A small amount of current is required to power the interlock relay (even with the key switch off) which could eventually drain the batteries. -
Page 15: Section 10 - Batteries
BATTERIES SECTION 10 The Solo XT550 is powered by two 12 volt “Deep Cycle” batteries (group 27 U-1 Gel). ConvaQuip Ind., Inc. strongly recommends the use of gel cell batteries. Gel batteries are sealed and do not require any water to be added. They are also safer and more convenient to handle since they are sealed and not subject to spilling. -
Page 16: Section 11 - Battery Charging
FAILURE TO OBSERVE THIS WARNING MAY Figure 15 RESULT IN FIRE OR ELECTRICAL SHOCK. NOTE: Your Solo XT550 is equipped with a safety mechanism called a “Battery Charger Interlock.” This prevents the cart from being driven with the charger plugged in. - Page 17 Use the charger on a hard flat surface only. Do not place it on the seat of the Solo XT550. Do not restrict airflow around the charger. FAILURE TO FOLLOW THIS WARNING MAY RESULT IN FIRE OR ELECTRICAL SHOCK.
-
Page 18: Section 12 - Routine Maintenance
Avoid leaving the Solo XT550 out, uncovered, in the rain. IF the controller does become wet, DO NOT operate the Solo XT550 for at least 24 hours or until it has had time for the unit to dry thoroughly. -
Page 19: Section 13 - T Roubleshooting
1. Be sure the key switch is turned on. The battery meter needle should move when the key switch is turned on. 2. Be sure the battery charger is unplugged. The Solo XT550 will not operate when the battery charger is plugged in. -
Page 20: Section 14 - Specifications
Maximum Incline 6° Seat Dimensions 16” d x 18” w x 16” h Seat Type Deluxe Folding Seat With Flip-Up Armrests **Measured from floorboard. Add 5-1/2” to ground NOTE: ConvaQuip Ind., Inc. reserves the right to change specifications without notice. C24AB... -
Page 21: Section 15 - Electromagnetic Interference
ELECTROMAGNETIC INTERFERENCE SECTION 15 CAUTION: IT IS VERY IMPORTANT THAT YOU READ THIS INFORMATION REGARDING THE POSSIBLE EFFECTS OF ELECTROMAGNETIC INTERFERENCE ON YOUR POWERED WHEELCHAIR. Electromagnetic Interference (EMI) From Wave Sources Powered wheelchairs and motorized scooters (in this text, both will be referred to as powered wheelchairs) may be susceptible to electromagnetic interference (EMI), which is interference from electromagnetic energy (EM) emitted from sources such as radio stations, TV stations,... - Page 22 Powered Wheelchair Electromagnetic Interference (EMI) Because EM energy rapidly becomes more intense as one moves closer to the transmitting antenna (source), the EM fields from hand-held radio wave sources (transceivers are of special concern). It is possible to unintentionally bring high levels of EM energy very close to the powered wheelchair’s control system while using these devices.
-
Page 23: Section 16 - California Proposition 65 Warnings
CALIFORNIA PROPOSITION 65 WARNINGS SECTION 16 WARNING This product contains or emits chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. WARNING Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the state of California to cause cancer and birth defects or other reproductive harm. -
Page 24: Section 17 - Warranty
SECTION 17 WARRANTY ConvaQuip Ind., Inc. warrants to the original retail purchaser for those periods set forth below that all new products shall be free from failure caused by defects in material and workmanship when used under normal conditions in a normal manner. The obligation of the company under this warranty consists only of repairing or replacing, at the company’s option, any...
