Choosing Heater Location and Position

Most of the time the heater is installed on the floor under the bed in the truck storage compartment,
or under the seat in passenger vans or mini busses.

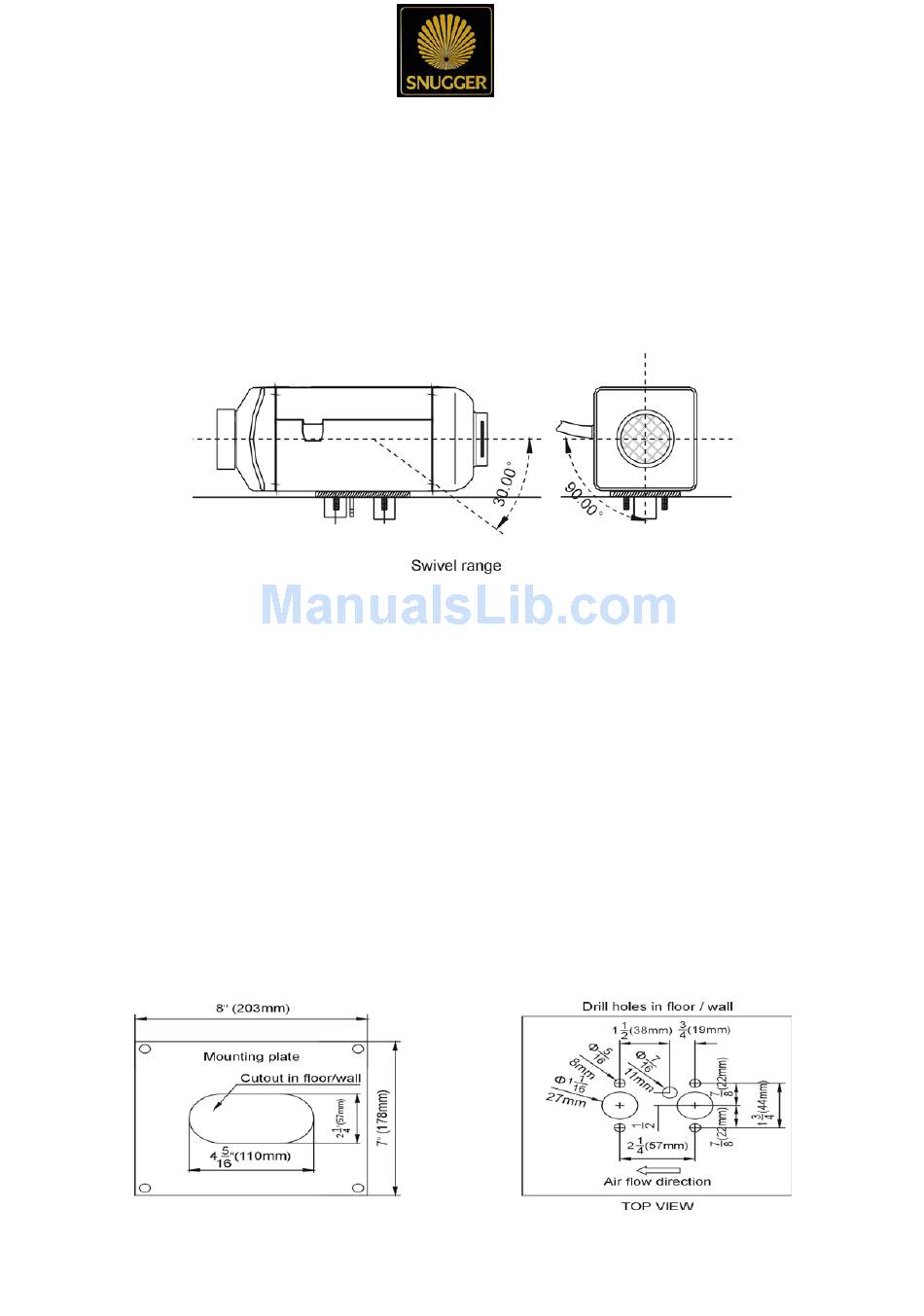

◆ Tolerable swivel range
Depending on the installation conditions, swivel angles should be as shown below:
Note: The glow pin→shall face upward.
◆ Please note:
In the heating mode, the heater can deviate from the shown normal or maximum installations
positions by up to +15° in all directions in order to accommodate the vehicle or boat
movement.
◆ Mounting heater on the floor or wall using mounting plate
Fastening the heater on the vehicle floor or wall
If the mounting surface is not smooth and even use the mounting plate.
Cut hole in floor or wall if using mounting plate as shown on the drawing.
◆ Mounting heater on the floor or wall without mounting plate
When installing the heater without the mounting plate, cut holes in floor or wall. The floor or
wall shall be smooth and even.
