- Page 1 AIR-HEATER FOR VEHICLES Technical description Installation instructions Operating instructions Maintenance Instructions www.kingtecuk.com...
-
Page 2: Table Of Contents
Contents P 01 Operating Principle and Use of SF2300 Air Heaters P 02 Main parts of SF2300 Air Heaters P 03 Installation Instructions and Regulations P 04 Safety Instructions and Operation P 05 Technical Data and Dimensions P 06 Choosing Heater Location and Position... -
Page 3: Operating Principle And Use Of Sf2300 Air Heaters

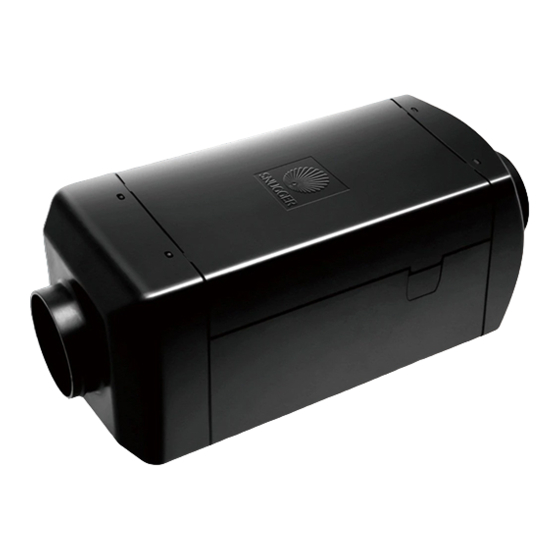

Operating Principle and Use of SF2300 Air Heaters The SF2300 air heaters are designed to be used as auxiliary heaters for trucks, RVs, boats, construction and farm equipment. The heaters will provide heat and keep a comfortable air temperature for the operator (driver) cab, small RV, passenger vans, mini buses, boats, etc for a fraction of the cost in comparison to engine idling. -
Page 4: Installation Instructions And Regulations
◆ Operation The fuel pump delivers fuel to the heater atomizer. The glow pin ignites the fuel-air mixture. Burning fuel heats up the heat exchanger. The heat is transferred into circulating air through the heat exchanger, and then the warm air circulates through the truck cabin or sleeper berth keeping it warm. -
Page 5: Safety Instructions And Operation
◆ Please Note: Failure to comply with the regulations, safety instructions, repairs done by unauthorized person, or use of aftermarket parts voids warranty and relieves manufacture, distributors, dealers, and installation technicians from any and all liabilities. ·The installer is responsible for all damages to the property or person that arises from faulty installation of the heater. - Page 6 WARNING Carbon monoxide monitoring sensor with alarm shall be installed in all passenger compartments, operator or driver cabin, and sleeper berth. Technical data and specifications Model SF2300 Heating value Super High Medium (±10%) Btu/hr (kW) 7850 (2.3) 6485 (1.9) 4437 (1.3) 3072 (0.9)
-
Page 7: Choosing Heater Location And Position
Choosing Heater Location and Position Most of the time the heater is installed on the floor under the bed in the truck storage compartment, or under the seat in passenger vans or mini busses. ◆ Tolerable swivel range Depending on the installation conditions, swivel angles should be as shown below: Note: The glow pin→shall face upward. - Page 8 Use sealant foam between mounting plate and wall or floor. Installation heater air system (Example) Item Description Item Description Safety grid Flexible duct Air intake lid Adjustable warm air outlet 1 Air outlet lid Air intake grill Hose clamp ◆ Please note: Safety instruction: www.kingtecuk.com...
-
Page 9: Combustion Air System
Prevent possibility of sucking the engine or heater exhaust fumes into the heater. Prevent the warm air to be directly sucked back into the cold air return. Use only temperature-resistant hose (flex) for the hot air. Install protective cover over the heater if there is possibility that the heater may by touched by passenger (s) or operator when heater is using to prevent personal injury and also protect the heater from possible damage from cargo or contact with flammable materials. -
Page 10: Fuel Supply
The entire exhaust system gets very hot during operation and immediately after the heater has been working. Keep the exhaust system parts away from any flammable materials; wires, hoses, fuel lines, carpets, plastics, brake lines, etc. Maintain at least 1/2” air gap between the exhaust pipe and sheet metal walls in order to prevent the heat transferring through the metal and damaging materials on the other side of the wall. - Page 11 Item Description Item Description ·Fuel hose -Fuel intake pipe 2 / 3 / 7 ·Fuel pump ·Fuel line connecting hose ·Fuel filter ◆ Safety Instructions for fuel lines and fuel tanks in passenger compartment In a passenger buses, vans or any other passengers vehicle the fuel lines and fuel tanks shall NOT be routed through the passenger compartment, operator or driver’s cab Fuel tanks in passenger vehicles must be positioned in such a way that the exits are NOT in direct danger from a possible fire.
- Page 12 ◆ Mounting of fuel intake system Install method Drill 31/32” (24mm) hole in appropriate location in top of fuel tank, as shown figure 1: Mount the fuel intake system and fuel pump, as shown figure 2, 3 ◆ Please note: When drilling into the fuel tank, take precautions to prevent possible sparks from electric tools (ground all tools).
-
Page 13: Operating Instructions
Operating Instructions Before starting the heater, perform a safety check: all components must be firmly fastened, check for fuel leaks. Bleed fuel line and prime fuel pump. To start the heater; turn the control knob to “high”(turn the knob clockwise), push heat button, the blower motor will start running. -
Page 14: Electrical System
air), the overheating sensor is triggered, the fuel supply is interrupted and the heater turns OFF. Once the overheating has been eliminated, the heater can be restarted manually by turning OFF and ON again. If the heater has been switched OFF and ON too many times in short period of time, the controller will lock, wait for about 15 mins and turn the heater ON again. -
Page 15: Troubleshooting, Malfunctions And Maintenance
◆ Annex list Wire color Function Wire color Function DC 12V/24V (＋) Brown line of communication A Black GND (－) Orange line of communication B Yellow Starting line Amethyst Fuel pump line (＋) ◆ Control module Troubleshooting, Malfunctions and Maintenance ◆... - Page 16 5. ·check the air fan if it is spinning freely 6. ·does the control panel flash the fault code? ◆ Troubleshooting diagnosis chart Please record the number of closed when the lamp is flashing, while the heater function failure. Then check the list 4.1 and shoot trouble. www.kingtecuk.com...
- Page 17 List 4.1 Code flashing Description Solution times Check the voltage, possible alternator drive belt 1 Time The power supply voltage too high too loose, check charging system Check the voltage, charge battery, check charging 2 Times The power supply voltage too low system The burner temperature sensor 3 Times...
- Page 18 ◆ Maintenance Instructions 1. Switch the heater ON at least once a month for about 10 minutes, even if there is no need for heat. 2. Check the opening of the combustion air supply and the exhaust system after longer standstill periods;...
-
Page 19: Installation Components Diagram Sf2300
Installation Components Diagram SF2300 www.kingtecuk.com... -
Page 20: Heater Assembly Drawing Sf2300
·SF2-000406 ·Fuel pipe φ5 x 3 mm ·SS4-033 ·Fuel pickup assembly ·SF2-000610 ·Mini control panel ·SF2-000601 ·Fuse 24V/15A (12V/20A) ·SF2-000413 ·Hose clamp #3 ·SF2-000410 ·Warm air hose φ60 mm ·SF2-000240 ·Outflow 1 ·SF2-000220 ·Air intake Heater Assembly Drawing SF2300 www.kingtecuk.com... - Page 21 www.kingtecuk.com...
- Page 22 Parts list of SF2300 Item Part NO Description ·SF2-000101 ·Heat exchanger housing ·SF2-000205 ·Air outlet ·SF2-000201 ·Bottom cover ·SF2-000207 ·Rubber buffer ·SF2-000403 ·Sealant foam ·SF2-000209 ·Plug ·SF2-000204 ·Air inlet hood ·SF2-000206 ·Safety screen ·GB/T 3098.6-2000 ·Pan head screw M5 x 25, spring washer ·SF2-000120...
- Page 23 www.kingtecuk.com...
