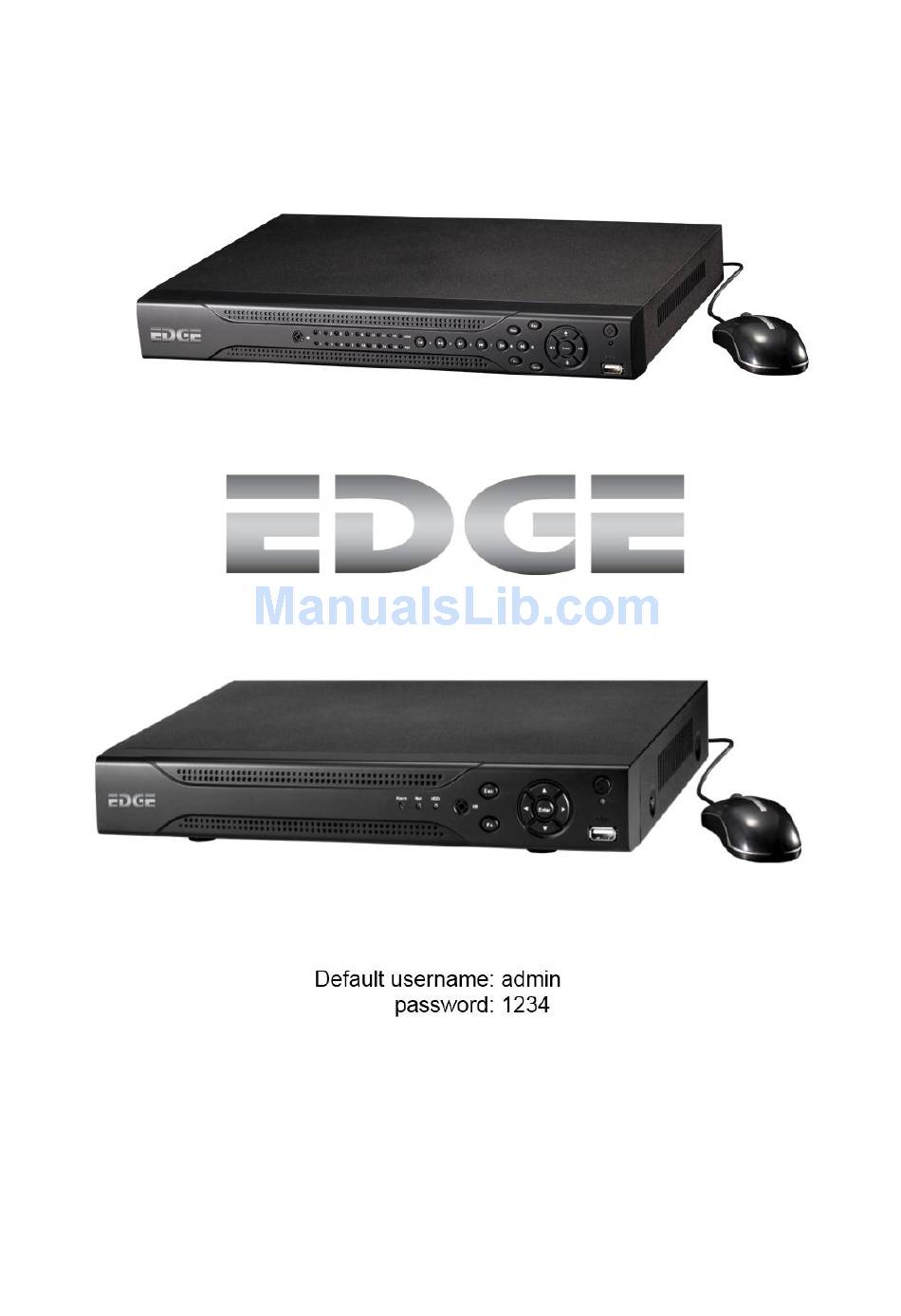

Edge ED-DVR12004 User Manual

Edge dvr user manual
Hide thumbs Also See for ED-DVR12004:
Table of Contents

Advertisement

Quick Links

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ED-DVR12004 and is the answer not in the manual?

Questions and answers

Related Manuals for Edge ED-DVR12004

Summary of Contents for Edge ED-DVR12004

  • Page 2: Table Of Contents

    FEATURES AND SPECIFICATIONS ................. 10 Overview ................................10 Features ................................10 Specifications ..............................11 OVERVIEW AND CONTROLS .................. 15 Front Panel ............................... 15 2.1.1 ED-DVR12004 ............................. 15 2.1.2 ED-DVR24008 ............................. 15 Rear Panel ................................ 17 2.2.1 ED-DVR24008 ............................. 17 2.2.2 ED-DVR12004 .............................
  • Page 3 Alarm Output Port ............................29 RS232................................30 RS485................................30 3.9.1 ED-DVR24008 ............................. 31 3.9.2 ED-DVR12004 ............................. 31 OVERVIEW OF NAVIGATION AND CONTROLS ............. 32 Login, Logout & Main Menu ........................... 32 4.1.1 Login ................................32 4.1.2 Main Menu ..............................32 4.1.3...
  • Page 4 Search & Playback ............................37 4.3.1 Search Menu ............................... 37 4.3.2 Basic Operation ............................38 4.3.3 Calendar ............................... 39 Schedule ................................39 4.4.1 Schedule Menu ..............................39 4.4.2 Snapshot ..............................40 4.4.3 Image FTP ..............................41 Detect ................................42 4.5.1 Go to Detect Menu ............................42 4.5.2 Motion Detect ..............................
  • Page 5 UNDERSTANDING OF MENU OPERATIONS AND CONTROLS ......55 Menu Tree ................................ 55 Main Menu ................................ 56 Setting ................................57 5.3.1 General ................................. 57 5.3.2 Encode ................................. 58 5.3.3 Schedule ..............................59 5.3.4 RS232 ................................60 5.3.5 Network ................................ 60 5.3.6 Alarm................................
  • Page 6 ABOUT AUXILIARY MENU ..................80 Pan/Tilt/Zoom ..............................80 6.1.1 3D Intelligent Positioning Key ........................80 Preset /Patrol / Pattern /Border Function ....................81 6.2.1 Preset Setup ..............................82 6.2.2 Activate Preset ............................82 6.2.3 Patrol Setup ..............................82 6.2.4 Activate Patrol ............................. 82 6.2.5 Pattern Setup ...............................
  • Page 7 Log out ................................126 Un-install Web Control ..........................126 FAQ .......................... 127 APPENDIX A HDD CAPACITY CALCULATION ............131 APPENDIX B COMPATIBLE USB DRIVE LIST ............132 APPENDIX C COMPATIBLE CD/DVD BURNER LIST ..........133 APPENDIX D COMPATIBLE SATA HDD LIST ............134 APPENDIX E COMPATIBLE DISPLAYER LIST ............
  • Page 8 Welcome Thank you for purchasing our DVR! This operating manual is designed to be a reference tool for the installation and operation of your system. Here you can find information about this series DVR features and functions, as well as a detailed menu tree.

  • Page 9: Important Safeguards And Warnings

    Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation. 2．Transportation security Heavy stress, violent vibration or water splash are not allowed during transportation, storage and installation.

  • Page 10: Features And Specifications

    1 FEATURES AND SPECIFICATIONS 1.1 Overview This series product is an excellent digital monitor product. It adopts embedded Linux OS to maintain reliable operation. Popular H.264 compression algorithm and G.711 audio compression technology realize high quality, low bit stream. Unique frame by frame play function is suitable for detailed analysis. It has various functions such as record, playback, monitor at the same time and can guarantee audio video synchronization.

  • Page 11: Specifications

    Support various decode protocols to allow the PTZ to control the speed dome.  Intelligent operation Mouse operation function In the menu, support copy and paste setup function Slight function differences may be found due to different series. 1.3 Specifications ED-DVR12004 ED-DVR24008 Parameter High-performance industrial embedded micro controller Main System Processor...
  • Page 12 Real-time Mode: PAL 1f/s to 25f/s per channel and NTSC 1f/s to 30f/s Record per channel Speed Video 1/4 windows(Optional) 1/4/9 windows Partition Monitor Support monitor tour functions such as alarm, motion detection, and Touring schedule auto control. PAL（625TV Line，50f/s），NTSC（525TV line，60f/s） Real-time monitor：...
  • Page 13 Playback Various fast play, slow play speeds, manual frame by frame playback Mode and reverse play mode. Various File Can switch to previous or next file or any file in current play list. Switch Can switch to file on other channel of the same time. (If there is a file) Ways Support file continuous play, when file is end system auto plays the next file in the current channel...
  • Page 14 Data Data stream statistics for each channel (in wave mode) Stream Statistics Backup to 1024 log files. statistics Support various search engines such as time and type. Display version information: channel amount, alarm input and output Version amount, system version and release date. On-line user Display current on-line user User...

  • Page 15: Overview And Controls

    This section provides information about front panel and rear panel. When you install this series DVR for the first time, please refer to this part first. 2.1 Front Panel This series product has two types of front panels. 2.1.1 ED-DVR12004 2.1.2 ED-DVR24008 Please refer to the following sheet for front panel button information.
  • Page 16 Manually stop/start recording, working with direction keys Record or numeral keys to select the recording channel. Multiple slow play speeds or normal playback. Slow play/8 In text mode, input number 8 (English character T/U/V). One-window monitor mode, click this button to display assistant function: PTZ control and image color.

  • Page 17: Rear Panel

    Video VGA output Power input port Alarm input/alarm output/RS485 port Power button 2.2.2 ED-DVR12004 ED-DVR12004 product rear panel is shown as in Figure 2-9. Figure 2-9 Please refer to the following sheet for detailed information. Video input Audio input Audio output...

  • Page 18: Connection Sample

    2.3 Connection Sample 2.3.1 ED-DVR24008 Please refer to Figure 2-7 for standard 1U series product connection sample. X281H281H281H The following figure is based on one 8-channel series. Figure 2-2...

  • Page 19: Ed-Dvr12004

    2.3.2 ED-DVR12004 Please refer to Figure 2-8 for simple lite series product connection sample. X281H281H281H The following figure is based on one 4-channel series. Figure 2-3...

  • Page 20: Remote Control

    2.4 Remote Control The remote control interface is as shown. Please note remote control is not standard accessory and it may not be included in the accessory bag. Serial No. Name Function Click it to input device serial number, Address so that you can control it.

  • Page 21: Mouse Control

    2.5 Mouse Control System pops up password input dialogue box if you have not logged in. In real-time monitor mode, you can go to the main menu. When you have selected one menu item, left click mouse to view menu content.

  • Page 22: Virtual Keyboard & Front Panel

    2.6 Virtual Keyboard & Front Panel 2.6.1 Virtual Keyboard The system supports two input methods: numeral input and English character (small and capitalized) input. Move the cursor to the text column, the text is shown as blue, input button pops up on the right. Click that button to switch between numeral input and English input (capitalized and small), Use >...

  • Page 23: Installation And Connections

    3 Installation and Connections Note: All the installation and operations here should conform to your local electric safety rules. 3.1 Check Unpacked DVR When you receive the DVR from the forwarding agent, please check whether there is any visible damage. The protective materials used for the package of the DVR can protect most accidental clashes during transportation.

  • Page 24: Connecting Power Supply

    7. Put the cover in accordance 8. Secure the screws in the with the clip and then place the rear panel and the side panel. upper cover back. Note:  You can connect the HDD data cable and the power cable first and then fix the HDD in the device. ...

  • Page 25: Connecting Video Output

    3.5.2 Connecting Video Output BNC (PAL/NTSC BNC（1.0VP- P， 75Ω）output , a VGA output and one Video output includes a HDMI output. The EGDE series supports BNC, VGA and HDMI output at the same time. The ED- DVR12004 supports BNC and VGA output at the same time. When you are using pc-type monitor to replace the monitor, please pay attention to the following points: ...

  • Page 26: Connecting Audio Input & Output, Bidirectional Audio

    3.6 Connecting Audio Input & Output, Bidirectional Audio 3.6.1 Audio Input These series products adopt BNC port. Due to high impedance of audio input, please use active sound pick-up. Audio transmission is similar to video transmission. Try to avoid interference, dry joint, loose contact and it shall be away from high tension current.

  • Page 27: Audio Output

    Figure 3-2 ED-DVR12004 3.6.2 Audio Output The audio output signal parameter is usually over 200mv 1KΩ (BNC). It can directly connect to low impedance earphone, active sound box or amplifier-drive audio output device. If the sound box and the pick-up cannot be separated spatially, it is easy to arouse squeaking. In this case you can adopt the following measures: ...

  • Page 28: Alarm Input And Output Connection

    3.7 Alarm Input and Output Connection Please note ED-DVR12004 does not support alarm function. Please refer to the following sheet for alarm input and output connection. There are two alarm input types for you to select: normal open (NO) and normal close (NC).

  • Page 29: Alarm Input Port

    AB Connection port Figure 3-2 You can refer to the following sheet for alarm input and output information. Parameter Grounding Alarm Ground line 1, 2, …, 8. It becomes valid in low voltage. Alarm Input Three NO activation outputs. 1-NO C， 2-NO C，...
  • Page 30 Temperature -40℃ ~+70℃ 3.8 RS232 ED-DVR12004 does not support alarm function. You can connect the DVR with POS or Keyboard through RS232. With POS system, the DVR can communicate through RS232 and network. For the POS system, the DVR can integrate the text content and even search the record through the info.

  • Page 31: Ed-Dvr24008

    485 Port Figure 3-4 ED-DVR24008 ED-DVR24008 3.9.1 ED-DVR12004 3.9.2...

  • Page 32: Overview Of Navigation And Controls

    8-channel playback is disabled, and vice versa.  The ED-DVR12004 does not support RS232, alarm and PTZ function. Before operation, please make sure:  You have properly installed HDD and connect all the cable connections.

  • Page 33: Logout

    Figure 4-2 4.1.3 Logout There are two ways for you to log out. One is from menu option: In the main menu, click shutdown button, you can see an interface is shown as below. See Figure 4-3. Figure 4-3 There are several options for you. See Figure 4-4. Figure 4-4 The other ways is to press power button on the front panel for at least 3 seconds, system will stop all operations.

  • Page 34: Preview Zoom Function

    4.1.6 Preview Zoom Function Move your mouse to the left top corner of the preview interface; you can see the preview zoom button. See Figure 4-5. Left click the icon; you can see a hook icon. Now you have enabled the preview zoom function.
  • Page 35  Manual: The highest priority. After manual setup, all selected channels will begin ordinary recording.  Schedule: Channel records as you have set in recording setup (Main Menu->Setting->Schedule)  Stop: All channels stop recording. Figure 4-6 4.2.2.3 Enable/disable record Please check current channel status: “○” means it is not in recording status, “●” means it is in recording status.
  • Page 36 When system is in manual recording, all scheduled set up you have set in will be null ((Main menu- >Setting->Schedule)). You can see indication light in front panel turns on, system begins manual record now. Figure 4-9 4.2.2.5 Stop all channel recording Please highlight “ALL”...

  • Page 37: Search & Playback

    4.3 Search & Playback 4.3.1 Search Menu Click search button in the main menu, search interface is shown as below. See Figure 4-11. Usually there are three file types:  R: Regular recording file.  A: External alarm recording file. ...

  • Page 38: Basic Operation

    4.3.2 Basic Operation 4.3.2.1 Playback There are various search modes: video type, channel number or time. The system can max display 128 files in one screen. You can use page up/down button to view if there are more than one page. Select the file name and double click mouse (or click enter button), you can view file content.

  • Page 39: Calendar

    Note: All the operations here (such as playback speed, channel, time and progress) have relationship with hardware version. Some series DVRs do not support some functions or playback speeds. 4.3.3 Calendar Click calendar icon in Figure 4-12, system pops up a calendar for your reference. The highlighted date means there are record files in that day.

  • Page 40: Snapshot

    Figure 4-13 4.4.1.1 Quick Setup This function allows you to copy one channel setup to another. After setting in channel 1, you can click paste button and turn to channel 2 and then click copy button. You can finish setting for one channel and then click save button or you can finish all setup and then click save button to memorize all the settings.

  • Page 41: Image Ftp

    4.4.2.2 Activation Snapshot Please follow the steps listed below to enable the activation snapshot function. After you enabled this function, system can snapshot when the corresponding alarm occurred.  In Encode interface, click snapshot button to input snapshot mode, size, quality and frequency. ...

  • Page 42: Detect

    Please input the corresponding information here, if you just upload the image FTP. Figure 4-16 4.5 Detect 4.5.1 Go to Detect Menu In the main menu, from Setting to Detect, you can see motion detect interface. See Figure 4-17. There are three detection types: motion detection, video loss, camera masking. The simple lite series product does not support RS232, alarm and PTZ function.
  • Page 43  Alarm output: when alarm occurred, system enables peripheral alarm devices.  Tour: Here you can enable tour function when alarm occurs. It is a one-window tour. Please go to chapter 5.3.9 Display for tour interval setup.  Buzzer: Highlight icon to enable this function. The buzzer beeps when alarm occurs. Please highlight icon to select the corresponding function.

  • Page 44: Video Loss

    Figure 4-19 Figure 4-20 Figure 4-21 4.5.3 Video Loss In Figure 4-17, select video loss from the type list. You can see the interface is shown as in Figure 4-22. This function allows you to be informed when video loss phenomenon occurred. You X311H311H31 1H can enable alarm output channel and then enable show message function.

  • Page 45: Camera Masking

    Figure 4-22 4.5.4 Camera Masking When someone viciously masks the lens, or the output video is in one-color due to the environments light change, the system can alert you to guarantee video continuity. Camera masking interface is shown as in Figure 4-23. Here you can enable alarm output or show message in the screen.

  • Page 46: Alarm Setup And Alarm Activation

    4.6 Alarm Setup and Alarm Activation Please note simple lite series product does not support the alarm function. Before operation, please make sure you have properly connected alarm devices such as light, buzzer. 4.6.1 Go to alarm setup interface In the main menu, from Setting to Alarm, you can see alarm setup interface. See Figure 4-24. 4.6.2 Alarm setup Alarm interface is shown as below.
  • Page 47 Figure 4-24 Figure 4-25 Figure 4-26 Figure 4-27...

  • Page 48: Backup

    4.7 Backup DVR support USB device backup and network download. Here we introduce USB backup first. You can refer to Chapter 7 Web Operation for network download backup operation. 4.7.1 Detect Device Click backup button, you can see an interface is shown as in Figure 4-28.Here is for you to view devices information.

  • Page 49: Ptz Control And Color Setup

    Figure 4-30 The file name format usually is: SN_CH+channel number+time Y+M+D+H+M+S. In the file name, the YDM format is the same as you set in general interface. (Main Menu ->Setting ->General).File extension name is .dav. You can visit our website to view listed CD-ROM brand. Tips: During backup process, you can click ESC to exit current interface for other operation.
  • Page 50  Stop bits: select corresponding stop bits. Default value is 1.  Parity: there are three options: odd/even/none. Default setup is none. Figure 4-31 After completing all the setting please click save button. In one window display mode, right click mouse (click “AUX” Button in the front panel or click “AUX” key in the remote control).

  • Page 51: Intelligent Positioning Key

    In Figure 4-33, please click direction arrows (See Figure 4-34) to adjust PTZ position. There are total 8 direction arrows. Figure 4-34 4.8.3 3D Intelligent Positioning Key In the middle of the eight direction arrows, there is a 3D intelligent positioning key. See Figure 4-35. Please make sure your protocol supports this function and you need to use mouse to control.

  • Page 52: 1Preset Setup

     Auto scan  Auto pan  Flip  Reset  Page switch Figure 4-37 Note:  Preset, tour and pattern all need the value to be the control parameter. You can define it as you require.  You need to refer to your speed dome user’s manual for Aux definition. In some cases, it can be used for special process.

  • Page 53: Activate Patrol (Tour)

    Figure 4-39 4.9.4 Activate Patrol (tour) In Figure 4-39, input patrol (tour) number in the No. blank and click patrol button 4.9.5 Pattern Setup In Figure 4-38 click pattern button and then click “begin” button. The interface is shown as in Figure 4-40.

  • Page 54: Flip

    In Figure 4-37, click “Auto Scan” button, the system begins auto scan. Correspondingly, the auto scan button becomes Stop button. Click stop button to terminate scan operation. 4.10 Flip In Figure 4-37, click page switch button, you can see an interface is shown as below. See Figure 4-42. Here you can set auxiliary function.

  • Page 55: Understanding Of Menu Operations And Controls

    The standard 1U series DVR and simple entry level series DVR menu tree is shown as below. Backup Information HDD Info Version Online Users Setting General Encode Schedule RS232 (For EDGE series only) Menu Network Alarm Detect Pan/ Tilt/Zoom Display Default Search Advanced...

  • Page 56: Main Menu

    For ED-DVR12004 DVR menu tree is shown as below. Backup Information HDD Info Version Online Users Setting General Encode Schedule Menu Network Detect Display Default Search Advanced HDD Management Abnormity Manual Record Account Auto Maintain TV Adjust Card Overlay Config File Backup Shutdown 5.2 Main Menu...

  • Page 57: Setting

    5.3 Setting In main menu, highlight setting icon and double click mouse. System setting interface is shown as below. See Figure 5-2. Figure 5-2 5.3.1 General General setting includes the following items. See Figure 5-3.  System time: Here is for you to set system time ...

  • Page 58: Encode

    Figure 5-3 Figure 5-4 Figure 5-5 5.3.2 Encode Encode setting includes the following items. See Figure 5-6. Please note some series do not support extra stream.  Channel: Select the channel you want.  Compression: System supports H.264.  Resolution: System supports various resolutions, you can select from the dropdown list. For this model, main stream supports D1/CIF/QCIF.

  • Page 59: Schedule

    If the 1-channel resolution is D1 and the frame rate is or less than 6f/s, then the rest seven channels (the second channel to the eighth channel) resolution shall be D1/CIF/QCIF. Right now in D1 resolution, the max frame rate is 6f/s. ...

  • Page 60: Rs232

    5.3.4 RS232 Please note Simple entry level series product and simple lite series product does not support RS232 function. RS232 interface is shown as below. There are five items. See Figure 5-8.  Function: There are various devices for you to select. Console is for you to use the COM or mini- end software to upgrade or debug the program.
  • Page 61  Alternative DNS: DNS alternative IP address.  Transfer mode: Here you can select the priority between fluency/video qualities.  LAN download: System can process the downloaded data first if you enable this function. The download speed is 1.5X or 2.0X of the normal speed. After completing all the setups please click save button, system goes back to the previous menu.
  • Page 62 Figure 5-11 5.3.5.3 Multiple Cast Setup Multiple-cast setup interface is shown as in Figure 5-12. Figure 5-12 Here you can set a multiple cast group. Please refer to the following sheet for detailed information.  IP multiple cast group address -224.0.0.0-239.255.255.255 -“D”...
  • Page 63  Can not be used in Internet transmission  Used for multiple cast broadcast in limited space. Except the above mentioned addresses of special meaning, you can use other addresses. For example: Multiple cast IP: 235.8.8.36 Multiple cast PORT: 3666. After you logged in the Web, the Web can automatically get multiple cast address and add it to the multiple cast groups.
  • Page 64 Atlantic Time GMT-4 Brazil GMT-3 Middle Atlantic Time GMT-2 Figure 5-14 5.3.5.6 DDNS Setup DDNS setup interface is shown as in Figure 5-15. You need a PC of fixed IP in the internet and there is the DDNS software running in this PC. In other words, this PC is a DNS (domain name server).
  • Page 65 Figure 5-16 You can use a PC or FTP login tool to test setup is right or not. For example, you can login user ZHY to FTP://10.10.7.7 and then test it can modify or delete folder H140H140H1 40HTU or not. See Figure 5-17. Figure 5-17 System also supports upload multiple DVRs to one FTP server.

  • Page 66: Alarm

    Figure 5-18 Please highlight the icon in front of Enable to activate FTP function. Here you can input FTP server address, port and remote directory. When remote directory is null, system automatically create folders according to the IP, time and channel. User name and password is the account information for you to login the FTP.

  • Page 67: Display

    5.3.9 Display Display setup interface is shown as below. See Figure 5-20.  Transparency: Here is for you to adjust transparency. The value ranges from 128 to 255.  Channel name: Here is for you to modify channel name. System max support 25-digit (The value may vary due to different series).

  • Page 68: Default

    Figure 5-21 In tour mode, you can see the following interface. On the right corner, right click mouse or click shift button, you can control the tour. There are two icons: stands for enabling window switch and stands for enabling window function. See Figure 5-22. Figure 5-22 5.3.10 Default Click default icon, system pops up a dialogue box.

  • Page 69: Search

    After all the setups please click save button, system goes back to the previous menu. Warning! System menu color, language, time display mode, video format, IP address, user account will not maintain previous setup after default operation! Figure 5-23 5.4 Search Please refer to chapter 4.3 Search.

  • Page 70: Abnormity

    Please note system needs to reboot to get all the modification activated. Figure 5-25 Click alarm set button, the interface is shown as below. See Figure 5-26. (This interface is just like the abnormity setup). Please refer to chapter 5.5.2 for detailed information. Please highlight icon to select the corresponding function.

  • Page 71: Alarm Output

    Figure 5-27 5.5.3 Alarm Output Here is for you to set proper alarm output. Please highlight icon to select the corresponding alarm output. After all the setups please click OK button, system goes back to the previous menu. See Figure 5-28. Figure 5-28 5.5.4 Manual Record Please refer to chapter 4.2.2 manual record.

  • Page 72: Auto Maintain

     The user name and group name can consist of eight bytes. One name can only be used once. There are four default users: admin/888888/666666 and hidden user “default”. Except user 6666, other users have administrator right.  Hidden user “default” is for system interior use only and cannot be deleted. When there is no login user, hidden user “default”...

  • Page 73: Tv Adjust

    5.5.7 TV Adjust Here is for you to adjust TV output setup. See Figure 5-31. Please drag slide bar to adjust each item. After all the setups please click OK button, system goes back to the previous menu. Figure 5-31 5.5.8 Card Overlay The card overlay function is for financial areas.
  • Page 74 For ATM/POS with the protocol, you just need to set the source IP, destination IP (sometimes you need to input corresponding port number). Figure 5-33 Without the protocol For the ATM/POS without the protocol, the interface is shown as in Figure 5-34. Source IP refers to host IP address that sends out information (usually it is the device host.) Destination IP refers to other systems that receive information.

  • Page 75: Config File Backup

    Figure 5-35 5.5.9 Config File Backup The configuration file backup interface is shown as below. See Figure 5-36. This function allows you to copy current system configuration to other devices. Figure 5-36 5.6 Information Here is for you to view system information. There are total five items: HDD (hard disk information), BPS (data stream statistics), Log and version, and online user.

  • Page 76: Hdd Information

    Figure 5-37 5.6.1 HDD Information Here is to list hard disk type, total space, free space, video start time and status. See Figure 5-38. ○ means current HDD is normal. X means there is error. - means there is no HDD. If disk is damaged, system shows as “?”.

  • Page 77: Bps

    5.6.2 BPS Here is for you to view current video data stream (KB/s) and occupied hard disk storage (MB/h). See Figure 5-39. Figure 5-39 5.6.3 Log Here is for you to view system log file. System lists the following information. See Figure 5-40. Log types include system operation, configuration operation, data management, alarm event, record operation, log clear and etc.

  • Page 78: Online Users

     Build Date Figure 5-41 5.6.5 Online Users Here is for you manage online users. See Figure 5-42 You can disconnect one user or block one user if you have proper system right. Max disconnection setup is 65535 seconds. Figure 5-42 5.7 Shutdown Double click shutdown button, system pops up a dialogue box for you to select.
  • Page 79 Figure 5-43...

  • Page 80: About Auxiliary Menu

    6 About Auxiliary Menu Pan/Tilt/Zoom Note: some series product does not support PTZ function. In the one-window surveillance mode, right click mouse (click “AUX” Button in the front panel or click AUX key in the remote control). The interface is shown as below: See Figure 6-1 X397H397H397H Figure 6-1...

  • Page 81: Preset /Patrol / Pattern /Border Function

    Click this button, system goes back to the single screen mode. Drag the mouse in the screen to adjust section size. Figure 6-4 Here is a sheet for you reference. Name Function function Shortcut Function function Shortcut  Zoom Near ...

  • Page 82: Preset Setup

    6.2.1 Preset Setup Note: The following setups are usually operated in the Figure 6-2 Figure 6-5 Figure 6-6 X405H405H405H X406H406H406H X407H407H407H Figure 6-2 , use eight direction arrows to adjust camera to the proper position. X408H408H 408H Figure 6-5 , click preset button and input preset number. The interface is shown as in Figure 6-7 X409H409H 409H X410H410H410H...

  • Page 83: Border Setup

    Figure 6-6 input mode value in the No. blank, and click pattern button. X419H419H 419H 6.2.7 Border Setup Figure 6-5 , click border button. The interface is shown as in Figure 6-10 X420H420H 420H X421H421H421H Please go to Figure 6-2 , use direction arrows to select camera left limit, and then please go to X422H422H422H Figure 6-10...

  • Page 84: Web Operation

    Please note for this series product, when you logged in the Web to operate real-time monitor/network playback/network download, the local-end 8-channel playback is disabled, and vice versa.  The ED-DVR12004 does not support RS232, alarm and PTZ function. 7.1 Network Connection Before web operation, please check the following items: ...
  • Page 85 System pops up warning information to ask you whether install webrec.cab control or not. Please click yes button. If you can’t download the ActiveX file, please modify your settings as follows. See Figure 7-2 X429H429H429H Figure 7-2 After installation, the interface is shown as below. See Figure 7-3 X430H430H430H Please input your user name and password.
  • Page 86 After you logged in, you can see the main window. See Figure 7-6 X431H431H431H This main window can be divided into the following sections.  Section 1: there are five function buttons: configuration (chapter 7.3), search (chapter 7.4), alarm (chapter 7.5), about (chapter 7.6), log out (chapter 7.7). ...

  • Page 87: Real-Time Monitor

    7.2.1 Real-time Monitor In section 2, left click the channel name you want to view, you can see the corresponding video in current window. On the top left corner, you can view device IP, channel number, network monitor bit stream. Figure 7-7 On the top right corer, there are six unction buttons.

  • Page 88: Ptz

    X436H436H43 6H Figure 7-10 7.2.2 PTZ The ED-DVR12004 product does not PTZ function. Before PTZ operation, please make sure you have properly set PTZ protocol. (Please refer to chapter 7.3.2 Setting-> Pan/Tilt/Zoom). Click PTZ button, the interface is shown as in...
  • Page 89 3D Intelligent Positioning You can click this icon to display or hide the PTZ control platform. Figure 7-11 7.2.2.1 Direction key and 3D positioning key In Figure 7-10, there are eight direction keys. In the middle of the eight direction keys, there is a 3D intelligent positioning key. Click 3D intelligent positioning key, system goes back to the single screen mode.
  • Page 90 Figure 7-12 7.2.2.4 Auto Scan Figure 7-12 , move the camera to you desired location and then click left limit button. X439H439H 439H Then move the camera again and then click right limit button to set a right limit. 7.2.2.5 Pattern Figure 7-12 , you can input pattern value and then click start record button to begin PTZ movement.

  • Page 91: Color

    Figure 7-13 7.2.3 Color Click color button in section 3, the interface is shown as Figure 7-14 X444H444H44 4H Here you can select one channel and then adjust its brightness, contrast, hue and saturation. (Current channel border becomes green). Or you can click default button to use system default setup. Figure 7-14 7.2.4 Picture Path and Record Path Click more button in...

  • Page 92: Configure

    Please click choose button to modify path. Figure 7-16 Click record path button, you can see an interface is shown as in Figure 7-17 X448H448H448H Please click choose button to modify path. Figure 7-17 Click reboot button, system pops up the following dialogue box. See Figure 7-18, Please click OK to reboot.
  • Page 93 Figure 7-19 7.3.1.2 HDD information Here you can view local storage status and network status including, free capacity and total capacity. Figure 7-20 X450H450H450H Figure 7-20 7.3.1.3 Log Here you can view system log. See Figure 7-21 X451H451H451H...

  • Page 94: System Configuration

    Figure 7-21 Click backup button, the interface is shown as in Figure 7-22 X452H452H452H Figure 7-22 Please refer to the following sheet for log parameter information. Parameter Function Log types include: system operation, configuration operation, data Type management, alarm event, record operation, user management, log clear and file operation.
  • Page 95 Figure 7-23 Figure 7-24 Figure 7-25 Please refer to the following sheet for detailed information. Parameter Function Here is for you to modify system time. Please click Save button after System your completed modification Time Sync PC You can click this button to save the system time as your PC current time.
  • Page 96 Please select separator such as – or /. Data Separator There are two options: 24-H and 12-H. Time Format Here you can set day night save time begin time and end time. See Figure 7-24 and Figure 7-25. Language You can select the language from the dropdown list. Device needs to reboot to get the modification activated.
  • Page 97 Figure 7-27 Please refer to the following sheet for detailed information. Parameter Function Here is for you to select a monitor channel. Channel Here is to display current channel name. You can modify it. Channel Name Compression H.264 Main Stream It includes main stream, motion stream and alarm stream.
  • Page 98 Parameter Function Recommended Recommended bit rate value according to the resolution and frame rate you have set. Here you can set video brightness, contrast ness, hue, saturation and Color Setting gain. The value ranges from 0 to 100.Default value is 50. See Figure 7-27. Please note, some series devices do not support OSD transparent setup function.
  • Page 99 Figure 7-29 Figure 7-30 Please refer to the following sheet for detailed information. Parameter Function Please select a channel first. Channel Pre-record Please input pre-record value here. System can record the three to five seconds video before activating the record operation into the file. (Depends on data size).
  • Page 100 Refresh Click this button to get device latest configuration information. 7.3.2.4 RS232 The ED-DVR12004 product does not support RS232 function. The RS232 interface is shown as in Figure 7-31 X461H461H461H Figure 7-31 Please refer to the following sheet for detailed information.
  • Page 101 Parameter Function Baud Bit You can select corresponding baud bit here. There are five options: none/odd/even/space/mark. Parity System default setup is:  Function: Console.  Data bit: 8  Stop bit: 1  Baud bit: 115200  Parity: None. 7.3.2.5 Network Network interface is shown as in Figure 7-32 X462H462H462H...
  • Page 102 Parameter Function PPPOE  Input the PPPoE user name and password you get from the IPS (internet service provider) and enable PPPoE function. Please save current setup and then reboot the device to get the setup activated.  Device connects to the internet via PPPoE after reboot. You can get the IP address in the WAN from the IP address column.
  • Page 103 DDNS The DDNS interface is shown as in Figure 7-34 X464H464H464H Please make sure your DVR support this function. Figure 7-34 Please refer to the following sheet for detailed information. Parameter Function Server Type You can select DDNS protocol from the dropdown list and then enable DDNS function.
  • Page 104 NAS interface is shown as in Figure 7-35 X465H465H465H Please make sure your DVR support this function. Figure 7-35 Please refer to the following sheet for detailed information. Parameter Function Please select network storage protocol and then enable NAS enable NAS function.
  • Page 105 The NTP interface is shown as in Figure 7-36 X466H466H466H Here you can realize network time synchronization. Please enable current function and then input server IP, port number, time zone and update interval. Please note the SNTP supports TCP transmission only and its port shall be 123.The update interval ranges from 1 to 65535. Default value is 10 minutes.
  • Page 106 Please set the corresponding parameters such as server IP, port and etc. The system can send out the data as the protocol defined to the client-end. Figure 7-37 7.3.2.6 Alarm The ED-DVR12004 does not support alarm function. Alarm setup interface is shown as in Figure 7-38 X467H467H467H Please make sure you have connected the corresponding alarm output device such as the light, buzzer and etc.
  • Page 107 Figure 7-38 Figure 7-39 Please refer to the following sheet for detailed information. Parameter Function Event It includes local alarm/network alarm. Type Local alarm: Device detects alarm from input port. Network: Device detects alarm from network. Alarm in Select corresponding alarm channel. Enable You need to draw a circle here so that system can detect the alarm signal.
  • Page 108 Parameter Function Anti-dither System only memorizes one event during the anti-dither period. The value ranges from 0 to 15s. Normal Enable alarm activation function. You need to select alarm output port so that system can activate corresponding alarm device when alarm occurred.
  • Page 109 Figure 7-41 Please refer to the following sheet for detailed information. Parameter Function Event There are three types: Motion detection/video loss/Camera Masking. Type Channel Select channel name from the dropdown list. Enable You need to draw a circle to enable motion detection function. There are six levels.
  • Page 110 Refresh Click this button to get device latest configuration information. 7.3.2.8 PTZ The ED-DVR12004 does not support PTZ function. PTZ interface is shown as in Figure 7-42 X470H470H470H Please note, before operation please make sure you have set speed dome address.
  • Page 111 Figure 7-42 Please refer to the following sheet for detailed information. Parameter Function You can select monitor channel from the dropdown list. . Channel Select the corresponding dome protocol.(such as PELCOD) Protocol Set corresponding dome address. Default value is 1. Please note your Address setup here shall comply with your dome address;...

  • Page 112: Advanced

    Figure 7-43 Please refer to the following sheet for detailed information. Parameter Function Select All Restore factory default setup. Export Export system configuration to local PC. Configuration Import Import configuration from PC to the system. Configuration 7.3.3 Advanced 7.3.3.1 HDD Management HDD management includes net storage management and local storage management.
  • Page 113 Figure 7-44 Please refer to the following sheet for detailed information. Parameter Function Format Clear data in the disk. Read/write Set current SD card as read/write Read only Set current card as read. Recover Recover dada after error occurs. Please note system needs to reboot to activate current setup. 7.3.3.2 Alarm I/O The simple lite series product does not support alarm function.
  • Page 114 Figure 7-45 Important The alarm output port should not be connected to high power load directly (It shall be less than 1A) to avoid high current which may result in relay damage. Please use the co contactor to realize the connection between the alarm output port and the load.
  • Page 115 7.3.3.3 Record Record control interface is shown as in Figure 7-46 X474H474H474H Figure 7-46 Please refer to the following sheet for detailed information. Parameter Function System enables auto record function as you set in record schedule Auto setup. Enable corresponding channel to record no matter what period Manual applied in the record setup.
  • Page 116 7.3.3.4 Account Here you can add, remove user or modify password. See Figure 7-47 X475H475H475H Figure 7-47 7.3.3.5 Auto Maintenance Here you can select auto reboot and auto delete old files interval from the dropdown list. See Figure X476H476H476H 7-48 Figure 7-48...
  • Page 117 7.3.3.6 Snapshot Snapshot interface is shown as in Figure 7-49 X477H477H477H Figure 7-49 Please refer to the following sheet for detailed information. Parameter Function Channel It is the monitor channel. There are two modes: Timing and activation. Snapshot mode You can select from the dropdown list. The value ranges from Frame rate 1f/s to 7f/s.
  • Page 118 7.3.3.7 Abnormity The abnormity interface is shown as below. Figure 7-50 Please refer to the following sheet for detailed information. Parameter Function Event  The abnormal events include: no disk, no space, disk error, net error. Type  You need to draw a circle to enable this function. Normal The corresponding alarm activation output channel when alarm occurs, There are three channels.

  • Page 119: Additional Function

    7.3.4 Additional Function 7.3.4.1 ATM/POS The ATM/POS function is the same with the card overlay function (chapter 5.5.8). It is mainly for financial areas to Sniffer, information parse and character overlay. The ATM/POS interface is shown as in Figure 7-51. Source IP refers to host IP address that sends out information (usually it is the device host connected to the DVR.) Destination IP refers to other systems that receive information.
  • Page 120 7.3.4.2 Auto Register Auto register interface is shown as below. See Figure 7-52. Figure 7-52 Auto Register Please refer to the following sheet for detailed information. Parameter Function Enable Enable auto register function. Device management server number. Device management server IP address. Port Server port number.

  • Page 121: Search

    7.3.4.3 DNS Here you can set server or local operator DNS address. See Figure 7-53. This function is useful when you input domain name in some item. Otherwise system can not parse the domain name. Figure 7-53 7.4 Search Click search button, you can see an interface is shown as in Figure 7-54. Please select record playback mode, and then select start time, end time and channel.
  • Page 122 Select the file(s) you want to download and then click download button, system pops up a dialogue box shown as in Figure 7-55, and then you can specify file name and path to download the file(s) to your local pc. Figure 7-55 Now you can see system begins download and the download button becomes stop button.
  • Page 123 When download completed, you can see a dialogue box shown as in Figure 7-57. Please click OK to exit. Figure 7-57 Please refer to the following sheet for detailed information. Type Parameter Function Type Record Search general record, alarm record and motion detection record.

  • Page 124: Alarm

    3: Stop 4: Slow play 5: Fast play Playback device IP address and channel number. Playback control bar Figure 7-58 7.5 Alarm Click alarm function, you can see an interface is shown as in Figure 7-59. Here you can set device alarm type and alarm sound setup.
  • Page 125 Figure 7-59 Please refer to the following sheet for detailed information. Please make sure current device can upload the alarm. Type Parameter Function Alarm Video loss System alarms when video loss occurs. Type Motion detection System alarms when motion detection alarm occurs, Disk full System alarms when disk is full.

  • Page 126: About

    7.6 About Click about button, you can view current web client information. See Figure 7-60. Figure 7-60 7.7 Log out Click log out button, system goes back to log in interface. See Figure 7-61. You need to input user name and password to login again. Figure 7-61 7.8 Un-install Web Control You can use web un-install tool “uninstall web.bat”...

  • Page 127: Faq

    8 FAQ 1. DVR cannot boot up properly. There are following possibilities:  Input power is not correct.  Power connection is not correct.  Program upgrade is wrong.  HDD malfunction or something wrong with HDD ribbon.  Seagate DB35.1，DB35.2，SV35 or Maxtor 17-g has compatibility problem. Please upgrade to the latest version to solve this problem.
  • Page 128  HDD ribbon is damaged.  HDD is broken.  Upgraded program is not compatible.  The recorded file has been overwritten.  Record function has been disabled. 7. Video is distorted when searching local records. There are following possibilities: ...
  • Page 129 12. Motion detection function does not work. There are following possibilities:  Period setup is not correct.  Motion detection zone setup is not correct.  Sensitivity is too low.  For some versions, there is hardware limit. 13. Cannot log in client-end or web. There are following possibilities: ...
  • Page 130 There are following possibilities:  DVR serial port setup is not correct  Address is not correct  When there are several switchers, power supply is not enough.  Transmission distance is too far. 18. Alarm signal cannot been disarmed. There are following possibilities: ...

  • Page 131: Appendix A Hdd Capacity Calculation

    Appendix A HDD Capacity Calculation Calculate total capacity needed by each DVR according to video recording (video recording type and video file storage time). Step 1: According to Formula (1) to calculate storage capacity that is the capacity of each channel needed for each hour, unit Mbyte.

  • Page 132: Appendix B Compatible Usb Drive List

    Appendix B Compatible USB Drive List NOTE: Please upgrade the DVR firmware to latest version to ensure the accuracy of the table below. If you use the USB drive, please confirm the format FAT or FAT32. Manufacturer Model Capacity Sandisk Cruzer Micro 512M Sandisk...

  • Page 133: Appendix C Compatible Cd/Dvd Burner List

    Appendix C Compatible CD/DVD Burner List NOTE: Please upgrade the DVR firmware to latest version to ensure the accuracy of the table below. And you can use the USB cable with the model recommended to set USB burner. Manufacturer Model Port Type Type Sony...

  • Page 134: Appendix D Compatible Sata Hdd List

    Appendix D Compatible SATA HDD List NOTE: Please upgrade the DVR firmware to latest version to ensure the accuracy of the table below. And SATA HDD should be used for the DVR with SATA port. Port Manufacturer Series Model Capacity Mode Seagate Barracuda.10...
  • Page 135 Western Digital Cariar SE16 WD4000KD2 400G SATA Western Digital Cariar SE16 WD3200KS2 320G SATA Western Digital Cariar SE16 WD2500KS2 250G SATA Western Digital RE series WD5000ABYS 500G SATA Western Digital Caviar Green series WD20EADS SATA Samsung HA101UJ/CE SATA...

  • Page 136: Appendix E Compatible Displayer List

    Appendix E Compatible Displayer List Please refer to the following sheet form compatible displayer list. Brand Model Dimension (Unit: inch) BENQ（LCD） ET-0007-TA 19-inch (wide screen) DELL（LCD） E178FPc 17-inch BENQ（LCD） Q7T4 17-inch BENQ（LCD） Q7T3 17-inch LENOVO（LCD） LXB-L17C 17-inch SANGSUNG（LCD） 225BW 22-inch (wide screen) LENOVO(CRT) LXB-FD17069HB 17-inch...

  • Page 137: Appendix F Earthing

    Appendix F Earthing 1. What is the surge? Surge is a short current or voltage change during a very short time. In the circuit, it lasts for microsecond. In a 220V circuit, the 5KV or 10KV voltage change during a very short time (about microseconds) can be called a surge.
  • Page 138  Antenna feed cable lightning arrester: It is suitable for antenna system of the transmitter or the device system to receive the wireless signal. It uses the serial connection too. Please note, when you select the lighting arrester, please pay attention to the port type and the earthing reliability.
  • Page 139 Mixed ground: The mix ground consists of the feature of the one-point ground and multiple-point ground. For example, the power in the system needs to use the one-point ground mode while the radio frequency signal requires the multiple-point ground. So, you can use the following figure to earth. For the direct current (DC), the capacitance is open circuit and the circuit is one-point ground.

This manual is also suitable for:

Ed-dvr24008

Table of Contents
