Tarheel Antennas, Inc.
Instruction Manual
for the

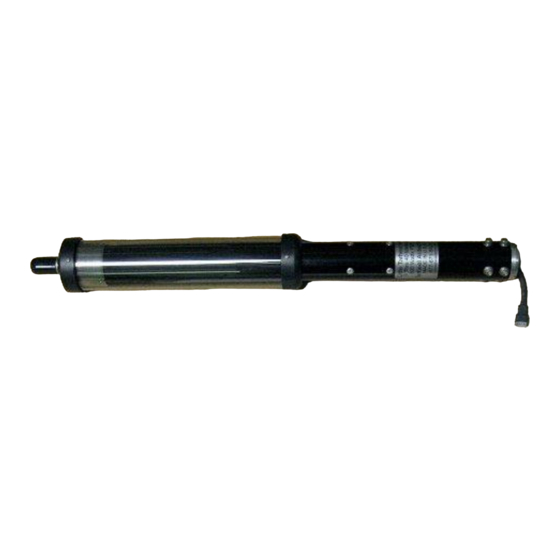

Little Tarheel HP
Continuous Coverage
HF Antenna
PROUDLY MADE IN THE
UNITED STATES OF AMERICA
18511 CR 304
St. Joseph, MO 64505
816-671-9409 / 816-364-2619 Fax
E-mail: sales@tarheelantennas.com
Technical Support
919-552-8788
E-mail: tarheelantennas@aol.com
www.tarheelantennas.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tarheel Antennas Little Tarheel HP
Summary of Contents for Tarheel Antennas Little Tarheel HP
- Page 1 Tarheel Antennas, Inc. Instruction Manual for the Little Tarheel HP Continuous Coverage HF Antenna PROUDLY MADE IN THE UNITED STATES OF AMERICA 18511 CR 304 St. Joseph, MO 64505 816-671-9409 / 816-364-2619 Fax E-mail: sales@tarheelantennas.com Technical Support 919-552-8788 E-mail: tarheelantennas@aol.com...
- Page 2 Thank you for purchasing the Little Tarheel When properly installed this antenna will provide continuous coverage as follows: 6.4 MHz to 54 MHz with a 32" whip (supplied with the antenna) 5.3 MHz to 38 MHz with a 56" whip 3.4 MHz to 18 MHz with a 12' portable whip Before proceeding with the installation, make sure you have received everything.
- Page 3 Installation Before installation of this antenna there are a few things you might have to consider. To get peak performance you need to mount the antenna as high as possible on the vehicle, also try to separate it as much as possible from other antennas that might be on the vehicle.
- Page 4 (075) to (020 to 030) when using auto park the antenna or holding the up or down more than 10 seconds with the antenna all the way up or down could burn up the motor in the Little Tarheel HP. Operation Remember that when the coil is all the way in its resonant on the high bands and all the way out on the low bands.
- Page 5 Relative Tuning Positions The following photos will show you relative tuning positions of the Little Tarheel Antenna. Little Tarheel in 10 meter position Little Tarheel in 6 meter position with 32" whip Little Tarheel in 20 meter position Little Tarheel in 40 meter position with 32"...
- Page 6 Tarheel Antenna fails to perform due to quality or workmanship Tarheel Antennas will at our discretion either repair or replace at no charge for parts or labor. A return authorization number is required before warranty work can be performed.
