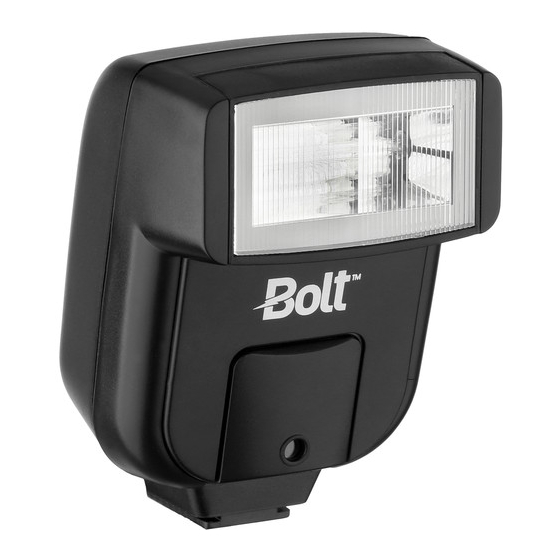

Bolt VS-210 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Inspiration strikes.
Inspiration strikes.
VS-210
FLASH
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS-210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bolt VS-210

Summary of Contents for Bolt VS-210

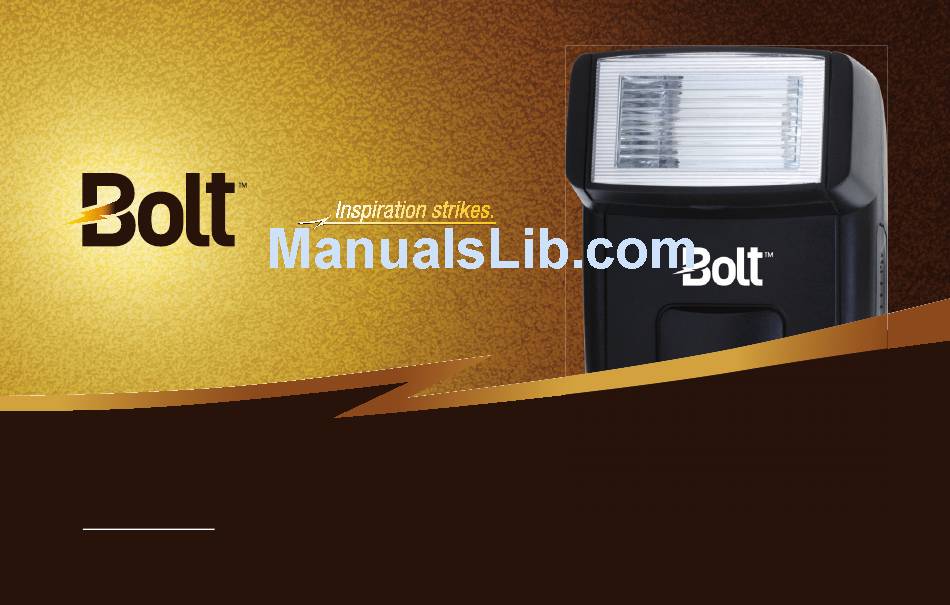

  • Page 1 Inspiration strikes. Inspiration strikes. VS-210 FLASH User’s Manual...
  • Page 2 Copyright © 2012 Gradus Group. Bolt and other names of Bolt products are trademarks of Gradus Group. Other product and corporate names mentioned herein are trademarks of their respective holders. Introduction...
  • Page 3 Introduction Thank you for choosing the Bolt VS-210. This compact electronic flash unit can be used with both film and digital cameras. Among the benefits you’ll enjoy: • Choice of manual control or easy automatic flash • Adjustable five-position flash head •...
  • Page 4 Contents...

  • Page 5: Table Of Contents

    Contents Overview ..............................6–7 Warnings ..............................8–10 Installing Batteries ..........................10–11 Mounting the Flash ..........................12–13 Turning on the Flash and Firing a Test ......................14 Using the Manual Flash Mode ......................... 14–15 Reading the Exposure Chart ........................16–17 Using an Automatic Flash Mode ......................18–19 Bouncing Your Flash ..........................
  • Page 6 Overview...

  • Page 7: Overview

    Overview Flash head Auto sensor Battery compartment cover Exposure table Mounting foot Mounting foot lock Test button / Ready light Power switch / Mode selector Automatic exposure confirmation light 10. Sync socket 11. Sync cord Overview...

  • Page 8: Warnings

    Warnings Before using your VS-210, please read the following safety notices carefully and thoroughly to ensure safe use, and to help prevent damage to your flash or injury to yourself or others. • Do not fire the flash at close range directly into the eyes of people or animals. This can cause damage to the retina and may even lead to blindness.
  • Page 9 • Do not touch the VS-210 with wet hands, as this may generate an electric shock. • Do not drop or otherwise cause a strong physical impact to the VS-210, as this could cause a malfunction that may cause it to explode or ignite.

  • Page 10: Installing Batteries

    • Keep the metal contacts in the battery compartment clean and free of corrosion and dirt. Do not touch them with your fingers. Corrosive elements on the contacts can damage the VS-210 and prevent it from functioning properly. Contacts may be cleaned with isopropyl alcohol on a cotton swab.
  • Page 11 To install batteries, make sure the VS-210 is turned off and follow these steps: Press on the battery compartment cover and slide it in the direction of the arrow to remove it. Insert batteries in the orientations indicated inside the compartment.

  • Page 12: Mounting The Flash

    Mounting the Flash To mount the VS-210 on your camera, turn it off and follow these steps: Slide the mounting foot lock switch to the right to unlock it, and then slide the flash unit all the way into your camera’s hot shoe.
  • Page 13 To do this, insert one end of the cord into the VS-210‘s sync socket and the other into your camera’s PC sync socket or another compatible port. Using a flash sync cord will allow the flash to synchronize exposures with the camera.

  • Page 14: Turning On The Flash And Firing A Test

    To fire a test flash, press the Test button / Ready light. Using the Manual Flash Mode You can set flash exposures manually with the VS-210. In manual mode, the flash fires at its full power. To use manual mode, follow these steps:...
  • Page 15 Set the exposure on your camera. The correct exposure can be determined two ways: By using the exposure chart on the back of the VS-210 (see below) B. By firing a test flash and metering it with a handheld light meter. Refer to your light meter’s manual for the correct metering procedure.

  • Page 16: Reading The Exposure Chart

    Reading the Exposure Chart The chart on the back of the VS-210 allows you to determine the correct camera settings and flash-to-subject distance for flash exposures. You can use the chart to determine exposure in three ways: By aperture and flash-to-subject distance: Select the aperture you want to use on the right side of the chart.
  • Page 17 C. Follow the horizontal line at the intersection over to the aperture setting on the right of the chart. D. Set the f-stop indicated by the horizontal line on your camera. Using the guide number to calculate exposure: The VS-210’s guide number is 72 feet / 22 meters at ISO 100. You can use this to calculate the 1.6 2.3 3.2 4.5 6.4 9...

  • Page 18: Using An Automatic Flash Mode

    4. Set your camera’s ISO to 100, or use ISO/ASA 100 film. Make sure your subject is within the VS-210’s automatic mode range, 5 meters (16 feet) at f/4.0 and 10 meters (33 feet) at f/2.0. Press your camera’s shutter-release button to take the picture. The Auto OK light will glow green momentarily to indicate that the proper exposure was attained.

  • Page 19: Bouncing Your Flash

    Remember that the shutter speed setting will only affect the background. Using a slower shutter will make the background behind your subject brighter and increase background or motion blur, while a faster shutter will keep the background sharp but make it appear darker if it is beyond the flash range. Note: Do not set the shutter speed faster than your camera’s maximum sync speed, or black bars might appear in your images.
  • Page 20 The VS-210 flash head can be tilted up at 45-, 60-, 75-, and 90-degree angles to the lens. When bouncing your flash, you may need to adjust your exposure settings, since the level of light falling on your subject will be reduced.

  • Page 21: Troubleshooting

    Troubleshooting Problem Solution The flash is stuck in the camera hot shoe. Make sure that the mounting foot lock is released. The flash is turned on but won’t fire. Make sure that fresh batteries are installed and in the proper orientation. The edges of images look dark.

  • Page 22: Specifications

    Specifications Type: On-camera electronic flash Compatible cameras: Film and digital cameras with standard hot shoes Guide number (at 35mm, ISO 100): 72 feet / 22 meters Flash coverage angle: equivalent to a 35mm lens on a 35mm-format camera Flash duration: 1/2,000–1/40,000 second Flash recycle time: 0.3–10 seconds Power source: 2 AA lithium, Ni-MH, or alkaline batteries Number of flashes with fresh batteries: Approx.

  • Page 23: Limited Warranty

    Limited Warranty Bolt warrants that this product is free from defects in material and workmanship for a period of one (1) year from the original purchase date or thirty (30) days after replacement whichever occurs later (the “Warranty Period”). Bolt’s sole and exclusive responsibility with respect to this limited warranty shall be to repair or replace, at its sole discretion, any Bolt product which fails during normal consumer use.
  • Page 24 www.boltflashes.com Copyright © 2012 Gradus Group.
