Installation Guide

Included Installation Instructions

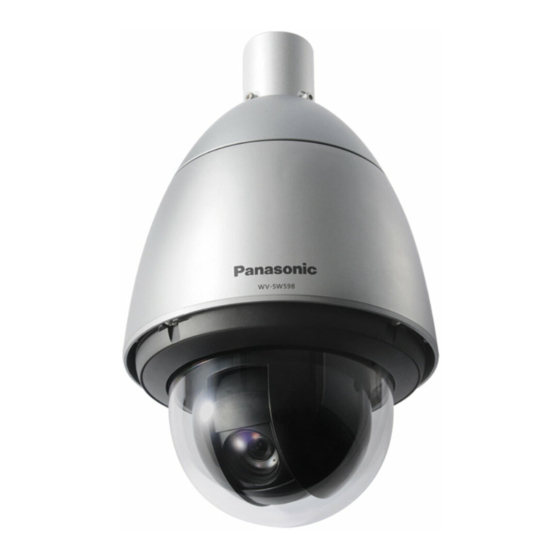

Network Camera

WV-SW598
Model No.
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
PGQX1224YA
Cs0313-1043
Printed in China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WV-SW598 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Panasonic WV-SW598

Summary of Contents for Panasonic WV-SW598

  • Page 1: Installation Guide

    Installation Guide Included Installation Instructions Network Camera WV-SW598 Model No. Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. The model number is abbreviated in some descriptions in this manual.
  • Page 2 See www.dtsc.ca.gov/hazardouswaste/perchlorate/ this equipment. For U.S. and Canada (UL Listed model): For U.S.A WV-SW598 The model number and serial number of this product For Europe and other countries: may be found on the surface of the unit. WV-SW598...

  • Page 3: Table Of Contents

    Contents Important safety instructions ............................. 4 Limitation of liability ................................5 Disclaimer of warranty ............................... 5 Preface ....................................5 Main functions ................................... 6 About the user manuals ..............................6 System requirements for a PC ............................7 Trademarks and registered trademarks..........................8 Copyright ...................................

  • Page 4: Important Safety Instructions

    Important safety instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 6) Only use attachments/accessories specified by the manufacturer.

  • Page 5: Limitation Of Liability

    THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL Panasonic System Networks Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW: (1) ANY DAMAGE AND LOSS, INCLUDING WITHOUT LIMITATION, DIRECT OR INDIRECT, SPECIAL, CONSEQUENTIAL OR EXEMPLARY, ARISING OUT OF OR RELATING TO THE PRODUCT;...

  • Page 6: Main Functions

    * The accuracy with the auto tracking function depends on the installation location. Make sure that the installation location is appropriate in advance. About the user manuals There are 2 sets of operating instructions for the WV-SW598 as follows. • Installation Guide: Explains how to install and connect devices, as well as how to connect and configure the network. • Operating Instructions (included in the CD-ROM): Explains how to perform the settings and how to operate this camera.

  • Page 7: System Requirements For A Pc

    / Internet Explorer ® versions”. • If using Microsoft Windows XP, screen tearing* may occur when the shooting scene drastically changes (for example, while shooting fast-moving subjects or while controlling panning/tilting) due to the GDI restrictions of the OS. * A phenomenon in which portions of the screen are displayed out of alignment • For information on the operation verification of the supported operating systems and web browsers, refer to our web- site at http://security.panasonic.com/pss/security/support/index.html.

  • Page 8: Trademarks And Registered Trademarks

    Trademarks and registered trademarks • Microsoft, Windows, Windows Vista, Internet Explorer, and DirectX are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. • Microsoft product screen shot(s) reprinted with permission from Microsoft Corporation. • Intel and Intel Core are trademarks of Intel Corporation in the U.S. and other countries. • Adobe, Acrobat Reader, and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. • SDXC Logo is a trademark of SD-3C, LLC. • iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. • Android is a trademark of Google Inc. • All other trademarks identified herein are the property of their respective owners. Copyright Distributing, copying, disassembling, reverse compiling and reverse engineering of the software provided with this product are all expressly prohibited.

  • Page 9: Precautions

    Precautions Refer installation work to the dealer. The exclusively designed mount bracket shall be Installation work requires technique and experience. used. Failure to observe this may cause a drop resulting in injury Failure to observe this may cause fire, electric shock, injury, or damage to the product.
  • Page 10 Do not damage the power cable. Product disposal/transfer Do not damage, fabricate, twist, stretch, bundle, or forci- Data saved on this product or a storage device used with bly bend the power cable. Do not place heavy objects on this product may lead to personal information leakage. it, and keep it away from heat sources.
  • Page 11 Periodically images on the screen appear to be dis- AVC Patent Portfolio License torted THIS PRODUCT IS LICENSED UNDER THE AVC PATENT When the camera is installed in a location where it is sub- PORTFOLIO LICENSE FOR THE PERSONAL USE OF A ject to small vibrations (for example, when it is installed CONSUMER OR OTHER USES IN WHICH IT DOES NOT near devices that vibrate), images may appear distorted...
  • Page 12 Position refresh During the use for a long period of time, the preset posi- tions may become inaccurate. When “Position refresh” is set for the created schedule, the camera position will be corrected periodically. Refer to the Operating Instructions on the provided CD-ROM for how to perform the settings.

  • Page 13: Precautions For Installation

    Precautions for installation Panasonic assumes no responsibility for injuries or Do not place this product in the following places: property damage resulting from failures arising out • Locations where a chemical agent is used such as a of improper installation or operation inconsistent swimming pool with this documentation. • Locations subject to moisture or oil smoke such as a...
  • Page 14 Take notice of humidity. PoE+ (Power over Ethernet Plus) Install this product when the humidity is low. If this product Use a PoE+ hub/device that is compliant with IEEE802.3at is installed during rainfall or when there is high humidity, standard. the inside may be exposed to moisture and the dome It is impossible to supply the power to this product from a cover may become foggy.

  • Page 15: Major Operating Controls

    Major operating controls <Main body> Power cable Brown To the power supply (24 V AC, 50 Hz/60 Hz) Blue Green External I/O cable Microphone input cable (connector: white) Audio output cable (connector: black) Network cable with cable coupler Output cable for the monitor used for adjustment Safety wire Attachment pipe Housing base (inside)
  • Page 16 <Rear view of the main body with the main sunshield rear cover detached> Main nameplate Water-resistant cap Link indicator Access indicator INITIAL SET switch (OFF ON) Live indicator SD memory card slot...

  • Page 17: Initialize The Camera

    Initialize the camera Use the INITIAL SET switch to reset the settings of the camera to the default. IMPORTANT: • The settings including the network settings will be initialized. Note that the preset position settings and the CRT key (SSL encryption key) used for the HTTPS protocol will not be initialized. Step 1 Step 5 Pull out the water-resistant cap by following steps 1 - 3 of Move the INITIAL SET switch to the left (OFF).

  • Page 18: Insert/Remove An Sd Memory Card

    Insert/remove an SD memory card How to insert an SD memory card IMPORTANT: • When inserting an SD memory card, make sure the direction. Step 1 Step 3 Pull out the main sunshield rear cover on the rear of the Turn the water-resistant cap to the “OPEN” side, and pull camera by pressing the tab on the top of the sunshield.

  • Page 19: How To Remove The Sd Memory Card

    Step 5 Step 7 Align “g” of the water-resistant cap to “OPEN h” of the First, insert the tab on the bottom of the main sunshield camera. Then, turn the water-resistant cap toward “h rear cover into the main body, and then push the tab on LOCK”...

  • Page 20: Installations/Connections

    Installations/Connections Caution: • F OR UL LISTED MODEL(S), ONLY CONNECT 24 V AC CLASS 2 POWER SUPPLY (UL 1310/CSA 223) or LIMITED POWER SOURCE (IEC/EN/UL/CSA 60950-1). Before installation, prepare the following • When mounting this camera to a ceiling, mount it using a custom-made ceiling mount bracket and the attachment pipe (accessory). Refer to page 22 for the specifications of the custom-made ceiling mount bracket. • When mounting the camera to a wall, use the wall mount bracket WV-Q122 (option).
  • Page 21 How to detach the housing base Before attaching the camera to a custom-made mount bracket, detach the housing base and attachment pipe from the camera so that installation and connections can be performed. Step 1 Step 2 Remove the fixing screws (3 pcs.*) that are securing the To separate the housing base from the camera, turn the housing base and the camera.
  • Page 22 Installation Before starting installation/connection, make sure that the power cable is not connected to the main power supply. Refer to the “Precautions for installation” section before starting installation/connection. (☞ Page 13) w Fix a bracket to the installation surface on the ceiling Step 1 by using appropriate bolts, nuts or the like (not sup- Install the mounting bracket.
  • Page 23 e Connect the safety wire (accessory) to the mount bracket. Step 4 Refer to the operating instructions of the mount Mount the camera to the bracket. bracket for further information about where to con- q Attach the housing base to the mount bracket using nect the safety wire.
  • Page 24 e Joint both sides of front and rear sunshields. Fixing screws (3 pcs.) Joint the hook and dent on the linked side, and then joint the other side. Front and rear sunshields Housing base Positioning pin Main sunshield Camera Safety wire IMPORTANT: • Joint both sides of the front and rear sunshields before fitting in the main sunshield.
  • Page 25 Step 7 Fix the front and rear sunshields on the camera using the front/rear sunshield fixing screw (accessory). (Recommended tightening torque: 0.72 N·m {0.53 lbf·ft}) Front/rear sunshields xing screw Note: • When removing the front and rear sunshields, perform steps 5 - 7 in the reverse order. (☞ Pages 24 and 25) Step 8 After the installation is completed, remove the tape wrapped around the camera while holding the Protection...
  • Page 26 Connection Caution: • B efore starting connections, make sure that the power connection (24 V AC power cord or LAN cable) is discon- nected. Failure to observe this may cause fire, electric shock, injury, or damage to the product. • A READILY ACCESSIBLE DISCONNECT DEVICE SHALL BE INCORPORATED TO THE EQUIPMENT POWERED BY 24 V AC POWER SUPPLY.
  • Page 27 • 24 V AC power supply connector kit (accessory) • Network cable Recommended specification of cable (wire) Connect a LAN cable (category 5e or better) to the net- work connector. Wire size (AWG), (0.22 mm) (0.33 mm) (0.52 mm) (0.83 mm) IMPORTANT: stranded • Use all 4 pairs (8 pins) of the LAN cable.
  • Page 28 • External I/O cable Note: • Make sure that the stereo mini plug is connected to this cable. When a monaural mini plug is connected, IMPORTANT: audio may not be heard. • Off, input, and output of the external I/O terminal 2 When connecting a monaural speaker with amplifier, and 3 can be switched by configuring the setting.

  • Page 29: Connection Example

    Connection example (Refer to page 26 for how to connect the cables.) When connecting with a PC directly RJ-45 female connector (cable coupler) Powered speaker LAN cable (category 5e or better, cross) Power supply Plug-in power type (24 V AC) microphone Recommended total extended cable length*...
  • Page 30 Connecting to a network using a PoE+ hub when the temperature is –30 °C {–22 °F} or less * When connecting to a network using a PoE+ hub when the temperature is –30 °C {–22 °F} or less, use a 24 V AC power supply or a tested PoE injector.

  • Page 31: Configure The Network Settings

    • T he License Agreement will be displayed. Read the Agreement and choose “I accept the term in the license agreement”, and click [OK]. • T he launcher window will be displayed. If the launcher window is not displayed, double click the “CDLauncher. exe” file on the CD-ROM. Note: • R efer to “Using the CD-ROM” in the Operating Instructions on the provided CD-ROM for further information about CDLauncher. Click the [Run] button next to [IP Setting Software]. [Panasonic IP Setting] screen will be displayed. Click the [Network Settings] button after selecting the MAC address/IP address of the camera to be configured. Select the camera you want to configure, and click [Access Camera]. Note: • When cameras are displayed in [Panasonic IP Setting] screen, click the camera with same MAC address as the MAC address printed on the camera that you want to configure.
  • Page 32 Password: 12345 • W hen changing settings related to the network settings, such as connection mode, IP address, and subnet mask, click the [Network Settings] button in [Panasonic IP Setting] screen as shown in step 3, then change each setting. • Due to security enhancements in “IP Setting Software”, “Network settings” of the camera to be configured cannot be changed when around 20 minutes have passed after turning on the power of the camera. (When the effective period is set to “20 min”...

  • Page 33: Troubleshooting

    Troubleshooting Before asking for repairs, check the symptoms with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a problem is not described below. Reference Symptom Cause/solution pages When using a PoE+ device for power supply...
  • Page 34 Or install the software to format the SD memory card on the PC. Live indicator lights red. (included in Refer to our website the CD-ROM) (http://security.panasonic.com/pss/security/support/info.html) for further information about the supported software. • I sn't the inserted SD memory card faulty? Replace the card with a normal one. • Check the following.
  • Page 35 Reference Symptom Cause/solution pages The effectiveness of the rain wash coating may have been It is hard to see images with reduced. Refer to “Cleaning this product body” in “Precautions for the camera when there are use” and clean the dome cover. If the situation does not improve raindrops on the dome cover.

  • Page 36: Specifications

    Specifications Basic • Power source: 24 V AC±15 %, PoE+ device (IEEE802.3at compliant) or Tested PoE injector (60 W) Power consumption: AC power supply: 24 V AC (50 Hz/ 60 Hz)/ 3.5 A/ 55 W Tested Power over Ethernet (Injector: 60 W): 54 V DC/ Approx. 1.0 A/ 50 W PoE+ device: 54 V DC/ Approx. 470 mA/ 25 W (Class 4 device) Standby power * AC power supply: 24 V AC (50 Hz/ 60 Hz)/ 720 mA/ 10 W...
  • Page 37 Minimum illumination: Color: 0.5 lx {0.0465 foot-candle} (F1.6, Auto slow shutter: Off (1/30 s), AGC: High) 0.031 lx {0.0029 foot-candle} (F1.6, Auto slow shutter: max. 16/30 s, AGC: High)* 0.06 lx {0.0056 foot-candle} (F1.6, Auto slow shutter: Off (1/30 s), AGC: High) 0.004 lx {0.0004 foot-candle} (F1.6, Auto slow shutter: max.
  • Page 38 Up to 16 camera images can be displayed simultaneously on a multi-screen. (Including the camera itself) Compatible SDXC/SDHC/ Manufactured by Panasonic (SD speed class 4 or higher) SD memory card: SDXC memory card: 64 GB SDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB...

  • Page 39: Standard Accessories

    *4 When using IPv6 for communication, use Microsoft Windows 8, Microsoft Windows 7 or Microsoft Windows Vista. *5 For further information about compatible devices, refer to our website (http://security.panasonic.com/pss/security/support/info.html). Standard accessories Installation Guide (this document) ........................1 pc. Warranty card ..............................1 pc.
  • Page 46 Unit of Panasonic Corporation of North America www.panasonic.com/business/ For customer support, call 1.800.528.6747 Panasonic System Networks Co., Ltd. Three Panasonic Way, Secaucus, New Jersey 07094 U.S.A. Fukuoka, Japan Panasonic Canada Inc. Authorised Representative in EU: 5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada...
