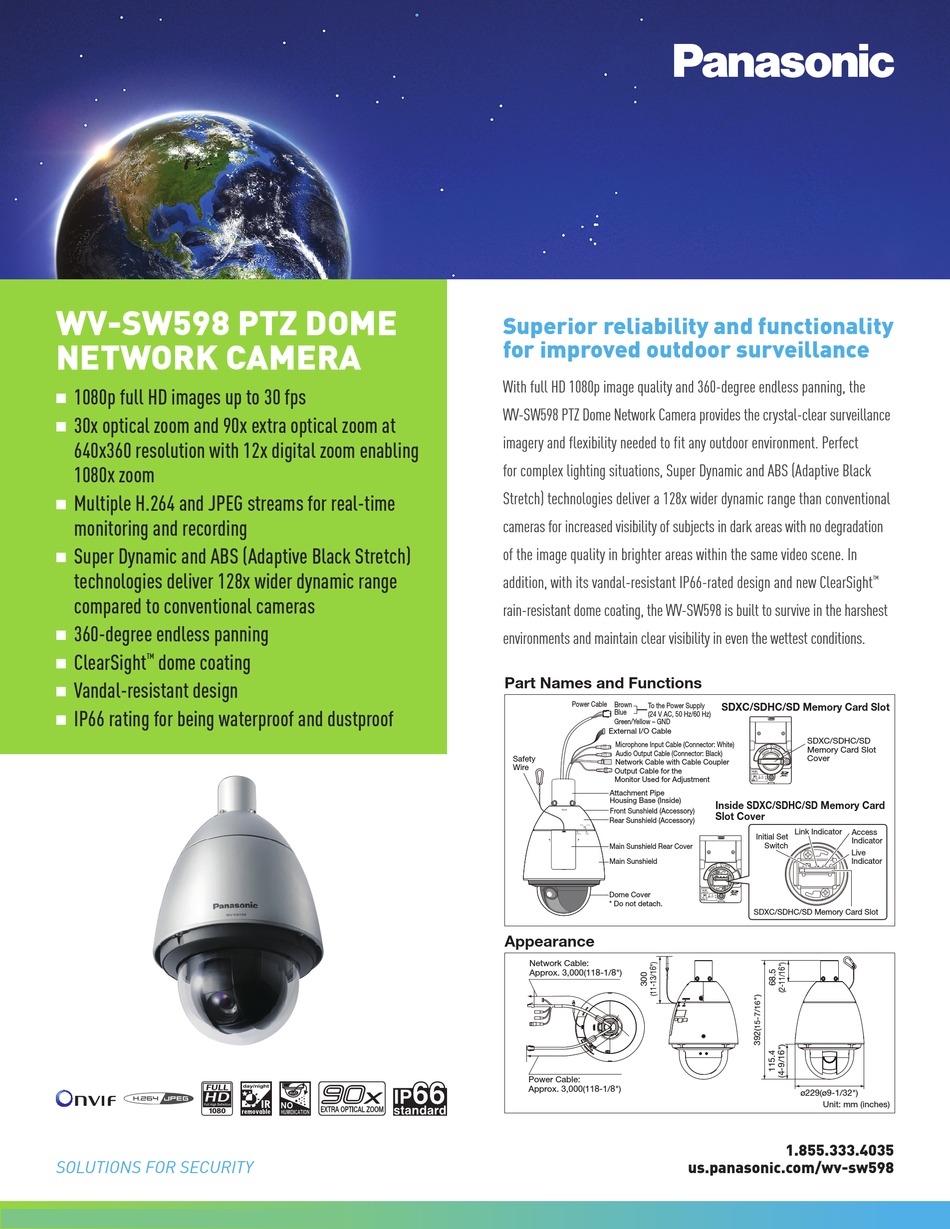

Panasonic WV-SW598 Specifications

WV-SW598 PTZ DOME
NETWORK CAMERA
1080p full HD images up to 30 fps
n
30x optical zoom and 90x extra optical zoom at
n
640x360 resolution with 12x digital zoom enabling
1080x zoom
Multiple H.264 and JPEG streams for real-time
n
monitoring and recording
Super Dynamic and ABS (Adaptive Black Stretch)
n
technologies deliver 128x wider dynamic range
compared to conventional cameras
360-degree endless panning
n
ClearSight dome coating
™
n
Vandal-resistant design
n
IP66 rating for being waterproof and dustproof
n
SOLUTIONS FOR SECURITY
Superior reliability and functionality
for improved outdoor surveillance
With full HD 1080p image quality and 360-degree endless panning, the
WV-SW598 PTZ Dome Network Camera provides the crystal-clear surveillance
imagery and flexibility needed to fit any outdoor environment. Perfect
for complex lighting situations, Super Dynamic and ABS (Adaptive Black
Stretch) technologies deliver a 128x wider dynamic range than conventional
cameras for increased visibility of subjects in dark areas with no degradation
of the image quality in brighter areas within the same video scene. In
addition, with its vandal-resistant IP66-rated design and new ClearSight
rain-resistant dome coating, the WV-SW598 is built to survive in the harshest
environments and maintain clear visibility in even the wettest conditions.

Part Names and Functions

Power Cable Brown
To the Power Supply
Blue
(24 V AC, 50 Hz/60 Hz)
Green/Yellow – GND
External I/O Cable
Microphone Input Cable (Connector: White)
Audio Output Cable (Connector: Black)
Safety
Network Cable with Cable Coupler
Wire
Output Cable for the
Monitor Used for Adjustment
Attachment Pipe
Housing Base (Inside)
Front Sunshield (Accessory)
REAR
Rear Sunshield (Accessory)
OPEN LOCK
START LOCK
Main Sunshield Rear Cover
Main Sunshield
Dome Cover
* Do not detach.
Appearance
Network Cable:
Approx. 3,000(118-1/8")
Power Cable:
Approx. 3,000(118-1/8")
SDXC/SDHC/SD Memory Card Slot
SDXC/SDHC/SD
Memory Card Slot
Cover
Inside SDXC/SDHC/SD Memory Card
Slot Cover
Link Indicator Access
Initial Set
Indicator
Switch
Live
Indicator
SDXC/SDHC/SD Memory Card Slot
ø229(ø9-1/32")
Unit: mm (inches)
1.855.333.4035
us.panasonic.com/wv-sw598
™
