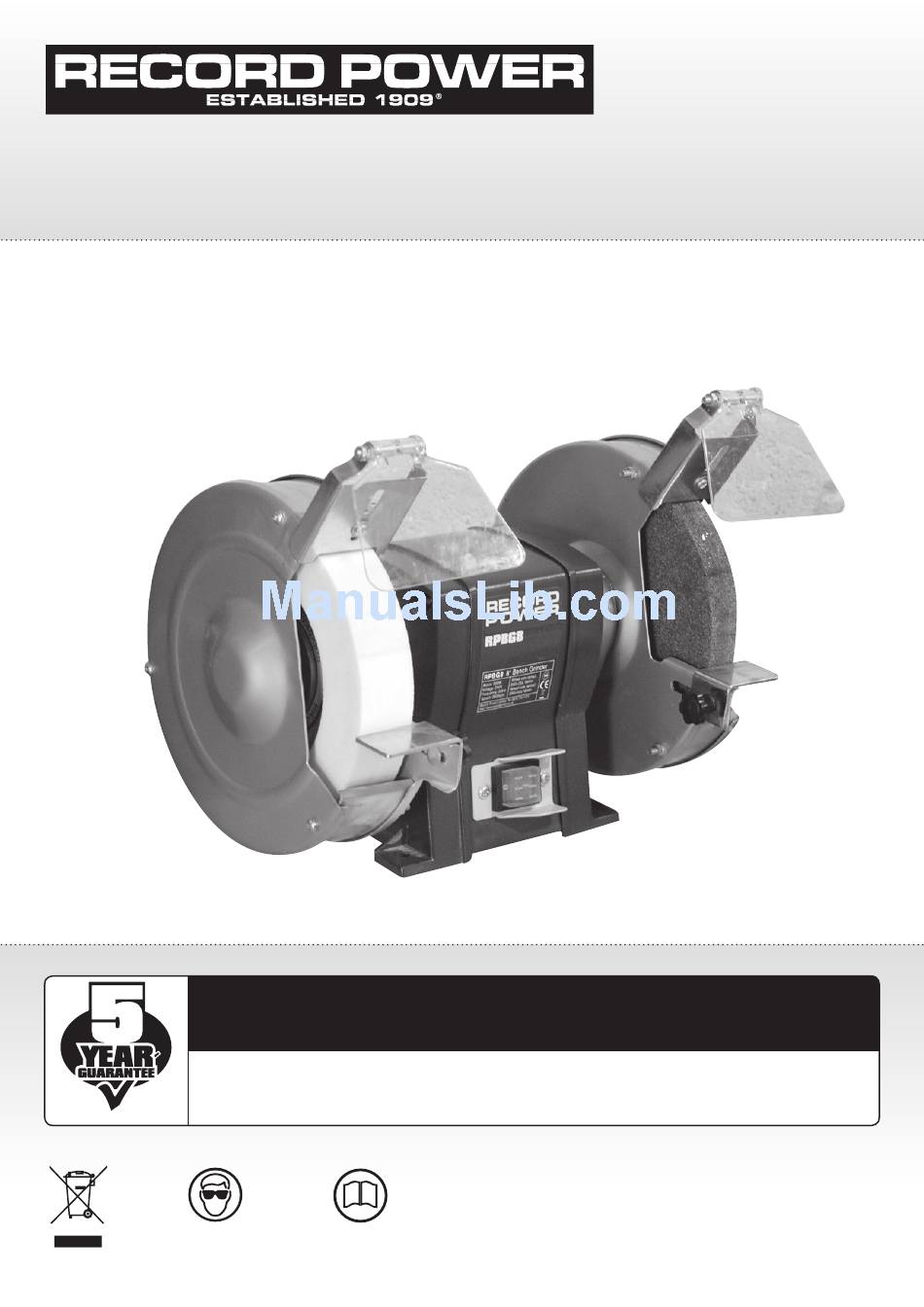

- Page 1 Original Instruction Manual RSBG6 6” Bench Grinder RSBG8 8” Bench Grinder Version 3.0 November 2012 To register this product please visit www.recordpower.info It is important to register your product as soon as possible in order to receive efficient after sales support and be entitled to the full 5 year guarantee.
-
Page 2: Table Of Contents
8. Operating the Grinder 9. Mounting of Wheels 10. Wheel Care 11. Maintenance 12. Dust Extraction 13. Control Identification 14. Parts List & Diagrams Certificate of Conformity Original Instruction Manual | RSBG6 & RSBG8 Bench Grinders | Version 2.0 | August 2012... -
Page 3: Explanation Of Symbols
1. Explanation of Symbols THE SYMBOLS AND THEIR MEANINGS SHOWN BELOW MAY BE USED THROUGHOUT THIS MANUAL. PLEASE ENSURE THAT YOU TAKE THE APPROPRIATE ACTION WHEREVER THE WARNINGS ARE USED. Mandatory Instructions Read and fully understand the instruction manual before attempting to use the machine. Indicates an instruction that requires particular attention Wear protective eyewear Use respiratory protective equipment... -
Page 4: General Health & Safety Guidance
‘OFF’ immediately and disconnect it from the power supply. Do not courses. Do not use this machine until adequate training has restart until finding and correcting the source of the problem. been undertaken. Original Instruction Manual | RSBG6 & RSBG8 Bench Grinders | Version 2.0 | August 2012... - Page 5 2. General Health & Safety Guidance - Cont. 10. Keep the work area clear • The machine must be connected to an earthed power supply. • Working clearances can be thought of as the distances between • The power supply must be equipped with a circuit breaker that machines and obstacles that allow safe operation of every machine provides short circuit, overload and earth leakage protection.
- Page 6 • Do not use compressed air to clean the machine. Always use a brush to dislodge dust in places that are awkward to reach and a dust extractor to collect the waste. Original Instruction Manual | RSBG6 & RSBG8 Bench Grinders | Version 2.0 | August 2012...
-
Page 7: Additional Health & Safety Guidance For Bench Grinders
3. Additional Health & Safety Guidance for Bench Grinders Safe Operation the correct size to fit inside the wheel housing of the machine. Do • The bench grinder should be level and stable at all times not fit other accessories such as polishing mops, wire wheels etc. that will not fit inside the wheel housing. - Page 8 Further guidance can be found in the ‘Safety in the use of abrasive wheels – publication HSG17’ published by Health & Safety Executive and available from their website www.hse.gov.uk. Original Instruction Manual | RSBG6 & RSBG8 Bench Grinders | Version 2.0 | August 2012...
-
Page 9: Electrical Connection
In this case If in doubt about the connection of the electrical supply, always there will not be an earth wire within the circuit. consult a qualified electrician. RSBG6 & RSBG8 Wiring Diagram ... -
Page 10: Record Power Guarantee
Product and in the event of a claim under this guarantee proof of the original purchase date will be required to validate the warranty period. Original Instruction Manual | RSBG6 & RSBG8 Bench Grinders | Version 2.0 | August 2012... -
Page 11: Specifications
6. Specifications RSBG6 RSBG8 Motor: 240 V - 50 Hz 240 V - 50 Hz Motor Power: 370 W 500 W Full load current: 1.5 A 2.1 A Speed: 2800 rpm 23 M/second 2800 rpm 30 M/second Wheel Dimensions: Grey: 150 x 20 x 12.7 mm... -
Page 12: Operating The Grinder
• Do not stop the wheel by applying pressure to it at the conclusion of the grinding operation. Always allow the machine to run down freely to rest. • The machine should not be operated for more than 30 minutes per hour. Original Instruction Manual | RSBG6 & RSBG8 Bench Grinders | Version 2.0 | August 2012... -
Page 13: Mounting Of Wheels
Replacement grinding wheels are available from Record Power and should be fitted following the instructions in section 9. Only genuine Record Power grinding wheels should be used to ensure the correct bore and diameter. Use of non Record Power wheels will invalidate the warranty. -
Page 14: Dust Extraction
Motor Housing Spark Shield Wheel Guard Grinding Wheel (Grey - Coarse) Tool Rest Tool Rest Lock Base Grinding Wheel (White - Fine) Start / Stop Switch Original Instruction Manual | RSBG6 & RSBG8 Bench Grinders | Version 2.0 | August 2012... -
Page 15: Parts List & Diagrams
14. Parts Lists & Diagrams Item Description Item Description Eye Shield Support Washer 5 Screw M5 x 45 Rubber Mat Washer 5 Base Plate Washer 5 Capacitor Nut M5 Bearing Protective Cover Rotor Motor Guard Bolt M5 x 135 Nut M12 Stator Screw M5 x 15 Plug... - Page 16 TüV SüD Product Service GmbH, Zertifizierstelle, Ridlerstrasse 65, 80339 München, Germany and complies with the relevant essential health and safety requirements. Signed............Dated: 01/02/12 Andrew Greensted Managing Director Original Instruction Manual | RSBG6 & RSBG8 Bench Grinders | Version 2.0 | August 2012...
- Page 17 Tel: 01246 561 520 | www.recordpower.co.uk...
