Zodiac Plus Operator Manual
2
Scroll Bar
4-2 Viewing the Current Job or Image
1. Zoom Out Button
2. Zoom In Button

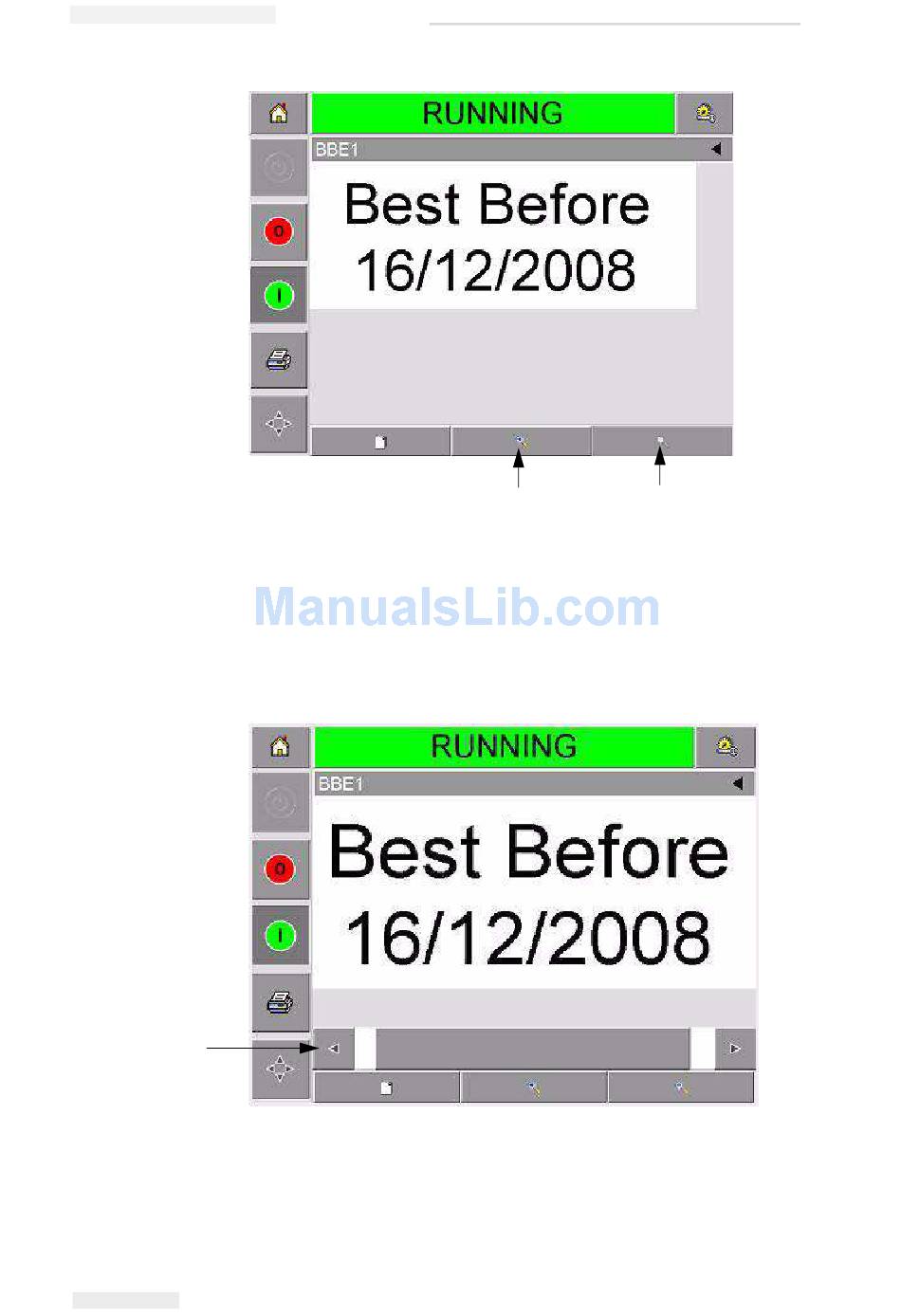

Figure 4-2: Current Job Details Display
To magnify the image on the screen, touch the Zoom In button
(Figure 4-2). This allows you to view the details of the complicated
images easily.
Figure 4-3 shows a magnified image, along with an activated scroll
bar to enable scrolling along the length of the selected image.
Figure 4-3: Magnified Image
1
2
Rev AA
