Summary of Contents for lap RH60B-LED

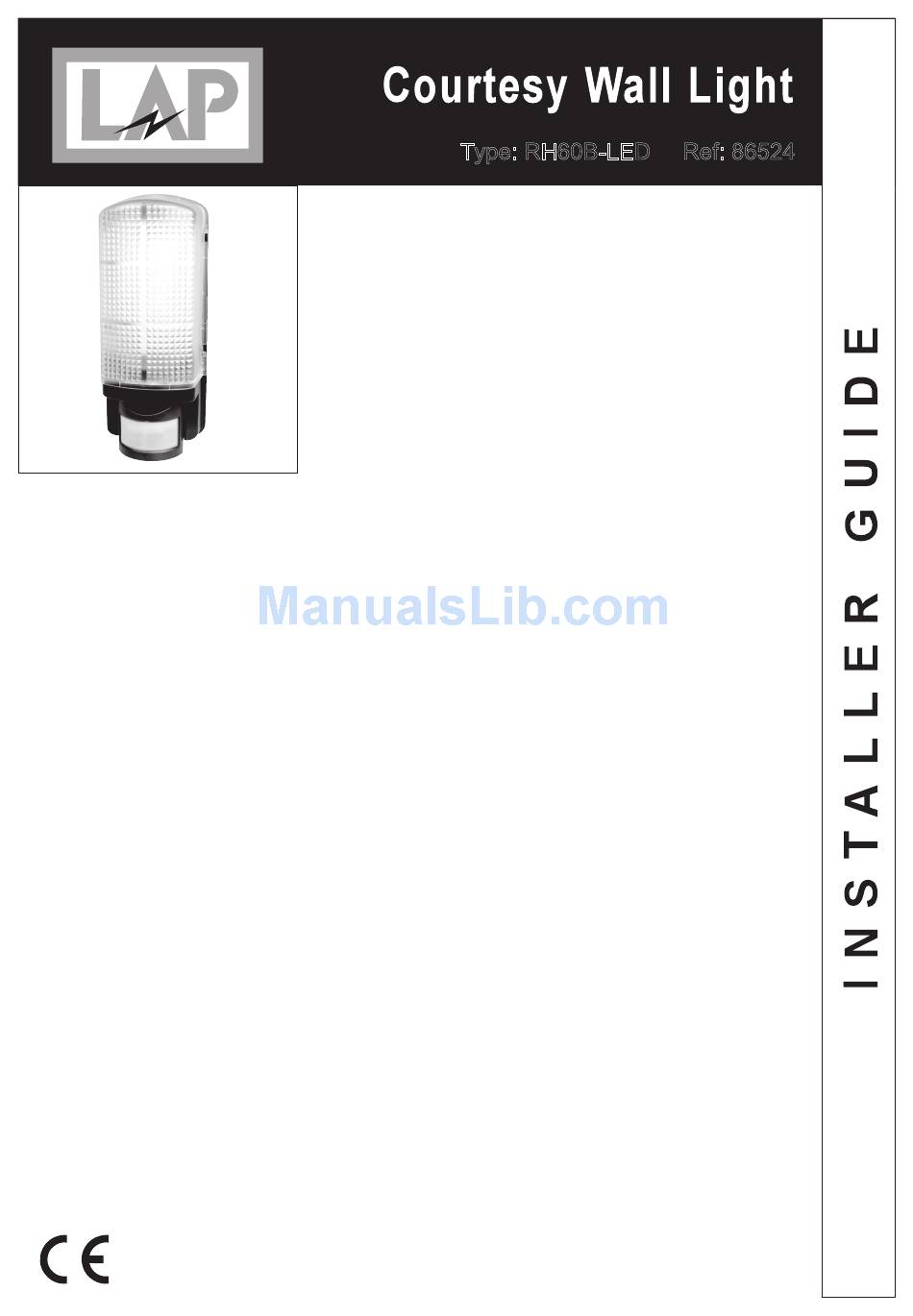

- Page 1 Type: RH60B-LED Ref: 86524...
- Page 2 The bulkhead light incorporates a PIR (Passive Infra Red) sensing device which continuously scans a preset operating zone and immediately switches the lamp on when it detects movement in that area. This means that whenever movement is detected within the range of the sensor the lamp will switch on automatically to illuminate pathways, steps, patios, porches, or whatever area you have selected to light for reasons of safety, convenience or security.
- Page 3 ■ To avoid damage to unit-do not aim the sensor towards the sun. ■ To avoid nuisance triggering, the sensor should be directed away from heat sources such as barbecues, Air-conditioners, other outside lighting, moving cars and flue vents. ■ To avoid nuisance triggering, keeping away from the area of strong electromagnetic disturbance. ■...
- Page 4 1. Installation should be carried out by a licensed electrician and according to IEC wiring Regulations. 2. Switch power off at the meter box and ensure that there is no power to the lamp. 3. Remove the Lampshade using a screwdriver, see fig 2 4.
- Page 5 1. Put the Lux control knob to light ( ) position, turn the wall switch on and wait half a minute for the control circuit to stabilize. At this stage ensure that the TIME control knob is set at minimum duration time (-) position.
- Page 6 PROBLEM POSSIBLE CAUSE SUGGESTED REMEDY Lamp does not switch 1. no mains voltage Check all connections, and Fuses/switches on when there is movement in the 2. near by lighting is too Redirect sensor or relocate bright. the unit detection area. 3.
