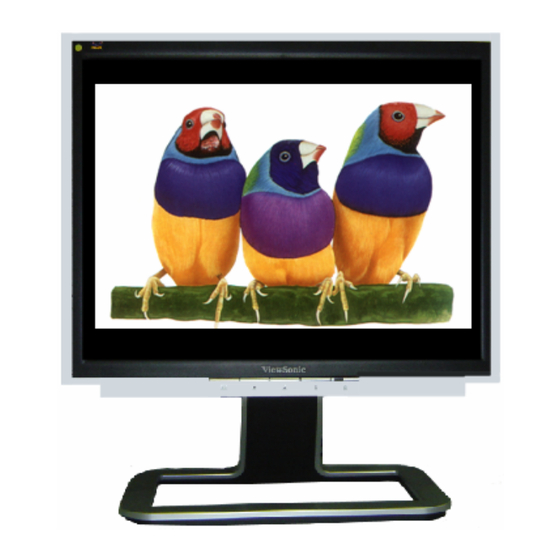

Service Manual ViewSonic VX712 Model No VS10057 17” Color TFT LCD Display Manufacture Date: Dec-20-05 - 1 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Further, ViewSonic reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of ViewSonic to notify any person of such revision or changes.
6. Troubleshooting Flow Chart 7. Recommended Spare Parts List 8. Different Part List 9. Exploded Diagram And Spare Parts List 10.Disassemble Process 11. Block Diagram 12. Schematic Diagram 13. PCB Layout Diagram - 3 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
3. Keep wires away from high voltage, high temperature components and sharp edges. 4. Keep wires in their original position so as to reduce interference. 5. Usage of this product please refer to also user’s manual. - 4 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 5
“Mura.” not touch the surface of the polarizer. Taking out the monitor by grasping the LCD Take out the monitor with cushions panel. That may cause “Mura.” - 5 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 6
“Mura.” Place the monitor on the lap, the panel The panel is placed facedown on the lap. That surface must be upwards. may cause “Mura.” - 6 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Storage: -20°C to +60°C Audio Input 1 x 2 Watts Energy Star compliant VESA Power Management DPMS compatible <1 W Input Voltage : 90V~264V Power Consumption: 40 Watts(Max.) 35 Watts(Typ.) - 7 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 8
Horizontal sync (Composite sync) Vertical sync (SCL) SIGNAL LEVEL CONNECTOR SIGNAL DESCRIPTION (VIDEO) vp-p Green (VIDEO) vp-p Blue (VIDEO) vp-p H/Sync TTL positive or negative V/Sync TTL positive or negative DDC1/2B DDC1/2B - 8 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 10
3. Front Panel Function Control Description Main Menu with OSD controls Front Control Panel shown below in detail - 10 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 11
. If necessary, make small adjustments using H. Position and V. Position until the screen image is completely visible. (The black border around the edge of the screen should barely touch is illuminated “active area” of the LCD display.) - 11 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 12
Enabling the sRGB setting will cause the Contrast and Brightness adjustments to be disabled. 9300K — Adds blue to the screen image for cooler white (used in most office setting with fluorescent lighting). - 12 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 13
Information displays the timing mode (video signal input) coming from the graphics card in the computer, the LCD model number, the serial number, and ® the ViewSonic website URL. See your graphics card’s user guide for instructions on changing the resolution and refresh rate (vertical frequency).
Page 14
“15 second” setting, if a control is not pushed within 15 seconds, the display screen disappears. OSD Background allows you to turn the OSD background On or Off. - 14 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 15
720x400 or 640x400 mode White Balance. (Not shown on user’s guide) Power Lock OSD Lock Factory Mode Remark : All the short cuts function are only available while OSD off. - 15 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
The main board contains panel control logic, brightness control logic, DDC and DC convert DC circuit and so on. PWPC board Audio board Backlight and Panel RTD2523 EPROM EPROM EPROM Keyboard - 16 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 17
Start Circuit R903, R904,R905 CN902 Over Control IC Voltage Protect ON/OFF OSC and MOSFET DC Convert Output Q203 Circuit Circuit Lamp Over ON/OFF Feedback Voltage Control Circuit Control IC - 17 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 18
8 even-odd signal SDIO[0] Serial control I/F data in/Parallel port data[0] SDIO[1]/TCON[4]/BBLU[0] Parallel port data[1]/TCON[4]/TTL BBLU[0] SDIO[2]/TCON[3]/BBLU[1] Parallel port data[2]/TCON[3]/TTL BBLU[1] SDIO[3]/PWM2/TCON[2] Parallel port data[1]/TCON[4]/PWM2 SCLK Serial control I/F clock - 18 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 19
It includes an 8051 CPU core, 768-byte SRAM, 4 channels of 6-bit ADC, 3 external counters/timers, 6 channels of PWM DAC, VESA DDC interface, and a 64K-byte internal program Flash-ROM memory. - 19 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 20
- 20 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 21
General purpose I/O (CMOS) /6-bit ADC channel 3 P6.3/AD3 input P6.4 General purpose I/O (CMOS) P6.5 General purpose I/O (CMOS) P6.6/CLKO1 General purpose I/O/CLKO1 (CMOS) P6.7 General purpose I/O (CMOS) VSYNC VSYNC input - 21 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 22
TDA7496L(U201): The TDA7496L is a stereo 2W+2W class AB power amplifier assembled in the @ Powerdip, driving speakers as low as 8 . The function of each pin and the inside circuit diagram are as follows: Block Diagram - 22 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 23
Increasing the resistance will decrease the Setting current source and reduce the switching frequency,. A 26k Ω resistor R1 creates a 50uA constant current L1 and generates 65kHz switching frequency. - 23 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 24
Power supply Power Supply. The totem-pole output driver for the power MOSFET. A soft GATE Driver Output driving waveform is implemented to improve EMI. Block Diagram - 24 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 25
Positive input for error amplifier Output 1 dead time/soft start 1DTC 2IN- Positive input for error amplifier setting 1OUT Output 1 Timing latch setting Ground Reference voltage output (2.5v) - 25 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
5400 color temp. parameter is Wx = 0.335±0.03;Wy = 0.350 ±0.03; Y = 250 ±20 cd/m D、MEM.CHANNEL10 ( SRGB color): 6500 color temp. parameter is Wx = 0.313±0.03;Wy = 0.329 ±0.03; Y = 220 ±20 cd/m - 26 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 27
3.)Into factory mode of VX712 A、First Power off, then press Switch 2 button along with press Power button will activate the factory mode, then MCU will do AUTO LEVEL automatically. Meanwhile press MENU the OSD screen will located at LEFT TOP OF PANEL.
Page 28
2).Change to each mode in turn and wait for the monitor finish auto-alignment and save press before change to next mode. 3).Until all of modes are adjusted,exit OSD menu and press POWER OFF to exit factory mode. - 28 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 29
640 x 480 @ 60Hz, 31.5kHz 640 x 480 @ 67Hz, 35.0kHz 640 x 480 @ 72Hz, 37.9kHz 640 x 480 @ 75Hz, 37.5kHz 640 x 480 @ 85Hz, 43.27kHz - 29 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 30
Dead Pixel/Line pixels should Screen compliant with the spec. The screen must have White Balance White & Black Pattern the pure white and black Figure 9 pattern, no other color. - 30 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 31
Fine Line Morie Pattern (Figure1) Gray Scale Pattern (Figure2) Horizontal & Vertical Thickness Pattern R. Color Pattern (Figure 4) (Figure 3) G. Color Pattern (Figure 5) B. Color Pattern (Figure 6) - 31 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 32
Test Pattern: Burn In Mode (Refer to Chapter III-3. Hot Keys for Function Controls) Make sure the F/W is the latest version. Test Pattern: EDID program Make sure it can pass test program. - 32 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 33
- Make sure there is audio output. - Make sure that audio function (volume 80%) is working without noise and resonance. - Make sure that the sound of right and left speakers are in balance. - 33 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 34
When you receive the returned monitor, please check whether the firmware version is the latest. If not, please do the following procedures to upgrade it to the latest version. 1 Equipment Needed - VX712 Monitor - Fixture for Firmware Upgrade - VGA Cable (P/N: 42.59901.003) *1(Pin 4, 11 should be connected to GND) - PC (Personal Computer) - LPT Cable (P/N: 42.59906.001) *1...
Page 35
2 Setup Procedure 2.1 Connect P2 of Fixture with printer port of PC by LPT Cable. 2.2 Connect P1 of Fixture with VX712 Monitor by VGA Cable. 2.3 Connect Power Cord to VX712 Monitor. 2.4 Connect P3 to the Signal Generator (eg.Chroma2326) for verifying it after the operation being completed.
Page 36
3.1.2 After extracting the zip file, the total files list as Fig 3.1, and double click the file of setup.exe to install. Fig 3.1.2 3.1.3 Press “Next” button to continue, see Fig 3.1.3. Fig 3.1.3 - 36 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 37
3.1.4 Keep default setting or press “Change” button for selecting the path that you want, and then press “Next” button to continue, see Fig 3.1.4. Fig 3.1.4 3.1.5 Press “Install” button to continue, see Fig 3.1.5 Fig 3.1.5 - 37 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 38
3.1.6 The Installer Information shows package warning, press “Ignore” button to continue, see Fig 3.1.6. Fig 3.1.6 3.1.7 Installation has finished, press “Finish” button, see Fig 3.1.7. Fig 3.1.7 Step 2. ISP security code setting. - 38 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 39
(default setting), see Fig 3.2.1. Fig 3.2.1. 3.2.2 Press “Create Security File” button to key in security code. Adjusting bar to decrease speed of IIC bus, see Fig 3.2.2. Fig 3.2.2. - 39 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 40
94, 94, AC, CA, Fig 3.2.3 Step 3. Let VX712 set to be connected with AC cable and VGA cable. Step 4. Use ISP to program MCU. 4.3.1 Select MTV type first, load the binary or Intel hex file that you want to program into the MCU, and select “Auto”...
Page 41
“Check MCU CRC OK” Fig 4.3.1 Step 5. Unplug and replug power cord of VX712 set and then check the OSD operation and image on srceen. Step 6. At last, do “Memory Recall.” - 41 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 42
3.2 Setup Procedure 3.2.1 Connect P2 and P4 of Fixture with VGA ports of VX712 by VGA Cable. 3.2.2 Connect P3 of Fixture with DVI port of VX712 by DVI-DVI Cable. 3.2.3 Connect P1 of Fixture with Printer port of PC by LPT Cable.
Page 43
3.3 DDC Key In Procedure Sep1.Select and execute DDc Key In program - 43 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 44
Sep2:Inpute the S/N and execute “Enter” - 44 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 45
- 45 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 46
Sep3:Key the “Enter” and write the data - 46 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 47
Sep4:If ddc program OK and show “data compare ok” - 47 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 48
5.7 Packing For Shipping - 48 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 49
MONITOR T782KKWHBDVWABP EPE COVER 45G 88609 B PE BAG 45G 88607 44G3734 1 44G3734 2 AUDIO CABLE 89G 173 56 31 POWER CORD 89G404A18N LS SIGNAL CABLE 89G 728HAA902 - 49 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 61
L204 73G 174 30YSA FILTER L203 73G 174 30YSA FILTER L204 73G 253 91 L CHOKE BY LI TA L903 73G 253 91 L CHOKE BY LI TA L904 - 61 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
40G581B709 1B BLUE STICK WITH U 89G 173 56 31 AUDIO CABLE 89G1748GAADVI SIGNAL CABLE 89G410A18N LS POWER CORD M1G1730 6128 CR3 SCREW XN01C M1G1730 6128 CR3 SCREW XN01D - 68 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
12、 Disassemble the 4 fixed screws of the panel, remove the main frame, as showed in the following the picture 19,20,21. Do not damage the cable of the panel. 13、 That’s all. The disassemble process of the unit is over. - 71 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
C220 1000p/50v is power GND R239 R237 560 Title 0.47U/25V 1U/25V 2. FOR HYDIS-100 INVERTER Size Document Number Custom PWPC1742HDV1(715L1075-B-V1) is signal GND Date: Monday, May 24, 2004 Sheet - 79 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 80
0.01uF 2.4K 1/4W 0.1uF 4.7K 1/4W CN901 AOC (Top Victory) Electronics Co., Ltd. Title 1.POWER 12V&5V OUTPUT Size Document Number PWPC1742HDV1(715L1075-B-V1) Date: Monday, May 24, 2004 Sheet - 80 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 81
12.6 Audio - 81 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
13 PCB Layout Diagrams 13.1 MAIN BOARD PCB TOP VIEW 13.2 MAIN BOARD PCB BUTTON VIEW - 82 – ViewSonic Corporation Confidential - Do Not Copy VX712...
Page 83
13..3 KEYBOARD TOP VIEW 13.4 KEYBOARD BUTTON VIEW - 83 – ViewSonic Corporation VX712 Confidential - Do Not Copy...
Page 84
13.5 POWER PCB TOP VIEW - 84 – ViewSonic Corporation Confidential - Do Not Copy VX712...
Page 85
13.6 POWER PCB BUTTON VIEW - 85 – ViewSonic Corporation Confidential - Do Not Copy VX712...
Page 86
13.7 AUDIO PCB BUTTON VIEW - 86 – ViewSonic Corporation Confidential - Do Not Copy VX712...
Page 87
Add: Tel: Fax : E-Mail: After completing this form, please return it to ViewSonic Quality Assurance in the USA at facsimile 1-909-839-7943. You may also e-mail any suggestion to the Director, Quality System & Process (marc.maupin@viewsonic.com) - 87 – ViewSonic Corporation...
