Installing Guide Of Honda CR-V

Navigation& Entertainment System

Installation Flow

(V1.1)

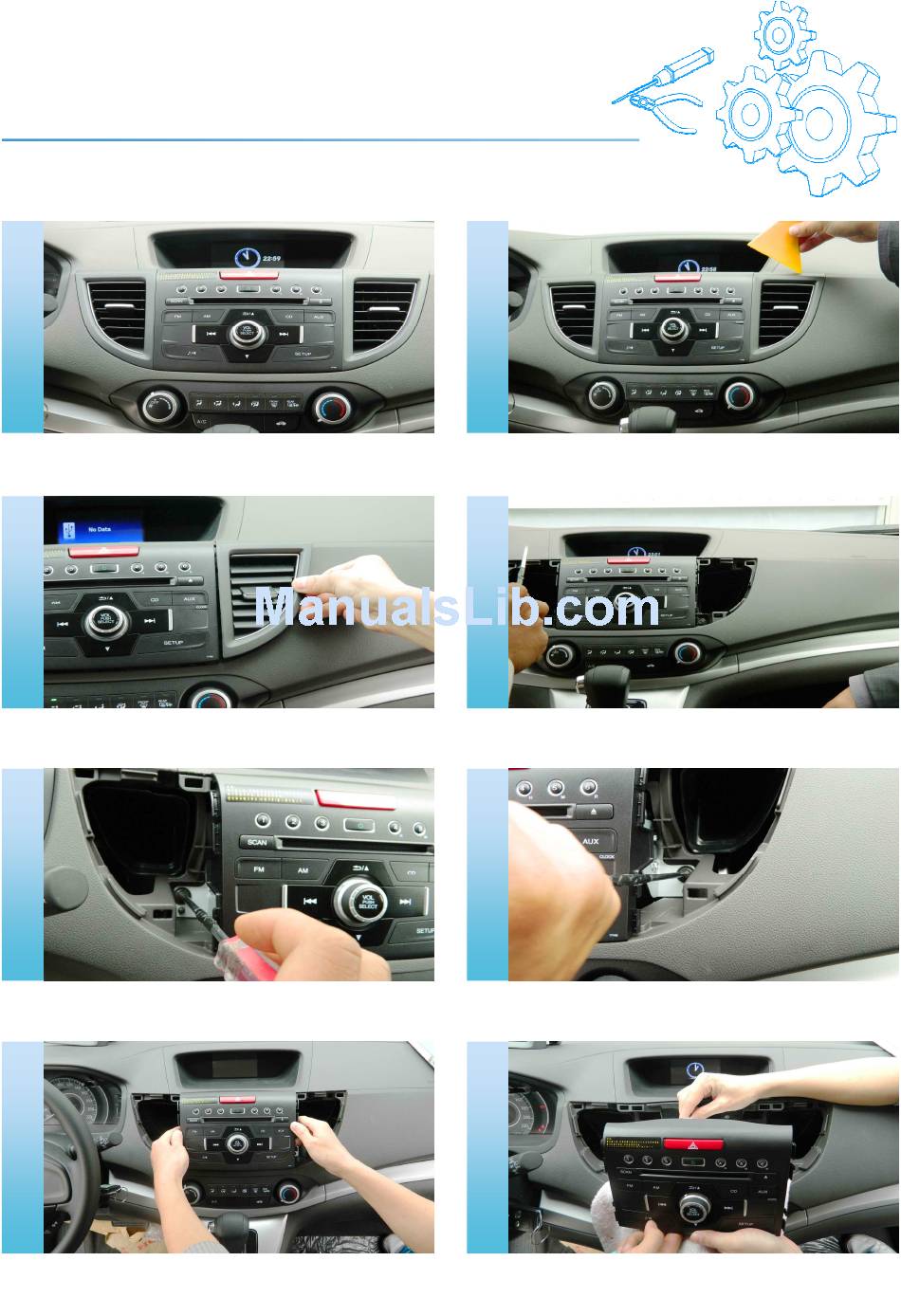

The original car CD unit．．．．

Remove left&right air outlet device.

Remove the screw in the left conor of original

CD y using the 8MM sleeve.

Take out the original Radio.

Pry the cover panel on the right and left side of

air conditioner frame.

Picture without air outlet device.

Remove the screw in the right conor of original

CD y using the 8MM sleeve.

Disconnect the Emergency power joint in the

backside of the panel.

Need help?

Do you have a question about the CR-V Navigation System and is the answer not in the manual?

Page 1 Installing Guide Of Honda CR-V Navigation& Entertainment System Navigation& Entertainment System Navigation& Entertainment System Navigation& Entertainment System Installation Flow Installation Flow Installation Flow Installation Flow (V1.1) (V1.1) (V1.1) (V1.1) The original car CD unit．．．． Pry the cover panel on the right and left side of air conditioner frame.
Page 2 Disconnect the backside original harness. Assemble the original CD mounting bracket to our machine. Assemble the Buckle & Emergency button of Picture show our dedicated power line (the 5 original CD unit to our machine. wires marked by the red circle connect to the main power cables according to the S/N in the wires and cables).
Page 3 Our dedicated power line connect to main power Picture show our dedicated power line connect of original car (bule circle part connect to to out machine Install our machine and original original car antenna, red circal part is CAN, Air conditioning outlet device. yellow circle part connect to AUX wire, green circle part connect to main power cable).
