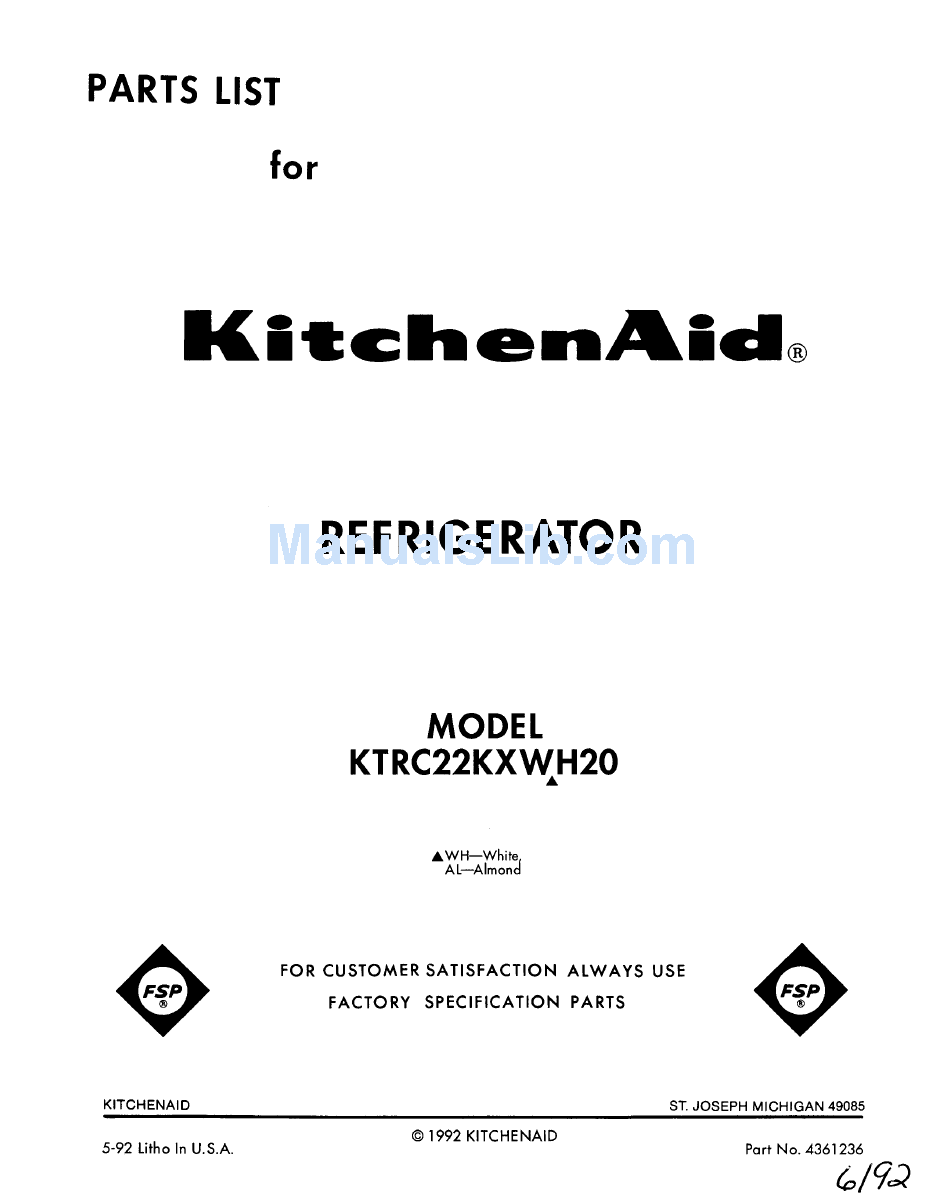

- Page 3 Cabinet (Not A Serviceable Part) 2152011 Roller, Front 489333 Screw, 5/16-24 x 1-1/4 981122 Roller, Rear (2) 489339 Screw (6) 489242 Screw Hole Plug 2151652 White 2151653 Almond 1126276 Control, Front Cover 2154065 Heater, Mullion 1129018 Clip, Center Rail (4) 2149077 Spacer (3) Center Rail...
- Page 4 549193 Clamp...
- Page 6 Liner (Not A Serviceable Part) 1127626 Wiring, Fan Motor 1110779 Grommet (4) 941839 Hole Plug (3) 1118066 Stud (2) 946356 Stud (3) 946357 Saddle Stud, R.S. 946358 Saddle Stud, L.S. 1108112 Rocker Arm Switch 946355 Support, Stud (6) 2157410 Cover, Air Duct 489242 Screw 2154977...
- Page 8 Liner (Not A Serviceable Part) 1127626 Wiring, Fan Motor 1110779 Grommet (4) 941839 Hole Plug (3) 1118066 Stud (2) 946356 Stud (3) 946357 Saddle Stud, R.S. 946358 Saddle Stud, L.S. 1108112 Rocker Arm Switch 946355 Support, Stud (6) 2157410 Cover, Air Duct 489242 Screw 2154977...
- Page 10 1125507 Bottom, Compartment Separator 1125510 Box, Control 1116849 Switch, Light 1127570 Timer, Defrost (10 Hour) 488693 Screw 1125964 Switch, Toggle 851067 Socket (2) 946059 Bulb, Light (2) 940014 Hole Plug 1125768 Thermostat Assembly 489214 Screw (2) 1125511 Light Pipe (R.S.) 1125512 Light Pipe (L.S.) 1125515...
- Page 12 486692 Speed Nut 1108179 Fan, Blade 2154010 Condenser Assembly 489337 Screw 548745 Clip, Wire (2) 489019 Screw, 8-32 x 3/8 2153974 Drain Pan & Heat Shield 510716 Tube Clamp (2) 2149670 Dampener 943322 Spring, Relay Case 1105055 Case, Relay 2154140 Overload 2154436 Relay...
- Page 13 978029 Valve, Access (5/8") 978030 Valve, Access (3/4") 876764 Valve, Access (3/16")
- Page 15 Panel, Refrigerator Door 1122549 White 1122658 Almond (Also Order Item 27) 534927 Hole Plug (2) 943185 Plate, Tap (4) 944036 Bracket, Door Stop 488921 Screw, 8 x 1/2 489028 Screw, 8-15 x 1/2 Hole Plug 844478 White 989196 Almond 2148565...
- Page 17 Panel, Freezer Door (Also Order Item 21) 1122550 White 1122663 Almond Hole Plug (2) 534927 White 989197 Almond 943185 Plate, Tap (4) 944035 Bracket, Door Stop 488921 Screw, 8 x 1/2 489028 Screw Hole Plug 844478 White 989196 Almond 2148567 Door Gasket, Magnetic 489101 Screw, 7 x 1/2...
