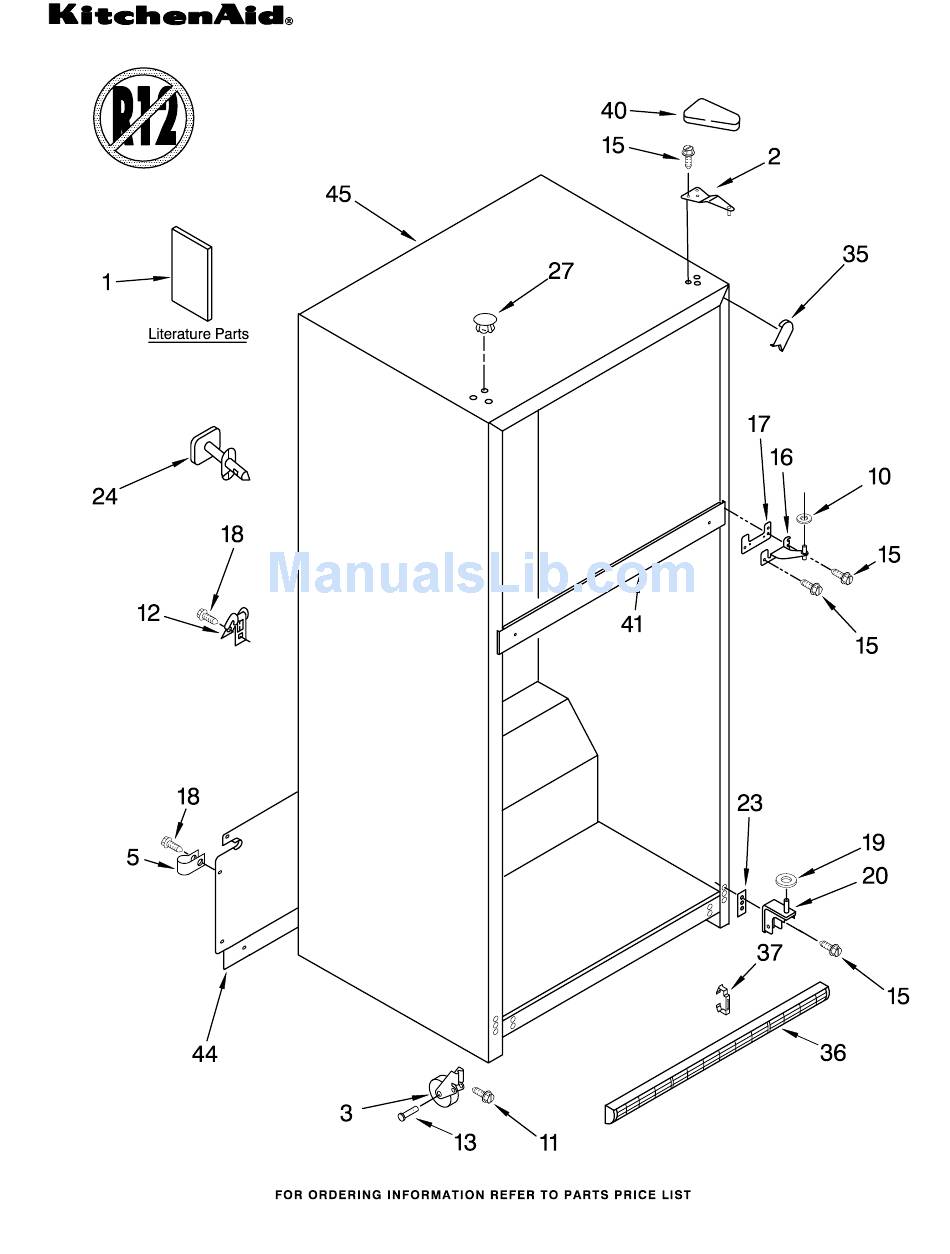

- Page 1 CABINET PARTS REFRIGERATOR For Models: KTRC22ELWH01,KTRC22ELBT01, KTRC22ELBL01, KTRC22ELSS01 (White) (Biscuit) (Black) (Stainless Steel) 7−02 Litho In U.S.A. (kdj) Part No. 8198149 Rev. A...
-
Page 2: Cabinet Parts
CABINET PARTS For Models: KTRC22ELWH01,KTRC22ELBT01, KTRC22ELBL01, KTRC22ELSS01 (White) (Biscuit) Illus. Part LIT2218879 Service & LIT2225256 Energy Label LIT2218589 Use & Care Guide LIT628370 Modular Icemaker LIT2218345 Customer Quick LIT2210486 Instrucion Sheet, 2189410 Hinge (Top) 2166108 Roller, Front (2) 489385 Clamp, Tube... - Page 3 LINER PARTS For Models: KTRC22ELWH01,KTRC22ELBT01, KTRC22ELBL01, KTRC22ELSS01 (White) (Biscuit) (Black) (Stainless Steel) 8198149...
- Page 4 For Models: KTRC22ELWH01,KTRC22ELBT01, KTRC22ELBL01, KTRC22ELSS01 (White) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2197380 Grommet (2) 2221653 Gasket, Evaporator Cover (2) 2213493 Adaptive Defrost Control/P.C. Board Combination 549512 Thermostat Tube Barrier 2179834 Seal, Air Diffuser 2187448 Wire Assembly, Control Box...
-
Page 5: Shelf Parts
SHELF PARTS For Models: KTRC22ELWH01,KTRC22ELBT01, KTRC22ELBL01, KTRC22ELSS01 (White) (Biscuit) (Black) (Stainless Steel) 8198149... - Page 6 SHELF PARTS For Models: KTRC22ELWH01,KTRC22ELBT01, KTRC22ELBL01, KTRC22ELSS01 (White) (Biscuit) Illus. Part 2210522 Shelf, Ladder (2) 2202821 Shelf, Ladder 2216624 Egg Bin 489478 Screw 2174014 Frame Assembly, 2188212 Roller & Tread 2210583 Crisper Cover 2174478 Eyelet, Roller 2210571 Glass, Crisper 2179213 Gasket, Crisper...
-
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KTRC22ELWH01,KTRC22ELBT01, KTRC22ELBL01, KTRC22ELSS01 (White) (Biscuit) (Black) (Stainless Steel) 8198149... - Page 8 REFRIGERATOR DOOR PARTS For Models: KTRC22ELWH01,KTRC22ELBT01, KTRC22ELBL01, KTRC22ELSS01 (White) (Biscuit) Illus. Part 2205214 White 2205215 Biscuit 2205217 Black 2212418 Stainless Steel 2189202 Bracket, Door 489276 Screw 2183003 Thimble 2212648 White 2212649 Biscuit 2212651 Black 2202875 Mist Beige 2202882 Black 2213333 White...
-
Page 9: Unit Parts
UNIT PARTS For Models: KTRC22ELWH01,KTRC22ELBT01, KTRC22ELBL01, KTRC22ELSS01 (White) (Biscuit) (Black) (Stainless Steel) 8198149... - Page 10 For Models: KTRC22ELWH01,KTRC22ELBT01, KTRC22ELBL01, KTRC22ELSS01 (White) Illus. Part DESCRIPTION 2205340 Plate, Unit Mounting 2221677 Defrost Bimetal 2210454 Condenser 2166124 Heater, Defrost 2195390 Evaporator Assy. 3400518 Screw 2172620 Drain Pan 2176301 Bracket, Heater 489478 Screw 2163780 Extension, Air Baffle 2212996 Strap...
-
Page 11: Icemaker Parts
ICEMAKER PARTS For Models: KTRC22ELWH01,KTRC22ELBT01, KTRC22ELBL01, KTRC22ELSS01 (White) (Biscuit) (Black) (Stainless Steel) 8198149... - Page 12 ICEMAKER PARTS For Models: KTRC22ELWH01,KTRC22ELBT01, KTRC22ELBL01, KTRC22ELSS01 (White) (Biscuit) Illus. Part 488878 Clamp, Tube 2181939 Insert, Tube 628379 Clip, Fuse 2210514 Tube Water 489478 Screw 2219594 Valve Solenoid 489385 Clamp, Tube 2219592 Valve (Double) 2210484 Cover 489464 Screw 628228 Mold & Heater...
-
Page 13: Freezer Door Parts
For Models: KTRC22ELWH01,KTRC22ELBT01, KTRC22ELBL01, KTRC22ELSS01 (White) Illus. Part DESCRIPTION Freezer Door (Includes #6 & #8) 2202520 White 2204854 Biscuit 2204856 Black 2212419 Stainless Steel 2189202 Bracket, Door Stop 489276 Screw 8198149 FREEZER DOOR PARTS (Biscuit) (Black) Illus. Part DESCRIPTION 2183003 Thimble... - Page 14 WATER DISPENSER PARTS For Models: KTRC22ELWH01,KTRC22ELBT01, KTRC22ELBL01, KTRC22ELSS01 (White) (Biscuit) Illus. Part 2210500 Housing, Dispenser 2210567 Button, Dispenser 2210513 Reservoir, Tube 2210523 Flange, Tube 2187291 Wire Assembly 2162361 Switch 2210547 Shield, Switch 489415 Screw (Black) (Stainless Steel) DESCRIPTION 8−18 x 1 1/4 (2)
-
Page 15: Optional Parts
For Models: KTRC22ELWH01,KTRC22ELBT01, KTRC22ELBL01, KTRC22ELSS01 (White) Illus. Part Parts Not Illustrated and Optional Parts (Not Included) 978941 Insulation, 212643 Sealer, Gum 479502 Tape, Vinyl 876305 Kit, Insulation 876370 Kit, Insulation 876029 Kit, Foam Slab 505587 Sealer, Mastic 511873 Touch−Up, White...
