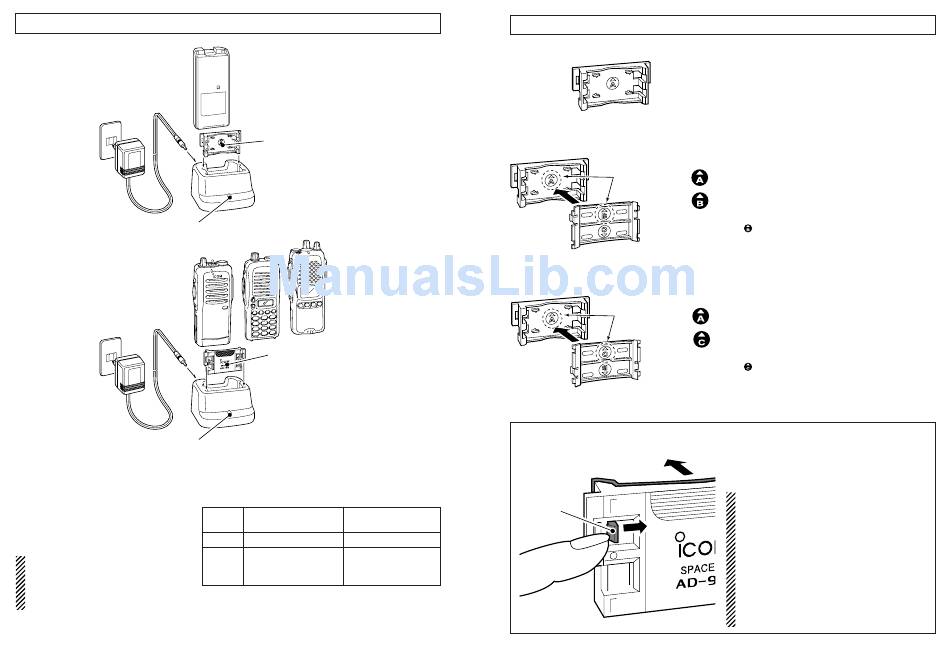

BATTERY PACK CHARGING— BC-144
BP-209, BP-210
or BP-222 only
AC adapter
BC-145A/E/V/UK
Charging indicator
BP-209, BP-210
or BP-222 attached
to the transceiver.
AC adapter
BC-145A/E/V/UK
Charging indicator
*The adapter, either the AD-94 (charging for IC-F3G series only) or AD-97 (charging for IC-F30G series
only) supplied versions are also available.
• Approx. charging period
BP-209 : 1.5 hours
BP-210 : 2 hours
BP-222 : 1 hour
Battery pack MUST BE removed
from the charger to stop charging.
Remove battery pack after 15 hrs.
of charging.
Check orientation.
*Viewable stamps may
differ according to the
spacer combination.
See the right page for
details.
Turn power OFF
Check orientation and the
spacer combination.
*The combination may dif-
fer according to transceiv-
er type. Details at right.
• LED indication
Light
Description Charging current
color
Orange During rapid charging 800 mA±10%
Rapid charging is com-
Green pleted (still charging in 30 mA±10 mA
trickle charge mode)
*When the LED indicator does not light even after a bat-
tery pack is inserted properly, the battery pack may have
a problem. However, when the LED flashes orange, it is
not a malfunction.
AD-99 SPACER COMBINATIONS
• For IC-F30G Series
Spacer A
• For IC-F3G Series
Check orientation
and
Spacer A
Spacer B/C
• For IC-F11 Series
Check orientation
and
Spacer A
Spacer B/C
When removing the spacer (Spacer B/C)
Remove the spacer (Spacer B/C)
from the adapter.
Push the notch
carefully.
The adapter (Spacer A) only is required.
Attach the spacer (Spacer B/C) to the
adapter (Spacer A) with the orientation as
illustrated in the diagram at left.
• Attach the spacer (Spacer B/C) to the
adapter with the orientation of the stamp
" " pointing up.
Attach the spacer (Spacer B/C) to the
adapter (Spacer A) with the orientation as
illustrated in the diagram at left.
• Attach the spacer (Spacer B/C) to the
adapter with the orientation of the stamp
" " pointing up.
Push the notch carefully with your finger to
remove the spacer (Spacer B/C) from the
adapter (Spacer A).
R CAUTION!
DO NOT push or force the notch using a
screw driver, etc., to remove it.
DO NOT bend the notch when the
adapter and spacer are not joined
together. This will cause weakening of
the notch plastic.
Both cases may break the notch and it
may not be able to be reattached.
