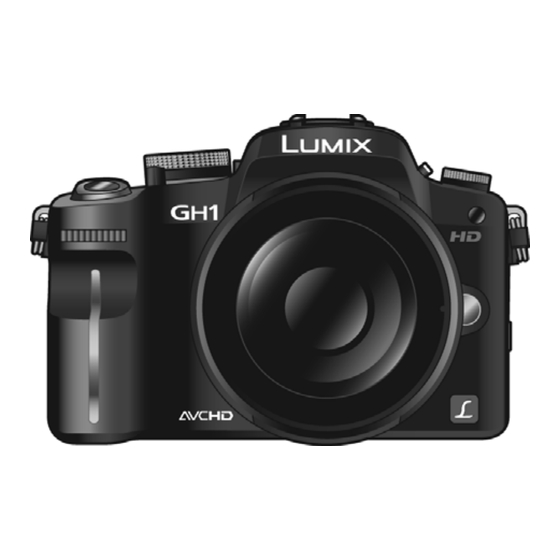

Digital Camera/Lens Kit
DMC-GH1KPP
Model No.
DMC-GH1KEB
DMC-GH1KEC
DMC-GH1KEG
DMC-GH1KGC
DMC-GH1KGH
DMC-GH1KGK
DMC-GH1KGN
DMC-GH1KGT
Colour
(K)...........Black Type
(N)...........Gold Type (only PP/EC/EG/GC)
(R)...........Red Type (only PP/EB/EC/EG/GC)
© Panasonic Corporation 2009. Unauthorized copy-
ing and distribution is a violation of law.
ORDER NO. DSC0905029CE
B26
Advertisement
Chapters
Table of Contents
Related Manuals for Panasonic Lumix DMC-GH1KPP
Summary of Contents for Panasonic Lumix DMC-GH1KPP
- Page 1 ORDER NO. DSC0905029CE Digital Camera/Lens Kit DMC-GH1KPP Model No. DMC-GH1KEB DMC-GH1KEC DMC-GH1KEG DMC-GH1KGC DMC-GH1KGH DMC-GH1KGK DMC-GH1KGN DMC-GH1KGT Colour (K)...Black Type (N)...Gold Type (only PP/EC/EG/GC) (R)...Red Type (only PP/EB/EC/EG/GC) © Panasonic Corporation 2009. Unauthorized copy- ing and distribution is a violation of law.
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE PAGE 1 Safety Precaution -------------------------------------------------3 1.1. General Guidelines ----------------------------------------3 1.2. Leakage Current Cold Check ---------------------------3 1.3. Leakage Current Hot Check (See Figure 1.)--------3 1.4. How to Discharge the Capacitor on Flash Sub PCB------------------------------------------------------------4 2 Warning --------------------------------------------------------------5 2.1. -
Page 3: Safety Precaution
1 Safety Precaution 1.1. General Guidelines 1.3. Leakage Current Hot Check (See Figure 1.) 1. IMPORTANT SAFETY NOTICE There are special components used in this equipment 1. Plug the AC cord directly into the AC outlet. Do not use which are important for safety. These parts are marked by an isolation transformer for this check. -
Page 4: How To Discharge The Capacitor On Flash Sub Pcb
1.4. How to Discharge the Capacitor on Flash Sub PCB CAUTION: 1. Be sure to discharge the capacitor on FLASH SUB PCB. 2. Be careful of the high voltage circuit on FLASH SUB PCB when servicing. [Discharging Procedure] 1. Refer to the disassemble procedure and remove the necessary parts/unit. 2. -
Page 5: Warning
2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge (ESD). -
Page 6: Caution For Ac Cord(For Eb/Gc
2.3.2.3. How to Replace the Fuse A replacement fuse cover can be purchased from your local Panasonic Dealer. 1. Remove the Fuse Cover with a screwdriver. If the fitted moulded plug is unsuitable for the socket outlet in your home then the fuse should be removed and the plug cut off and disposed of safety. -
Page 7: How To Replace The Lithium Battery
NOTE: This Lithium battery is a critical component. (Type No.: ML-421S/ZTE Manufactured by Energy Company, Panasonic Corporation.) It must never be subjected to excessive heat or discharge. It must therefore only be fitted in requirement designed specifically for its use. -
Page 8: Service Navigation
3 Service Navigation 3.1. Introduction This service manual contains technical information, which allow service personnel’s to understand and service this model. Please place orders using the parts list and not the drawing reference numbers. If the circuit is changed or modified, the information will be followed by service manual to be controlled with original service manual. 3.2. - Page 9 Important: 1. After replacing the MOUNT BOX BLOCK, the mount box data has to be stored to the unit. When the serial number of the mount box block which is put on the shield plate of mount box block is entered to the adjust- ment unit, the applicable data is stored into the MAIN P.C.B.
-
Page 10: Lens Unit
3.2.2. Lens Unit 3.2.2.1. About Lens MAIN Block unit (Ref. 215) 1. This Service Manual does not contain the repair service information for "LENS MAIN BLOCK UNIT"(Ref.215), because it requires special facilities and equipment. 2. "LENS MAIN BLOCK UNIT" performance must be confirmed with the "7.Troubleshooting Guide" section of this service man- ual. -
Page 11: General Description About Lead Free Solder (Pbf)
3.3. General Description About Lead Free Solder (PbF) The lead free solder has been used in the mounting process of all electrical components on the printed circuit boards used for this equipment in considering the globally environmental conservation. The normal solder is the alloy of tin (Sn) and lead (Pb). On the other hand, the lead free solder is the alloy mainly consists of tin (Sn), silver (Ag) and Copper (Cu), and the melting point of the lead free solder is higher approx.30 C (86 F) more than that of the normal solder. -
Page 12: How To Define The Model Suffix (Ntsc Or Pal Model)
3.4. How to Define the Model Suffix (NTSC or PAL model) There are six kinds of DMC-GH1K, regardless of the colours. • a) DMC-GH1K (Japan domestic model) • b) DMC-GH1KPP • c) DMC-GH1KEB/EC/EG/GH/GN • d) DMC-GH1KGC • e) DMC-GH1KGT • f) DMC-GH1KGK What is the difference is that the “INITIAL SETTINGS”... -
Page 13: Initial Settings
3.4.2. INITIAL SETTINGS: When you replace the MAIN PCB, be sure to perform the initial settings after achieving the adjustment by ordering the following pro- cedure in accordance with model suffix of the unit. 1. IMPORTANT NOTICE: Before proceeding Initial settings, be sure to read the following CAUTIONS. 2. - Page 14 [CASE 2. Other than "After replacing MAIN P.C.B."] • Step 5. Set the INITIAL SETTING: (Refer to “CAUTION 1”) [Caution: After replacing MAIN P.C.B.] The model suffix can been chosen, JUST ONE TIME. Once one of the model suffix have been chosen, the model suffix lists will not be displayed, thus, it can be changed. Select the area carefully.
-
Page 15: Specifications
4 Specifications... -
Page 16: Location Of Controls And Components
5 Location of Controls and Components Names of the Components Camera body Flash Sensor Self-timer indicator AF assist lamp Lens release button Lens lock pin Mount Lens fitting mark Front dial [LVF/LCD] button 9 10 14 15 10 Diopter adjustment dial 11 Viewfinder 12 Eye sensor 13 Playback button... - Page 17 23 Focus mode dial 24 Flash open lever 25 Stereo microphone 26 Drive mode lever Single: Burst: Auto Bracket: Self-timer: 27 Shutter button 28 Focus distance reference mark 29 Hot shoe 30 Mode dial 31 Status indicator 32 [Q.MENU] button 33 [FILM MODE] button 34 [MIC/REMOTE] socket 35 Shoulder strap eyelet...
- Page 18 Mode switching Basic Selecting the [REC] mode, and record still picture or motion picture Turn the camera on. The status indicator lights when you turn this unit Make sure the drive mode lever is set to [ Switching the mode by rotating the mode dial.
-
Page 19: About The Lens
4 Auto focus does not work and [MF] is used when recording with [REC MODE] set to [AVCHD] and [REC QUALITY] set to [FHD] ([ 5 The sound of aperture operation may be recorded. Refer to catalogues/Web pages for most current information regarding compatible lenses. http://panasonic.co.jp/pavc/global/cs (This Site is English only.) -
Page 20: Cautions For Use
Cautions for Use Optimal use of the camera Take care not to drop or knock the unit or put a lot of pressure on it. Take care not to knock or drop the bag/case that you inserted the camera in as the shock may cause damage to the camera, lens or LCD monitor. - Page 21 About dirt on the image sensor This camera features an interchangeable lens system so dirt may get inside the camera body when changing lenses. Depending on the recording conditions, dirt on the image sensor may appear on the recorded picture. Do not change lenses where there is a lot of dust, and always attach the body cap when a lens is not attached to the camera, so that dirt or dust does not get inside the camera body.
- Page 22 Battery The battery is a rechargeable lithium ion battery. Its ability to generate power comes from the chemical reaction that takes place inside it. This reaction is susceptible to the surrounding temperature and humidity. If the temperature is too high or too low, the operating time of the battery will become shorter.
- Page 23 Information including personal information may be altered or vanish due to erroneous operation, effect of static electricity, accident, malfunction, repair, or other handlings. Please note in advance that Panasonic is not liable in any way for any direct or indirect damage from the alteration or vanishing of information or personal information.
-
Page 24: Message Display
Message Display Confirmation messages or error messages will be displayed on the screen in some cases. The major messages are described below as examples. [THIS MEMORY CARD IS LOCKED] The Write-Protect switch on the SD Memory Card and the SDHC Memory Card are moved to [LOCK]. - Page 25 [THIS BATTERY CANNOT BE USED] The battery cannot be recognized by the camera. Use a genuine Panasonic battery. If this message is displayed even when a genuine Panasonic battery is used, contact the dealer or your nearest Service Center. The battery cannot be recognized as its terminal is dirty.
- Page 26 Troubleshooting First, try out the following procedures. If the problem is not resolved, it may be improved by selecting [RESET] on the [SETUP] menu. Battery and power source The camera cannot be operated even when it is turned on. The battery is not inserted correctly. The battery is exhausted.
- Page 27 The subject is not focused properly. The subject is beyond the focus range of the camera. There is camera shake (jitter) or the subject is moving slightly. Is [FOCUS PRIORITY] in the [CUSTOM MENU] menu set to [OFF]? In this case, the picture may not be properly focused even if [AFS] or [AFC] in Focus Mode is set.
- Page 28 Lens Recorded image may be warped, or nonexistent color is surrounding the subject. Depending on the lens used, picture may be warped slightly or you may see colors along the edge depending on the zoom factor, due to the characteristics of the lens. Also, the peripherals of the image might look warped because the perspective is enhanced when the wide angle is used.
- Page 29 Playback The picture being played back is not rotated, or is rotated in an unexpected direction, when displayed. You can display the pictures without being rotated when [ROTATE DISP.] is set to [OFF]. You can rotate pictures with the [ROTATE] function. You can only display the pictures rotated if you use a lens that supports the direction detection function and [ROTATE DISP.] is set to [ON].
- Page 30 Connect the camera to the TV with the AV cable (supplied), or with the HDMI mini cable (optional), and then play back the motion pictures on the camera. Motion pictures recorded in [AVCHD] can be played back on Panasonic televisions (VIERA) with the AVCHD logo.
-
Page 31: About The Battery
Please be advised that we are not liable for any accident or failure occurring as a result of use of a counterfeit battery pack. To ensure that safe products are used we would recommend that a genuine Panasonic battery pack is used. -
Page 32: Service Mode
6 Service Mode 6.1. Error Code Memory Function 1. General description This unit is equipped with history of error code memory function, and can be memorized 16 error codes in sequence from the latest. When the error is occurred more than 16, the oldest error is overwritten in sequence. The error code is not memorized when the power supply is shut down forcibly. - Page 33 • 3. Error Code List: The error code consists of 8 bit data and it shows the following information. Important notice about “Error Code List” About "*" indication: The third digit from the left is different as follows. - In case of 0 (example: 2B001000) When the third digit from the left shows “0”, this error occurred under the condition of INITIAL SETTINGS has been com- pleted.
-
Page 34: Troubleshooting Guide
7 Troubleshooting Guide... -
Page 38: Service Fixture & Tools
8 Service Fixture & Tools 8.1. Service Fixture and Tools The following Service Fixture and tools are used for checking and servicing this unit. -
Page 39: Clean Box
8.2. Clean Box • The repair quality is considered, and it is recommended working in the environment of satisfied clean level less than class 10,000 (Federal Standard 209D). (When remove the food adaptor and 1st lens frame, it is indispensable.) [NOTE] •... -
Page 40: Service Position
8.3. Service Position This Service Position is used for checking and replacing parts. Use the following Extension cables for servicing. Table S1 Extension Cable List Parts No. Connection Form VFK1441 FP9001 (MAIN) - FP7701 (AF ASSIST), 8PIN 0.5 FFC FP7351 (REMOTE) VFK1950 FP9005 (MAIN) - FP7201 (LCD IF) 33PIN 0.3 FFC... -
Page 41: Disassembly And Assembly Instructions
9 Disassembly and Assembly Instructions 9.1. Disassembly Flow Chart 9.2. PCB Location... -
Page 42: Disassembly Procedure
9.3. Disassembly Procedure Item Removal Flash Sub P.C.B. Unit (Fig.D14) 1 Rib P8502(Connector) 2 Ribs Item Removal (Fig.D15) Battery Lock Spring Rear Case Unit (Fig.D1) 3 Screws (A) Battery Lock Knob 1 Screw (B) Flash Sub P.C.B. Unit 3 Screws (C) AF Assist P.C.B. - Page 43 9.3.1. Removal of the Rear Case Unit (Fig.D2) (Fig.D1)
- Page 44 9.3.2. Removal of the Top Case Unit 9.3.3. Removal of the LVF Unit (Fig.D4) (Fig.D3)
- Page 45 9.3.4. Removal of the Main P.C.B. 9.3.5. Removal of the Audio P.C.B. (Fig.D6) 9.3.6. Removal of the Front Case Unit (Fig.D5) (Fig.D7)
- Page 46 9.3.7. Removal of the Battery Case Unit (Fig.D9) 9.3.8. Removal of the Speaker and DC Cover (Fig.D10) (Fig.D8)
- Page 47 (Fig.D13) 9.3.10. Removal of the Flash Sub P.C.B. Unit (Fig.D11) 9.3.9. Removal of the Flash P.C.B. (Fig.D14) (Fig.D12)
- Page 48 9.3.11. Removal of the AF Assist P.C.B., EXT MIC P.C.B. and Remote P.C.B. (Fig.D16) (Fig.D15)
- Page 49 9.3.12. Removal of the Optical Sensor Unit (Fig.D18) 9.3.13. Removal of the LCD Unit (Fig.D17) (Fig.D19)
- Page 50 9.3.14. Removal of the LCD TFT Unit (Fig.D20) (Fig.D21)
- Page 51 9.3.15. Removal of the Mic P.C.B. and Mic Unit (Fig.D23) (Fig.D22)
- Page 52 9.3.16. Removal of the Battery Spring (Fig.D24) 9.3.17. Removal of the Battery Door Unit (Fig.D25) NOTE: (When Assembling) Be sure to confirm the following points when assembling. • The Screw is tightened enough. • Assembling conditions are fine. (No distortion, no illegal- space.) •...
-
Page 53: Disassembly And Assemble Procedure For The Lens
9.4. Disassembly and Assemble Procedure for the Lens Refer to the following table and the illustration for disassembly and assembly. NOTE: 1. To keep maintaining the dustproof environment, it is recommended dealing with Clean box. (Refer to “ 8.2. Clean Box “ which is found in section "8.Service Fixture & Tools" of this manual.) 2. -
Page 55: Measurements And Adjustments
10 Measurements and Adjustments 10.1. Matrix Chart for Replaced Part and Necessary Adjustment The relation between Replaced part and Necessary Adjustment is shown in the following table. When concerned part is replaced, be sure to achieve the necessary adjustment(s). As for Adjustment condition/procedure, consult the “Adjustment Manual” which is available in Adjustment software. The Adjustment software is available at “TSN Website”, therefore, access to “TSN Website”... - Page 56 * There are no LCD / LVF adjustment model.
-
Page 57: Maintenace
11 Maintenace 11.1. Notice in external cleaning 11.1.1. ABOUT THE BODY NOTE: Before cleaning the camera, remove the battery and/or disconnect power plug from the outlet. Also, remove the SD Memory card and lens unit. 11.1.1.1. DUST/DIRT ON THE OUTER CASING PART (S) 1. -
Page 58: General Description (Lens Cleaning)
11.1.2. ABOUT THE LENS 11.1.2.1. DUST/DIRT ON THE OUTER CASING PART(S) 1. Blow off the dust first, then sweep out the dust from narrower spaces with soft cleaning brush. 2. Wipe up the Outer casing part with the dry fuzz-free cloth. 11.1.2.2. -
Page 59: Method Of Cleaning Inside Of Lens (H-Vs014140: Included In Dmc-Gh1K)
11.3. Method of cleaning inside of lens (H-VS014140: Included in DMC-GH1K) Important: 1. When removing the 1st lens frame unit, it has to be proceed inside of satisfied clean level. (Less than class 10,000 Federal Standard 209D) As for clean box, refer to the "8.2. CLEAN BOX", in details. 2. -
Page 60: Assembly Procedure
11.3.1.3. Removal of the food adaptor 11.3.2. Assembly procedure 1. Removal the 3 screws (B) and then remove the food 11.3.2.1. Installation of the food adaptor adaptor. 1. Install the food adaptor to meet the through hole (A) with projection (A). 11.3.1.4. - Page 61 11.3.2.2. Installation of the 1st lens frame 11.3.2.3. Installation of the Decoration Ring unit 1. Use the Name Ring fixture (RFKZ0423) 2. Use new Decoration ring. (Do not use the one which is 1. Install the 1st lens frame unit onto the lens unit to meet removed.) the through hole (B) with projection (B).
- Page 62 DSC0905029CE S1. About Indication of The Schematic Diagram Service Manual S1.1. Important Safety Notice COMPONENTS IDENTIFIED WITH THE MARK HAVE THE SPECIAL CHARACTERISTICS Diagrams and Replacement FOR SAFETY. WHEN REPLACING ANY OF THESE COMPONENTS USE ONLY THE SAME TYPE. 1.Although reference number of the parts is indicated on the P.C.B. drawing and/or Parts List schematic diagrams, it is NOT mounted on the P.C.B.
-
Page 63: S2. Voltage Chart
S2. Voltage Chart Note) Indicated voltage values are the standard values for the unit measured by the DC electronic circuit tester (high-impedance) with the chassis taken as standard. Therefore, there may exist some errors in the voltage values, depending on the internal impedance of the DC circuit tester. S2.1. -
Page 64: S3. Block Diagram
S3. Block Diagram S3.1. Overall Block Diagram MOUNT BOX UNIT X6001 LENS UNIT (24MHz) MAICO CARD LENS CONTACT SHUTTER SSWF TERMINAL UNIT MIC/REMOTE TERMINAL IC9901 Q4401-4406 MOTOR DRIVE QR4401 IC4201 STEREO IC6002 IC4002 MIC AMP MICROPHONE AUDIO IF IC9003 SPEAKER IC9004 IC9005 IC9801... -
Page 65: S4. Schematic Diagram
S4. Schematic Diagram S4.1. Interconnection Diagram FLASH SUB P.C.B. (FOIL SIDE) TOP CASE UNIT EXTMIC ON AD GND AD GND EXTMIC ON AD GND AD GND AD GND AD GND P8502 AD GND AD GND AD GND AD GND FLASH P.C.B. AD GND AD GND AD GND... -
Page 66: S4.2. Af Assist Schematic Diagram
S4.2. AF Assist Schematic Diagram / S4.3. EXT Mic Schematic Diagram Q4401 FP4401 2SC6054J0L K1KA05BA0014 SM05B-SRSS-TB(LF)(SN) R4406 R4408 R4415 FP4400 10K[18] 10K[18] K1KA20A00275 MIC[R] R4404 D0HB103ZA002 Q4403 D0HB103ZA002 Q4405 Q4406 MIC[R] PW_REG4R8V 2SA2174J0L 2SA2174J0L 2SC6054J0L MIC[R] R4405 C4404 EXT_MIIC_LIN D7701 R4409 R4416 MIC[R]... -
Page 67: S4.4. Remote Schematic Diagram
S4.4. Remote Schematic Diagram FP7350 K1KA20A00306 20P3.5JMCS-G-B-TF(N) MIC[R] MIC[R] MIC[R] MIC[R] MIC[R] AD_GND AD_GND AD_GND [EXTMIC] AD_GND JK7350 EXTMIC_ON K2HD104D0002 LB7350 AD_GND REMOTE J0JBC0000107 AD_GND AD_GND LB7351 MIC[R] J0JBC0000107 AD_GND MIC[L] MIC[L] MIC[L] MIC[L] LB7352 MIC[L] MIC[L] J0JBC0000107 MIC[L] LB7353 AD_GND J0JBC0000107 VA7350... -
Page 68: S4.5. Flash Schematic Diagram
S4.5. Flash Schematic Diagram CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE 3.0A 32V FUSE. REPLACE ONLY WITH THE SAME TYPE 1.5A 32V FUSE. ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQUES ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQUES P8502 3.0A 32V... -
Page 69: S4.6. Flash Sub Schematic Diagram
S4.6. Flash Sub Schematic Diagram / S4.7. Hinge SW Schematic Diagram / S4.8. LCD IF Schematic Diagram FP7203 K1MN04BA0208 (FF14-4A-R11B-C3) BL_PLUS BL_MINUS FP7201 K1MN32BA0209 C7214 (FF14-32A-R11B-C3) TO LCD BACKLIGHT FP7202 K1MY45BA0235 (502350-3300) GND(LCD_RESET) GND(STB) LCD_CS LCD_SDOUT LCD_SCK LCDHD HSYNC LCDVD VSYNC CLK18_LCDIF LCD_CLK... -
Page 70: S4.9. Mic Schematic Diagram
S4.9. Mic Schematic Diagram CL4201 CL4202 CL4203 CL4206 CL4204 Q4203 2SD2216J0L R4223 R4221 4.7K C4205 R4214 0.033[15] FP4202 C4201 R4204 C4206 C4209 R4215 R4217 K1MN04BA0197 100K 0.1[15] 180P 0.22u[15] 20397-004E 6.3V AD_GND C4202 R4207 ECM_LIN 0.015[15] R4205 R4211 ECM_RIN 150k 150k AD_GND R4218... -
Page 71: S5. Print Circuit Board
S5. Print Circuit Board S5.1. AF Assist P.C.B. / S5.2. EXT Mic P.C.B. R4403 R4407 C4405 QR4401 R4421 C4404 (Component Side) R4420 (Component Side) R4402 R4405 Q4405 R4406 Q4403 R4409 R4410 R4411 (Foil Side) (Foil Side) DMC-GH1K DMC-GH1K AF Assist P.C.B. EXT Mic P.C.B. -
Page 72: S5.3. Remote P.c.b
S5.3. Remote P.C.B. FP7351 LB7351 LB7352 LB7353 VA7350 (Component Side) (Foil Side) DMC-GH1K Remote P.C.B. S-11... -
Page 73: S5.4. Flash P.c.b
S5.4. Flash P.C.B. P8501 P8503 CL8510 QR8504 QR8502 CL8513 CL8516 CL8511 CL8512 R8501 R8512 CL8515 CL8514 R8515 CL8504 R8509 R8505 QR8501 C8505 P8502 T8501 R8504 1 2 3 CL8501 R8508 CL8503 D8503 L8501 D8502 CL8517 R8514 (Component Side) RL8502 CL8508 CL8509 CL8507 CL8506... -
Page 74: S5.5. Flash Sub P.c.b
S5.5. Flash Sub P.C.B. / S5.6. Hinge SW P.C.B. RL4901 C7100 RL4902 (Component Side) (Component Side) RL7101 RL7102 (Foil Side) (Foil Side) DMC-GH1K DMC-GH1K Flash Sub P.C.B. Hinge SW P.C.B. S-13... -
Page 75: S5.7. Lcd If P.c.b
S5.7. LCD IF P.C.B. S5.7.1. LCD IF P.C.B. (Component Side) (Component Side) DMC-GH1K LCD IF P.C.B. (Component Side) S-14... -
Page 76: S5.7.2. Lcd If P.c.b. (Foil Side
S5.7.2. LCD IF P.C.B. (Foil Side) FP7203 C7201 C7208 C7210 FP7201 (Foil Side) DMC-GH1K LCD IF P.C.B. (Foil Side) S-15... -
Page 77: S5.8. Mic P.c.b
S5.8. Mic P.C.B. CL4203 C4211 R4202 CL4202 R4207 R4201 CL4204 R4209 CL4206 C4205 CL4201 C4213 C4208 CL4205 R4210 C4212 R4208 (Component Side) R4220 R4221 R4223 (Foil Side) DMC-GH1K Mic P.C.B. S-16... -
Page 78: S6. Replacement Parts List
ELECTROSTATIC DISCHARGE (ESD) TO ELECTROSTATICALLY SENSITIVE (ES) DEVICES section. Definition of Parts supplier: 1. Parts marked with [Energy] in the remarks column are supplied from Panasonic Corporation Energy Company. 2. Parts marked with [PAVCSG] in the remarks column are supplied from Panasonic AVC Networks Singapore Pte. - Page 79 DMC-GH1KPP/EB/EC/EG/GC/GH/GK/GN/GT Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks ------ P.C.B. LIST ------ VEP58084A REMOTE P.C.B. [PAVCSG](RTL) VEP56084A MAIN P.C.B. 1 PP,GC,GH,GK,GN,GT (RTL) E.S.D. FP7350 K1KA20A00306 CONNECTOR 1 [PAVCSG] VEP56084B MAIN P.C.B. 1 [PAVCSG]EB,EC,EG (RTL) E.S.D.
- Page 80 DMC-GH1KPP/EB/EC/EG/GC/GH/GK/GN/GT Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VEP59057A LCD IF P.C.B. [PAVCSG](RTL) C7201 F1H1A105A028 C.CAPACITOR CH 10V 1 [PAVCSG] C7202 F1H1A105A028 C.CAPACITOR CH 10V 1 [PAVCSG] C7203 F1H1A105A028 C.CAPACITOR CH 10V 1 [PAVCSG] C7204 F1H1A105A028 C.CAPACITOR CH 10V...
- Page 81 DMC-GH1KPP/EB/EC/EG/GC/GH/GK/GN/GT Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VGQ0A30 LCD LOCK LEVER 1 [PAVCSG] VEP56084A MAIN P.C.B. 1 PP,GC,GH,GK,GN,GT VGQ0E39 GRIP PIECE REAR 1 [PAVCSG] (RTL) E.S.D. VGU0D13 REAR OP BUTTON 1 [PAVCSG] VEP56084B MAIN P.C.B.
- Page 82 DMC-GH1KPP/EB/EC/EG/GC/GH/GK/GN/GT Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks XQN16+B2FN SCREW 1 [PAVCSG] XQN16+BJ4FN SCREW 1 [PAVCSG] XQN16+BJ4FN SCREW 1 [PAVCSG] P05F340 DECORATION RING XQN16+BJ4FN SCREW 1 [PAVCSG] P05F020 HOOD ADAPTOR XQN16+BJ4FN SCREW 1 [PAVCSG] P05C010 ZOOM RUBBER RING...
- Page 83 DMC-GH1KPP/EB/EC/EG/GC/GH/GK/GN/GT Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks [PAVCSG] VQT2A79 INSTRUCTION BOOK 1 [PAVCSG]GK VPF1316A CAMERA BAG 1 [PAVCSG] (CHINESE(SIMPLIFIED)) DE-A49BA/SX BATTERY CHARGER/AC ADAPTOR 1 [PAVCSG]PP VQT2A80 INSTRUCTION BOOK 1 [PAVCSG]GN DE-A49CB/SX BATTERY CHARGER/AC ADAPTOR 1 [PAVCSG]EB,EC,EG,GC,GH,GN...
-
Page 84: S7. Exploded View
S7. Exploded View S7.1. Frame and Casing Section 85-1 85-2 B10 B11 B25 B19 B16 B17 S-23... -
Page 85: S7.2. Camera Lens Section
S7.2. Camera Lens Section B213 B214 B215 B216 B217 B220 B201 B218 B202 B203 B204 B221 B222 B208 B207 B219 B205 B206 B209 B210 B211 S-24... -
Page 86: S7.3. Packing Parts And Accessories Section
S7.3. Packing Parts and Accessories Section (DMC-GH1KEB/GC/GH) (DMC-GH1KEC/EG/GC) (DMC-GH1KGN) (DMC-GH1KPP/GK/GT) S-25...
