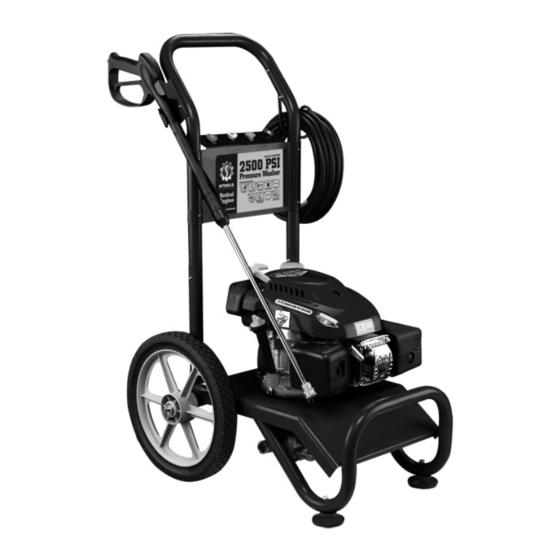

- Page 1 Owner’s Manual 140cc Presasure Washer WARNING! To Reduce The Risk Of Injury, User Must Read And Understand Instruction Manual. SP-WG250V www.steele-products.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page BASIC SAFETY INFORMATION EXHAUST FUMES ARE DANGEROUS DO NOT OPERATE UNIT INDOORS OR IN ANY CONFINED AREA SAFETY FEATURES GETTING TO KNOW YOUR PRESSURE WASHER ASSEMBLY & PRE-START CHECK ASSEMBLY PRE-START CHECK START-UP PROCEDURES OPERATION SPRAYING WATER & NOZZLE USAGE Nozzle usage OPERATION &... -
Page 3: Basic Safety Information
BASIC SAFETY INFORMATION EXHAUST FUMES ARE DANGEROUS Never operate the engine in a closed area or it may cause unconsciousness and death within a short time. Operate in a well ventilated area. Operate pressure washer in clean, dry, well ventilated area. Never operate unit in enclosed areas such as garages, basements, storage, sheds, or in any location occupied by humans or animals. -
Page 4: Safety Features
Never direct the water spray towards ANY person, animal, electrical wiring or the pressure washer itself. Care must be taken not to spray too close to the surface or damage could occur. Steele Products is not responsible for damage caused during use. -
Page 5: Getting To Know Your Pressure Washer
GETTING TO KNOW YOUR PRESSURE WASHER Stainless steel wand. Trigger locking latch. Choke lever. Air cleaner element/cover. Recoil starter - Starts the engine. High pressure hose. Fuel cap - Make sure the fuel cap is always screwed on tightly. Fuel tank - Unleaded gasoline only! Muffler - Warning! Muffler gets hot. -
Page 6: Assembly & Pre-Start Check
ASSEMBLY & PRE-START CHECK WARNING! Before turning on your pressure washer engine, you MUST check oil level, fuel level and air cleaner filter. ASSEMBLY Remove all the contents from the carton and proceed to the following assembly instructions; Top handle Install the top handle (A) to the frame (B) by sliding the top handle posts into the frame posts and secure them together using 2 pan head screws, 4 gaskets and 2 nylon hex. -
Page 7: Start-Up Procedures
PRE-START CHECK FUEL LEVEL WARNING! Make sure there is enough fuel in the fuel tank before operating. 1) If it is necessary to add fuel, first make sure the engine is OFF, then remove the fuel cap by turning it counterclockwise. 2) When refueling, keep in mind all safety precautions and make sure to add enough fuel based on usage. -
Page 8: Operation
Follow these instructions to safely start your high pressure washer. 5) Turn engine switch to the “On” position. Fig.9A. 6) Close the Choke lever (A) by moving the lever towards the left. Fig.9B. 7) Pull recoil starter to start engine. Fig.9C. Pull recoil starter slowly until resistance is felt, then pull rapidly to start engine. -
Page 9: Operation & Maintenance
OPERATION & MAINTENANCE USING THE PRESSURE WASHER TO CLEAN: Some cleaning jobs can be completed by using only water, but for most, it is advantageous to use a detergent to penetrate and remove the dirt more effectively. When using pressure washer approved detergent, make sure the surface first is dry, wetting the surface first is not recommended;... -
Page 10: Engine Maintenance
ENGINE MAINTENANCE Engine Oil Replacement Engine oil should be replaced after the first 20 hours of operation or after the first month of use, it should be replaced every 100 hours or 6 months after. To replace engine oil; loosen the oil gauge dipstick (A) Fig.16. -
Page 11: Pump Maintenance
Pressure Washer Storage If you plan on storing your pressure washer for an extended period of time, the following steps should be followed; 1) Add fuel stabilizer to fuel tank to minimize the formation of fuel gum deposits during storage. 2) Run engine at least 5 minutes after adding stabilizer to allow it to enter the fuel system. -
Page 12: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE CORRECTION Engine will not start or stops while 1. Low-oil shutdown 1. Fill engine with oil operating 2. Engine switch not in “ON” position 2. Turn switch “ON” 3. Pressure built up in the hose 3. Squeeze trigger while starting Engine is overloaded 1. -
Page 13: Limited Warranty
Limited Warranty Steele Products® warrants to the original purchaser who uses the product in a consumer application (personal, residential or household usage) that all products covered under this warranty are free from defects in material and workmanship for one year from the date of purchase. All products covered by this limited warranty which are used in commercial applications (i.e. - Page 14 Limited Warranty (cont’d) THIS WARRANTY DOES NOT COVER:...
