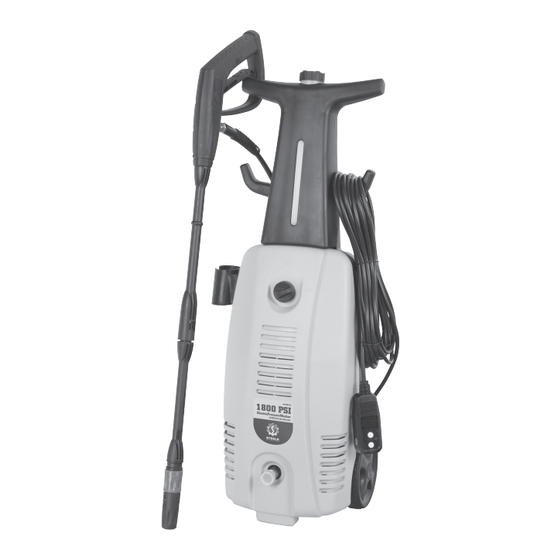

STEELE PRODUCTS 1800 PSI Electric SP-WE175 Owner's Manual

1800 psi electric pressure washer
Hide thumbs Also See for 1800 PSI Electric SP-WE175:
Table of Contents

Advertisement

Quick Links

Owner's Manual
1800 PS! Ele
IST_
3166911
SP-WE 175
_[_MuWARNING!
To Reduce The Risk Of injury, User
]
t ReadAnd Understand instruction Manual. _,p
FORSERVICECALL:Oa@
@QE
_@al
PARA SERVICIO LLAME: _-_,i_-_
A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1800 PSI Electric SP-WE175 and is the answer not in the manual?

Questions and answers

Related Manuals for STEELE PRODUCTS 1800 PSI Electric SP-WE175

Summary of Contents for STEELE PRODUCTS 1800 PSI Electric SP-WE175

  • Page 1 Owner's Manual 1800 PS! Ele IST_ _[_MuWARNING! To Reduce The Risk Of injury, User t ReadAnd Understand instruction Manual. _,p 3166911 SP-WE 175 FORSERVICECALL:Oa@ _@al PARA SERVICIO LLAME: _-_,i_-_...

  • Page 2: Table Of Contents

    1800 PSI Pressure Washer TableOf Contents Topic Page # Important Safety Tips, Precautions, Warnings, and Usage Instructions Assembly Instructions 9-12 Operating Instructions 12-13 Detergents 14-15 Clean-up and Storage Cleaning Tips Technical Data Troubleshooting Tips 19-20 Limited Warranty Parts 21-22...
  • Page 3 1800 PSI Pressure Washer GROUNDFAULTCIRCUITINTERRUPTER (GFCI) This pressure washer is provided with a ground fault circuit interrupter (GFCI)built into the plug of the power supply cord. This device provides additional protection from the risk of electric shock. Should replacement of the plug or cord become necessary, use only identical replacement parts that include GFCIprotection.
  • Page 4 1800 PSI Pressure Washer IMPORTANT SAFETYPRECAUTIONS WARNING: When using this product, basic precautions should always be followed, including the following: Readall instructionsbefore usingthe product. Saveall safety instructions. Donot operatethe pressure washer when fatigued or under the influence of alcohol or drugs. Riskof injection or injury- do not direct the high pressure water stream at any people or animals.
  • Page 5 1800 PSI Pressure Washer Readall instructions included with the mask so you are certain the mask will provide the necessary protection against inhaling harmful vapors. Before starting the pressure washer in cold weather, check all of the parts of the equipment and be sure that ice has not formed.
  • Page 6 1800 PSI Pressure Washer electrical rating not lessthan the rating of the product. Examine extensioncord before use. Do not usedamaged extensioncords! Do not pull on cord to disconnect from receptacle, alwaysdisconnect by pulling on plug. Keep cord away from heat and sharp edges.

  • Page 7: Assemblyinstructions

    1800 PSI Pressure Washer ASSEMBLYINSTRUCTIONS UnpackingThe Carton After openingthe carton, please remove all parts and checkthem against the following list of componentsthat are included: A. High Pressure Washer D. Adjustable Nozzle B. Gun E. Brass Connector C. High Pressure Hose F.
  • Page 8 1800 PSI Pressure Washer Step 1 Attach the high pressure hoseto the gun. Use a wrenchto tighten the fitting. Step 2 Insertthe adjustablespray nozzle intothe gun. Push and turn the adjustable nozzle clockwise ontothe gun until hand tight to lock it in place. Whenthe pieces are joined properly, you cannot separate the two components by pulling straight out on the adjustable nozzle.All attachments must be inserted intothe gun for proper use.
  • Page 9 1800 PSI Pressure Washer Step 3 Attach the high-pressure hoseto the male fitting on the front of the pressure washer. Before attaching the high-pressure hoseto the male fitting, remove the plastic cap, which is inserted onto the fitting before shipping. This plastic cap can be discarded once removed.

  • Page 10: Operatinginstructions

    1800 PSI Pressure Washer OPERATINGINSTRUCTIONS THIS UNIT IS INTENDED TO BE USED WITH COLD WATER ONLY! DO NOT USE HOT WATER IN THIS PRESSURE WASHER! StartingUp After connecting the pressurewasher to your cold water supply, proceedas follows: Make sure that the on/off switch is in the off position.
  • Page 11 1800 PSI Pressure Washer AutomaticOn / Off The pressure washer is equipped with an automatic on/off switch.The pressure washer will only run when the power switch is in the ONposition and the trigger on the gun is squeezed. Whenyou release the trigger to stop spraying water through the gun, the motor on the pressure washer will automatically shut off.

  • Page 12: Detergents

    1800 PSI Pressure Washer *_-. Diagram 2 Diagram 1 DispensingDetergent The built-in detergent dispenser will allow you to apply many forms of liquid detergent onto the work surface. Detergent application happensat low-pressure only. Insert the adjustable nozzle onto the gun, and turn it to end of ..so that the pressure washer is in low-pressure mode (see FigureA below).
  • Page 13 1800 PSI Pressure Washer ADJUSTING THE PRESSURE To adjust the pressure,proceed as follows: Low Pressure Setting 1. Holdthe shaft of the lance in one hand. 2. Turn the grey part of the nozzle clockwise (to "+" end) to obtain the high pressure. 3.
  • Page 14 1800 PSI Pressure Washer Step 3 Turn the adjustablenozzleto end of" - ", put the pressure washer into low-pressure mode. Low Pressure Setting Step 4 To apply the detergent cleanser to your working area, turn the pressure washer switch to the ONposition. Pull the trigger to operate the unit. The pressure washer will mix the detergent with water.

  • Page 15: Clean-Up And Storage

    1800 PSI Pressure Washer CLEAN-UP AND STORAGE ShuttingDownthe PressureWasher WHEN FINISHED USING THE PRESSURE WASHER, FOLLOW THESE STEPS TO SHUT DOWN THE UNIT: • Turn the pressure washer to the OFFposition. • Turn off the water supply. • Before disconnecting high-pressure hose connection, pointthe gun in a safe direction and discharge the high-pressure water.
  • Page 16 1800 PSI Pressure Washer Winterizingand Long-TermStorage FOLLOW ALL OF THE ABOVE SHUT-DOWN PROCEDURES,ADDING THE FOLLOWING STEPS ..• After disconnectingthe water supply, and before disconnectingthe high-pressure hose, turn the pressure washer on for 2-3 seconds,until any remaining water in the pump exits. Turn unit off immediately. CONTINUED USE OF THE PRESSURE WASHER...

  • Page 17: Cleaningtips

    1800 PSI Pressure Washer CLEANINGTIPS WARNING: ALWAYS TEST THE SPRAY IN AN AREA FREE AND CLEAR OF PEOPLE AND OBJECTS BEFORE YOU SPRAYAT THE INTENDED CLEANING SURFACE. Woodand Vinyl Decks Rinse deck and surrounding area with fresh water. If using detergent, fill the detergent reservoir and apply to the area being cleaned at low pressure.

  • Page 18: Technicaldata

    1800 PSI Pressure Washer Maintain a further distance from the cleaning area when using a direct spray. Wipe surface dry for a polishedfinish. BarbecueGrills,PowerEquipment,and GardenTools Rinsecleaning and surrounding area withfresh water. If using detergent, fill the detergent reservoir and applyto the area being cleaned at low pressure. Allow the detergent to rest on the surface for a few minutes, but do not let the detergent dry.

  • Page 19: Troubleshooting Tips

    1800 PSI Pressure Washer TROUBLESHOOTING TIPS WHEN THE SWITCH IS IN THE "1" POSITION THE MACHINE WILL NOT START PROBABLE CAUSE SOLUTION Electricalsocket is faulty Checkplug, socket, and fuses Voltageis inadequate Checkthat the voltage is adequate GFCItrips Reset/ Try another outlet Power cord is not plugged in Plugin power cord THE PUMP DOESNOT REACHADEQUATEPRESSUREOR FLUCTUATES...

  • Page 20: Limited Warranty

    1800PSI P RESSURE WASHER Limited Warranty Steele® warrants totheoriginal purchaser whouses theproduct i na consumer application (personal, residential orhousehold u sage) thatall products covered under this warranty arefreefromdefects inmaterial andworkmanship foroneyearfromthedateof purchase. Allproducts covered bythislimited warranty which areusedincommercial applications (i.e.income producing) arewarranted t o befreeofdefects in material andworkmanship for 90daysfromthedateoforiginal purchase.

  • Page 21: Limited Warranty

    1800PSI P RESSURE WASHER Limited Warranty THIS WARRANTY DOES NOT COVER: , Merchandise sold asreconditioned, used asrental equipment, orfloor o rdisplay models, , Merchandise thathasbecome damaged o r inoperative b ecause ofordinary wear, m isuse, cold,heat,rain,excessive h umidity, freeze damage, useofimproper c hemicals, negligence, accident, failuretooperate theproductinaccordance w iththeinstructions p rovided inthe Owner's M anual(s) supplied withtheproduct, i mproper m aintenance, theuseofaccessories or attachments notrecommended bySteele@, or unauthorized repair oralterations,...
  • Page 22 1800PSI P RESSURE WASHER EXPLODED ViEW...

  • Page 23: Parts

    1800PSI P RESSURE WASHER PARTS LISTING APA Part No. Description Part No. SP-WE175-0 I-MT Capsule SP-WE175-02-MT Screw(ST3.9xl2) SP-WE175-03-MT Handle SP-WE175-04-MT Cushion SP-WE175-05-MT Bottle SP-WE175-06-MT Screw(ST3.gx25) SP-WE175-07-MT Tube SP-WE175-08-MT Motor Cover SP-WE175-09-MT Shelves SP-WE175-10-MT Switch Knob SP-WE175-1 I-MT Case SP-WE175-12-MT Screw(ST2.gx20) S P-WE 175-13-MT Switch SP-WE175-14-MT...
