EMPIRE
EMPIRE
Comfort Systems
GAS-FIRED
wArNINg: If the information in these instructions
are not followed exactly, a fire or explosion may
result causing property damage, personal injury
or loss of life.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
— wHAT TO DO IF YOu SMeLL gAS
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use
any phone in your building.
•
Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
•
If you cannot reach your gas supplier, call the
fire department.
— Installation and service must be performed by a
qualified installer, service agency or the gas sup-
plier.
INSTALLATION INSTrucTIONS
AND OwNer'S MANuAL
Log sets comply with 4.96 uS. State or local codes may
only allow operation of log sets in a vented configuration.
check your state or local codes.
wArNINg: If not installed, operated and maintained
in accordance with the manufacturer's instructions,
this product could expose you to substances in fuel
or from fuel combustion which can cause death or
serious illness.

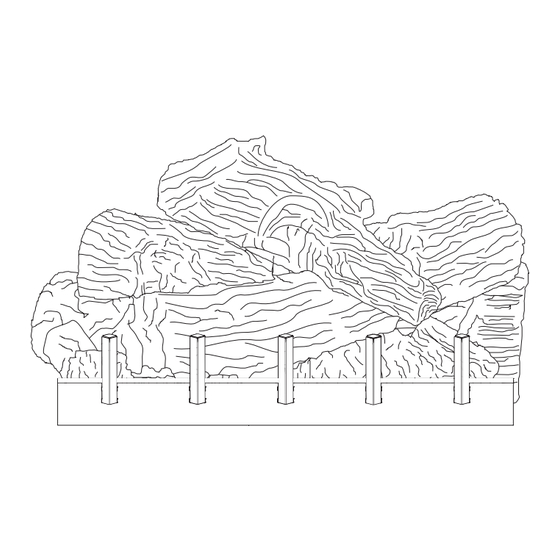

OuTDOOr LOg SeT
OuTDOOr gAS FIrePLAceS
MODeLS
OLX24wr-1
OLX30wr-1
Installer:
Leave this manual with the appliance.
consumer: retain this manual for future reference.
FOr
Page 1
Advertisement
Summary of Contents for Empire OLX24WR-1
- Page 1 EMPIRE EMPIRE AND OwNer'S MANuAL Comfort Systems OuTDOOr LOg SeT OuTDOOr gAS FIrePLAceS MODeLS OLX24wr-1 OLX30wr-1 GAS-FIRED wArNINg: If the information in these instructions Installer: Leave this manual with the appliance. are not followed exactly, a fire or explosion may consumer: retain this manual for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Section Page Important Installation Guidelines ............. 3 General Information ................3 Parts List & Parts View ................4 Master Parts Distributor List ..............5 How To Order Repair Parts ..............5 Log Placement ..................6 - 14 Appliance Service History ..............15 Page 2 28563-1-0511... -
Page 3: Important Installation Guidelines
IMPORTANT INSTALLATION GUIDELINES Proper Log Placement Make Owners Aware of Proper Log Set Operation Log placement is critical to proper burner performance. Logs Properly installed and properly maintained log sets do not must be correctly positioned onto the burner. The photos in deposit soot on the logs. -
Page 4: Parts List & Parts View
Attention: When ordering parts, it is very important that part number and description of part coincide. OLX-24wr-1 INDeX INDeX TOP VIew FrONT VIew Part No. Index No. Description OLX24WR-1 OLX30WR-1 R10800 R10800 Ember Bed Right R10866 R10799 Ember Bed Left R10942... -
Page 5: Master Parts Distributor List
MASTer PArTS DISTrIBuTOr LIST To Order Parts Under Warranty, please contact your local Empire dealer. See the dealer locator at www.empirecomfort.com. To provide warranty service, your dealer will need your name and address, purchase date and serial number, and the nature of the problem with the unit. -
Page 6: Log Placement
LOG PLACEMENT Before you begin: Do not, handle these logs with your bare hands! Always wear gloves to prevent skin irritation. After handling logs, wash your hands gently with soap and water. All Logs The positioning of the logs is critical to the safe and clean operation of this heater. Sooting and other problems may result if the logs are not properly and firmly positioned in the appliance. - Page 7 LOG PLACEMENT 1. Place Ember Bed Right (A) onto pins 1 and 2 and slide the edge of log under the grate bar. FrONT VIew TOP VIew 28563-1-0511 Page 7...
- Page 8 LOG PLACEMENT 2. Place Ember Bed Left (B) between the grate bar and tucked next to Ember Bed Right (A). Do not cover any ports. FrONT VIew TOP VIew Page 8 28563-1-0511...
- Page 9 LOG PLACEMENT 3. Place Ember Chunk (C) under the grate bar and around the Left Front Flame Standoff. Ember Chunk (C) will touch Ember Bed Left (B). FrONT VIew TOP VIew 28563-1-0511 Page 9...
- Page 10 LOG PLACEMENT 4. Place Right Front Log (D) onto pins 3, 4 and 5, behind Ember Bed Right (A) and around Right Front Flame Standoff. FrONT VIew TOP VIew Page 10 28563-1-0511...
- Page 11 LOG PLACEMENT 5. Place Left Front Log (E) onto pins 6 and 7 behind Ember Bed Left (B) and Ember Chunk (C). The right front portion of Left Front Log (E) rests on the back left side of Right Front Log (D). FrONT VIew TOP VIew 28563-1-0511...
- Page 12 LOG PLACEMENT 6. Place Right Rear Log (F) onto pins 8 and 9. Right Rear Log (F) "connects" with Left Front Log (E) to give the appearance of one single log. FrONT VIew TOP VIew Page 12 28563-1-0511...
- Page 13 LOG PLACEMENT 7. Place Left Rear Log (G) onto pin 10 and log support shelf. FrONT VIew TOP VIew 28563-1-0511 Page 13...
- Page 14 LOG PLACEMENT 8. Place Top Log (H) onto grooves in Left Rear Log (G) and Left Front Log (E). The "thumb" on the Top Log (H) will point to the right. FrONT VIew TOP VIew Page 14 28563-1-0511...
-
Page 15: Appliance Service History
APPLIANce SerVIce HISTOrY Date Dealer Name Service Technician Name Service Performed/Notes 28563-1-0511 Page 15... - Page 16 Empire Comfort Systems Inc. EMPIRE EMPIRE 918 Freeburg Ave. Belleville, IL 62220 If you have a general question about our products, please e-mail us at info@empirecomfort.com. If you have a service or repair question, please contact your dealer. Comfort Systems www.empirecomfort.com...
