CABINET PARTS
REFRIGERATOR
For Model: KSSS42DAW03
7−93 Litho In U.S.A.
1
Part No. 4379165

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSS42DAW03 and is the answer not in the manual?

Questions and answers

Summary of Contents for KitchenAid KSSS42DAW03

  • Page 1 CABINET PARTS REFRIGERATOR For Model: KSSS42DAW03 7−93 Litho In U.S.A. Part No. 4379165...

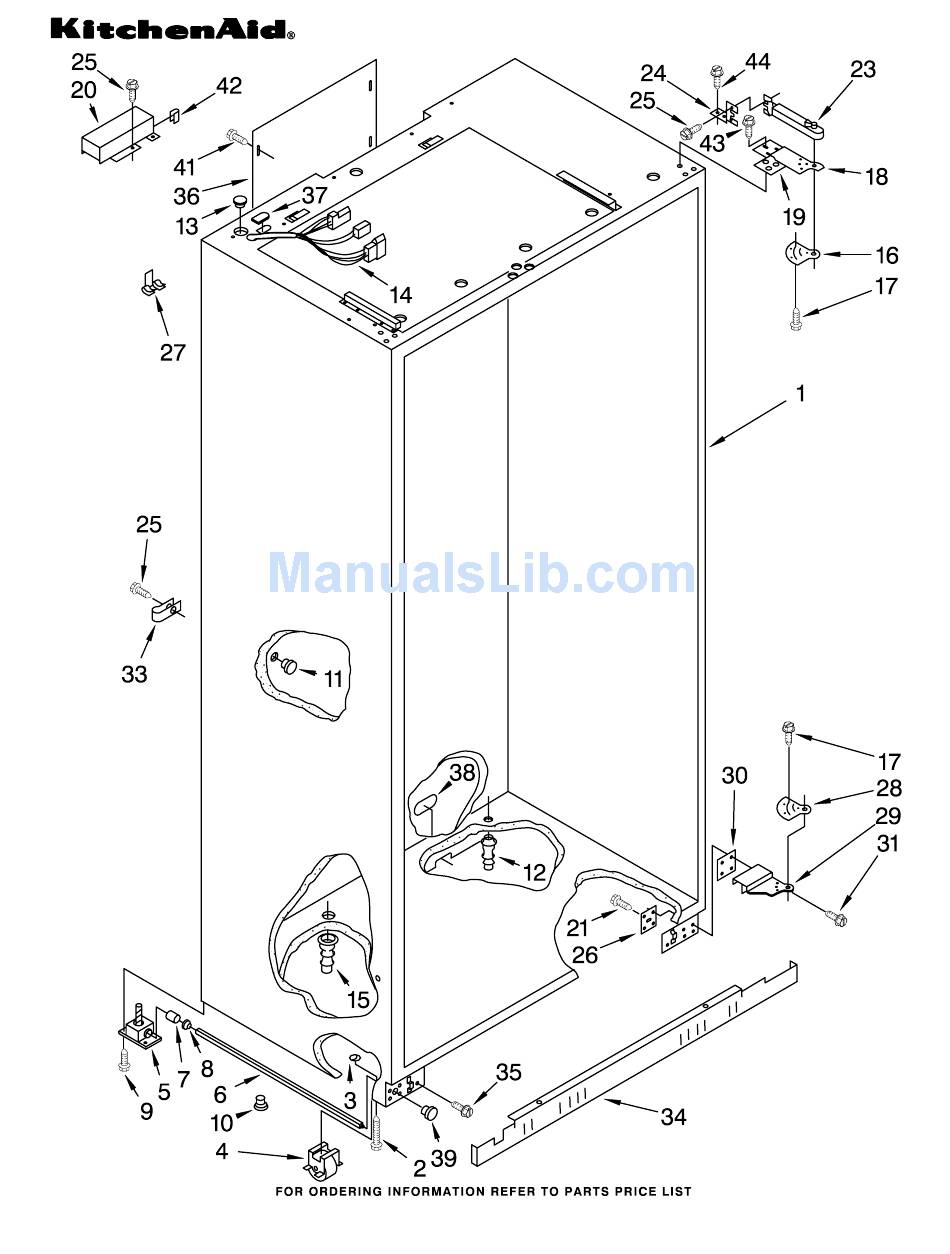

  • Page 2: Cabinet Parts

    12 1112970 Grommet, Water Tube 13 1113122 Grommet, Wiring 2000831 Wiring Harness, Cabinet 15 1112848 Drain Fitting CABINET PARTS For Model: KSSS42DAW03 Illus. Part DESCRIPTION Gap, Cover Assembly (Top) 2000305 Left Side 2000304 Right Side 17 2001295 Shoulder Screw Hinge (Top)
  • Page 3 CABINET TRIMS AND BREAKER TRIM PARTS For Model: KSSS42DAW03 4379165...
  • Page 4 5 1112682 Magnet, Side (4) 6 1112684 Magnet, Freezer (2) 7 1112680 Magnet, Refrigerator (2) TOP GRILLE AND UNIT COVER PARTS For Model: KSSS42DAW03 Illus. Part DESCRIPTION 9 2001390 Cabinet, Trim R.S 2001391 Cabinet, Trim L.S 11 2001297 Screw 12 2001189...
  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: KSSS42DAW03 4379165...
  • Page 6: Liner (Not A Serviceable Part)

    REFRIGERATOR LINER PARTS For Model: KSSS42DAW03 Illus. Part DESCRIPTION LINER (Not A Serviceable Part) 2 1112591 Spacer, Control Panel (3) 843436 Grommet, Screw (3) 5 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw, 8 x 1−1/4 (8)
  • Page 7: Table Of Contents

    4379165 FREEZER LINER PARTS For Model: KSSS42DAW03 Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 538533 Support Clip, Icemaker (2) 7 2000193 Grommet, Screw (2) 488552 Screw, 10−12 x 3/8 (2) 992720 Stud, Support (4) 486194 Screw, 8 x 1/2...
  • Page 8: 486194 Screw, 8 X

    5 1113169 Stop, Roller 488307 Washer 486194 Screw, 8 x 1/2 8 1113126 Bracket, Motor 2155271 Motor Assembly ICE CONTAINER PARTS For Model: KSSS42DAW03 Illus. Part DESCRIPTION 489399 Screw 983663 Coupling, Motor 12 1112613 Socket, Light 13 1113129 Cover, Motor 487294 Screw, 8−32 x 3/8...
  • Page 9: Panel

    REFRIGERATOR CONTROL PANEL PARTS 4379165 For Model: KSSS42DAW03 Illus. Part DESCRIPTION 1 1112641 Control Panel 2 2000975 Inlay, Control Panel 3 2000789 Circuit Board 4 2001738 Control Knob 837444 Retainer, Knob 6 1108112 Switch, Rocker Arm 7 1113135 Seal, Control...
  • Page 10 FREEZER CONTROL PANEL PARTS For Model: KSSS42DAW03 Illus. Part DESCRIPTION 1 1112596 Control Panel 2 1113964 Inlay, Control Panel 3 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 851387 Switch, Rocker Arm (Dispenser Motor) 6 1113134 Seal, Control Panel 489260...
  • Page 11: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Model: KSSS42DAW03 4379165...
  • Page 12: Freezer Shelf Parts

    Gasket, Glass (2) 5 1125913 Rack, Wine 1113551 Frame Assembly 9 1113894 Cover, Crisper 10 2000155 Glass, Crisper FREEZER SHELF PARTS For Model: KSSS42DAW03 Illus. Part DESCRIPTION 14 2000888 Crisper Pan 15 1113870 Roller 1113871 Eyelet, Roller 489211 Screw, 10−16 x 3/4...
  • Page 13: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: KSSS42DAW03 4379165...
  • Page 14 REFRIGERATOR DOOR PARTS For Model: KSSS42DAW03 Illus. Part DESCRIPTION 1 2000694 Door Panel, Refrigerator (Also Order Item 29) 939101 Screw Anchor (8) 3 2000696 Hinge Assembly, 4 2001396 Spacer, Top 489282 Screw 6 2000698 Hinge Assembly, Bottom 7 1112533 Gasket Retainer,...
  • Page 15: Freezer Door Parts

    FREEZER DOOR PARTS For Model: KSSS42DAW03 4379165...
  • Page 16 FREEZER DOOR PARTS For Model: KSSS42DAW03 Illus. Part DESCRIPTION 1 2001137 Exterior Door Panel, Freezer (Includes Insulation) 2 1112997 Tube, Wiring 3 1112928 Retainer, Tube 6 2000720 Hinge, Bottom 489282 Screw 2000721 Hinge, Top 9 2001396 Spacer Plate 10 2001395...
  • Page 17 DISPENSER AND FRONT PARTS For Model: KSSS42DAW03 4379165...
  • Page 18 15 2147168 Ice Door 489000 Screw, 9−12 x 1/2 17 2155815 Lever, Ice Dispenser 18 1129333 Shroud, Control 987917 Bearing, Clip For Model: KSSS42DAW03 Illus. Part DESCRIPTION 20 2159199 Lever, Water Dispenser 488307 Washer 983696 Spring, Lever 983697 Bearing, Lever...
  • Page 19 UPPER UNIT PARTS For Model: KSSS42DAW03 4379165...
  • Page 20 16 1113015 Condenser 943447 Grommet (4) 18 1113019 Clamp (4) 487522 Screw, 8−32 x 5/8 (4) UPPER UNIT PARTS For Model: KSSS42DAW03 Illus. Part DESCRIPTION 20 1113228 Wire Tie (2) 21 1108023 Drier 22 2000358 Mounting Bracket, Motor 23 1113081...
  • Page 21 LOWER UNIT AND TUBE PARTS For Model: KSSS42DAW03 4379165...
  • Page 22 LOWER UNIT AND TUBE PARTS For Model: KSSS42DAW03 Illus. Part DESCRIPTION 1 2000528 Defrost Bi−Metal 2 1113043 Clamp, Bi−Metal 486194 Screw, 8 x 1/2 4 1113293 Tube, Connect (Suction) 5 1113209 Tube, Connect (Discharge) 6 1113296 Tube, Flow Divider (2)
  • Page 23 AIR FLOW AND RESERVOIR PARTS For Model: KSSS42DAW03 4379165...
  • Page 24 AIR FLOW AND RESERVOIR PARTS For Model: KSSS42DAW03 Illus. Part DESCRIPTION 1 2001086 Fan Motor 3 2154800 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw, 8 x 1/2 8 2000618 Motor, Wiring 10 1129179 488366 Clamp, Tube...
  • Page 25: Icemaker Parts

    ICEMAKER PARTS For Model: KSSS42DAW03 4379165...
  • Page 26 Harness 14 2001354 Copper, Water Line 489348 Clamp, Nylon Valve 16 1113066 Clamp Tube 487857 PARTS NOT ILLUSTRATED ICEMAKER PARTS For Model: KSSS42DAW03 Illus. Part DESCRIPTION 628355 Cover 628228 Mold & Heater (Also Order 542638 Silicone Grease) 628258 Motor 628356 Cup−Water Fill...
