Related Manuals for KitchenAid KSSS42DWX00
Summary of Contents for KitchenAid KSSS42DWX00

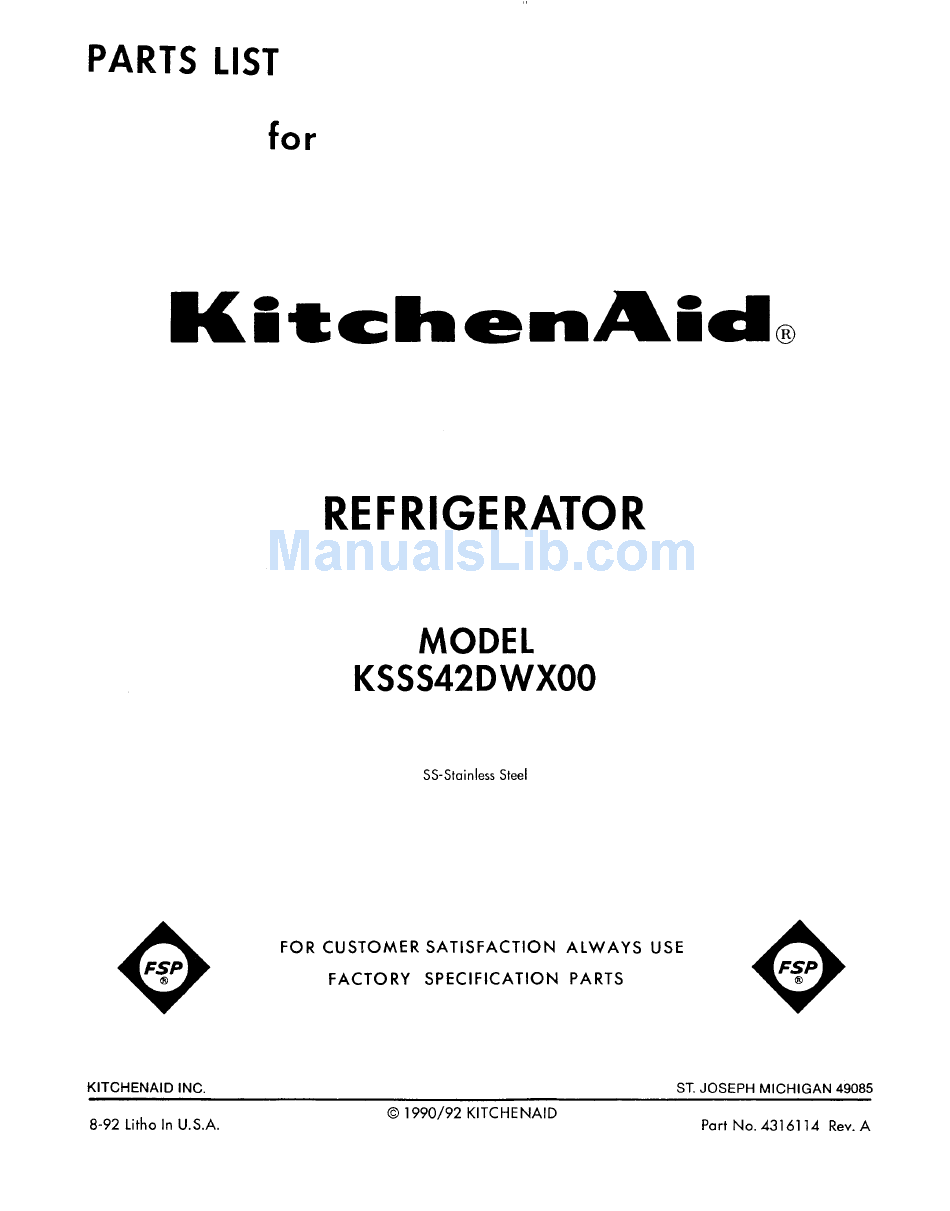

- Page 3 Cabinet (Not A Serviceable Part) 1112019 Leveler, Front (2) 1113249 Retainer (2) 1112023 Roller, Front & Rear (4) 1112695 Leveler, Adjustable (2) 1112936 Adjusting Rod (2) 1113250 Sleeve, Retainer (2) 1112937 Bushing, Rod (2) 2000489 Screw, 10-32 x 5/8 1112939 Hole Plug, Leveler 1112849 Cap, Grommet...
- Page 5 1112676 Breaker Trim, (One Piece) 1113277 Retainer Side (4) 1112690 Retainer Trim Freezer (2) 1112686 Retainer Trim Refrigerator (2) 1112682 Magnet, Side (4) 1112684 Magnet, Freezer (2) 1112680 Magnet, Refrigerator (2) 1112711 Heater, Mullion 1113836 Trim (R.S.) 1113835 Trim (L.S.)
- Page 7 LINER (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 843436 Grommet, Screw (3) 842339 Grommet 1112115 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw, 8 x 1-1/4 (8) 486194 Screw, 8 x 1/2 1112257 Hole Plug 1112127 Cover, Liner Back 1112219 Control Panel Assembly (Meat)
- Page 9 Liner (Not A Serviceable Part) 1112272 Ladder, Shelf (2) 1112271 Spacer, Ladder (4) 489193 Screw (4) 538533 Support Clip, Icemaker (2) 538532 Grommet, Screw (2) 488552 Screw, 10-12 x 3/8 (2) 992720 Stud, Support (4) Rail, Evaporator Cover 1112841 Left Side 1112842 Right Side 486194...
- Page 11 Spacer, Track 1112282 Left Side 1112281 Right Side 1113870 Roller 1113871 Eyelet, Roller 1113169 Stop, Roller 488307 Washer 486194 Screw, 8 x 1/2 1113126 Bracket, Motor 1113960 Motor Assembly 488906 Screw, 8-32 x 5/16 983663 Coupling, Motor 1112613 Socket, Light 1113129 Cover, Motor 487294...
- Page 13 1112641 Control Panel 1113962 Inlay, Control Panel 1113390 Circuit Board 1116853 Control Knob 837444 Retainer, Knob 1108112 Switch, Rocker Arm 1113135 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 1113774 Shield, Control Panel 1112613 Socket, Light (2) 547225 Light Bulb (2) 486194 Screw, 8 x 1/2...
- Page 15 1112596 Control Panel 1113964 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 851387 Switch, Rocker Arm (Dispenser Motor) 1113134 Seal, Control Panel 489260 Screw (3) 534927 Hole Plug (3) 1113768 Shield, Control Panel 1112613 Socket, Light 486194 Screw, 8 x 1/2 547225 Light Bulb...
- Page 17 1113543 Frame, Shelf 1113545 Glass, Shelf 1113547 Reflector, Shelf 1113791 Gasket, Glass (2) 1125913 Rack, Wine 1113551 Frame Assembly 1113894 Cover-Crisper 1113563 Glass, Crisper 1113883 Crisper Pan 1113870 Roller 1113871 Eyelet, Roller 489211 Screw, 10-16 x 3/4 488307 Washer 1113885 Utility Pan 1113555 Meat Pan...
- Page 19 1112366 Solid Shelf 1112394 Front, Ice Compartment 1113565 Shelf, Fixed (2) 1113567 Shelf, Cantilever 1112316 Front, Basket 1112321 Overlay, Front 1113870 Roller 1113871 Eyelet, Roller 489211 Screw, 10-16 x 3/4 488307 Washer 1112336 Basket (Small) 1112312 Side, Basket (Left Side) 1112313 Side, Basket (Right Side) 1112296...
- Page 21 1113937 Door Panel, Refrigerator (Also Order Item 29) 939101 Screw Anchor (8) 1112288 Hinge Assembly, Top (R.S.) 1112940 Spacer 489282 Screw 1112067 Hinge Assembly, Bottom (R.S.) 1112533 Gasket Retainer, Side (2) 1112541 Gasket Retainer, Top & Bottom 1112548 Door Gasket, Magnetic...
- Page 23 1113927 Exterior Door Panel, Freezer (Also Order Item 4) 1112997 Tube, Wiring 1112928 Retainer, Tube 876029 Kit, Foam Slab (Required When Replacing Exterior Door Panel) 1112978 Insulation, Dispenser 1112063 Hinge, Bottom L.S. 489282 Screw 1112164 Hinge, Top L.S. 1112940 Spacer Plate Expansion (2) 1112951 Wiring Harness, Freezer Door 1112533...
- Page 25 1107943 Housing, Dispenser 987049 Bracket, Watter Fitting 2155037 Water Fitting, Dispenser 487916 Screw, 8 x 3/8 987053 Water Tube 841707 Insert, Tube 488878 Clamp, Tube 488886 Screw, 8-18 x 1/2 488316 Screw, 8-18 x 3/4 987048 Grommet 2157430 Heater, Ice Dispenser 938669 Ice Door Mechanism 983691...
- Page 27 1113005 Assembly, Unit Base 1113386 Assembly, Sound Barrier 4210577 Compressor (Includes Items 8, 9, 10, & 11) (Also Order) 876765 Tube Kit 1105220 Bracket, Mounting 1105219 Grommet, Bracket 1105200 Grommet, Mounting 489334 Screw 1113273 Overload 1105221 Terminal Cover 1105222 Strap, Cover 1108066 Relay 1118576...
- Page 28 4318418 Top Grille Trim Kit (7-1/2") 4210570 Front Panel Kit (White) 4210569 Front Panel Kit (Black) 4211160 Front Panel Kit (Almond) 4210594 Front Panel Kit (Stainless Steel) 978849 Black Acrylic Static Cleaner LITERATURE PARTS LIT1113586 Use & Care Guide LIT2000144 Energy Label LIT1113589 Service &...
- Page 30 1113044 Defrost Bi-Metal 1113043 Clamp, Bi-Metal 486194 Screw, 8 x 1/2 1113293 Tube, Connect (Suction) 1113209 Tube, Connect (Discharge) 1113296 Tube, Flow Divider (2) 1113292 Valve, Fluid Control 1113294 Tube, Connect (Drier) 1113061 Heater, Drain Pan 1113062 Hanger, Heater 1113105 Bracket, Heater 487534 Screw, 8 x 1...
- Page 32 945523 Fan Motor 992953 Compression Ring 992920 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw, 8 x 1/2 538449 Grommet, Screw 488500 Screw, Ground 942842 Terminal Block 1112529 Baffle, Evap 1112734 Channel, Wiring 1112703 Wiring Harness, Fan Motor 1111212 Scroll, Fan (Also Order Item 15) 488772...
- Page 34 489084 Screw, 8 x 1/2 1112845 Fitting, Water Tube 488878 Clamp, Tube 841707 Insert, Tube 628379 Clip, Fuse 836074 Dampener 1113371 Tube, Water 1106508 Seal Gasket 488645 Screw, 8 x 1/2 (2) 1113103 Valve, Solenoid 627018 Nut, Compression 227991 Connector, Wire 488292 Washer 1113106...
- Page 36 1113867 Grille, Frame Assembly 1113864 Decorative Panel Assembly 1113355 Back Up Panel 1113324 Bracket, Keyhole Mounting (2) 1113326 Shoulder Screw (2) 489232 Spring Washer (4) 486255 Nut (4) 489172 Nut (8) 1113861 Top Grille Assembly 1113490 Cover, Unit 486194 Screw, 8 x 1/2 1113300 Cover, Component Assembly...
