ALEPH1 CONTROLLERS
T O U C H I N T E R F A C E C O N T R O L L E R S F O R A L E P H 1 L E D L I G H T S
Features
Touch-screen interface
•
RGB and single colour strip dimming
•
Up to 24 changing patterns or modes
•
Auto sensing 12 to 24V DC
•
Constant voltage PWM signal output
•
Smooth dimming
•
Power-loss memory recovery function
•

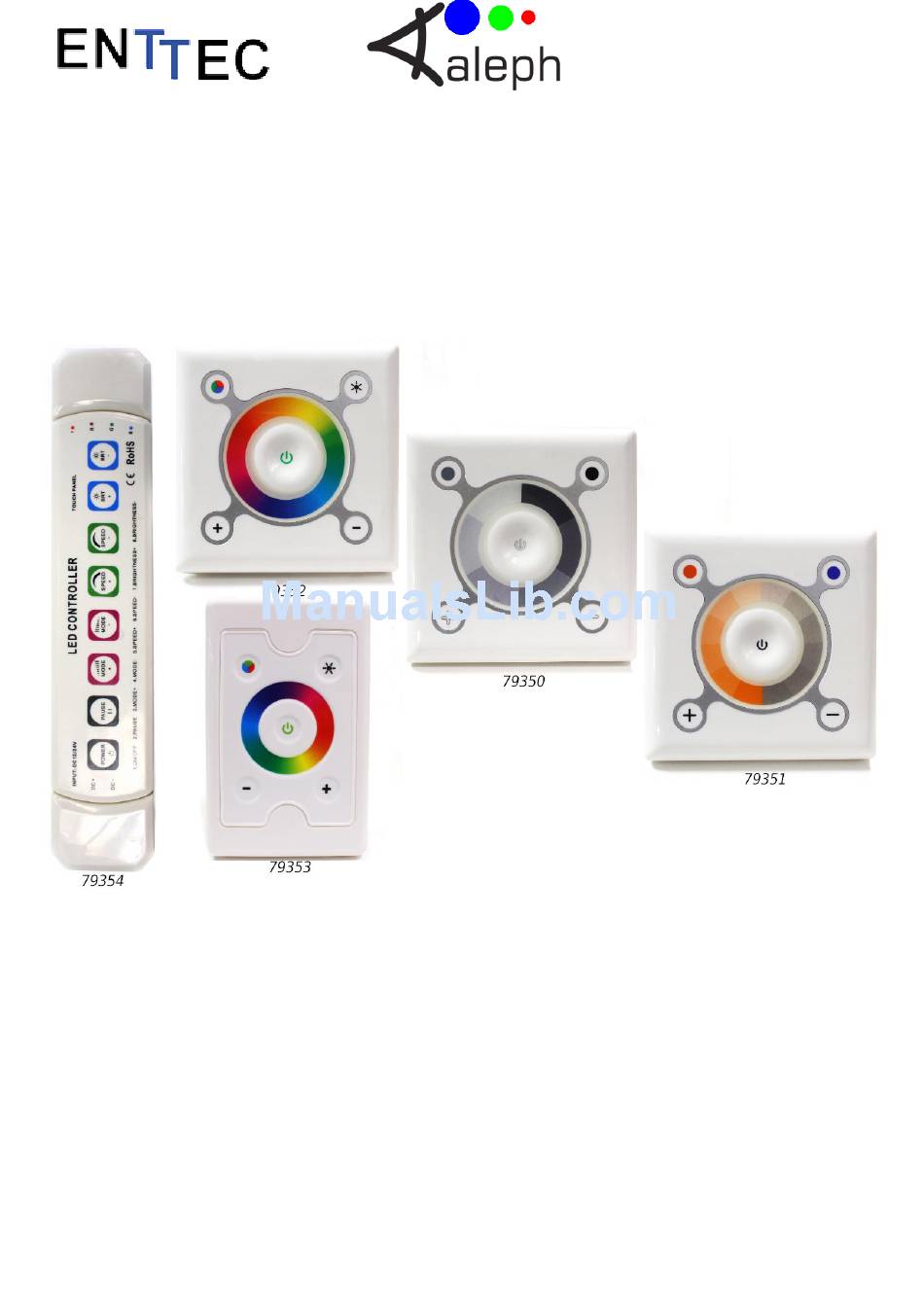

7 9 3 5 0 / 7 9 3 5 1 / 7 9 3 5 2 / 7 9 3 5 3 / 7 9 3 5 4
Introduction
The ALEPH1 interface touch controllers range is designed to
control RGB and single colour LED luminaries featuring a
unique touch interface technology with the function keys.
User does not need to have even small pressure on the keys
to create colour patterns.
This user oriented controller range can make automatic
recognition of 12 or 24V DC and with PWM in-built MCU can
perform smooth dimming for LED strips.
User Manual
rev B
Document PN: 50386
Advertisement
Table of Contents
Related Manuals for Enttec ALEPH1
Summary of Contents for Enttec ALEPH1
- Page 1 7 9 3 5 0 / 7 9 3 5 1 / 7 9 3 5 2 / 7 9 3 5 3 / 7 9 3 5 4 Features Introduction Touch-screen interface The ALEPH1 interface touch controllers range is designed to • control RGB and single colour LED luminaries featuring a RGB and single colour strip dimming •...
- Page 2 79361 Dimensions: The ALEPH1 RGB 8 BUTTONS TOUCH PANEL LED CONTROLLER is designed to control RGB strips driving up to 6 Amps per channel. It has 16 pre-positioned changing patterns and 20 levels for brightness adjustments. Also supports 3 different remote wireless controls (sold separately) adding great flexibility.
- Page 3 User Manual rev B Document PN: 50386 Back Panel: The ALEPH1 RGB SQUARE WALLMOUNT TOUCH LED CONTROLLER is designed to control RGB colour LED strips driving up to 3 Amps per each red, green or blue channel. It has 16 pre-positioned static and dynamic patterns and brightness of all 64 colours in RGB full colour touch surface ring can be adjusted.
-
Page 4: Specifications
Button Previous pattern (in pattern selection mode) Decrease speed (in speed selection mode) Decrease brightness ( in brightness mode) The ALEPH1 WARM WHITE + COOL WHITE (CTA) SQUARE Button Previous pattern (in pattern selection mode) WALLMOUNT TOUCH LED CONTROLLER is designed to...
